Description
The Crestron Flex UC-ENGINE-BRKT-Z-UPGRD-BRKTX is an advanced upgrade solution designed to transform existing UC-B, UC-MM, or UC-C series room systems into fully integrated BYOD-enabled Zoom Rooms environments. Built for enterprise scalability, this solution enables seamless collaboration through native Zoom Rooms software while also supporting bring-your-own-device functionality for flexible meeting experiences.

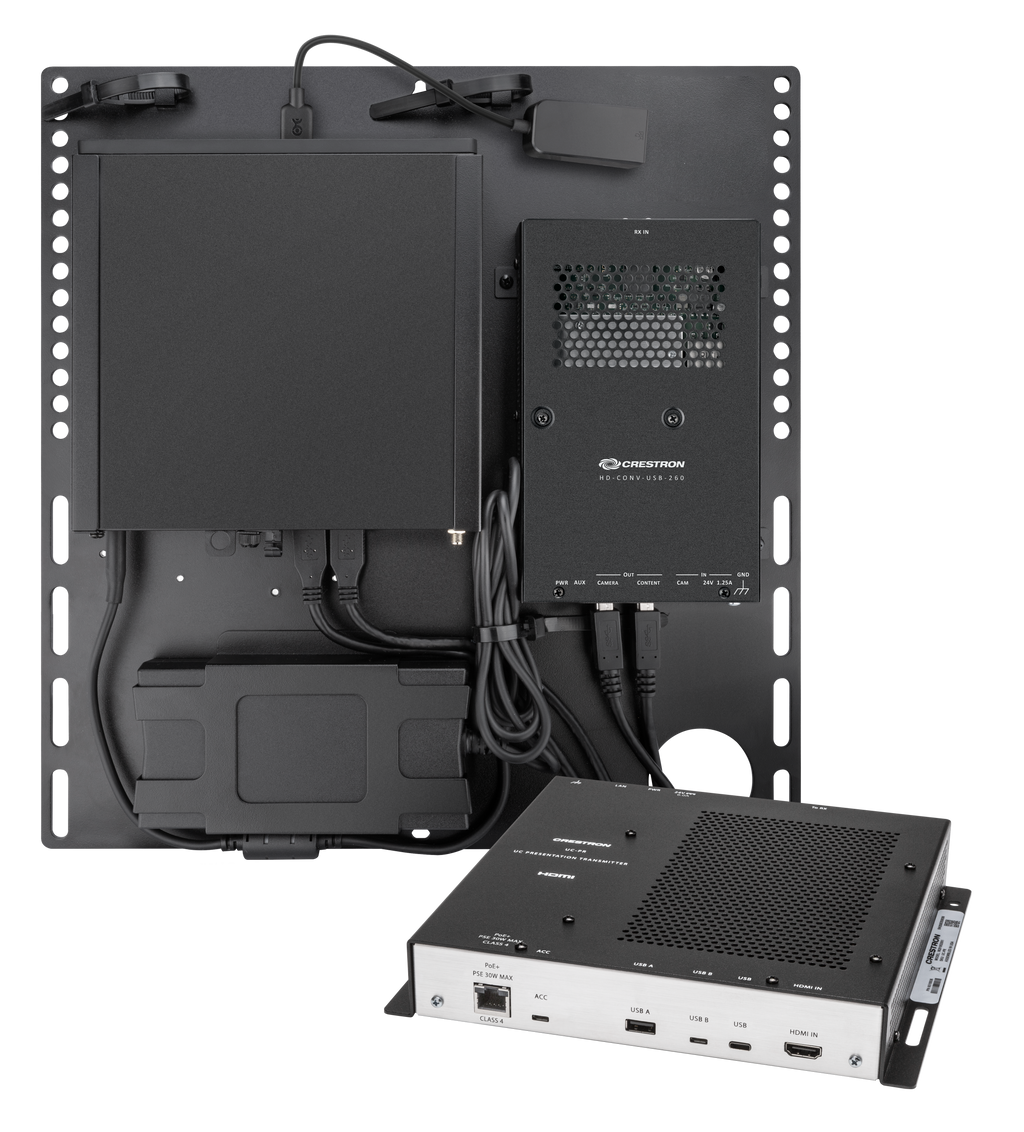

The included UC Bracket Assembly simplifies deployment by integrating a preconfigured UC Engine, mounting hardware, and content ingest capabilities into a single, ready-to-install unit. The UC Presentation Transmitter enhances collaboration by allowing users to connect their personal devices and instantly switch between native Zoom Rooms and external conferencing platforms.
Designed for reliability, security, and centralized management, this solution leverages XiO Cloud for remote provisioning, monitoring, and system control. With support for up to three displays and high-resolution output, it delivers a consistent, high-performance conferencing experience across enterprise environments.
| Category | Specification |
|---|---|
| Solution Type | Room system upgrade kit for Crestron Flex UC-B/MM/C series |
| Platform Compatibility | Native Zoom Rooms software with BYOD support |
| BYOD Functionality | Supported via UC Presentation Transmitter with automatic switching |
| Included Components | UC Bracket Assembly, UC Presentation Transmitter (UC-PR), DisplayPort to HDMI cable, CAT6a Ethernet cable |
| UC Engine | Mini PC with Intel Core processor and Windows 11 IoT Enterprise |
| Management Platform | XiO Cloud remote provisioning and monitoring |
| Display Support | Supports up to three displays |
| Display Output Resolution | Up to 4K, 21:9, and 1080p |
| Content Ingest | HDMI via CAT5 to USB 3.0 converter |
| Mounting Options | Wall mount or rear display mounting via VESA-compatible brackets |
| Bracket Construction | Metal enclosure, black finish, preassembled |
| Bracket Dimensions | 15.00 in. H x 14.50 in. W x 1.87 in. D |
| Bracket Weight | 8.0 lb (3.7 kg) |
| UC Presentation Transmitter Video Input | HDMI, DisplayPort via USB-C |
| UC Presentation Transmitter Output | HDMI over CAT5 |
| Supported Resolution (Transmitter) | Up to 1080p |
| HDCP Support | HDCP 1.4 and 2.2 |
| Audio Support | HDMI and DisplayPort via USB-C |
| Network Connectivity | Ethernet 10/100 Mbps, auto-negotiating |
| USB Interfaces | USB 2.0 and USB 3.0 ports |
| Device Charging | Up to 60W via USB-C |
| Power Requirements | UC Engine: 100–240VAC; Transmitter: 24VDC power supply |
| Transmitter Dimensions | 1.58 in. H x 9.25 in. W x 8.20 in. D |
| Transmitter Construction | Metal chassis with ventilation and mounting flanges |
| Security | Enterprise-grade secure network communication |
| Deployment | Preassembled system for rapid installation |
