Description

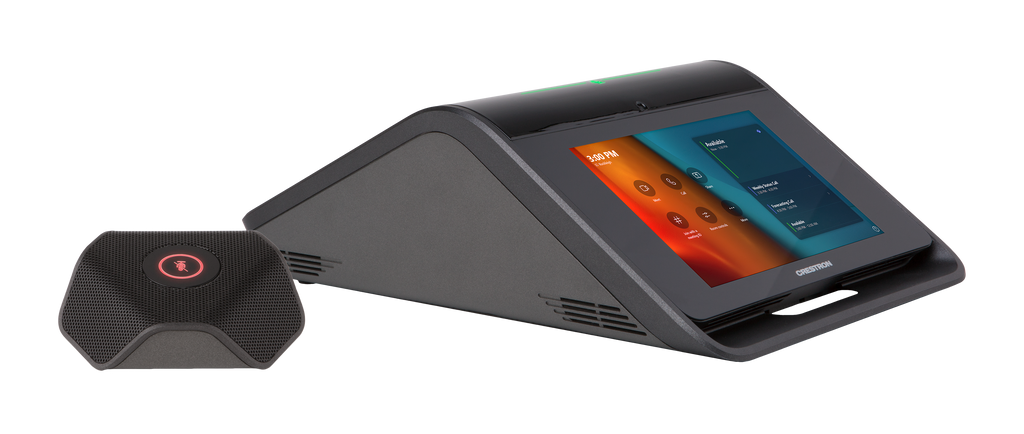

The Crestron Flex UC-M70-NC-T is a complete tabletop conferencing solution designed for large meeting spaces, delivering a native Microsoft Teams Rooms experience with enterprise-grade performance, security, and scalability. Built for seamless collaboration, this system combines a powerful UC engine, intuitive touch interface, and high-quality audio components to enable consistent, one-touch meeting experiences across corporate environments.

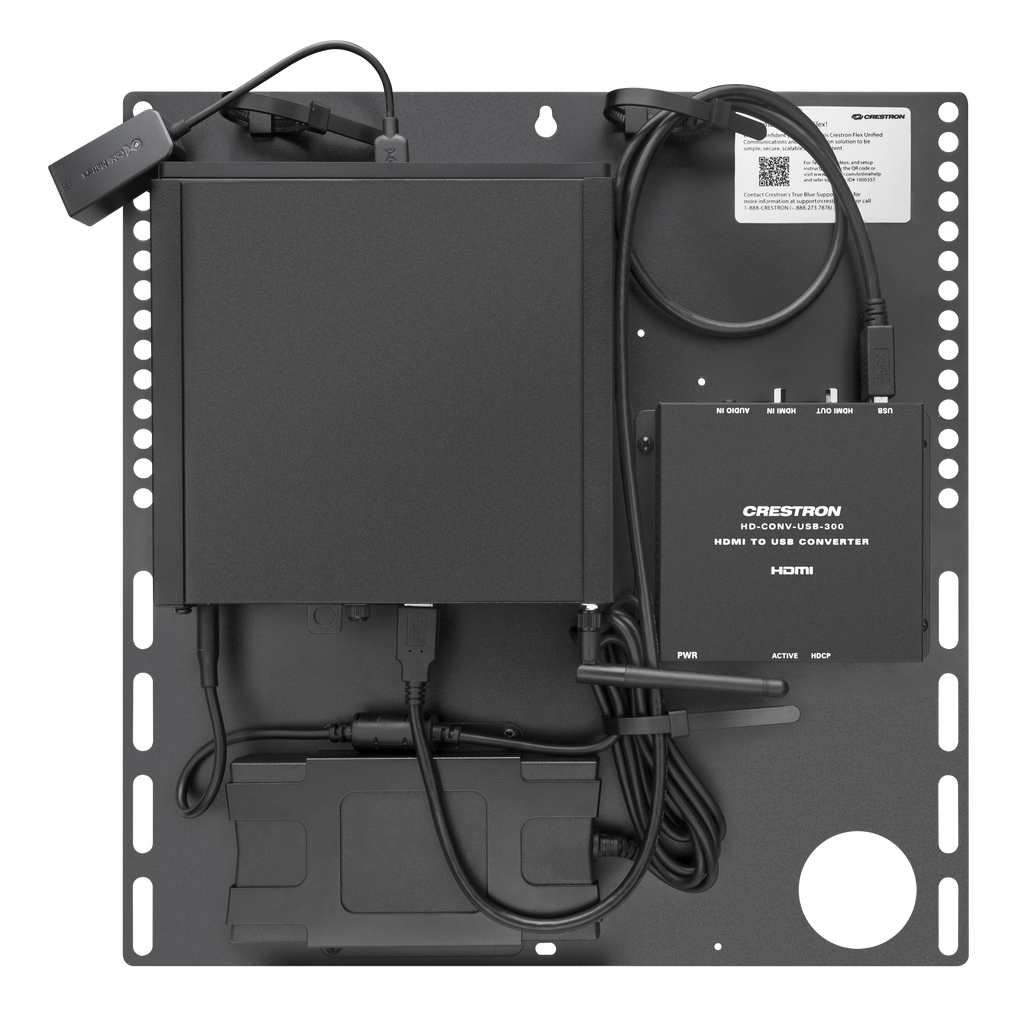

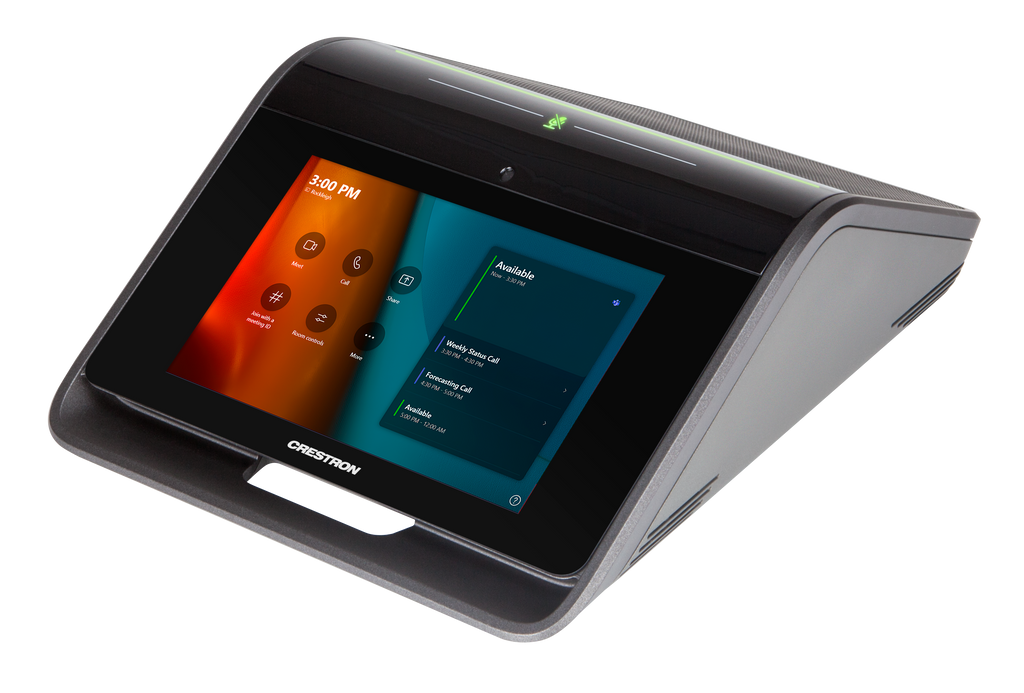

Featuring a 7-inch HD touch screen and an advanced speakerphone with acoustic echo cancellation and full-duplex audio, the system ensures crystal-clear communication in large rooms. The included UC Bracket Assembly simplifies deployment with a preconfigured mini PC, content ingest converter, and mounting hardware, enabling fast installation behind or near displays.
With support for dual displays, extended microphone coverage, and integration with Crestron control systems, the UC-M70-NC-T enhances room functionality beyond conferencing, enabling control of lighting, climate, and AV systems. Cloud-based management through XiO Cloud allows IT teams to deploy, monitor, and manage devices at scale, making it ideal for enterprise-wide rollouts.
| Category | Specification |
|---|---|
| System Type | Tabletop conference system for Microsoft Teams Rooms |
| Room Size | Large rooms |
| UC Platform | Microsoft Teams Rooms |
| Touch Screen | 7-inch capacitive multi-touch display, 1280 x 800 resolution |
| User Interface | Microsoft Teams Rooms UI with optional Crestron room control |
| Audio Features | Acoustic echo cancellation, automatic gain control, noise reduction, full-duplex audio |
| Speaker | Full-range speaker, 11W amplifier, 95 dB SPL |
| Microphone Array | 360° quad microphone array with 20 ft (6 m) pickup range |

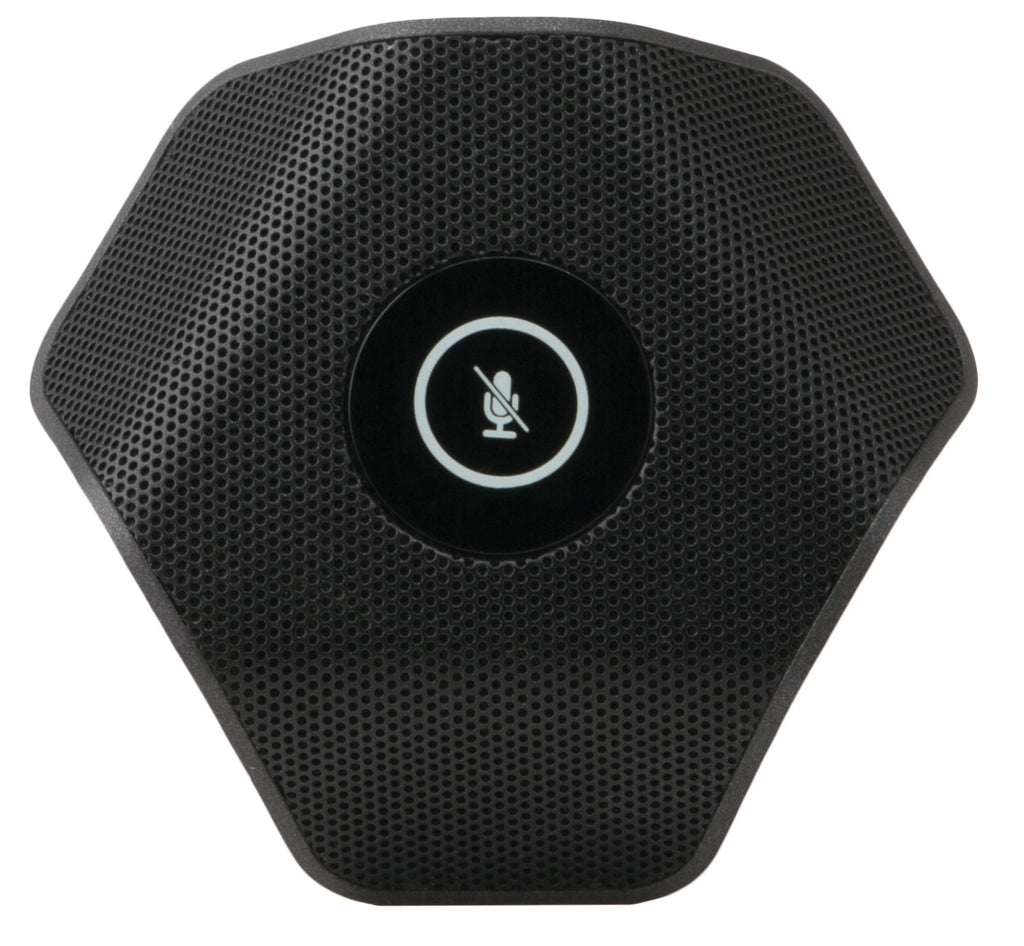

| Extension Microphone | Included (CCS-UCA-MIC), supports additional mic pods |
| UC Engine | Mini PC with Intel Core processor, Windows 11 IoT Enterprise |
| Content Sharing | HDMI input via HDMI to USB 3.0 converter |
| Display Support | Single or dual display output |
| Video Resolution | Up to 1080p |
| Connectivity | Ethernet, USB 2.0, HDMI |
| Network Features | DHCP, TCP/IP, SSL, TLS, 802.1X authentication, Active Directory support |
| Device Management | XiO Cloud provisioning and monitoring support |
| Power Supply | PoE+ (IEEE 802.3at) or external 24VDC power pack |
| Mounting | Wall mount or rear display mount (VESA compatible) |
| Construction | Metal bracket assembly with preinstalled components |
| Dimensions (Touch Device) | 4.11" H x 8.92" W x 12.74" D |
| Weight (Touch Device) | 5.5 lb (2.5 kg) |
| Dimensions (Bracket Assembly) | 15.0" H x 14.5" W x ~1.9" D |
| Weight (Bracket Assembly) | ~7.7–7.95 lb |
| Included Components | Tabletop device, UC bracket assembly, microphone pod, cables, power supply |
