Description

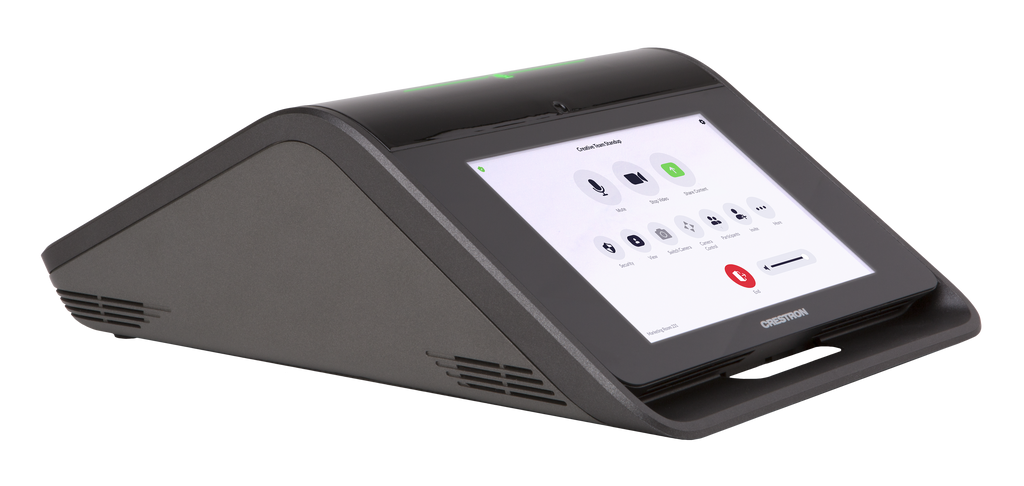

The Crestron Flex UC-M50-NC-Z is a complete tabletop conferencing solution designed for medium-sized meeting rooms running Zoom Rooms software. It delivers a consistent, one-touch meeting experience with a responsive 7-inch HD touch interface and integrated high-performance speakerphone.

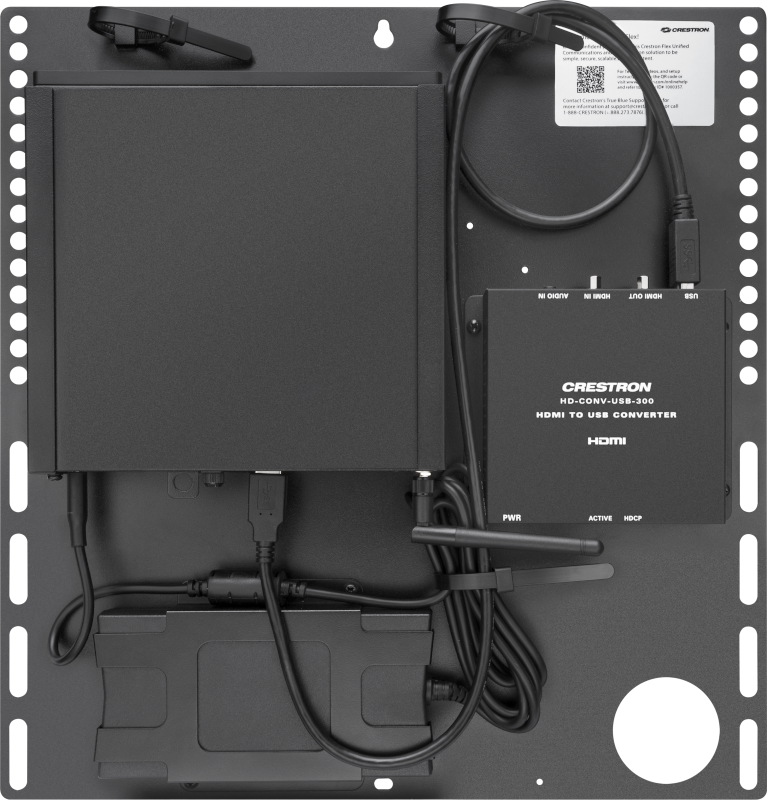

Engineered for enterprise deployments, this system combines powerful collaboration capabilities with simplified installation. The included UC bracket assembly comes preconfigured with a UC Engine, enabling fast deployment behind displays or on walls. With support for single or dual displays and seamless content sharing, the UC-M50-NC-Z ensures efficient and professional meetings in any modern workspace.
Advanced audio technologies, including acoustic echo cancellation, automatic gain control, and a 360-degree microphone array, provide clear, natural communication. Combined with enterprise-grade security and cloud-based management via XiO Cloud, this system is built to scale across organizations while maintaining reliability, performance, and ease of management.
| Category | Specification |
|---|---|
| Product Type | Tabletop conference system for Zoom Rooms |
| Room Size Compatibility | Medium rooms |
| User Interface | 7-inch capacitive multi-touch LCD, 1280 x 800 resolution |
| Conferencing Platform | Native Zoom Rooms software |
| Audio Features | Full-duplex audio, acoustic echo cancellation, noise reduction, automatic gain control |
| Microphone System | 360° quad microphone array with up to 20 ft pickup range |
| Speaker | Full-range speaker, 11W amplifier, up to 95 dB SPL |
| Display Support | Single or dual displays (not included) |
| Video Output Resolution | Up to 1080p |
| Content Sharing | HDMI input via USB converter |
| UC Engine | Mini PC with Intel Core processor, Windows 11 IoT Enterprise |
| Network Connectivity | Dual-port Ethernet, 100/1000 Mbps, PoE+ support |
| Security | TLS, SSL, SRTP, 802.1X, Active Directory authentication |
| Device Management | XiO Cloud cloud-based provisioning and monitoring |
| USB Interfaces | USB 2.0 and USB 3.0 connectivity for peripherals |
| Power Options | PoE+ (IEEE 802.3at) or external 24V power supply |
| Mounting Options | Wall mount or VESA-compatible display mounting |
| Dimensions (Touch Device) | 4.11 in H x 8.92 in W x 12.74 in D |
| Weight (Touch Device) | 5.5 lb |
| Dimensions (UC Bracket) | Approx. 15.0 in H x 14.5 in W x 1.9 in D |
| Included Components | Touchscreen device, UC Engine, mounting bracket, cables, power supply |
| Expansion Support | Optional external microphone pods supported |
