Description

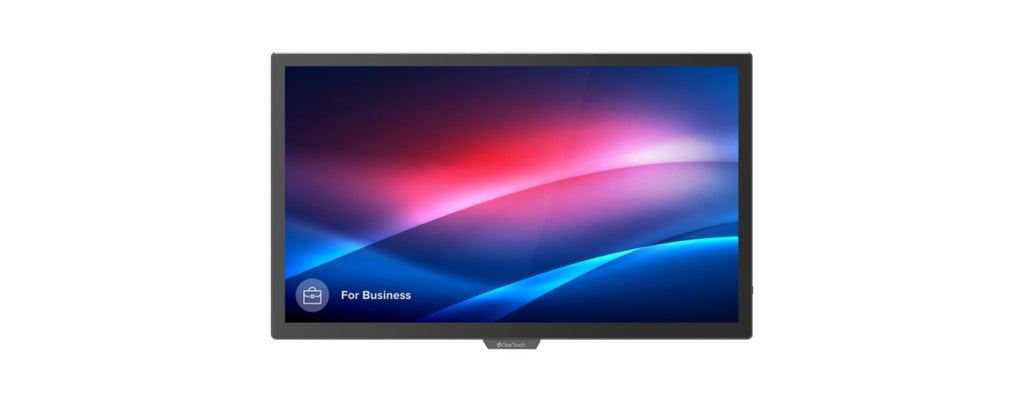

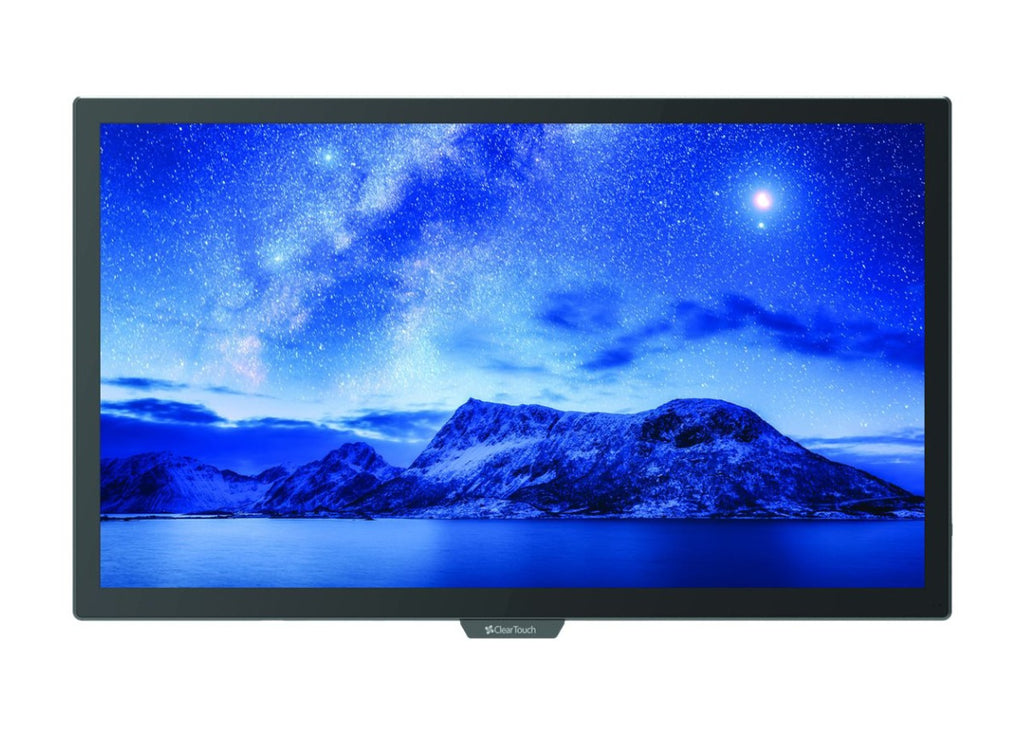

The Clear Touch CTI-6086A+UH40 6000A+ 86" Interactive Panel is designed for classrooms, training spaces, and collaborative environments that need a large-format display with responsive touch performance and powerful built-in features. Its 4K UHD resolution, 86-inch screen size, and 178-degree viewing angle help deliver clear visuals across the room.
Powered by Android 13 with an octa-core processor, 8GB RAM, and 64GB storage, this interactive panel supports smooth operation for presentations, lessons, annotation, video conferencing, and everyday collaboration. Up to 40 points of touch allow multiple users to write, draw, and interact at the same time.
The panel includes built-in Wi-Fi, Bluetooth support, a 2.2 channel speaker system, and an integrated microphone array for clear audio pickup. A top USB-C camera port, multiple HDMI inputs, DisplayPort, USB ports, LAN, RS-232, and audio connections make it easy to connect classroom and meeting room devices.
| Specification | Details |
|---|---|
| SKU | CTI-6086A+UH40 |
| Brand | Clear Touch |
| Product Line | Clear Touch 6000A+ Series |
| Product Type | LED-backlit LCD Interactive Panel |
| Screen Size | 86" |
| Resolution | 3840 x 2160 4K UHD |
| Operating System | Android 13 |
| Processor | Octa-Core: 4 x ARM Cortex-A76 + 4 x ARM Cortex-A55 |
| RAM | 8GB |
| Storage | 64GB |
| Aspect Ratio | 16:9 |
| Brightness | 400 cd/m² |
| Contrast Ratio | 4000:1 |
| Viewing Angle | 178° |
| Touch Points | Up to 40 |
| Glass | 3.2mm anti-glare, 9H hard glass |
| Backlight | Direct LED |
| Backlight Life | 50,000 hours |
| Refresh Rate | 60Hz |
| Response Time | 6.5 ms |
| Audio System | 2.2 channel speaker system |
| Speakers | 2 x 8W main speakers, 1 x 18W subwoofer |
| Total Audio Output | 52W |
| Microphone Array | Built-in microphone array |
| Wireless Connectivity | Built-in Wi-Fi, Bluetooth support |
| Wi-Fi Protocols | 802.11a/b/g/n/ac/ax |
| Bluetooth Version | Bluetooth 5.2 |
| Network | Ethernet LAN |
| HDMI Inputs | 3 |
| Video Interfaces | HDMI, DisplayPort |
| PC Interface | DisplayPort, USB-C |
| Connectivity | USB 3.0 front/rear, USB 2.0, USB-C camera port, HDMI output, LAN, RS-232, SPDIF, audio line-in/out, touch USB |
| Power Consumption | 265W operational |
| Max Power Consumption | 485W |
| Standby Power | 0.5W |
| Required Voltage | AC 100–240V, 50/60Hz |
| VESA Mount | 800 x 600mm |
| Dimensions | 77.2" W x 46.1" H x 3.9" D |
| Weight | 141.31 lbs |
| Color | Gray |
| Included Accessories | 2 styluses, dust protector, remote control, USB touch cable, USB-C cable |
| Certifications | Google EDLA, UL, ENERGY STAR |
| Warranty | 3-year limited warranty with product registration |
| Commercial Use | Yes |
