Description
The CyberPower OL1KRTHD Smart App Online UPS delivers continuous, high-quality power protection for mission-critical IT and network equipment. Featuring online double-conversion topology with a unity power factor, it provides consistent, clean sine wave output and zero transfer time to protect sensitive loads from power disturbances.

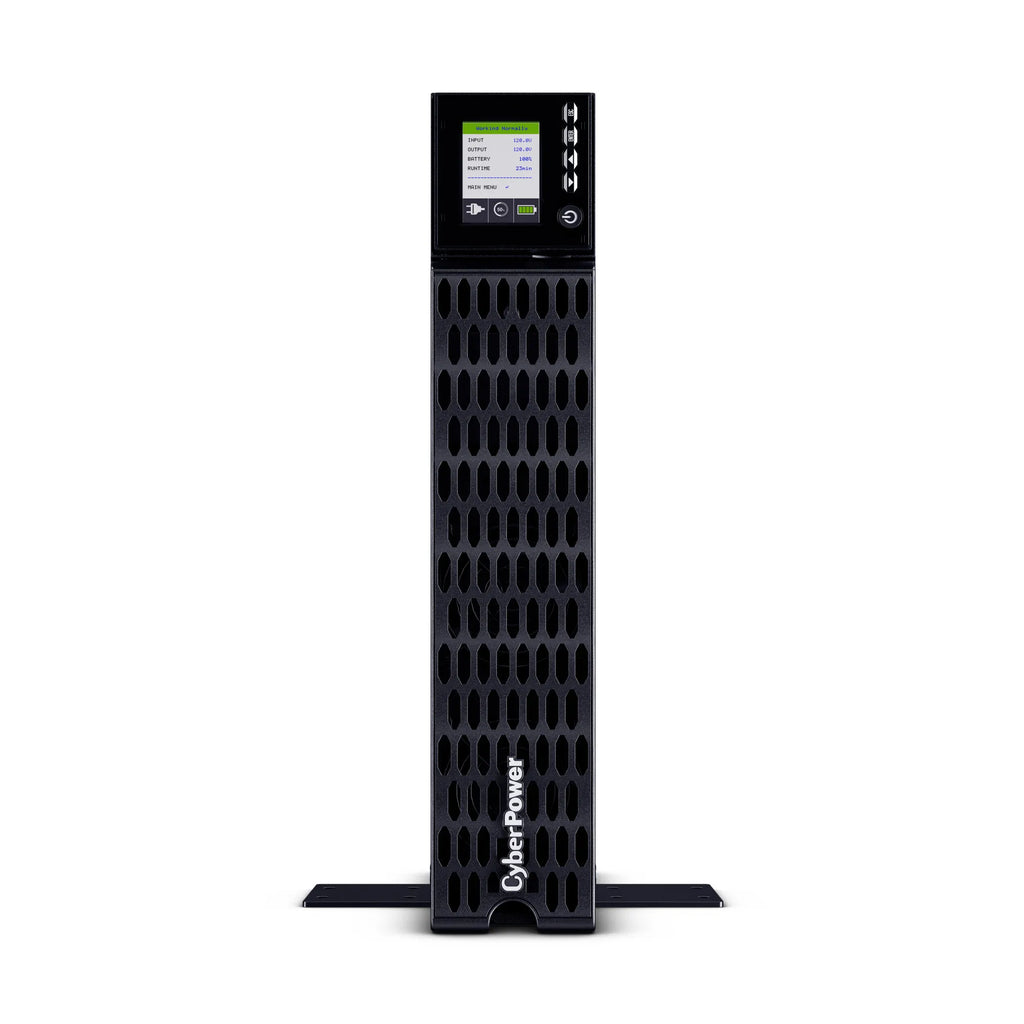

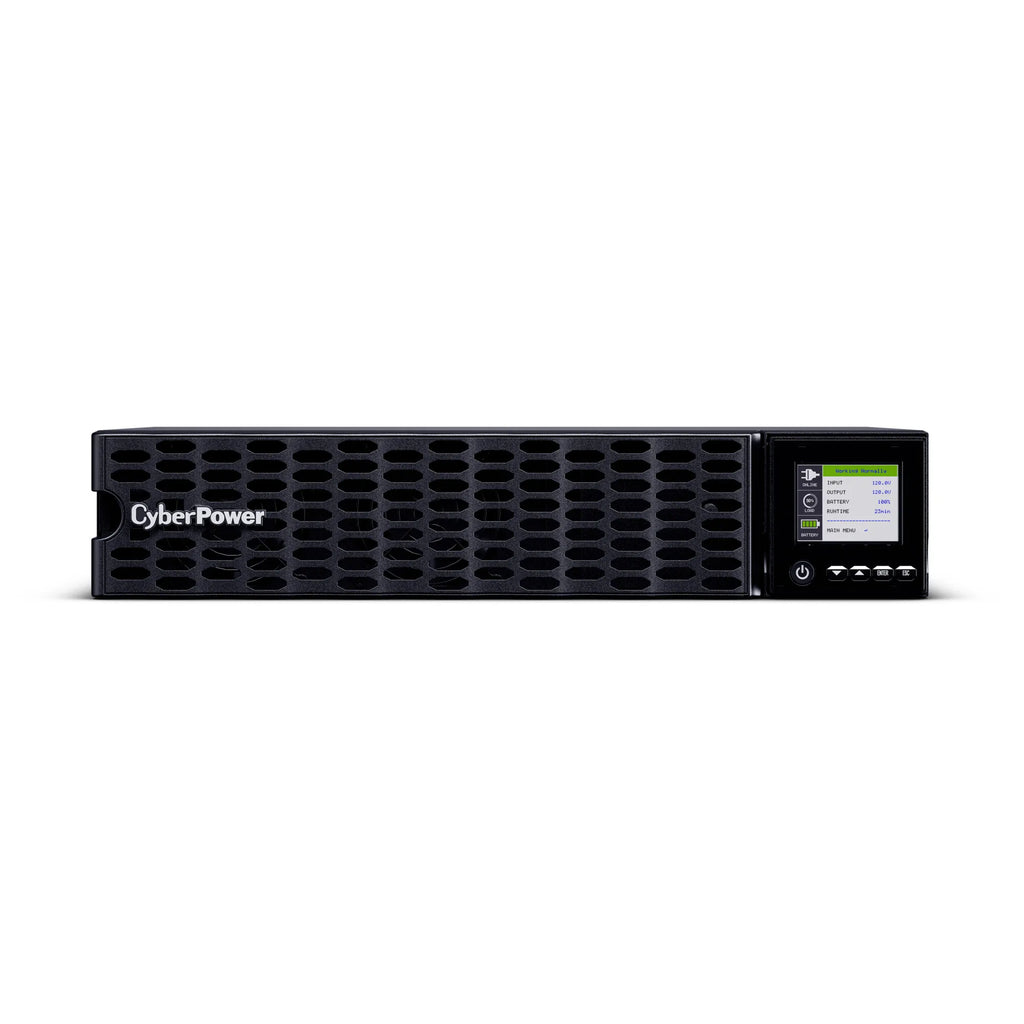

Designed for high-density environments, this 2U rack/tower UPS supports up to 1000 VA / 1000 W and includes ECO Mode technology to achieve efficiency greater than 96%, reducing energy consumption and heat output. A color TFT LCD with automatic rotation offers clear, real-time system status and intuitive configuration.
The OL1KRTHD supports individual outlet control, hot-swappable batteries, and optional remote network management via SNMP card. Runtime can be expanded by connecting up to ten external battery modules, making it an ideal solution for server rooms, virtualization platforms, storage systems, and enterprise network infrastructure.
| Specification | Details |
|---|---|
| UPS Topology | Online Double Conversion |
| Capacity | 1000 VA / 1000 W |
| Power Factor | 1.0 |
| Form Factor | Rack / Tower |
| Rack Height | 2U |
| Waveform | Sine Wave |
| Output Voltage | 100 / 110 / 115 / 120 / 125 VAC ±2% (configurable) |
| Transfer Time | 0 ms |

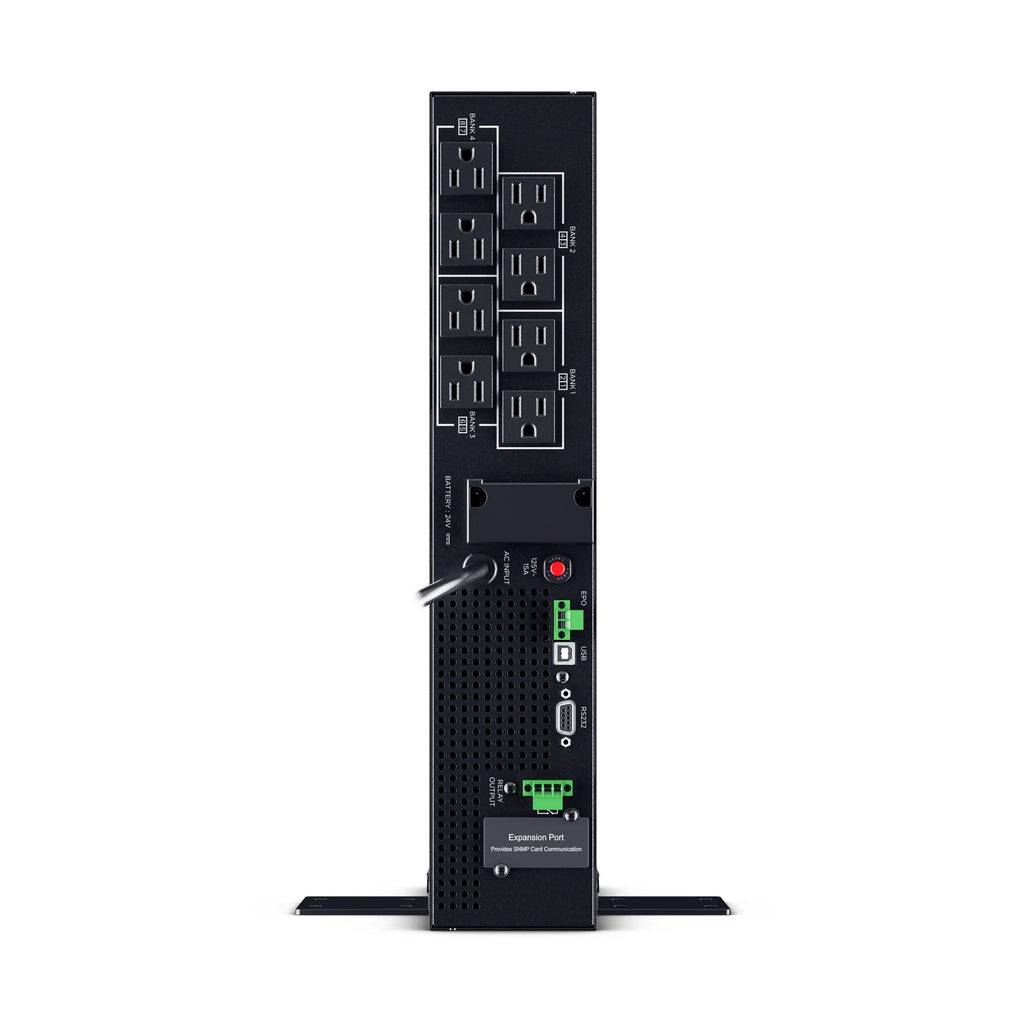

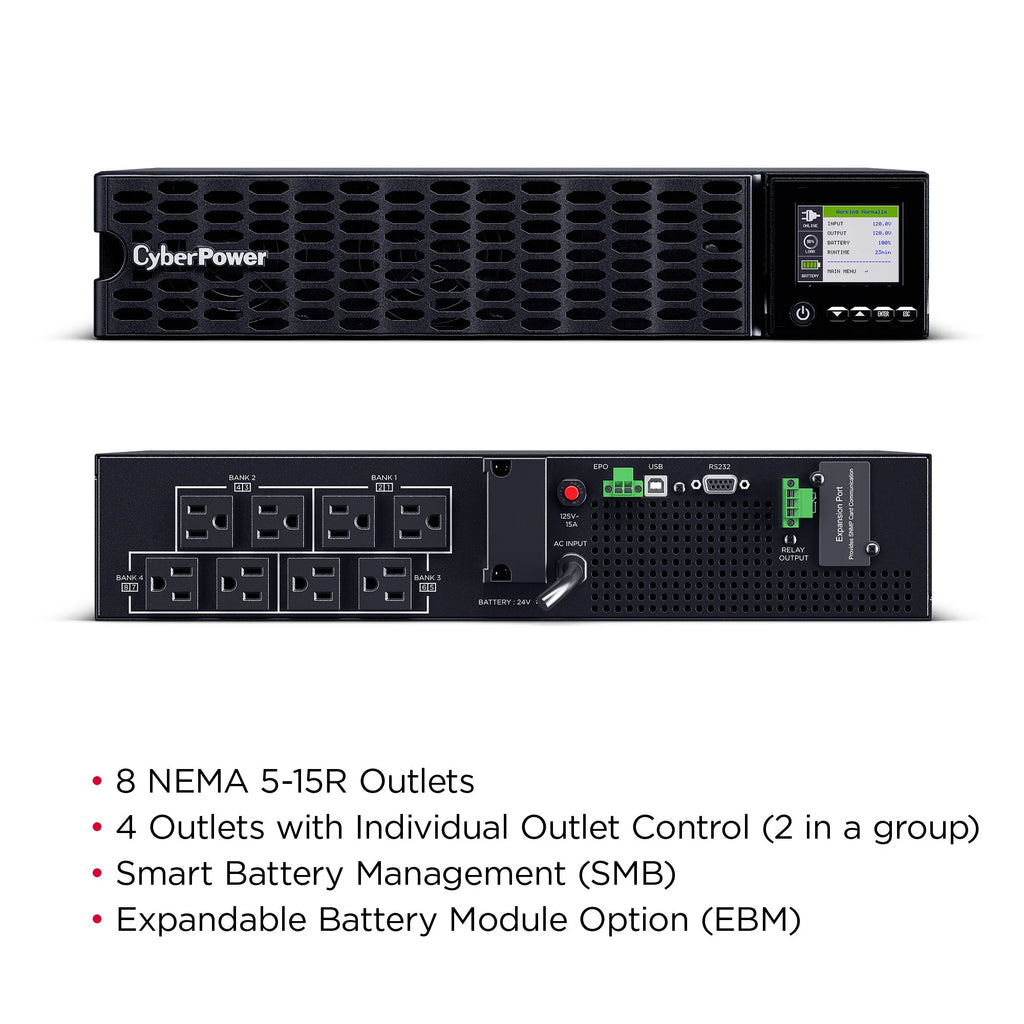

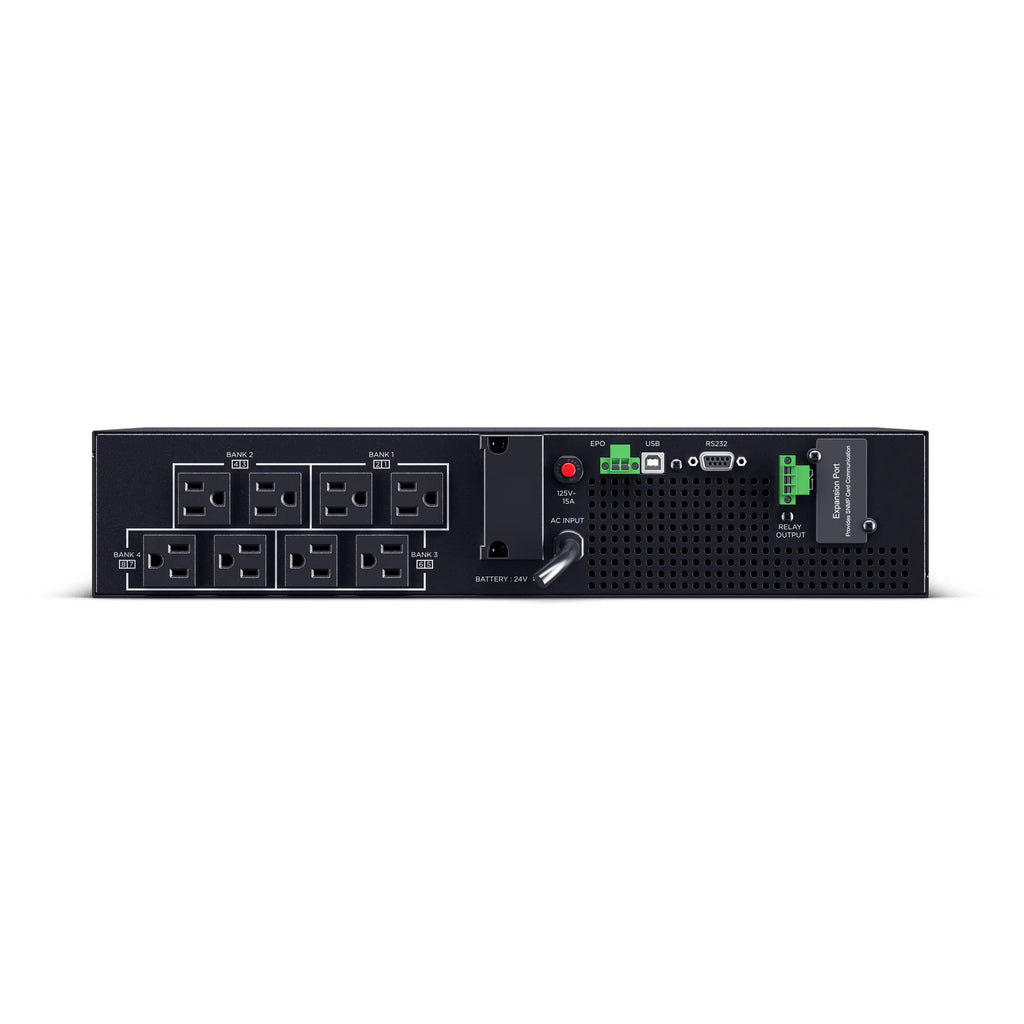

| Outlets | 8 Ă— NEMA 5-15R (4 switchable) |

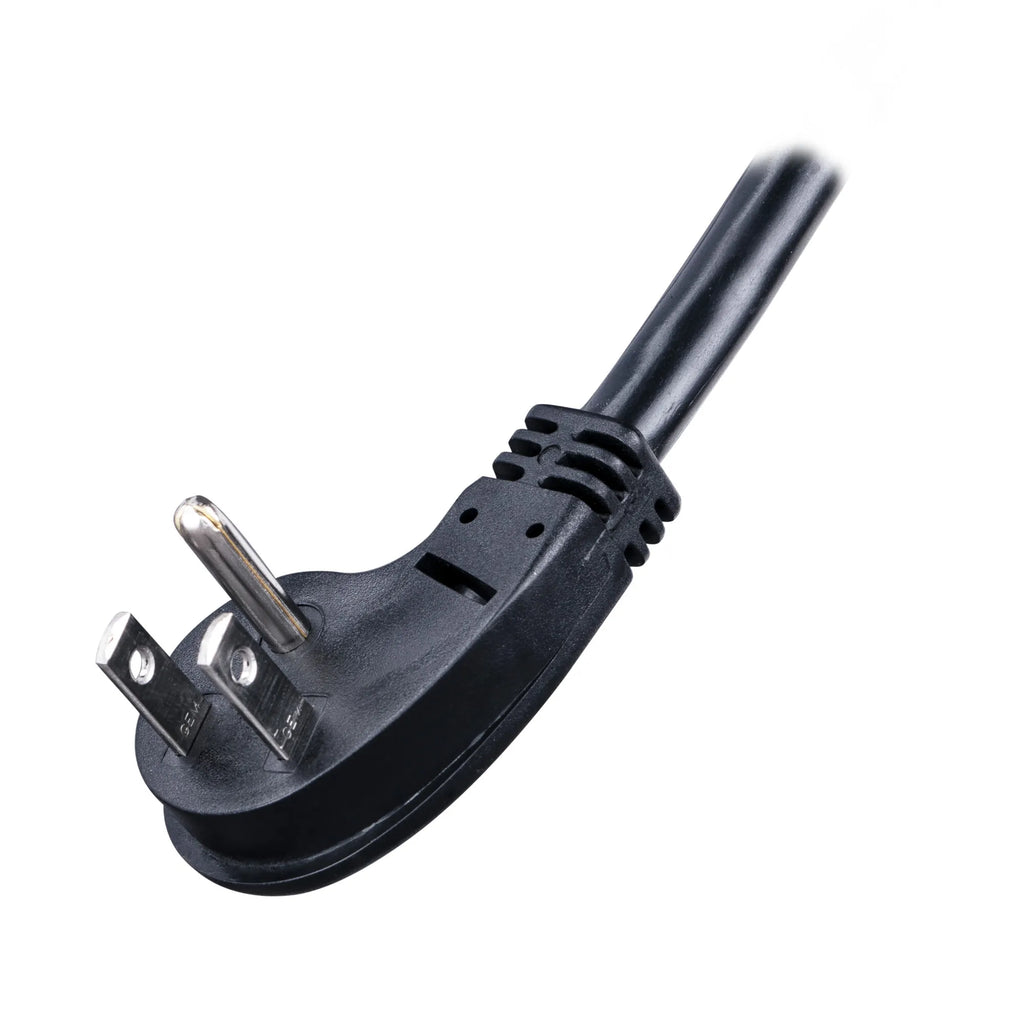

| Input Plug | NEMA 5-15P |
| Input Voltage Range | 60–95 VAC (load dependent) |
| ECO Mode Efficiency | >96% |
| Battery Type | Sealed Lead Acid |
| Battery Quantity | 2 Ă— 12V / 9Ah |
| Runtime (Half / Full Load) | 12 min / 3.8 min |
| Hot-Swappable Batteries | Yes |
| Extended Battery Support | Yes (up to 10 EBMs) |
| Communication Ports | USB, Serial, SNMP (optional), EPO |
| Management Software | PowerPanel® Business Edition |
| Display | Multifunction Color TFT LCD (rotatable) |
| Surge Suppression | 710 Joules |
| Warranty | 3-Year Limited |
