Description
The CyberPower OL3KRTHD Smart App Online UPS delivers continuous, reliable power protection for mission-critical enterprise equipment. Built with true online double-conversion topology, it provides seamless sine wave output and zero transfer time to safeguard servers, storage systems, VoIP infrastructure, and core network applications.
With a high power factor of 0.9, the OL3KRTHD supports 3000VA/2700W capacity in a compact 2U rack/tower form factor. Its energy-saving ECO Mode achieves over 96% efficiency, reducing operating costs and thermal output. The multi-function color TFT LCD offers intuitive monitoring with automatic screen rotation for tower installations. Optional extended battery modules can be added for increased runtime, and remote management is available with an optional SNMP card.
| Specification | Details |
|---|---|
| Brand | CyberPower |
| Model / SKU | OL3KRTHD |
| UPSology | Online Double Conversion |
| Capacity | 3000 VA / 2700 W |
| Output Waveform | Pure Sine Wave |
| Output Power Factor | 0.9 |
| Form Factor | Rack / Tower (2U) |
| ECO Mode Efficiency | >96% |
| Nominal Output Voltage | 100 / 110 / 115 / 120 / 125 VAC (Configurable) |
| Transfer Time | 0 ms |
| Input Plug Type | NEMA L5-30P |

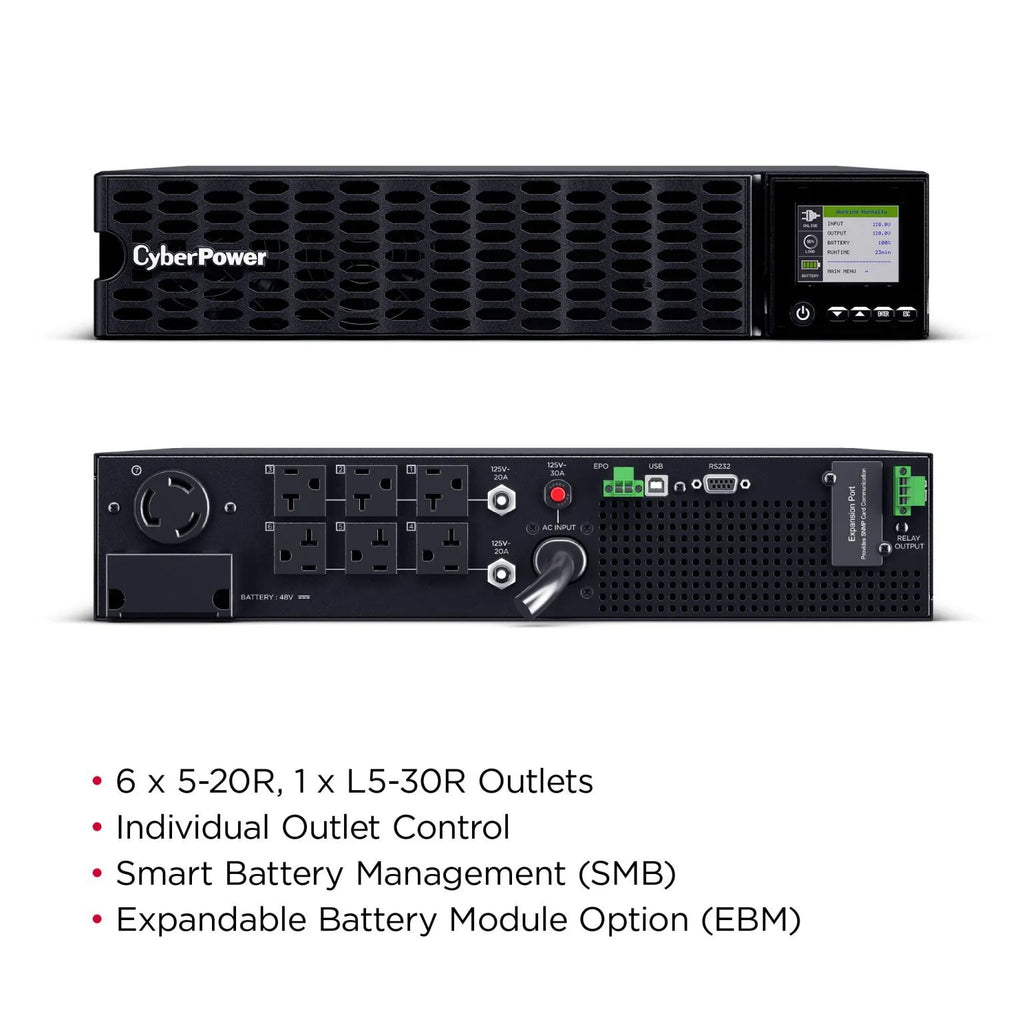

| Outlet Configuration | 7 Total Outlets (6Ă— NEMA 5-20R, 1Ă— NEMA L5-30R) |
| Outlet Control | Switchable Outlets Supported |
| Runtime (Half Load) | 8.5 minutes |
| Runtime (Full Load) | 2.7 minutes |
| Battery Type | Sealed Lead Acid |
| Hot-Swappable Batteries | Yes |
| Battery Quantity | 4 Batteries |
| Recharge Time | 4 hours (0% to 90%) |
| Extended Battery Module Support | BP48VL2U01 (Up to 10 Modules) |
| Surge Suppression | 710 Joules |
| EMI/RFI Filtration | Yes |
| Communication Ports | USB, Serial, SNMP (Optional), EPO |
| Management Software | PowerPanel® Business Edition |
| Remote Management Option | Yes, with optional RMCARD205 |
| Display | Multi-function Color TFT LCD (Rotatable) |
| Rack Height | 2U |
| Chassis Color | Black |
| Warranty | 3-Year Limited (Including Batteries) |
