Description

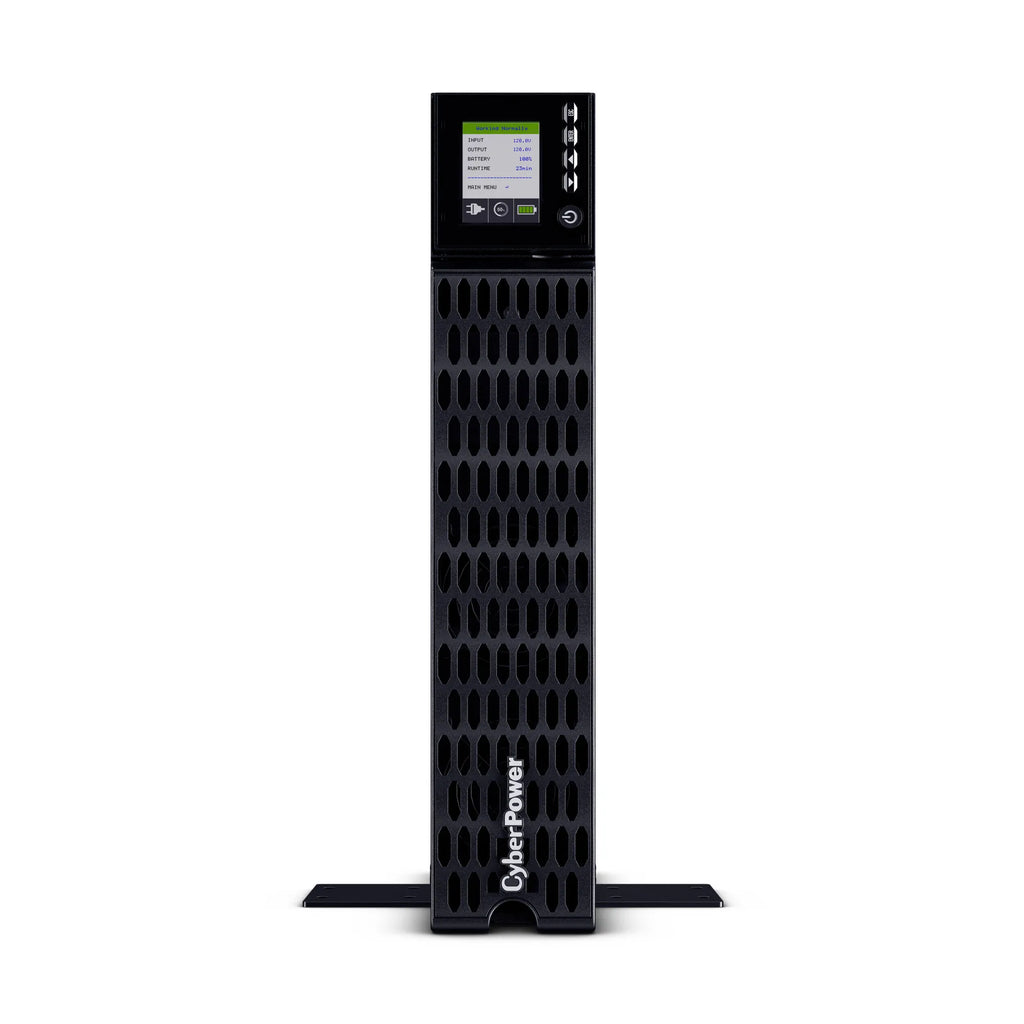

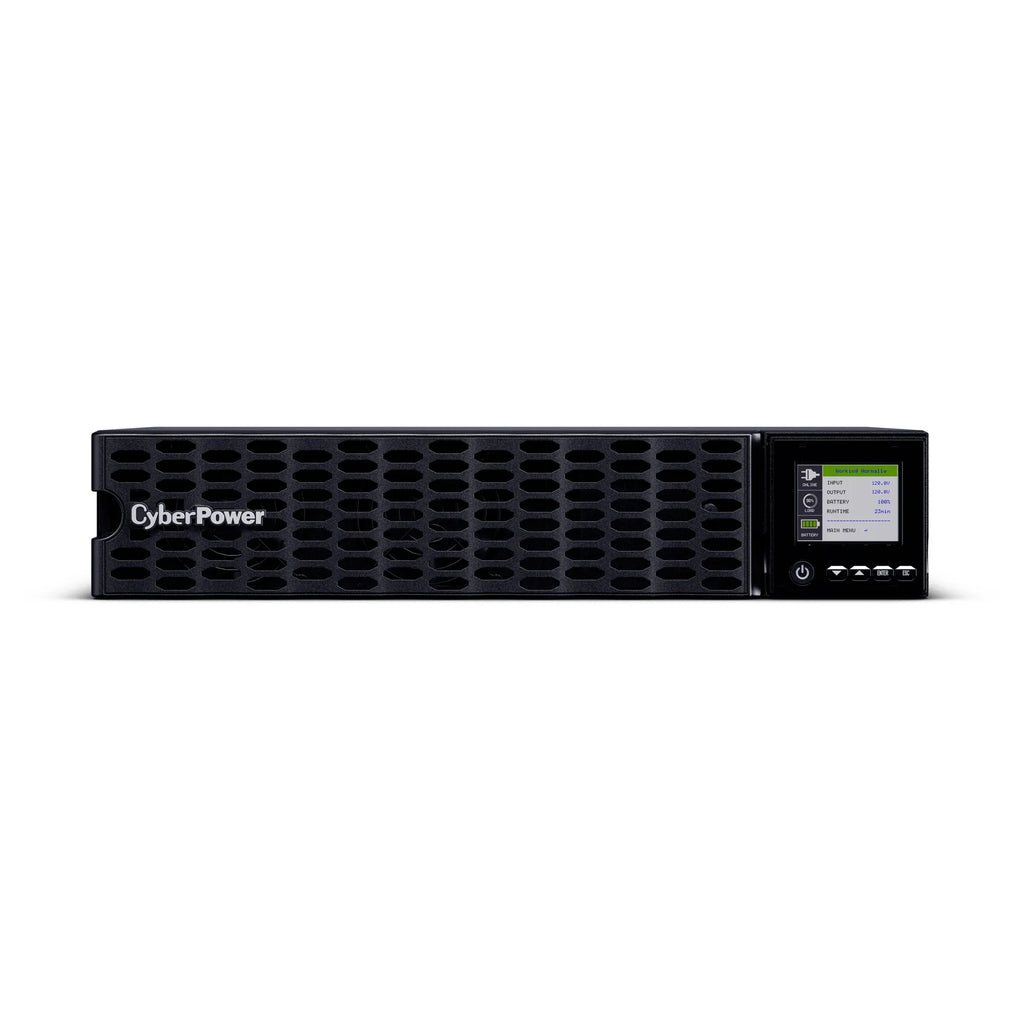

The CyberPower OL750RTHD Smart App Online UPS delivers premium double-conversion power protection for mission-critical network and server environments. With a 750VA/750W capacity and unity power factor (PF=1), this high-density 2U rack/tower UPS ensures clean, continuous sine wave output with zero transfer time during power events.

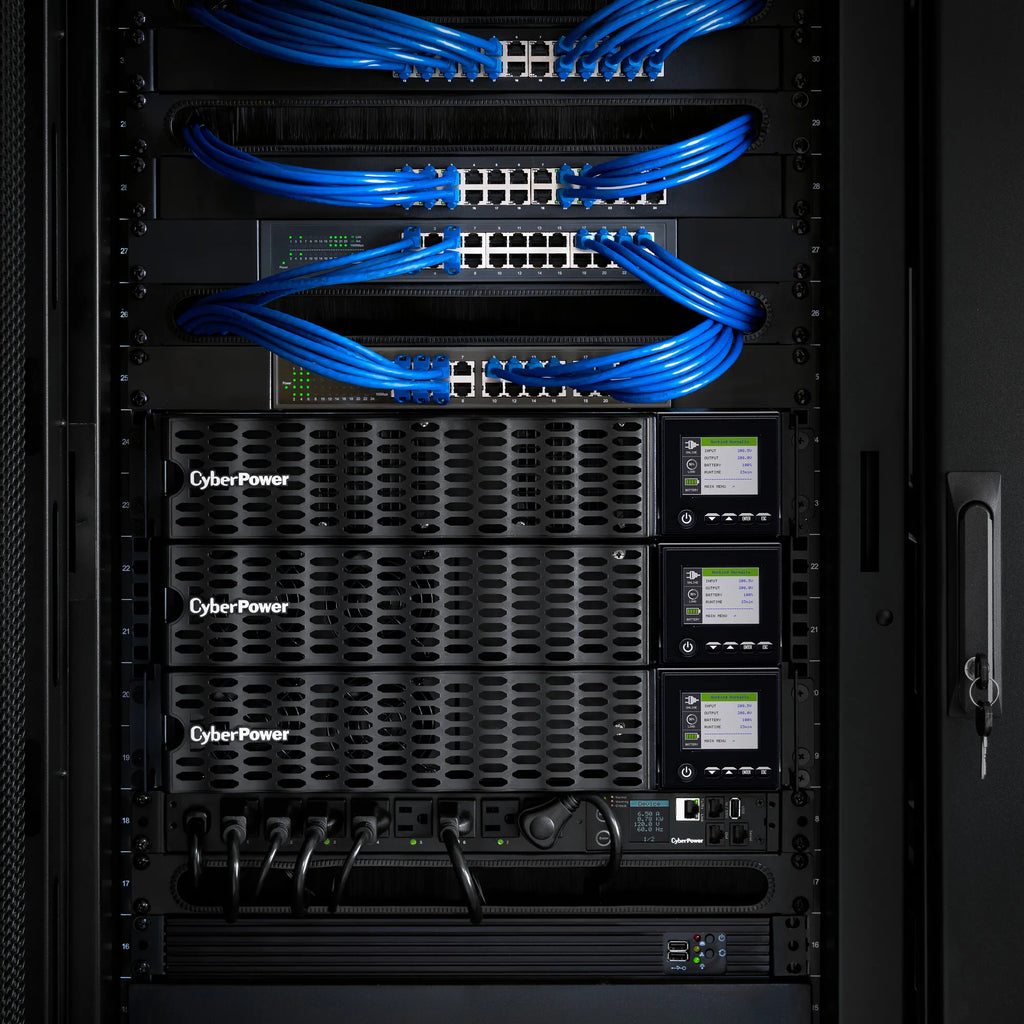

Designed for enterprise reliability, the OL750RTHD features an advanced multifunction color TFT LCD with automatic rotation for tower installations, individual outlet control with switchable receptacles, and energy-saving ECO Mode efficiency greater than 96%. Integrated USB, Serial, SNMP-ready connectivity, and PowerPanel® Business Edition software provide full remote monitoring and management. Runtime can be expanded with optional extended battery modules, making it ideal for core network equipment, virtualization, storage, and server rooms.
| Specification | Details |
|---|---|
| Brand | CyberPower |
| Model / SKU | OL750RTHD |
| UPS Topology | Online Double Conversion |
| Capacity | 750 VA / 750 W |
| Power Factor | 1.0 (Unity PF) |
| Form Factor | Rack / Tower Convertible |
| Rack Height | 2U |
| Output Waveform | Pure Sine Wave |
| Transfer Time | 0 ms |
| Output Voltage Options | 100 / 110 / 115 / 120 / 125 VAC (Configurable ±2%) |
| ECO Mode Efficiency | >96% |

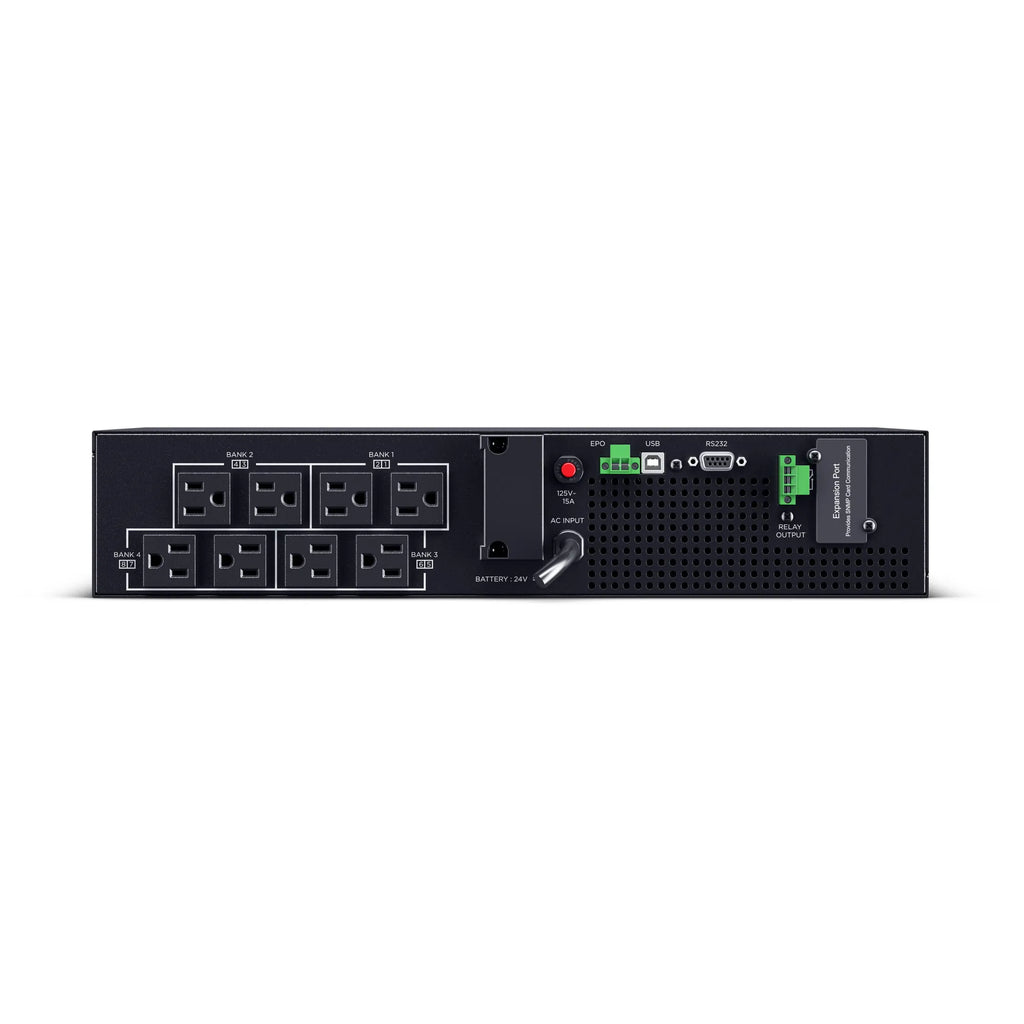

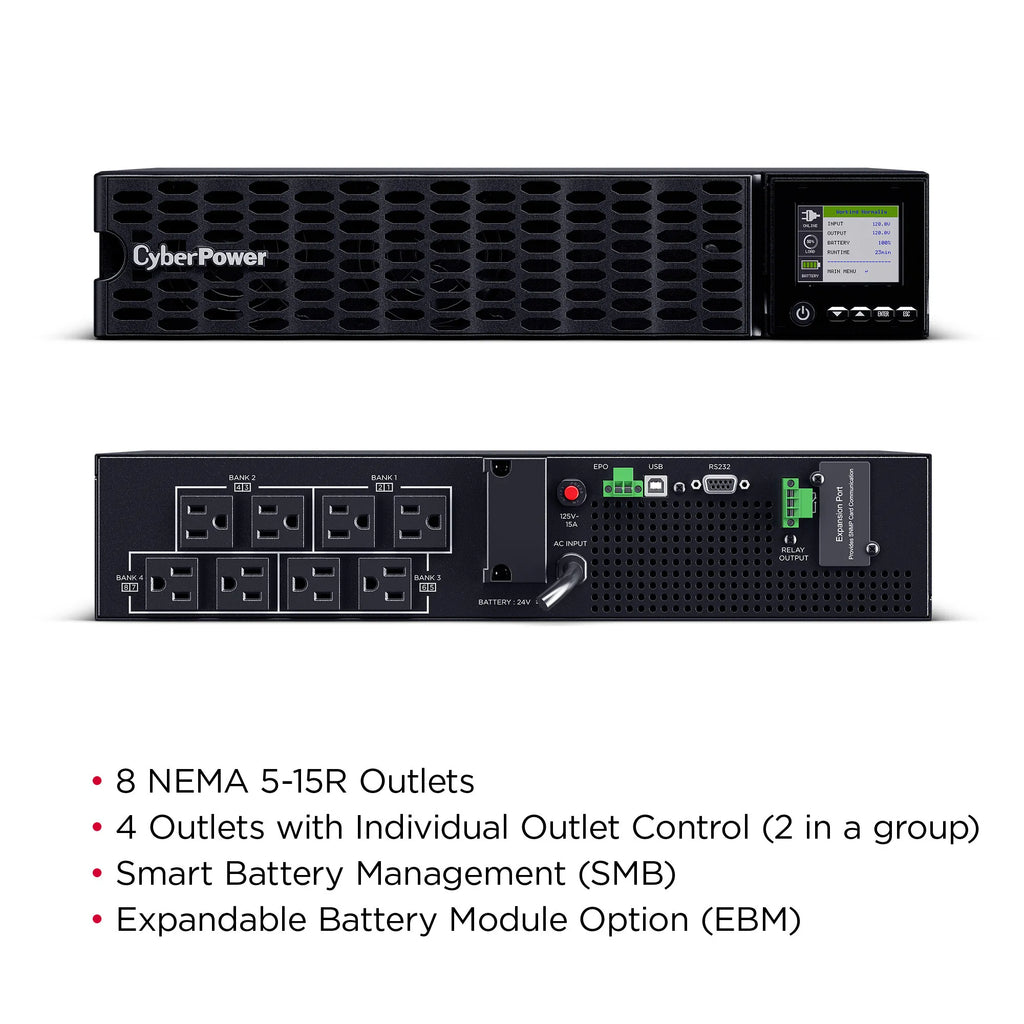

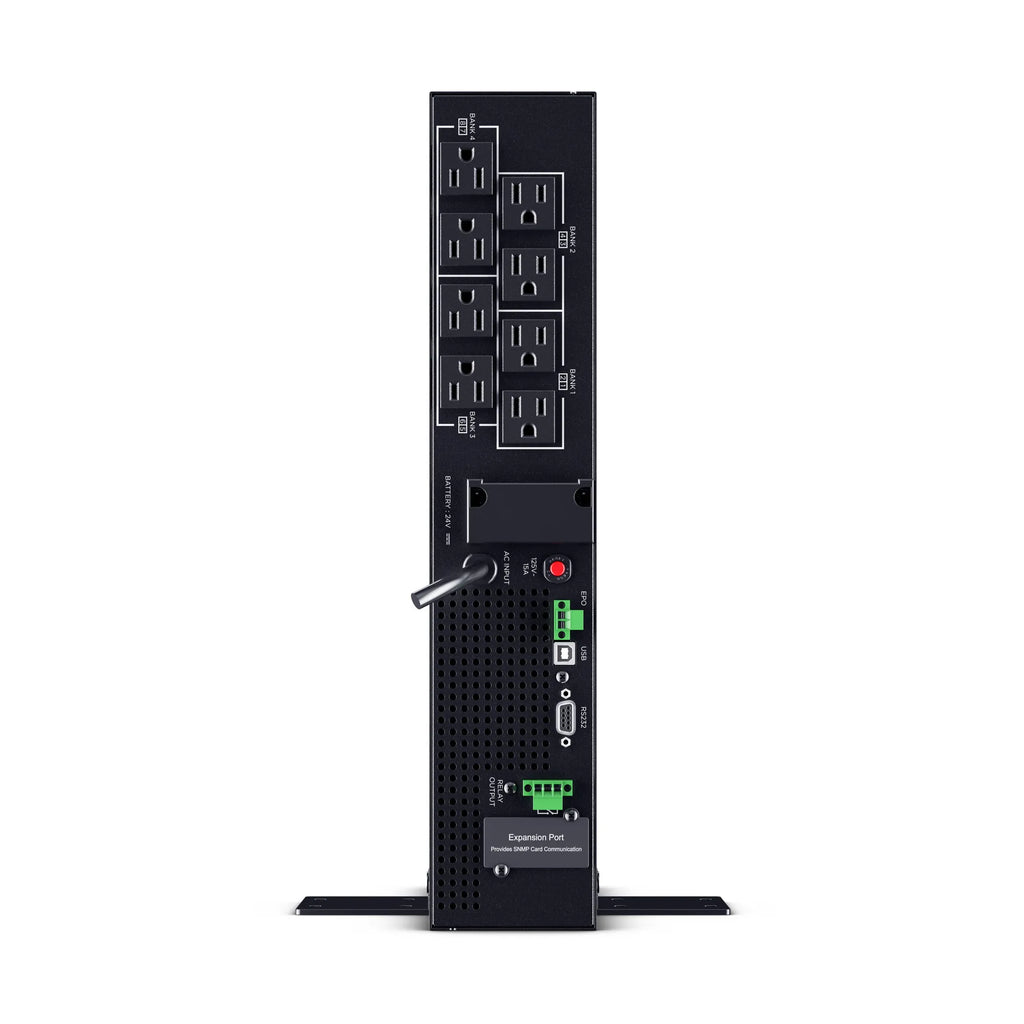

| Outlet Configuration | 8 × NEMA 5-15R (4 Switchable) |

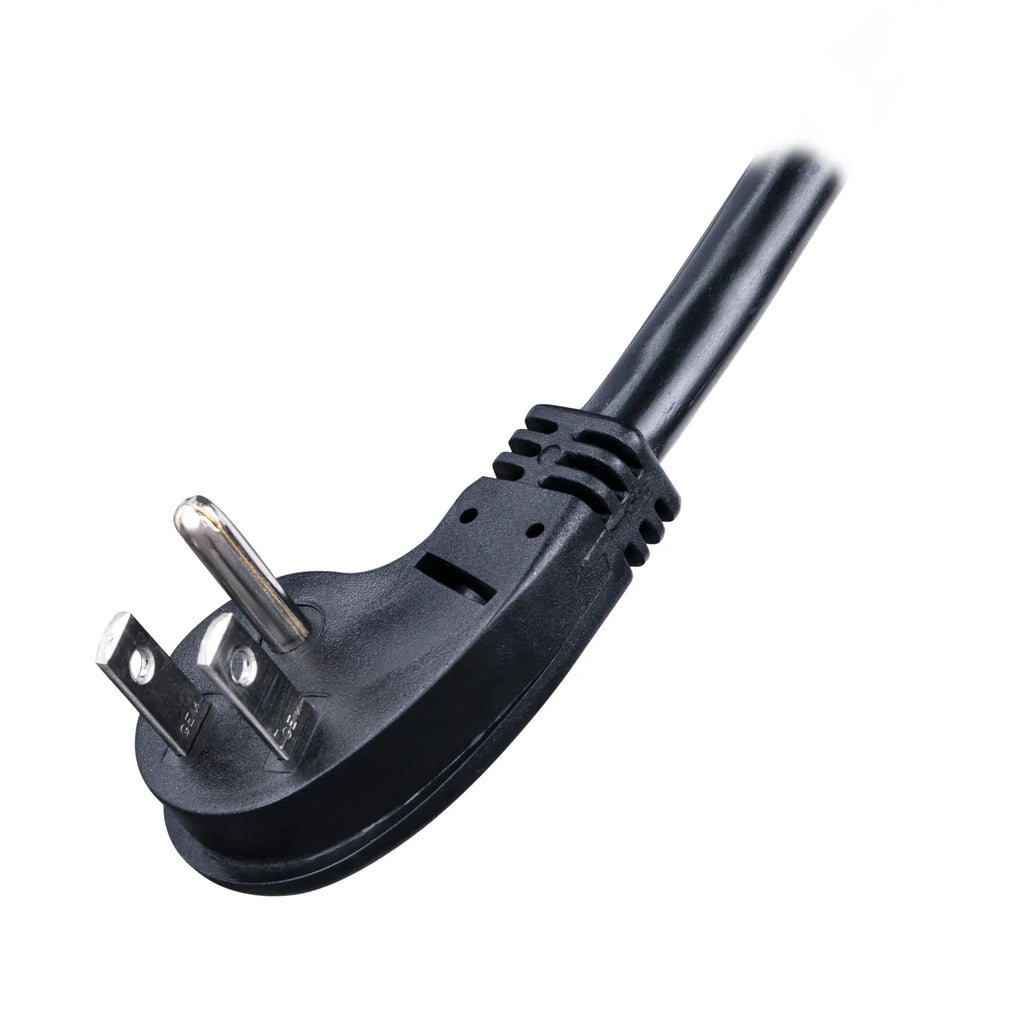

| Input Plug Type | NEMA 5-15P |
| Input Frequency Range | 40–70 Hz |
| Circuit Breaker | 20 A |
| Surge Suppression | 710 Joules |
| Battery Type | Sealed Lead Acid |
| Battery Quantity | 2 |
| Runtime (Half Load) | 14 Minutes |
| Runtime (Full Load) | 5 Minutes |
| Recharge Time | 4 Hours (0–90%) |
| Extended Battery Support | Yes (BP24VL2U01, up to 10 modules) |
| Hot-Swappable Batteries | Yes |
| Replacement Battery Cartridge | RB1290X2J |
| Management Interfaces | USB, Serial, SNMP (Optional), EPO Port |
| Monitoring Software | PowerPanel® Business Edition |
| Display | Multifunction Rotatable Color TFT LCD |
| Chassis Color | Black |
| Dimensions (W × H × D) | 17.05 × 3.4 × 11.42 in (433 × 86 × 290 mm) |
| Weight | 27.12 lbs (12.3 kg) |
| Certifications | UL1778, CSA C22.2 No.107.3, FCC Class B, RoHS |
| Warranty | 3-Year Limited (Including Batteries) |
