Description

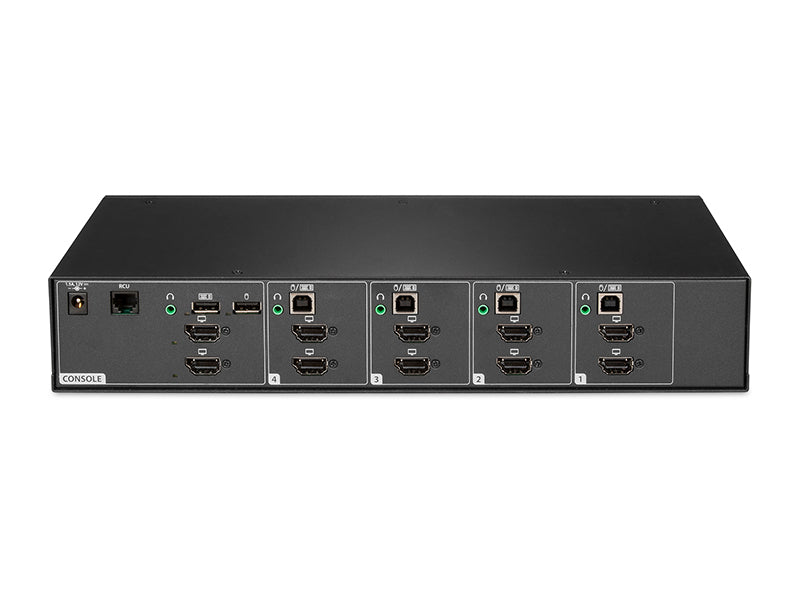

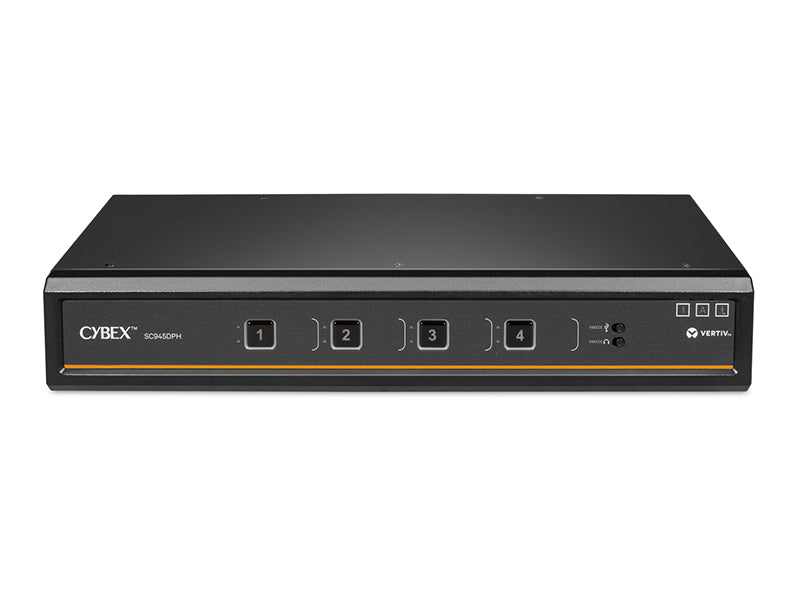

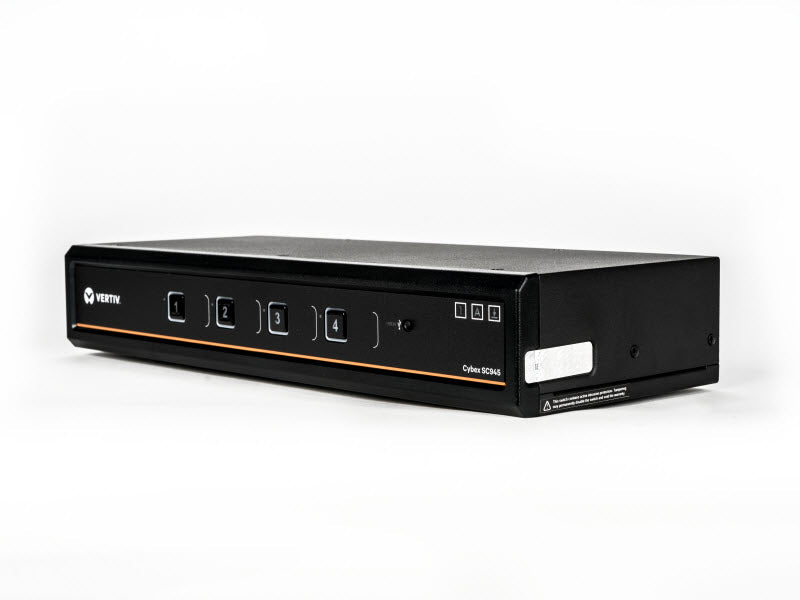

Ensure high-assurance data protection with the Vertiv Avocent Cybex SC945DPH-400, a 4-port secure desktop KVM switch built for defense, government, and enterprise environments. Designed to meet NIAP Protection Profile v4.0, it offers dual-head video, smart card/CAC authentication, and unidirectional data flow for airtight isolation between connected systems. This versatile model supports DisplayPort and HDMI, delivering up to UHD 4K resolution at 60Hz, with touch and biometric login support. With robust tamper resistance, intrusion detection, and universal video port compatibility, it provides seamless and secure user experiences across multiple classified and unclassified networks.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand | Vertiv Avocent |
| Model Number | SC945DPH-400 |
| Product Series | Cybex SC900 Series |
| Device Type | Secure Desktop KVM Switch (Dual Monitor) |
| Ports | 4-Port, Dual Head |
| Video Support | HDMI & DisplayPort (10 total ports) |
| Maximum Resolution | 3840 x 2160 @ 60Hz (UHD 4K) |
| Keyboard/Mouse | USB and PS/2 |
| CAC (Smart Card) Support | Yes |
| Biometric Support | Yes |
| Security Certification | NIAP PP v4.0, TAA Compliant |
| Tamper Protection | Tamper-evident labels, active intrusion detection |
| Connectivity Technology | Wired |
| User Support | 1 Local User |
| Form Factor | Desktop, 1U |
| Dimensions | 13.7" W x 5" D x 2.2" H |
| Weight | 3.70 lbs |
| Power Input | 100–240V AC, 1.5 A |
| Country of Origin | United States |
| Warranty | 3-Year Limited Warranty |
| Optional Warranty | Extended Warranty Available |
| Compliance | RoHS |
| Shipping Weight | 6 lbs |
| Condition | New and Factory Fresh |
