Description

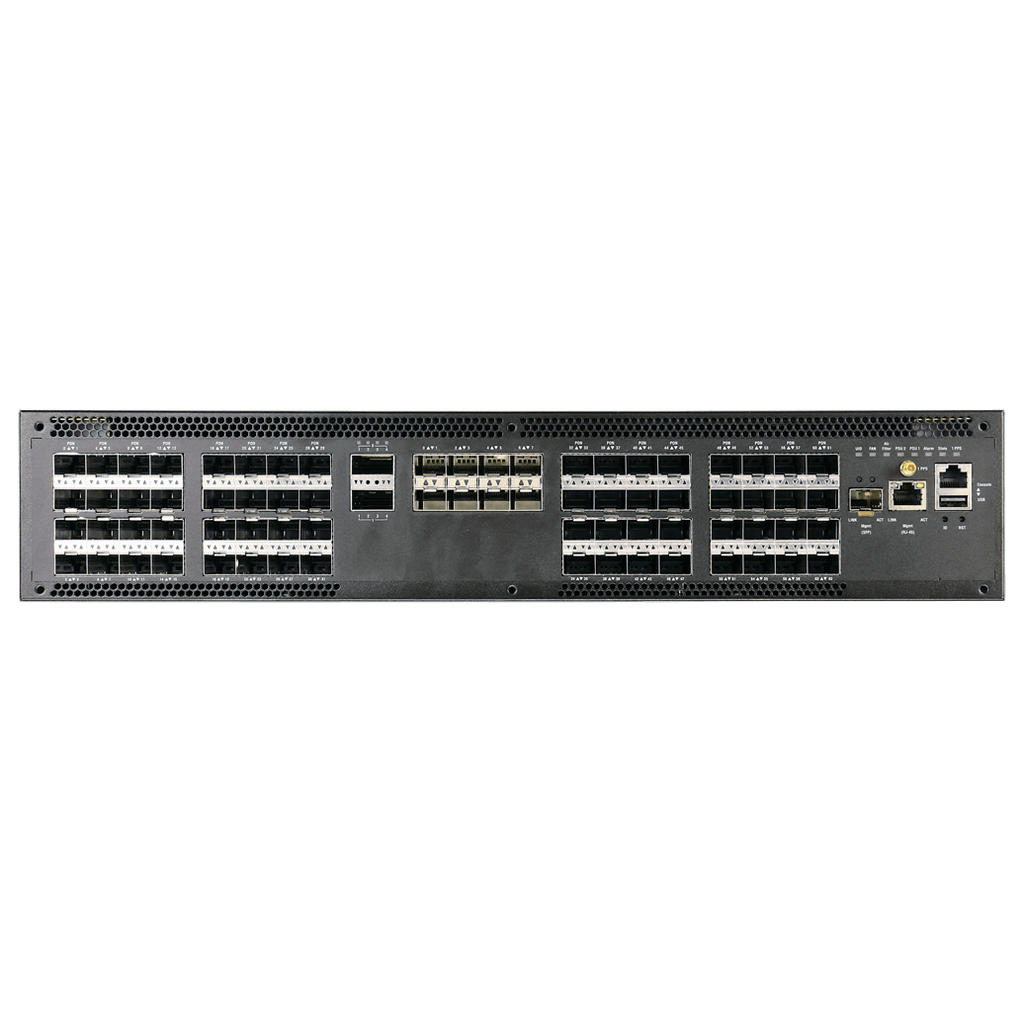

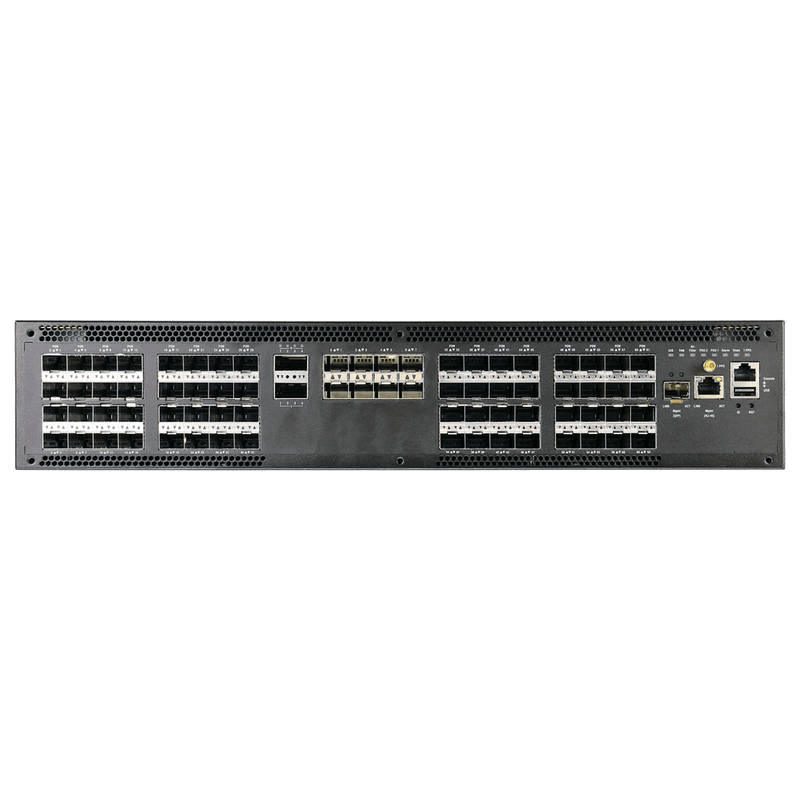

The Edgecore ASGvOLT64-O-48V-F is a high-capacity, open architecture GPON OLT designed for next-generation disaggregated access networks. It delivers 64 GPON ports along with 8 × 10/25G SFP28 and 2 × 40/100G QSFP28 uplinks — all on the front panel for simplified access and management.

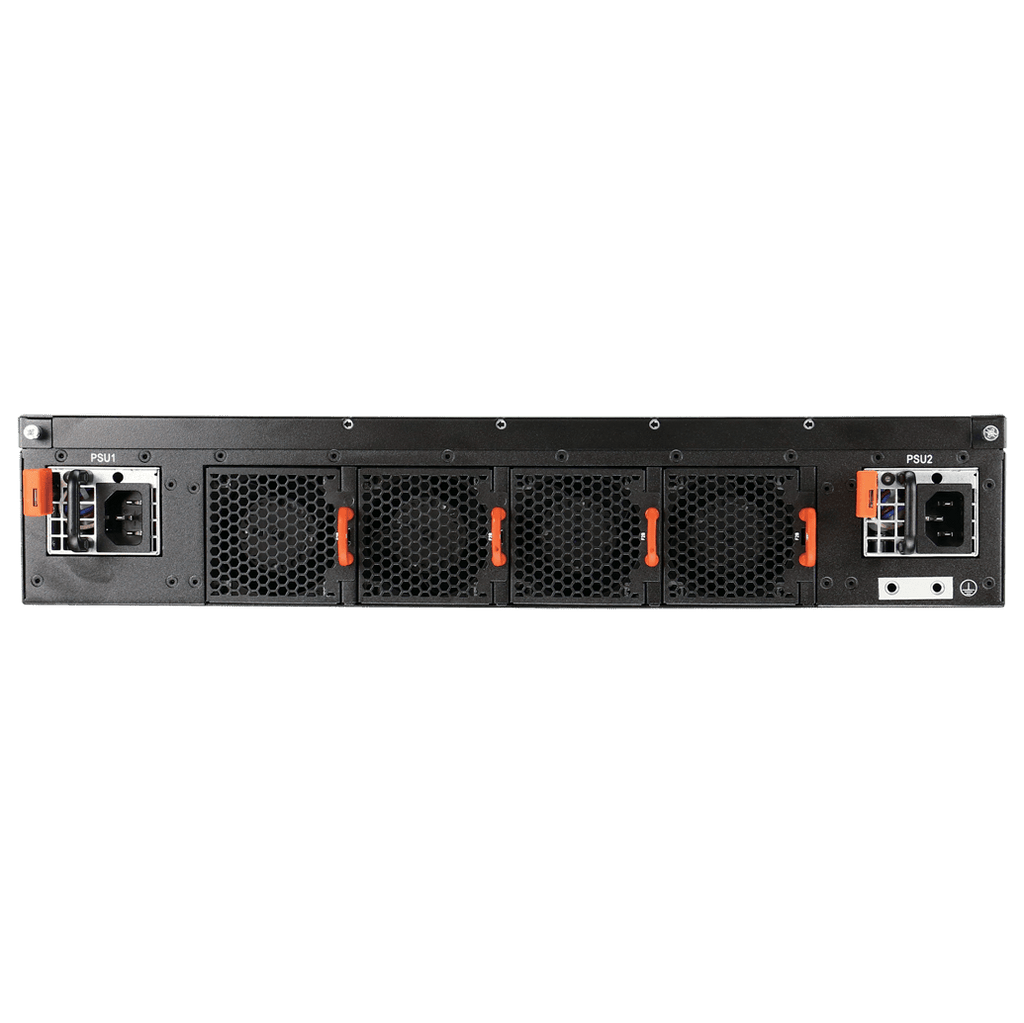

Powered by the Intel® Pentium® D-1519 processor and Broadcom BCM88470 switch silicon, this OLT offers 300 Gbps full-duplex forwarding capability, ensuring wire-speed performance across all interfaces. The system includes dual 48 V DC hot-swappable PSUs and 3 + 1 redundant fans with front-to-back airflow, enhancing uptime and maintainability.
Pre-loaded with Open Network Install Environment (ONIE), the ASGvOLT64-O-48V-F supports seamless installation of open-source or commercial network operating systems (NOS), giving operators flexibility in deployment and integration within modern, open networking ecosystems.
Ideal for telecom carriers, ISPs, and enterprise FTTH or FTTB environments seeking scalability, reliability, and software disaggregation.
| Category | Specification |
|---|---|
| Model | ASGvOLT64-O-48V-F |
| Processor | Intel® Pentium® D-1519, 1.5 GHz |
| Memory | 16 GB DDR4 ECC (2 × 8 GB SO-DIMM 2133 MHz) |
| Switch Silicon | Broadcom BCM88470 |
| PON ASIC | Broadcom BCM68622 |
| Switching Capacity | 300 Gbps (full duplex) |
| Packet Buffer Size | 32 K programmable wire-rate queues |
| Ports | 64 × GPON (ITU-T G.984 compliant)8 × 10/25 GbE SFP282 × 40/100 GbE QSFP28 |
| Management Interfaces | 1 × RJ-45 console port1 × RJ-45 management port1 × SFP management port1 × USB Type-A storage |
| Airflow | Front-to-back (Port-to-Power) |
| Power Supply Units | Dual 48 V DC, hot-swappable, load-sharing, redundant |
| Power Consumption | 480 W (max) |
| Cooling | 3 + 1 redundant, hot-swappable fans |
| Dimensions (W×D×H) | 477 × 600 × 89 mm (18.78 × 23.62 × 3.50 in) |
| Weight | 16.51 kg (36.39 lb) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | –40 °C to 70 °C (–40 °F to 158 °F) |
| Operating Humidity | 5 % to 95 %, non-condensing |
| Compliance & Standards | CE Mark, FCC Part 15 Class A, UL 62368-1, RoHS-6 Compliant, ETSI 300 019-2-3 Class 3.3 |
| Software Environment | Open Network Install Environment (ONIE) for NOS installation |
| Performance Features | Layer 2/3 forwarding, jumbo frames up to 9 KB, wire-speed GPON performance |
| LED Indicators | Link Status, Activity, Rate, Diagnostic, Locator, PSU and Fan Status |
