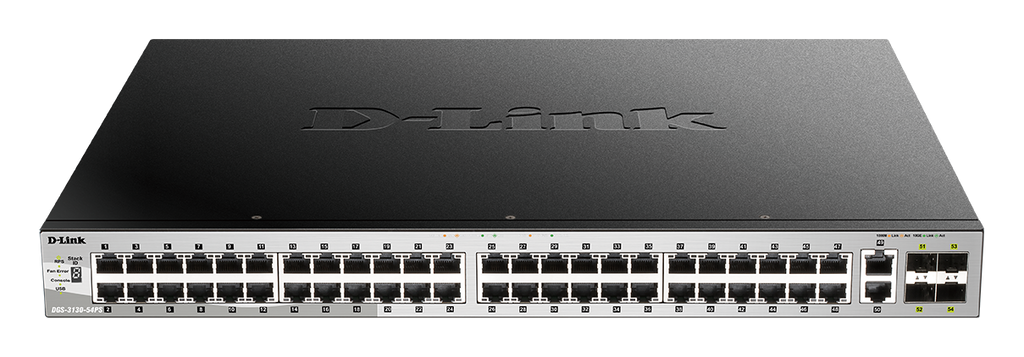

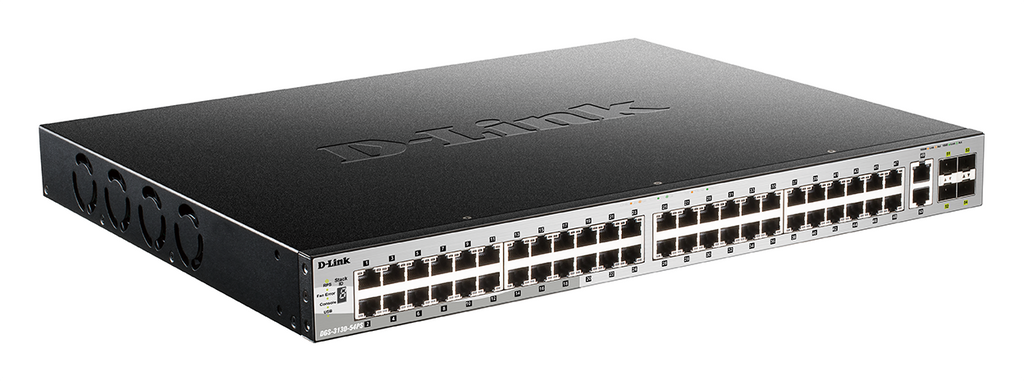

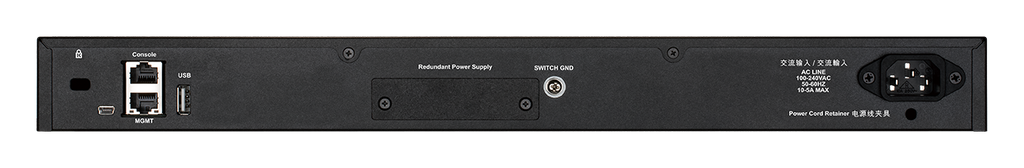

Description
The D-Link DGS-3130-54PS is a high-performance Layer 3 stackable managed switch engineered for enterprise access and metro Ethernet environments that demand reliability, scalability, and advanced control. Equipped with 48 Gigabit PoE+ ports and high-speed 10G uplinks, this switch delivers robust connectivity while powering critical devices such as IP cameras, wireless access points, and VoIP systems.
Designed for uptime and operational efficiency, the DGS-3130-54PS supports advanced Layer 3 routing, comprehensive security features, and resilient stacking capabilities. With a 370W PoE power budget, expandable up to 740W using a redundant power supply, it ensures consistent power delivery across demanding deployments. Built-in redundancy, fast recovery protocols, and high switching capacity make it ideal for mission-critical network infrastructures.
This switch simplifies network management through centralized stacking, rich QoS controls, and extensive monitoring features, enabling IT teams to maintain performance, security, and scalability across growing networks.
| Specification | Details |
|---|---|
| Switch Type | Layer 3 Stackable Managed Switch |
| Total Ports | 54 Ports |
| PoE Ports | 48 x 10/100/1000BASE-T PoE+ |
| Uplink Ports | 2 x 10GBASE-T, 4 x 10G SFP+ |
| PoE Standards | IEEE 802.3af, IEEE 802.3at |
| PoE Power Budget | 370W standard, expandable up to 740W with redundant power supply |
| Switching Capacity | 216 Gbps |
| Packet Forwarding Rate | 161 Mpps |
| Stacking Capability | Physical stacking up to multiple units for scalability and redundancy |
| Stacking Bandwidth | Up to 80 Gbps per device |
| Routing Features | Static Routing, RIP, OSPF, IPv4/IPv6 support |
| VLAN Support | Up to 4K VLAN groups with advanced VLAN features |
| Security Features | ACL, DHCP Snooping, IP-MAC-Port Binding, 802.1X Authentication |
| QoS Features | Advanced traffic prioritization with 8 queues per port |
| Multicast Support | IGMP Snooping, MLD Snooping, Multicast VLAN |
| Redundancy Features | RPS support, ERPS, STP/RSTP/MSTP |
| Management Interfaces | Web GUI, CLI, SNMP v1/v2c/v3, SSH, Telnet |
| USB Port | 1 x USB 2.0 for configuration and log storage |
| Power Input | 100–240 VAC, 50/60 Hz |
| Max Power Consumption | Up to 474.51W with PoE enabled |
| Cooling System | Multiple smart fans for optimized airflow |
| Operating Temperature | 0°C to 50°C |
| Dimensions | 440 x 430 x 44 mm |
| Weight | 6.2 kg |
