Description

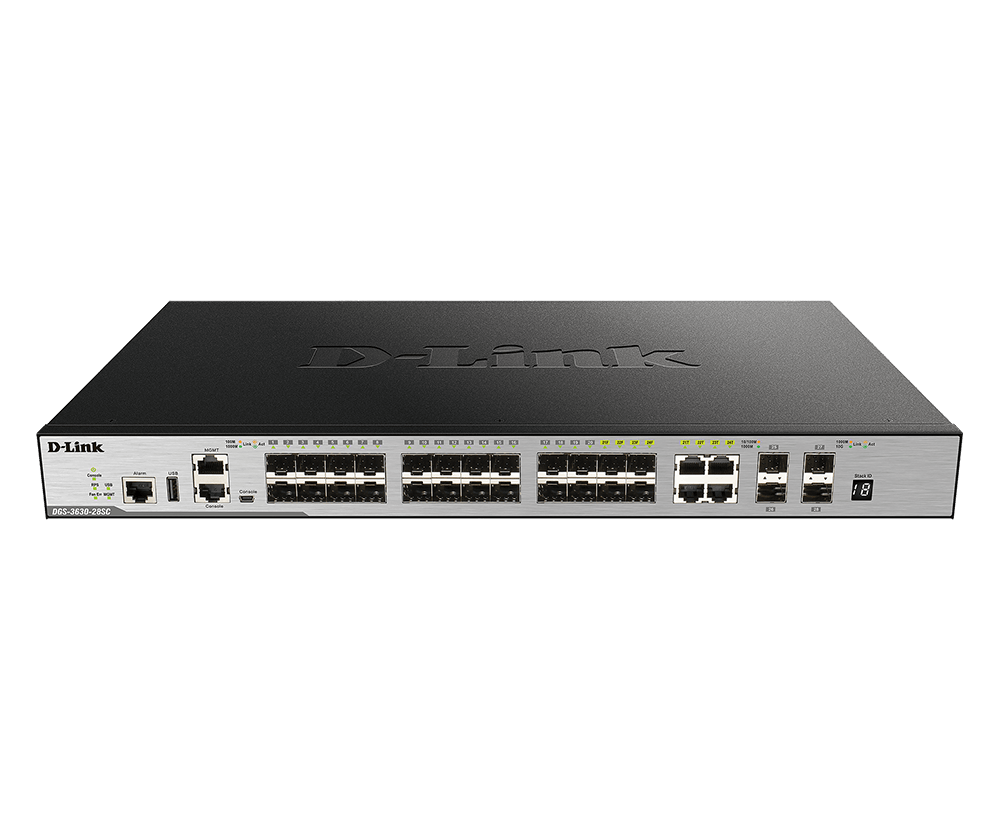

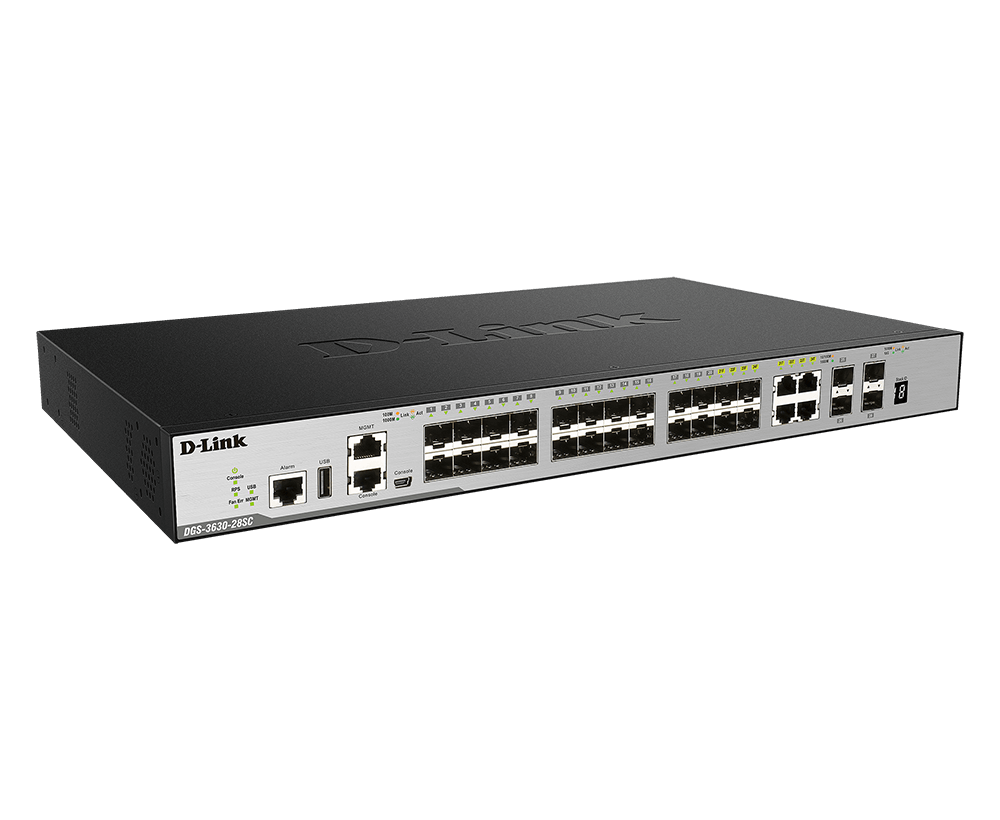

The D-Link DGS-3630-28SC is a high-performance Layer 3 stackable managed switch designed to meet the demands of enterprise networks, service providers, and growing business infrastructures. Built for scalability and resilience, this switch delivers reliable Gigabit connectivity through 20 SFP fiber ports, complemented by combo ports and high-speed 10 Gigabit uplinks for seamless aggregation and backbone connectivity.
With advanced Layer 2 and entry-level Layer 3 capabilities under the Standard Image (SI), the DGS-3630-28SC enables efficient traffic management, strong security enforcement, and optimized application performance. Its stacking capability allows multiple units to operate as a single logical switch, simplifying management while increasing redundancy and network capacity.
Engineered for flexibility, the switch supports dynamic resource allocation, advanced QoS prioritization, and robust security features such as access control, authentication, and traffic protection. Ideal for deployment at core, distribution, or access layers, the DGS-3630-28SC ensures consistent uptime, simplified operations, and future-ready network expansion.
| Specification | Details |
|---|---|
| Switch Type | Layer 3 Stackable Managed Switch |
| Form Factor | 19-inch rack-mount, 1U |
| Ports | 20 x SFP ports |
| Combo Ports | 4 x 10/100/1000BASE-T/SFP combo ports |
| Uplink Ports | 4 x 10 Gigabit SFP+ ports |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.24 Mpps |
| Packet Buffer | 4 MB |
| MAC Address Table | Up to 68K entries |
| Routing Table | IPv4: 16K entries, IPv6: 7K entries |
| Forwarding Table | IPv4: 32K entries, IPv6: 16K entries |
| Jumbo Frame Support | Up to 12 KB |
| Stacking Capability | Up to 9 units per stack |
| Stacking Bandwidth | Up to 80 Gbps per device |
| Management Interfaces | Web GUI, CLI, SNMP |
| Console Ports | RJ-45 and Mini-USB |
| Management Port | Dedicated 10/100/1000BASE-T port |
| USB Port | 1 x USB 2.0 Type-A |
| QoS Features | Advanced QoS with traffic prioritization |
| Security Features | ACL, 802.1X authentication, DHCP snooping, IP source guard |
| VLAN Support | 802.1Q VLAN, up to 4094 VLAN IDs |
| Redundancy Features | STP, RSTP, MSTP, ERPS, link failover |
| Surge Protection | 6 kV on Ethernet ports |

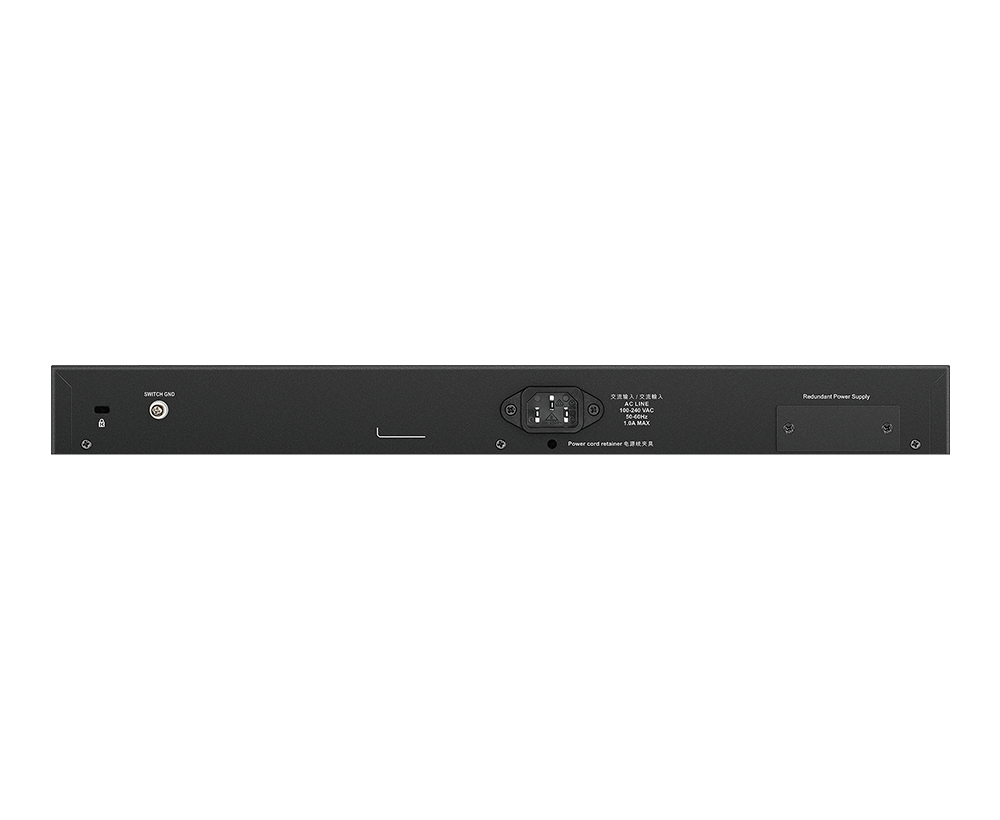

| Power Input | 100–240 VAC, 50/60 Hz |
| Maximum Power Consumption | 63.58 W |
| Dimensions | 441 x 259.8 x 44 mm |
| Weight | 3.79 kg |
| Operating Temperature | -5°C to 50°C |
| Humidity | 10% to 95% non-condensing |
