Description

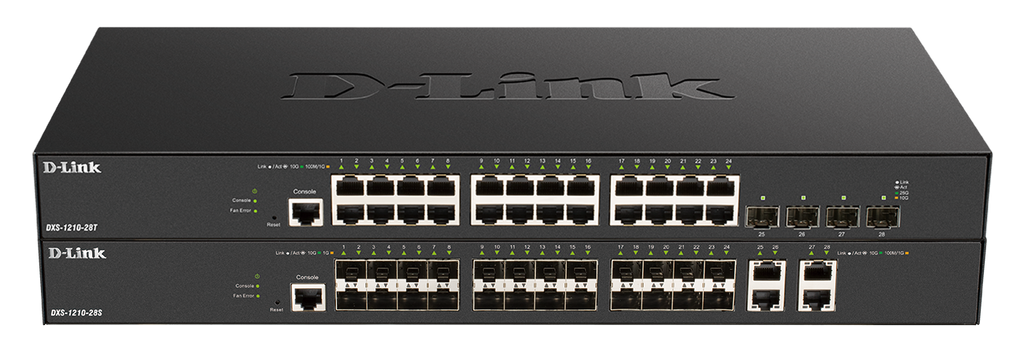

The D-Link DXS-1210-28S is a high-performance 10 Gigabit smart managed switch designed to deliver scalable, low-latency connectivity for modern business networks. Built for SMB cores and enterprise aggregation layers, this switch features 24 SFP+ 10G fiber ports and 4 10GBASE-T copper uplinks, providing flexible deployment across fiber and copper infrastructures.
Engineered to support bandwidth-intensive environments such as virtualization, cloud applications, and server-to-server communication, the DXS-1210-28S ensures consistent performance and efficient traffic handling. Advanced Layer 2 and Lite Layer 3 capabilities, including VLAN segmentation, static routing, and QoS prioritization, help optimize network performance while reducing reliance on external routing hardware.
With robust security features like access control lists, IP-MAC-port binding, and ARP spoofing prevention, along with intuitive management via web GUI, CLI, SNMP, and D-Link Network Assistant, the DXS-1210-28S offers administrators complete control and visibility. Energy-efficient design features further reduce operational costs, making it a reliable and cost-effective solution for growing network infrastructures.
| Specification | Details |
|---|---|
| Switch Type | Smart Managed 10 Gigabit Ethernet Switch |
| Port Configuration | 24 x 10G SFP+ ports, 4 x 10GBASE-T ports |
| Switching Capacity | 560 Gbps |
| Packet Forwarding Rate | 416.64 Mpps |
| MAC Address Table | Supports up to 32,000 MAC addresses |
| Layer Features | Layer 2 with Lite Layer 3 (static routing, inter-VLAN routing) |
| VLAN Support | 802.1Q VLAN, up to 4,094 VLAN IDs, Voice VLAN, Surveillance VLAN |
| Link Aggregation | Supports LACP with up to 8 groups |
| QoS Features | 8 priority queues per port, DSCP, 802.1p, bandwidth control |
| Security Features | ACL, Port Security, DHCP Snooping, ARP Spoofing Prevention, IP-MAC-Port Binding |
| Management Options | Web GUI, CLI (Telnet/Console), SNMP v1/v2c/v3, D-Link Network Assistant |
| Diagnostic Tools | Cable diagnostics, loopback detection |
| Jumbo Frame Support | Up to 12,288 bytes |
| Power Supply | Internal, 100–240 VAC |
| Cooling | 2 Smart Fans |
| Maximum Power Consumption | Approx. 85–88 W |
| Operating Temperature | -5°C to 50°C |
| Humidity | 0% to 95% non-condensing |
| Dimensions | 441 x 209.5 x 44 mm |
| Deployment Use Cases | Enterprise aggregation, SMB core, server farm connectivity |
