Description

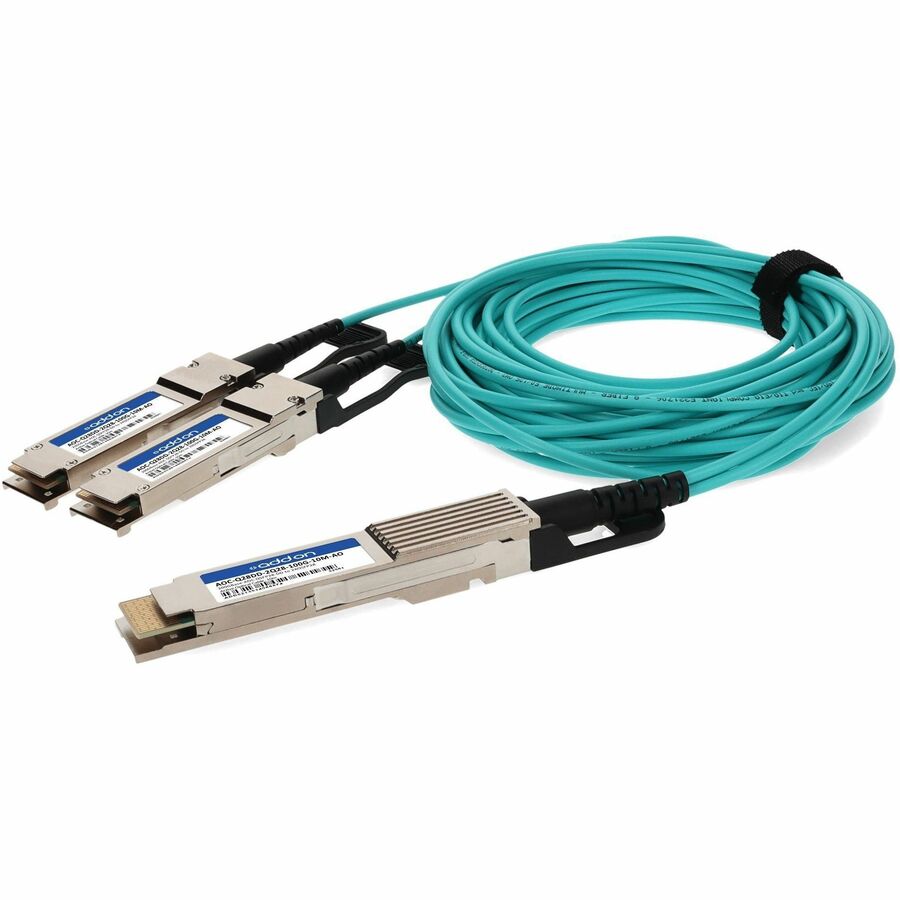

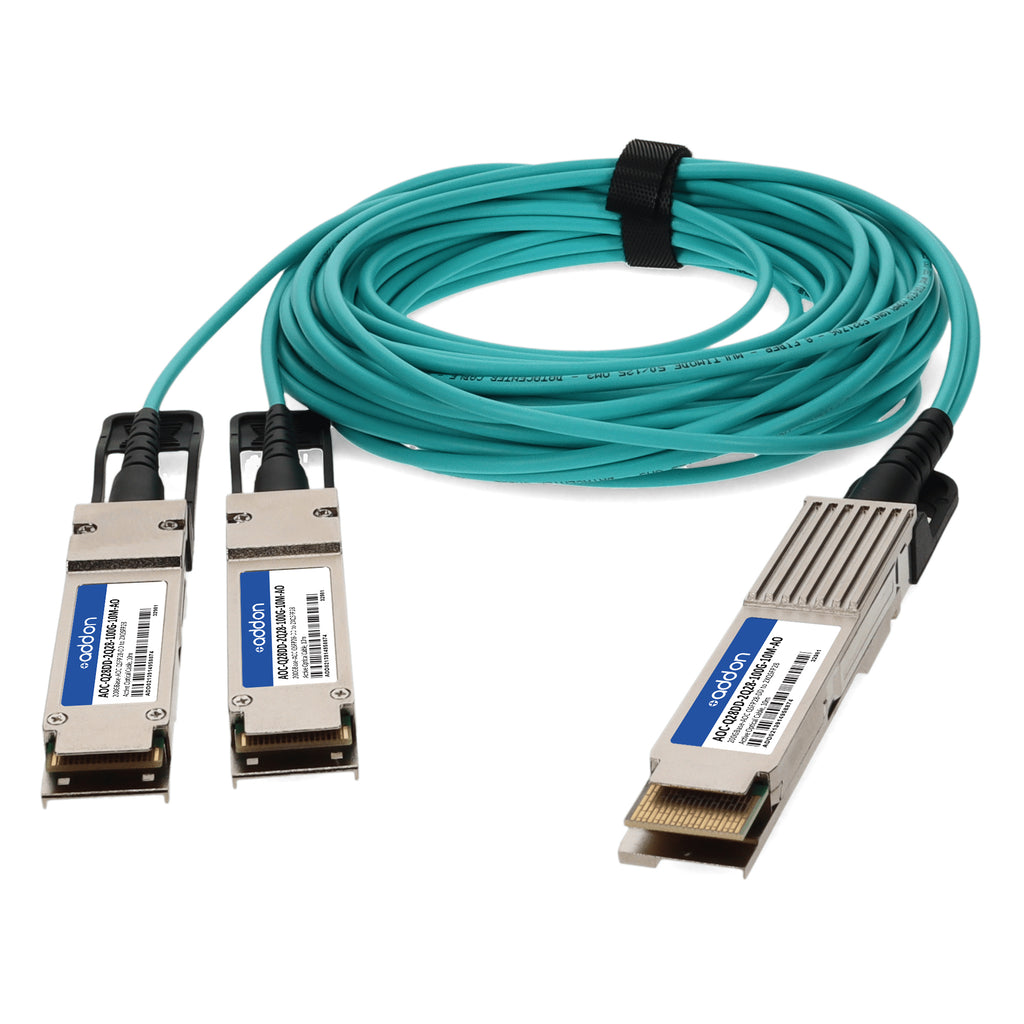

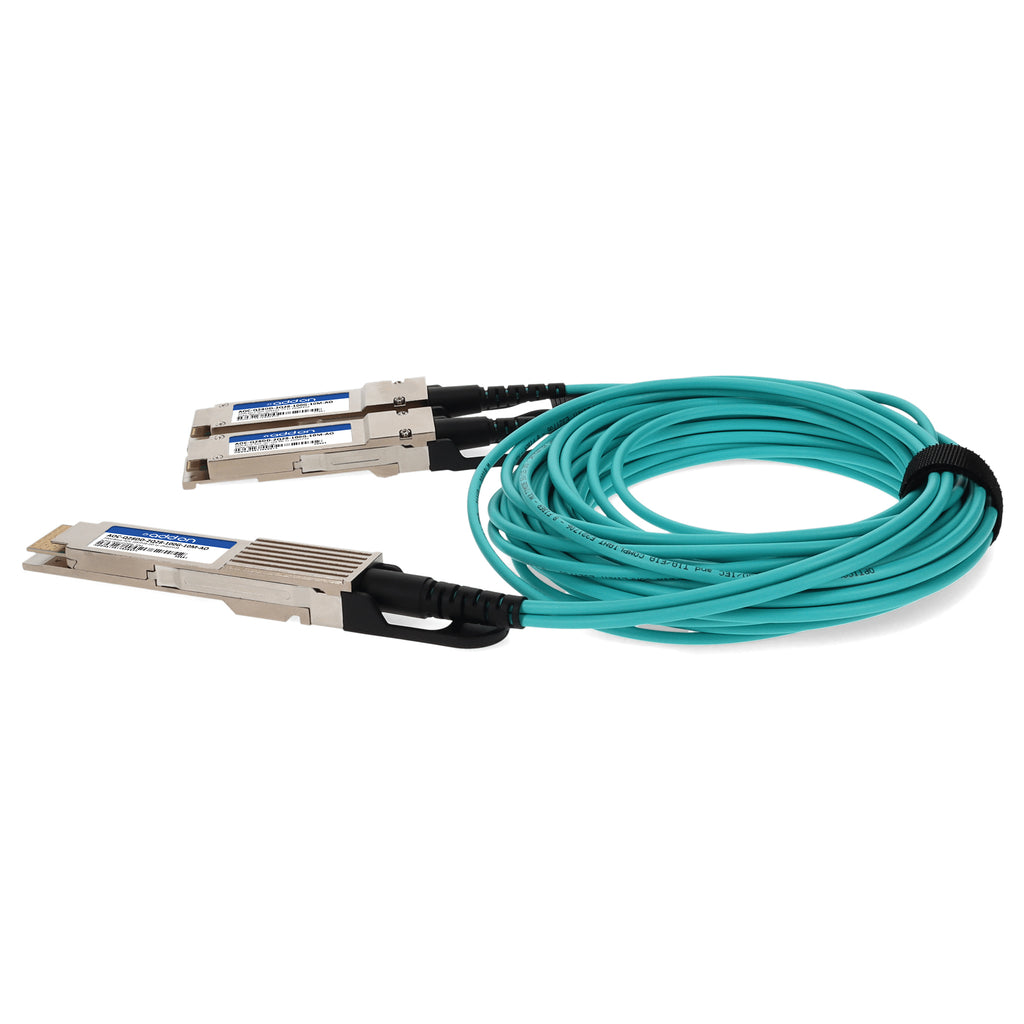

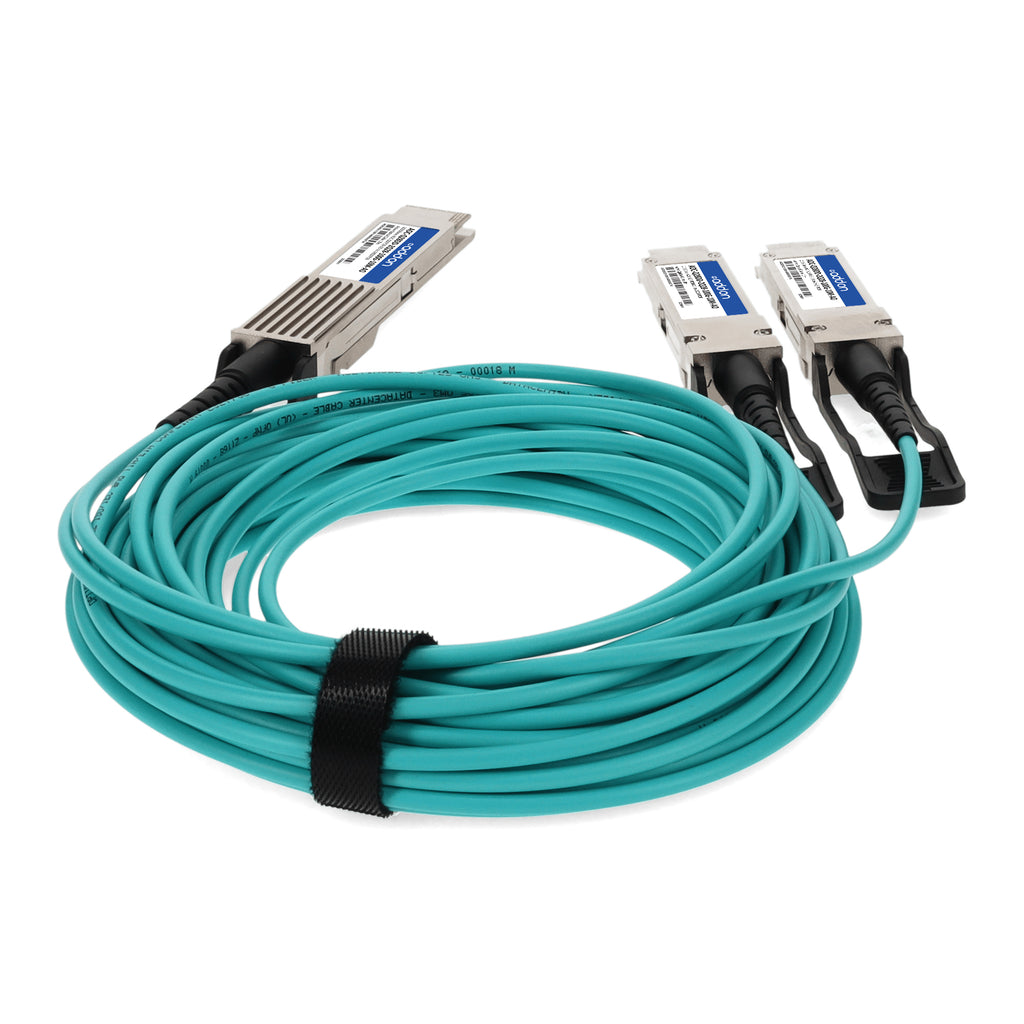

The AddOn Dell® AOC-Q28DD-2Q28-100G-10M is a high-performance 200GBase active optical cable (AOC) featuring a QSFP28-DD to 2xQSFP28 breakout configuration, designed for high-speed data center, InfiniBand EDR, and proprietary HPC interconnections. Operating over multimode fiber (MMF) at 850nm, this TAA-compliant cable supports a maximum reach of 10 meters and delivers up to 25.78 Gbps per channel for reliable, high-bandwidth connectivity. Engineered to meet MSA standards, each unit is programmed, uniquely serialized, and fully tested to ensure 100% compatibility and optimal performance. With hot-pluggable interfaces, low power consumption, OFNP-rated cable construction, and RoHS/REACH compliance, this breakout AOC offers a cost-effective and energy-efficient solution for next-generation networking environments.
| Parameter | Specification |
|---|---|
| Compatible OEM | Dell® |
| AddOn SKU | AOC-Q28DD-2Q28-100G-10M-AO |
| Form Factor | QSFP28-DD to 2xQSFP28 |
| Cable Type | Active Optical Cable (AOC) |
| Data Rate (Per Channel) | Up to 25.78 Gbps |
| Aggregate Data Rate | 200 Gbps |
| Wavelength | 850 nm |
| Fiber Type | MMF |
| Maximum Reach | 10 m |
| Connector Type | QSFP28-DD to 2xQSFP28 |
| Power Consumption | 3.3 W (QSFP28-DD), 1.65 W (QSFP28) |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Supply Voltage | 3.13 – 3.47 V |
| Bit Error Rate | ≤ 1×10⁻¹² (pre-FEC) |
| Cable Jacket | OFNP-rated (Aqua) |
| Cable Diameter | Ø3.0 ± 0.20 mm |
| Minimum Bend Radius | 30 mm (no tension), 60 mm (under tension) |
| Compliance | TAA, MSA, RoHS, REACH |
| Applications | 100Gigabit Ethernet, InfiniBand EDR, Datacenter, HPC Interconnects |
| Warranty | Limited Lifetime Warranty |
