Description

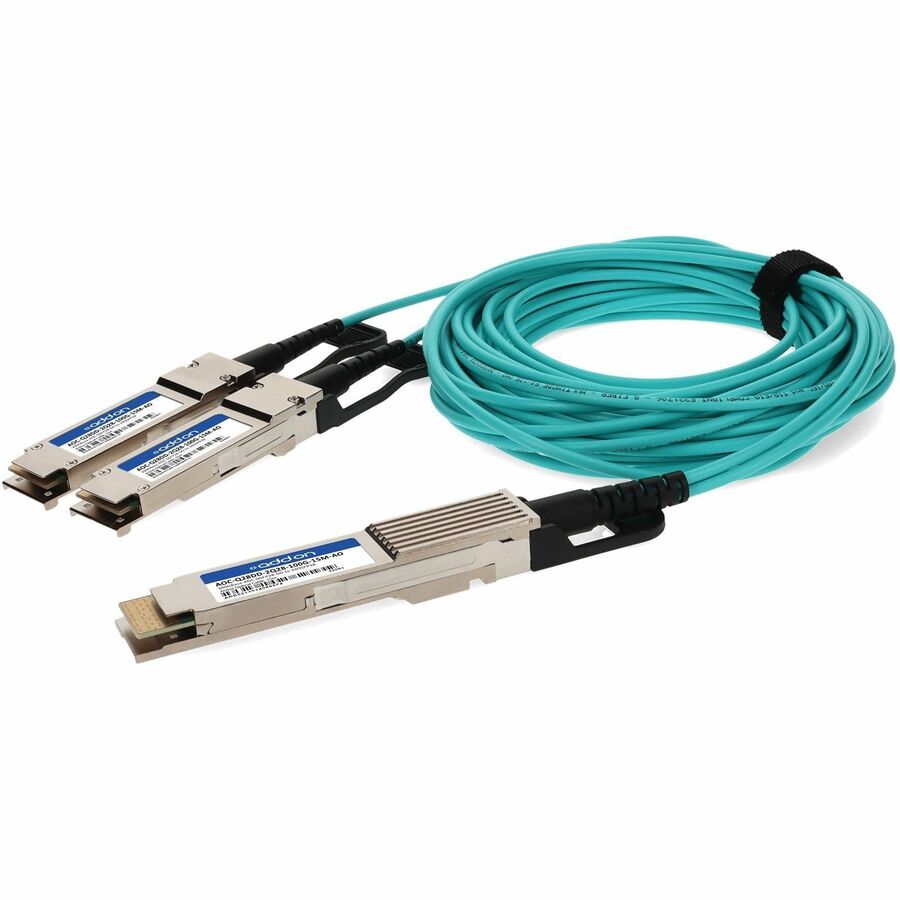

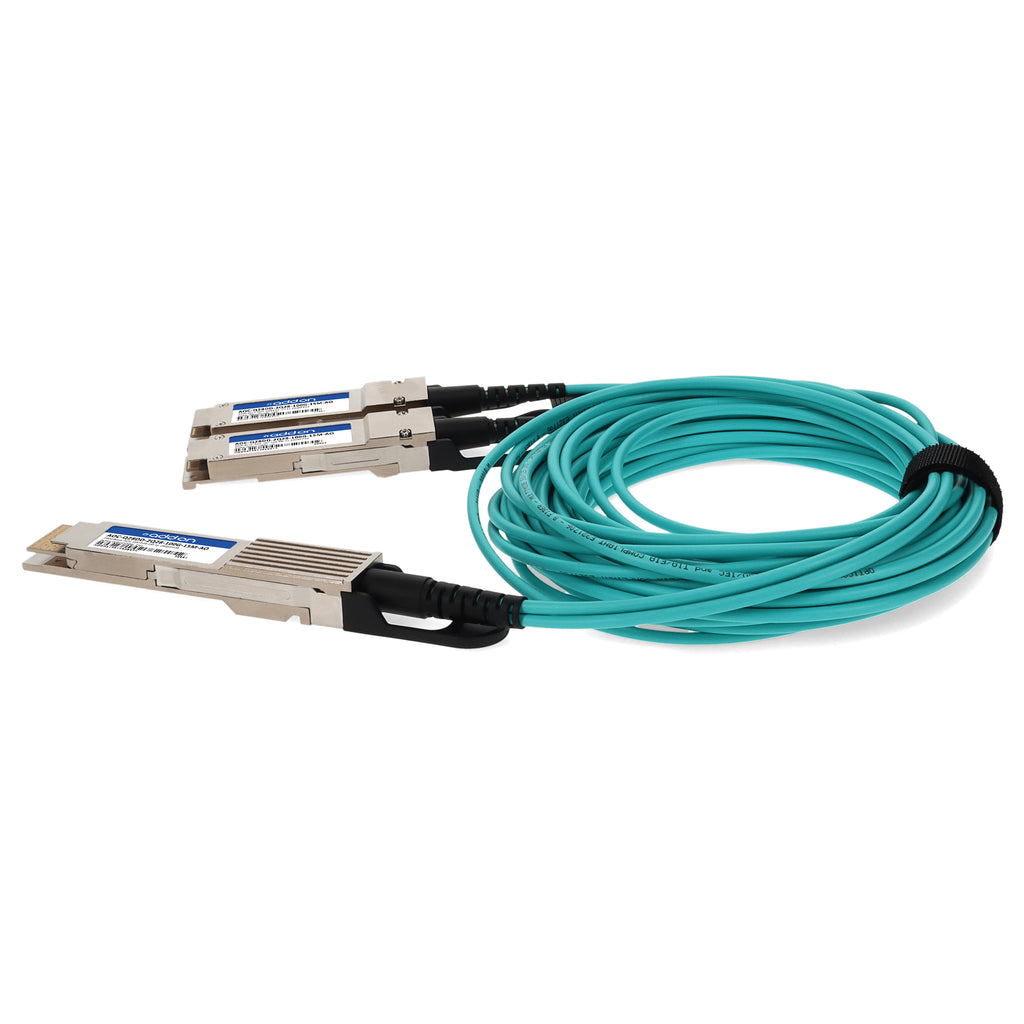

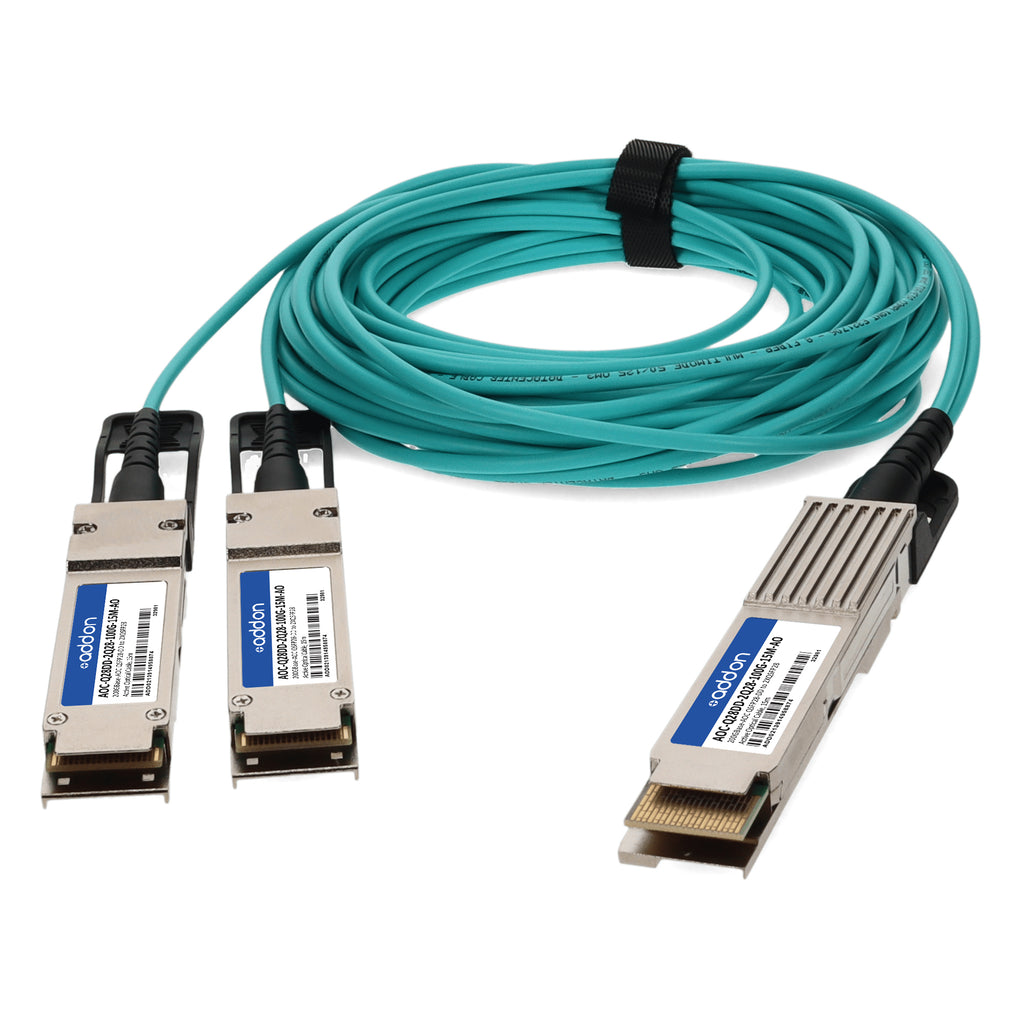

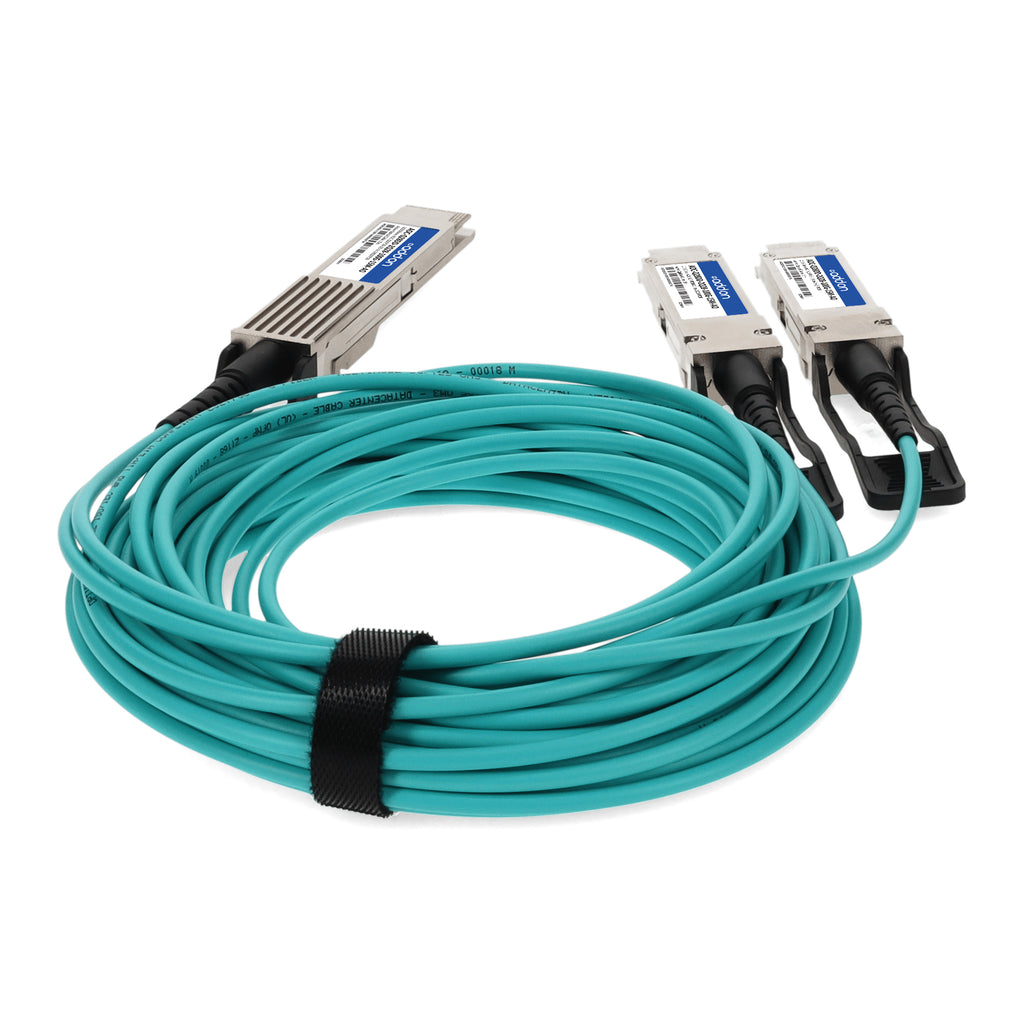

This is an AddOn Dell® AOC-Q28DD-2Q28-100G-15M compatible 200GBase-AOC QSFP28-DD to 2xQSFP28 active optical cable designed for high-performance data center and enterprise network environments. Operating over active multimode fiber (MMF) at 850nm with a maximum reach of 15 meters, this breakout cable delivers up to 25.78 Gbps per channel across two independent full-duplex links. It is hot-pluggable, TAA compliant, and MSA standards-based, ensuring seamless interoperability with OEM equipment. With low power consumption (3.3W on QSFP28-DD and 1.65W on QSFP28 ends), OFNP-rated jacket, and RoHS/REACH compliance, this cable is ideal for 100GbE, InfiniBand EDR, HPC, and other high-bandwidth applications. Each unit is uniquely serialized, application-tested, and backed by AddOn’s limited lifetime warranty for reliable, enterprise-grade performance.
| Parameter | Specification |
|---|---|
| Compatible OEM | Dell® |
| Form Factor | QSFP28-DD to 2x QSFP28 |
| Data Rate per Channel | Up to 25.78 Gbps |
| Aggregate Bandwidth | 200 Gbps |
| Cable Type | Active Optical Cable (AOC) |
| Wavelength | 850 nm |
| Fiber Type | MMF |
| Reach / Length | 15 m |
| Connector Type | QSFP28-DD (Tx) to 2x QSFP28 (Rx) |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Supply Voltage | +3.3V |
| Power Consumption (QSFP28-DD End) | 3.3 W (Typ) |
| Power Consumption (QSFP28 End) | 1.65 W (Typ) |
| Cable Jacket | OFNP-rated (Aqua) |
| Minimum Bend Radius | 30 mm (no tension) / 60 mm (under tension) |
| Applications | 100GbE, InfiniBand EDR, Data Centers, HPC |
| Compliance | TAA, MSA, RoHS, REACH |
| Warranty | Limited Lifetime Warranty |
