Description

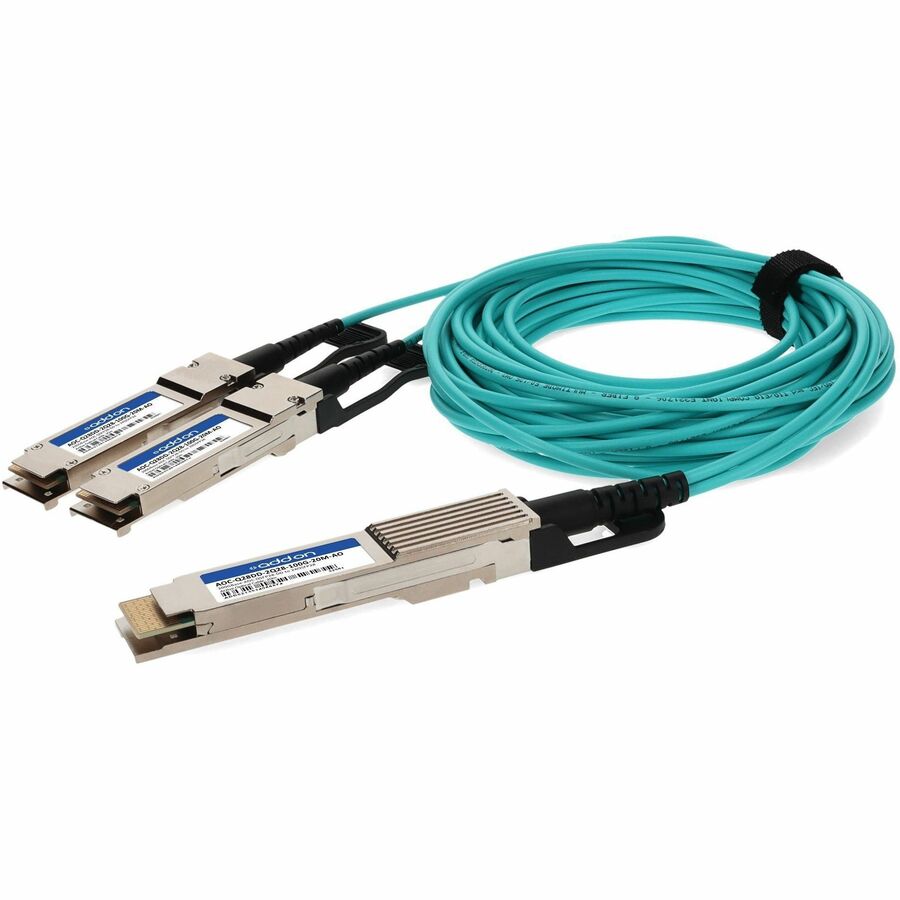

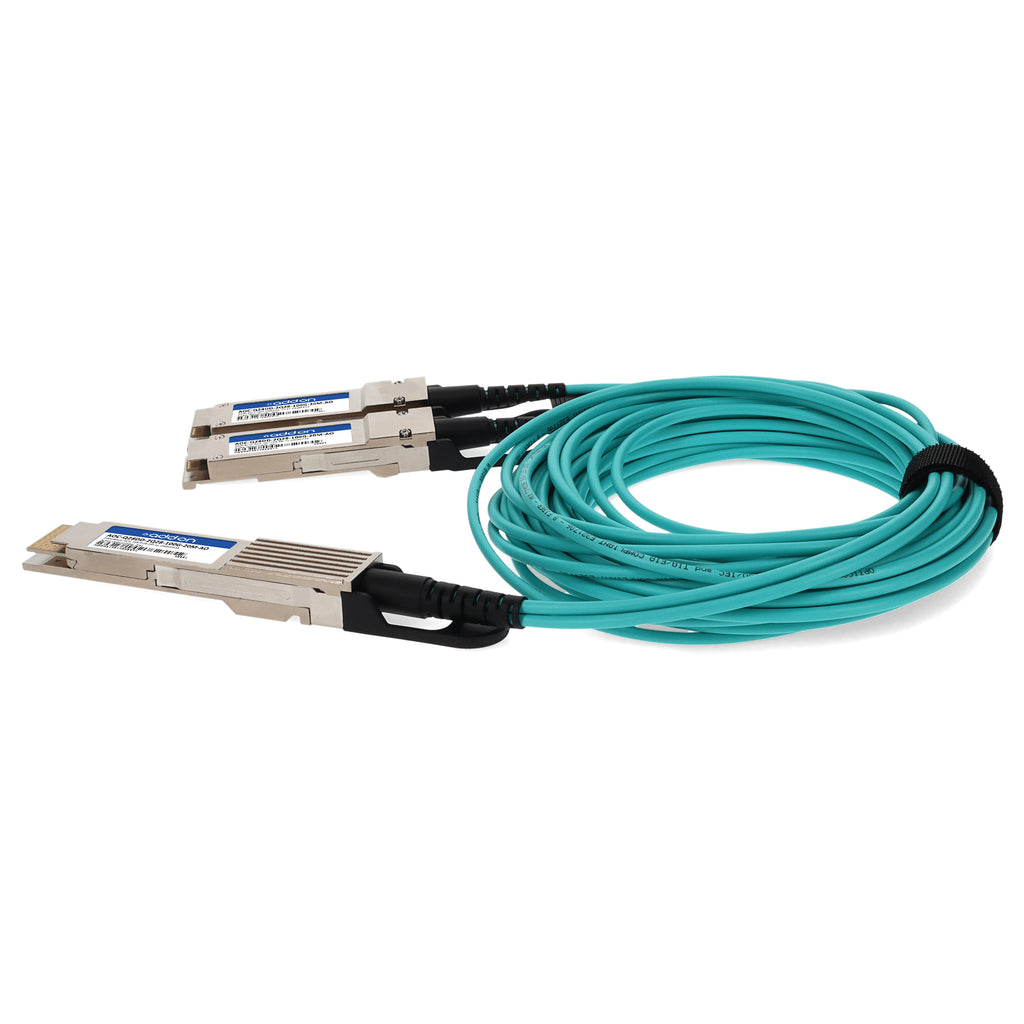

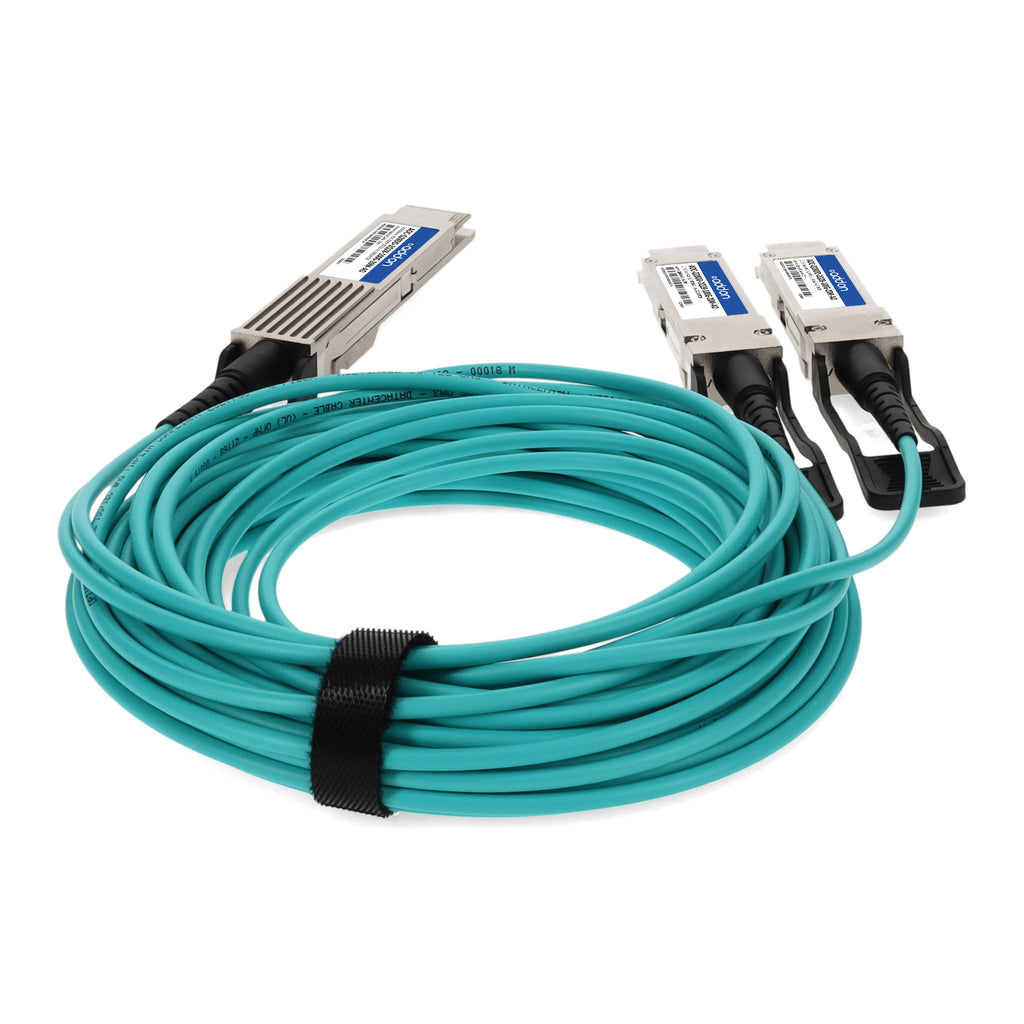

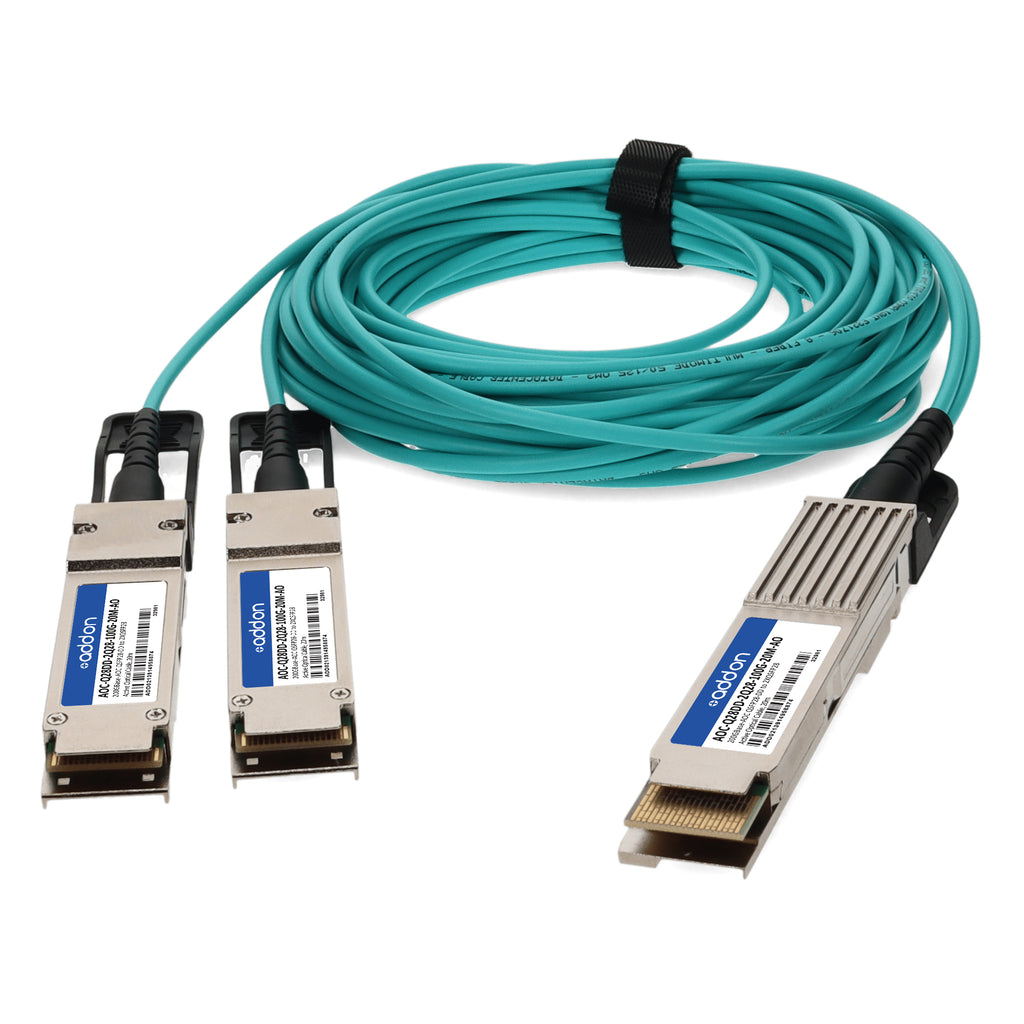

The AddOn Dell® AOC-Q28DD-2Q28-100G-20M Compatible Active Optical Cable is a high-performance 200GBase-AOC QSFP28-DD to 2xQSFP28 breakout solution designed for next-generation data center and enterprise connectivity. Operating over multimode fiber (MMF) at a wavelength of 850nm, this active optical cable supports up to 25.78 Gbps per channel across two independent full-duplex links, delivering reliable, high-speed data transmission for 100 Gigabit Ethernet, InfiniBand EDR, and HPC interconnections.
With a maximum reach of 20 meters and OFNP-rated aqua cable jacket, it ensures safe and efficient installation in riser environments. Hot-pluggable QSFP-DD and QSFP28 interfaces, low power consumption, and compliance with TAA and MSA standards make it a robust choice for demanding network environments. Each unit is uniquely serialized, fully tested for data traffic and application performance, and backed by AddOn’s limited lifetime warranty.
| Specification | Description |
|---|---|
| Compatible OEM | Dell® |
| AddOn Part Number | AOC-Q28DD-2Q28-100G-20M-AO |
| Form Factor | QSFP28-DD to 2xQSFP28 Active Optical Cable |
| Data Rate (Per Channel) | Up to 25.78 Gbps |
| Aggregate Data Rate | 200 Gbps |
| Wavelength | 850nm |
| Cable Type | MMF (Multimode Fiber), OFNP-rated |
| Cable Length | 20m |
| Fiber Type | OM3 |
| Connector Type | QSFP28-DD to 2xQSFP28 |
| Power Consumption | 3.3W (QSFP28-DD end), 1.65W (QSFP28 end) |
| Power Supply Voltage | +3.3V |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Minimum Bend Radius | 30mm (without tension) / 60mm (under max tension) |
| Compliance Standards | TAA, MSA, RoHS, REACH, TUV |
| Applications | 100 Gigabit Ethernet, InfiniBand EDR, Datacenter, HPC Interconnections |
| Warranty | Limited Lifetime Warranty |
