Description

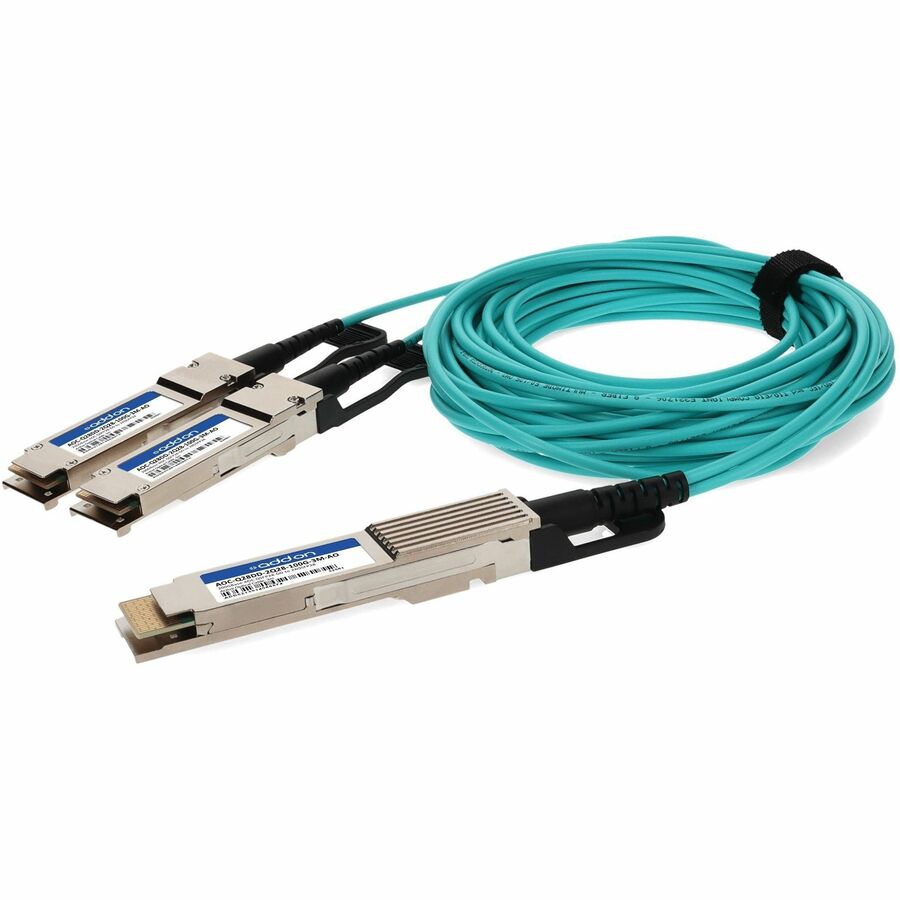

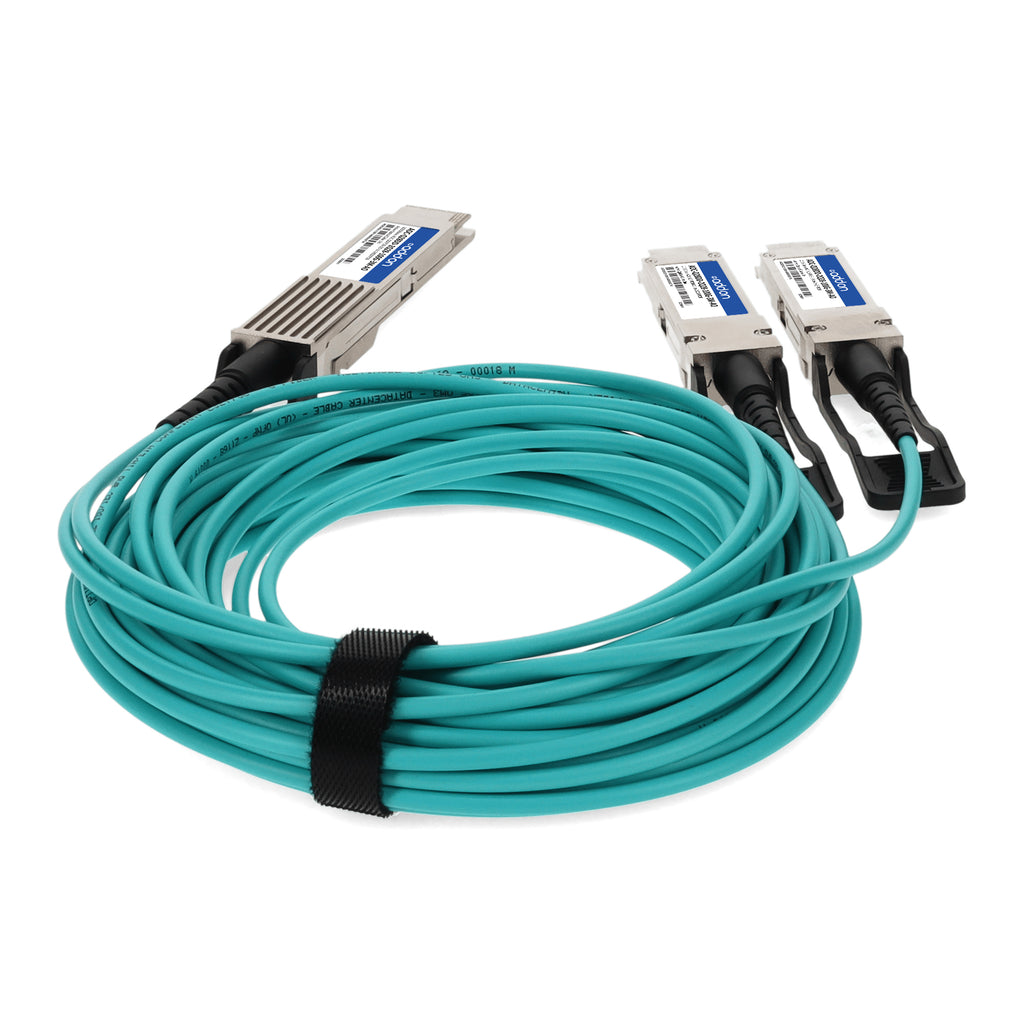

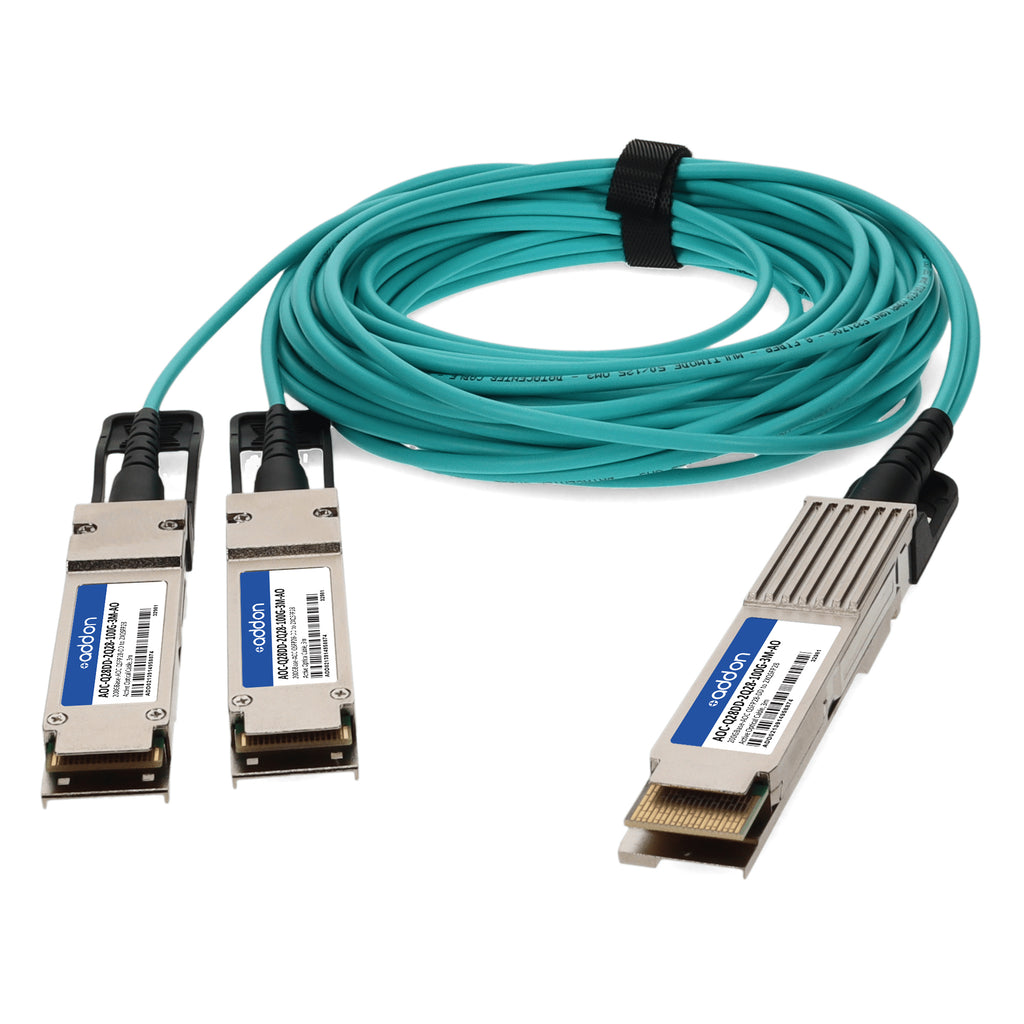

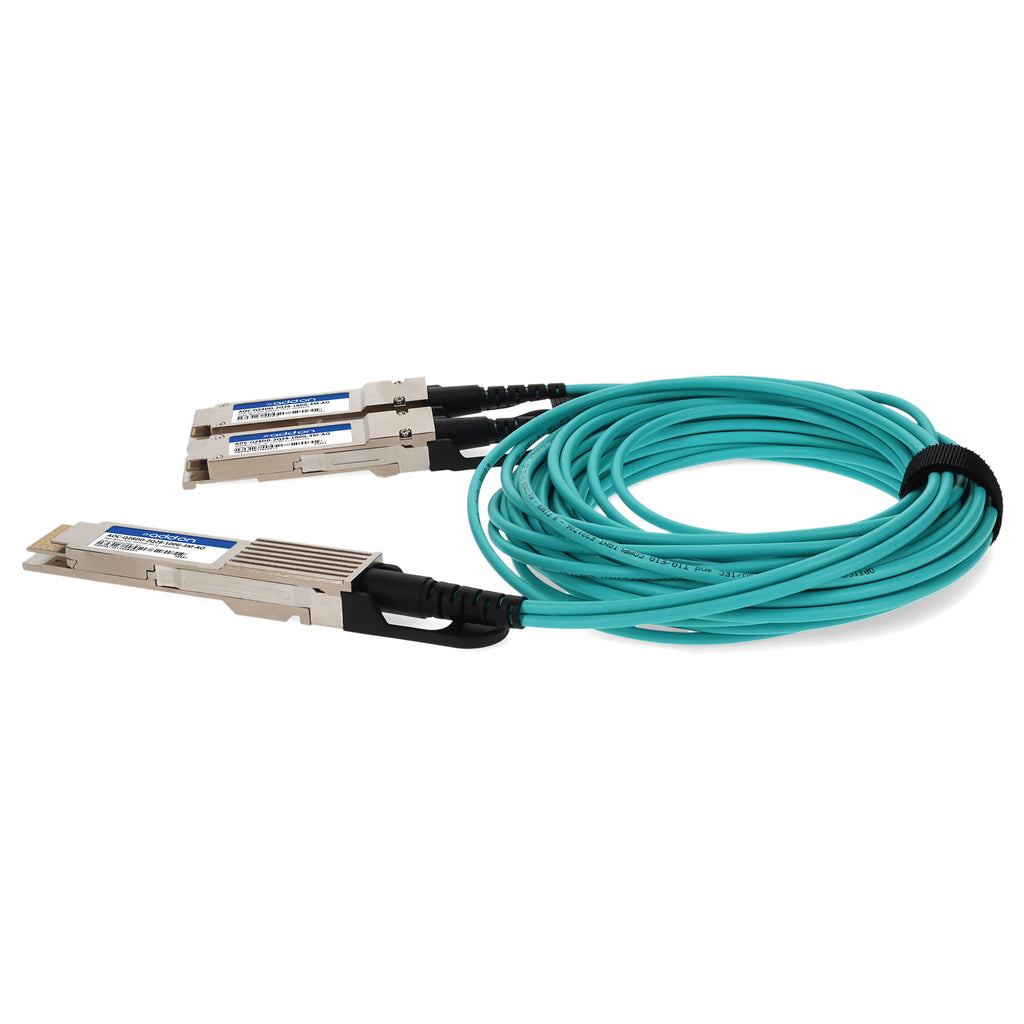

The AddOn Dell® AOC-Q28DD-2Q28-100G-3M is a high-performance 200GBase-AOC active optical cable designed for data centers, enterprise networks, and high-performance computing environments. This breakout cable connects a QSFP28-DD port to two QSFP28 ports, delivering up to 25.78 Gbps per channel over OM3 multimode fiber with a maximum reach of 3 meters. Operating at an 850nm wavelength, it ensures reliable and efficient transmission for applications such as 100 Gigabit Ethernet and InfiniBand EDR.
The cable features hot-pluggable connectivity, low power consumption (3.3W on the QSFP28-DD end, 1.65W on each QSFP28 end), and a robust OFNP-rated jacket. TAA-compliant and MSA standards-based, this AddOn solution undergoes rigorous testing to guarantee 100% functionality, RoHS compliance, and seamless compatibility with Dell networking equipment.
| Specification | Description |
|---|---|
| SKU | AOC-Q28DD-2Q28-100G-3M-AO |
| Brand | AddOn |
| Compatible OEM | Dell® |
| Form Factor | QSFP28-DD to 2xQSFP28 Active Optical Cable |
| Data Rate (Per Channel) | Up to 25.78 Gbps |
| Aggregate Bandwidth | 200 Gbps |
| Wavelength | 850 nm |
| Cable Length | 3 meters |
| Fiber Type | OM3 Multimode Fiber |
| Power Consumption | 3.3W (QSFP28-DD end), 1.65W (QSFP28 end) |
| Power Supply Voltage | +3.3V |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 0% to 85% |
| Cable Jacket | OFNP-rated (Aqua) |
| Minimum Bend Radius | 30 mm (no tension), 60 mm (under tension) |
| Applications | 100Gigabit Ethernet, InfiniBand EDR, Datacenter, HPC |
| Compliance | TAA, MSA, RoHS/REACH |
| Certifications | TUV Certified |
| Warranty | Limited Lifetime Warranty |
