Description

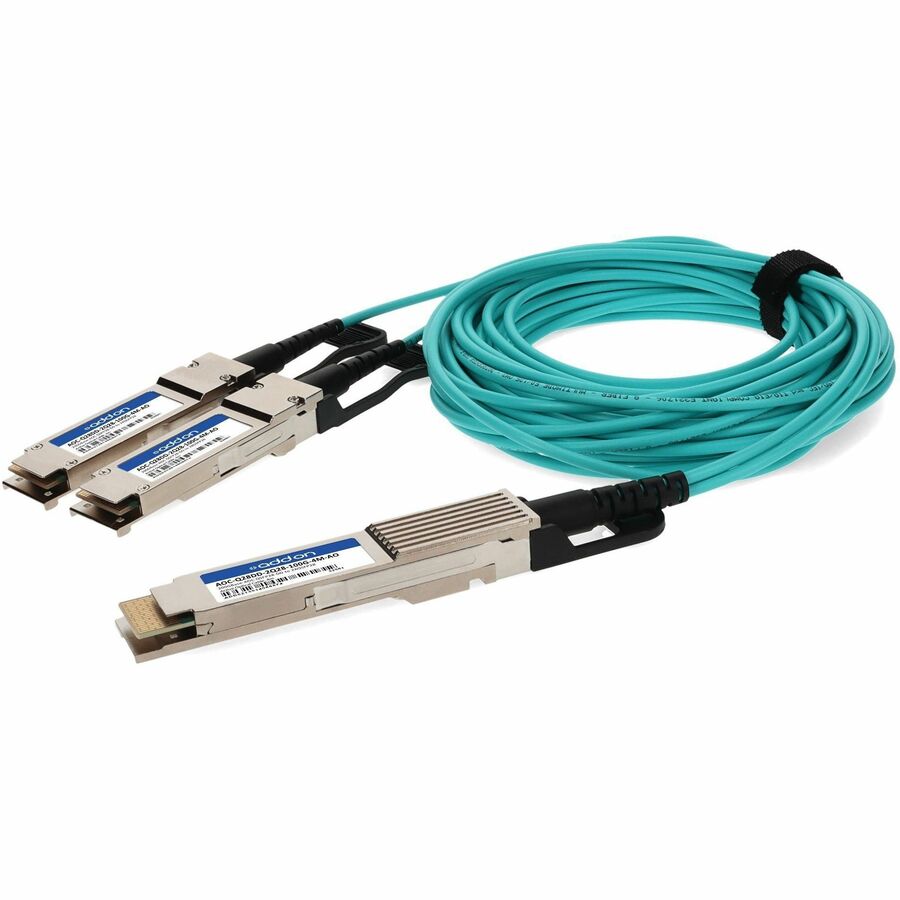

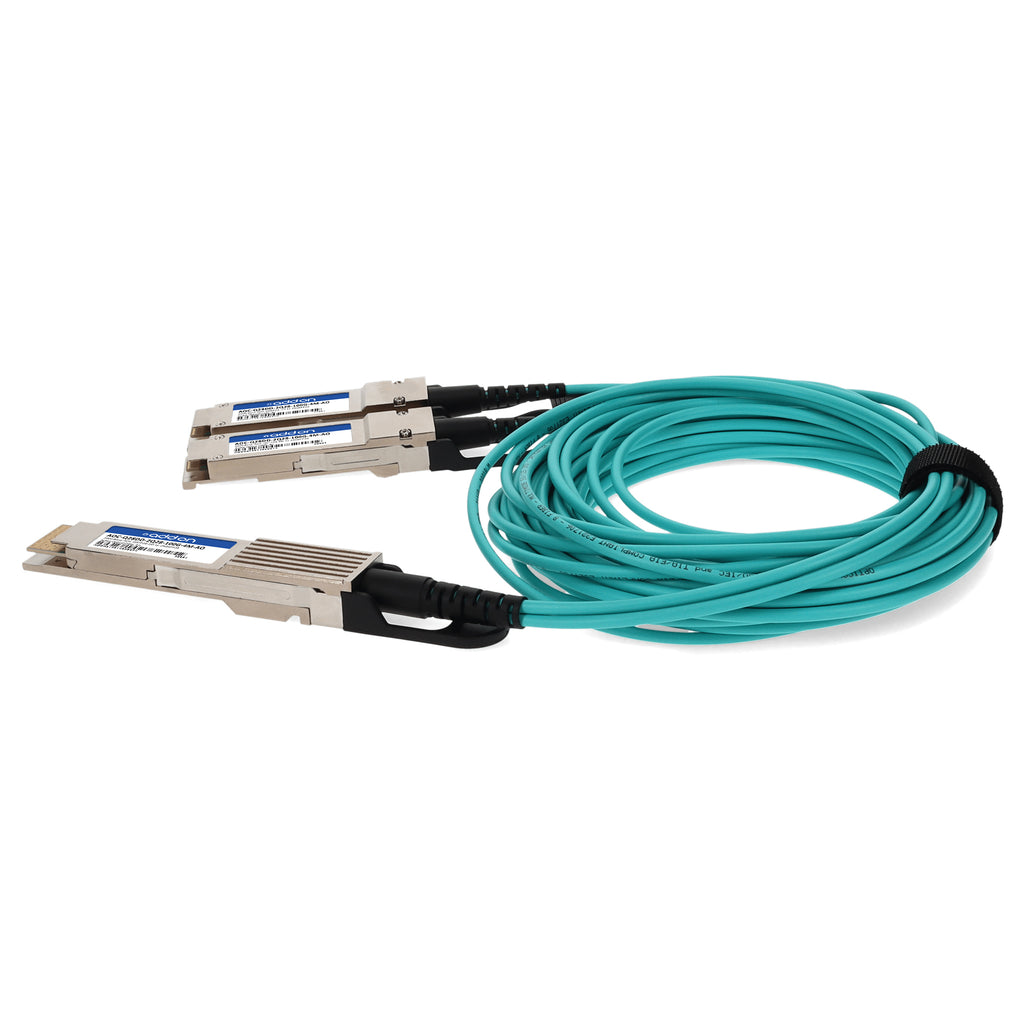

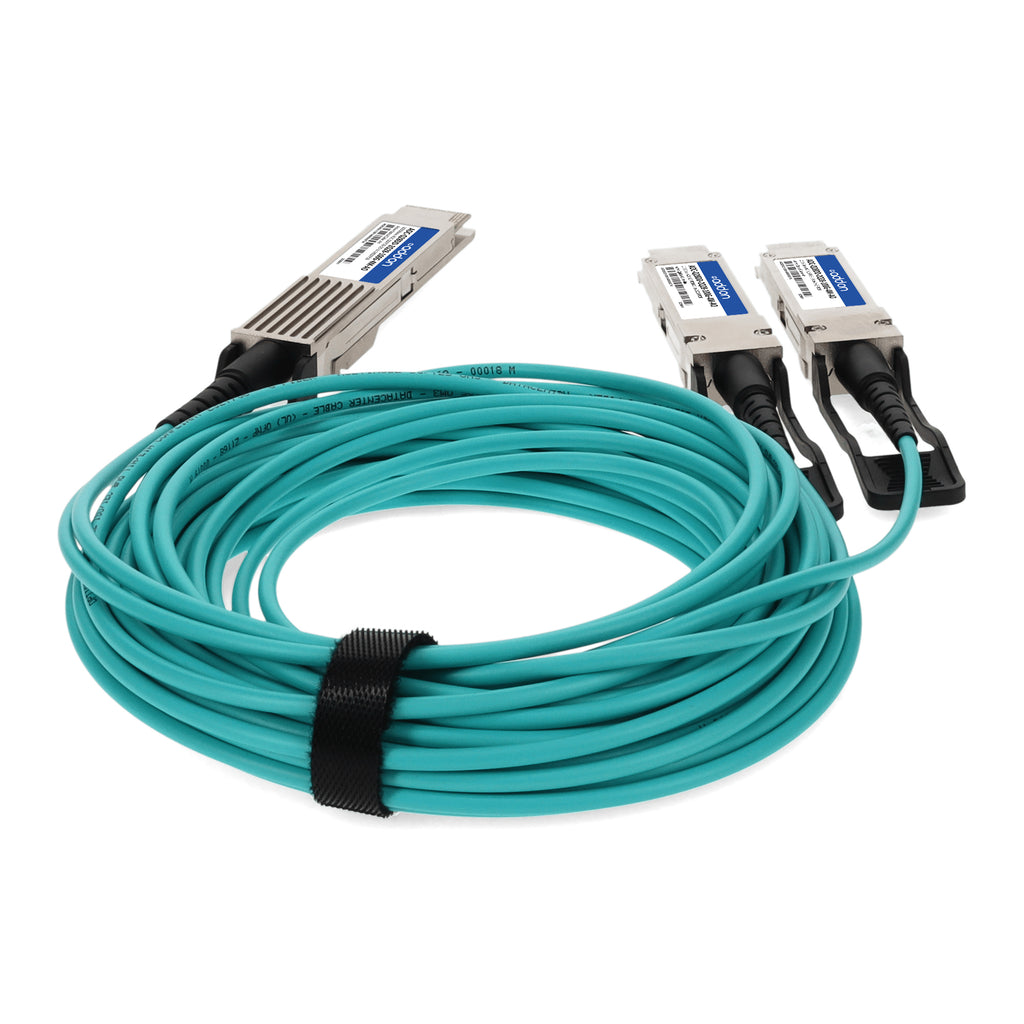

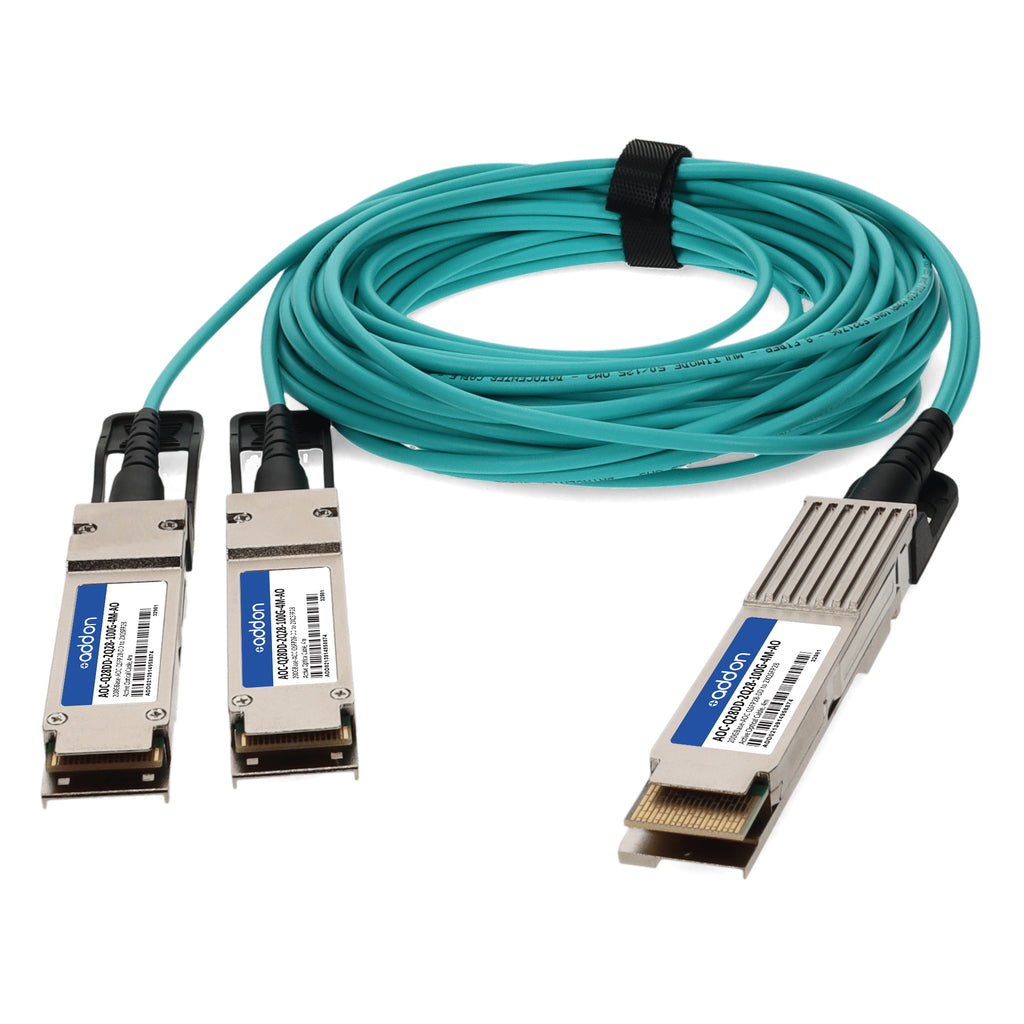

The AddOn Dell® AOC-Q28DD-2Q28-100G-4M is a 200GBase-AOC QSFP28-DD to 2xQSFP28 active optical breakout cable designed for high-performance data center and enterprise networking applications. Operating over multimode fiber (MMF) with a maximum reach of 4 meters at 850nm, this cable provides two independent full-duplex 100G links, each supporting data rates up to 25.78 Gbps per channel. It is TAA compliant, MSA standard-compliant, and fully hot-pluggable, offering plug-and-play deployment for 100 Gigabit Ethernet, InfiniBand EDR, and proprietary HPC interconnections. With low power consumption (3.3W on the QSFP28-DD end and 1.65W on the QSFP28 end), OFNP-rated jacket, and RoHS/REACH compliance, this AOC ensures reliable, efficient, and safe network connectivity. Every unit is programmed, serialized, and tested for 100% functionality, backed by AddOn’s limited lifetime warranty.
| Specification | Details |
|---|---|
| Compatible OEM | Dell® |
| Part Number | AOC-Q28DD-2Q28-100G-4M-AO |
| Cable Type | Active Optical Cable (AOC) |
| Form Factor | QSFP28-DD to 2x QSFP28 |
| Data Rate (Per Channel) | Up to 25.78 Gbps |
| Aggregate Data Rate | 200 Gbps |
| Wavelength | 850nm |
| Reach / Length | 4m |
| Fiber Type | Multimode Fiber (OM3) |
| Number of Channels | 8 (2x 4-channel full duplex) |
| Power Consumption | 3.3W (QSFP28-DD), 1.65W (QSFP28) |
| Supply Voltage | +3.3V |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Bit Error Rate (BER) | ≤ 1 × 10⁻¹² (pre-FEC) |
| Cable Jacket | OFNP-rated (Aqua) |
| Cable Diameter | Ø3.0 ± 0.20 mm |
| Minimum Bend Radius | 30 mm (no tension) / 60 mm (under tension) |
| Compliance | TAA, MSA, RoHS, REACH |
| Applications | 100 Gigabit Ethernet, InfiniBand EDR, Data Centers, HPC |
| Warranty | Limited Lifetime Warranty |
