Description

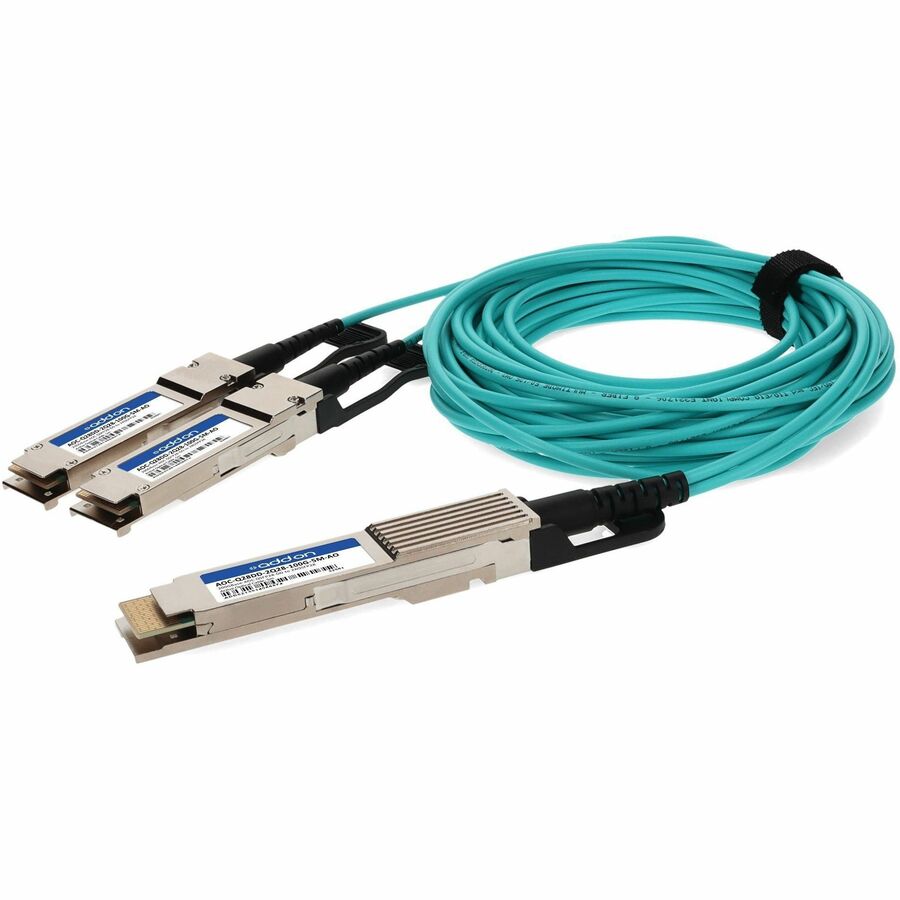

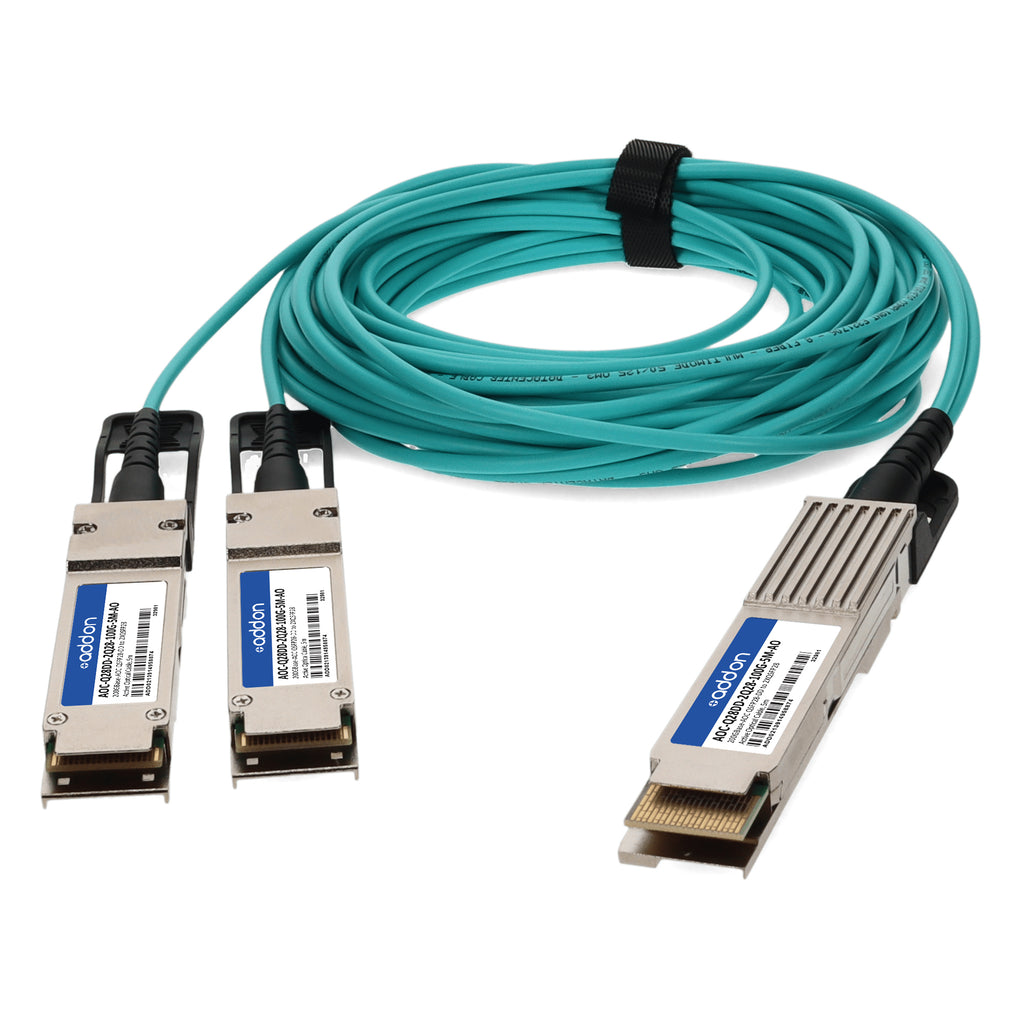

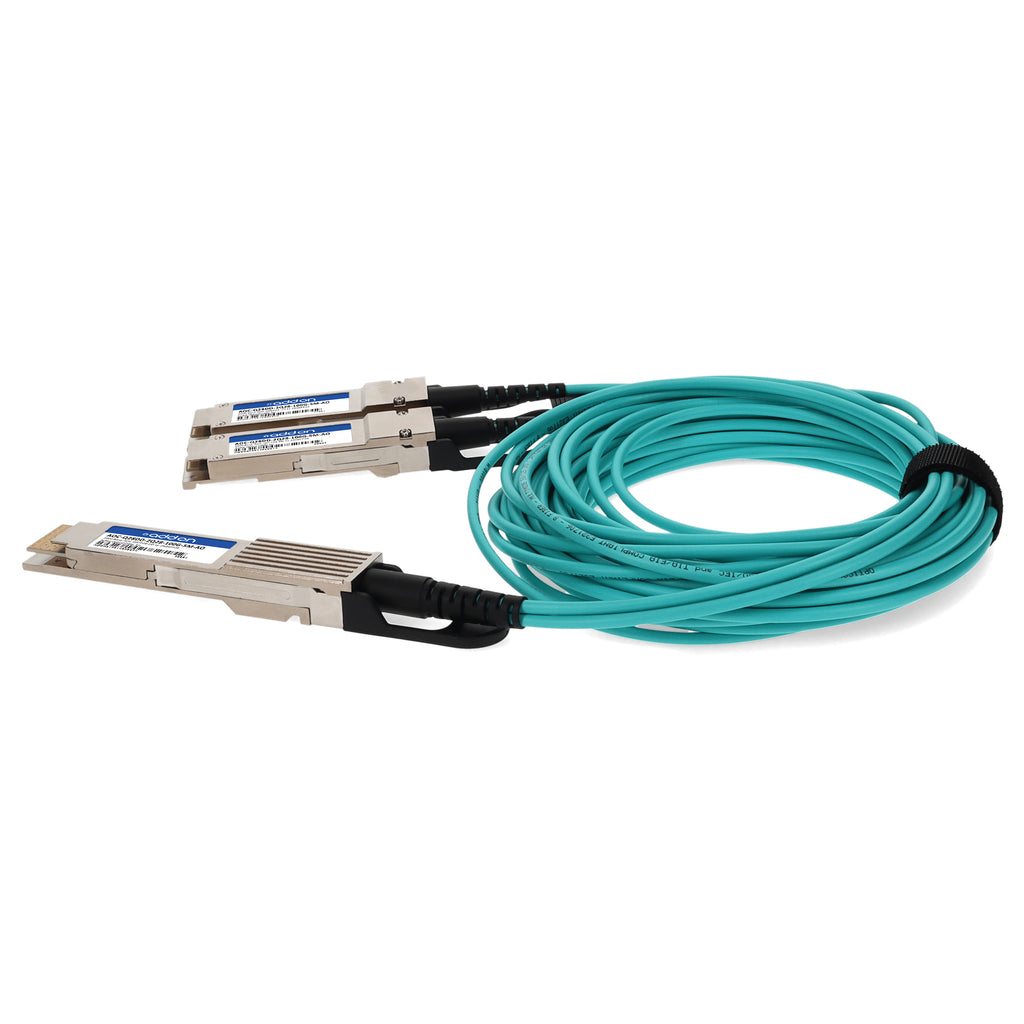

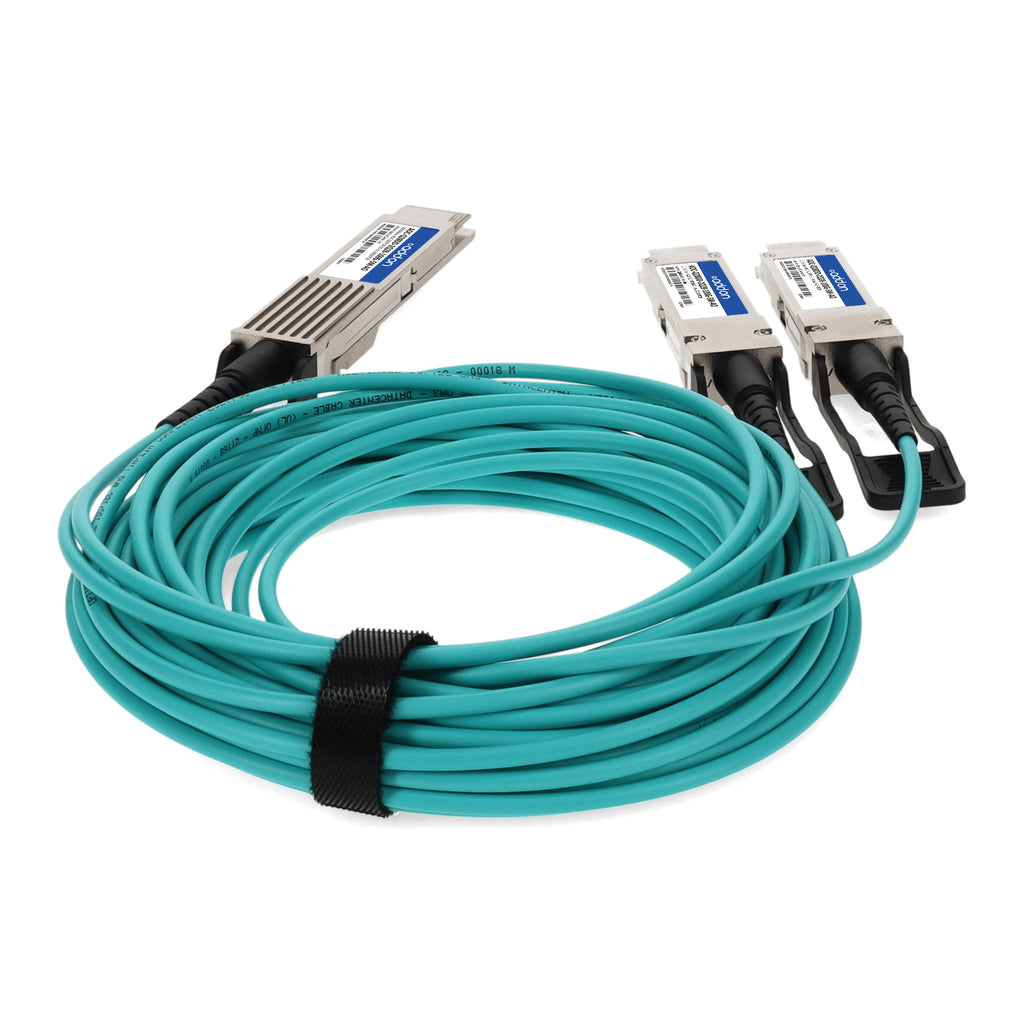

This is an AddOn Dell® AOC-Q28DD-2Q28-100G-5M compatible 200GBase-AOC QSFP28-DD to 2xQSFP28 active optical cable that operates over active OM3 multimode fiber with a maximum reach of 5 meters. Designed for high-speed data center, cloud, and enterprise network environments, this active optical cable supports up to 25.78 Gbps per channel across two independent full-duplex channels. Operating at a wavelength of 850nm, it ensures seamless 100Gb Ethernet, InfiniBand EDR, and HPC interconnect performance.
The cable is TAA compliant and meets MSA (Multi-Source Agreement) standards, ensuring interoperability and reliability. It offers low power consumption (3.3W on the QSFP28-DD end and 1.65W on the QSFP28 end), hot-pluggable design, and OFNP-rated jacket for safe in-building installation. Each unit is uniquely serialized, programmed, and rigorously tested for 100% functionality. AddOn backs this cable with a limited lifetime warranty, delivering dependable performance for mission-critical networking applications.
| Specification | Details |
|---|---|
| SKU | AOC-Q28DD-2Q28-100G-5M-AO |
| Compatible OEM | Dell® |
| Form Factor | QSFP28-DD to 2xQSFP28 |
| Data Rate (Per Channel) | Up to 25.78 Gbps |
| Aggregate Bandwidth | 200 Gbps |
| Cable Type | Active Optical Cable (AOC) |
| Wavelength | 850nm |
| Fiber Type | OM3 Multimode Fiber |
| Maximum Reach | 5 meters |
| Connector Type | QSFP28-DD to 2xQSFP28 |
| Power Consumption | 3.3W (QSFP28-DD end), 1.65W (QSFP28 end) |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 0% to 85% |
| Cable Diameter | 3.0 ± 0.20 mm |
| Minimum Bend Radius | 30 mm (without tension), 60 mm (under tension) |
| Cable Jacket | OFNP-rated (Aqua) |
| Hot-Pluggable | Yes |
| Compliance | TAA, MSA, RoHS, REACH, TUV Certified |
| Applications | 100Gb Ethernet, InfiniBand EDR, Datacenter, HPC |
| Warranty | Limited Lifetime Warranty |
