Description

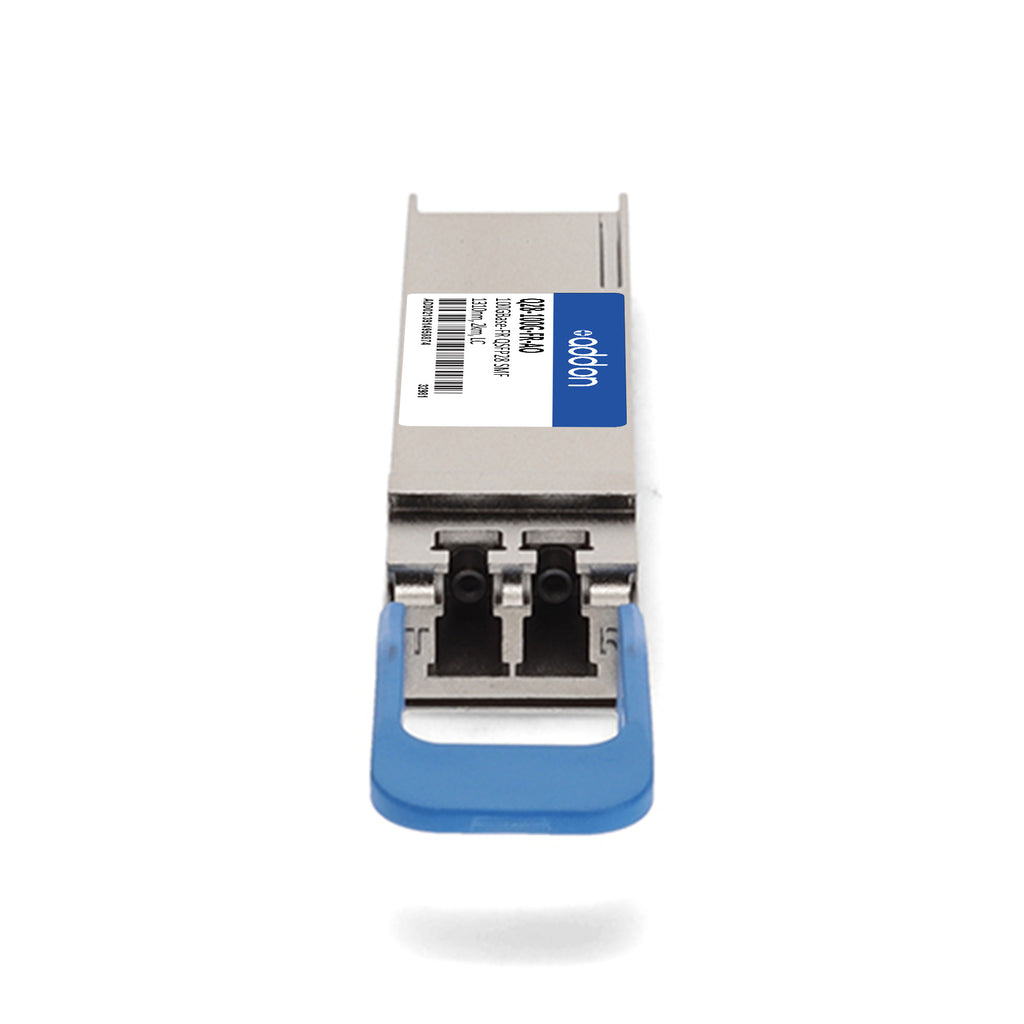

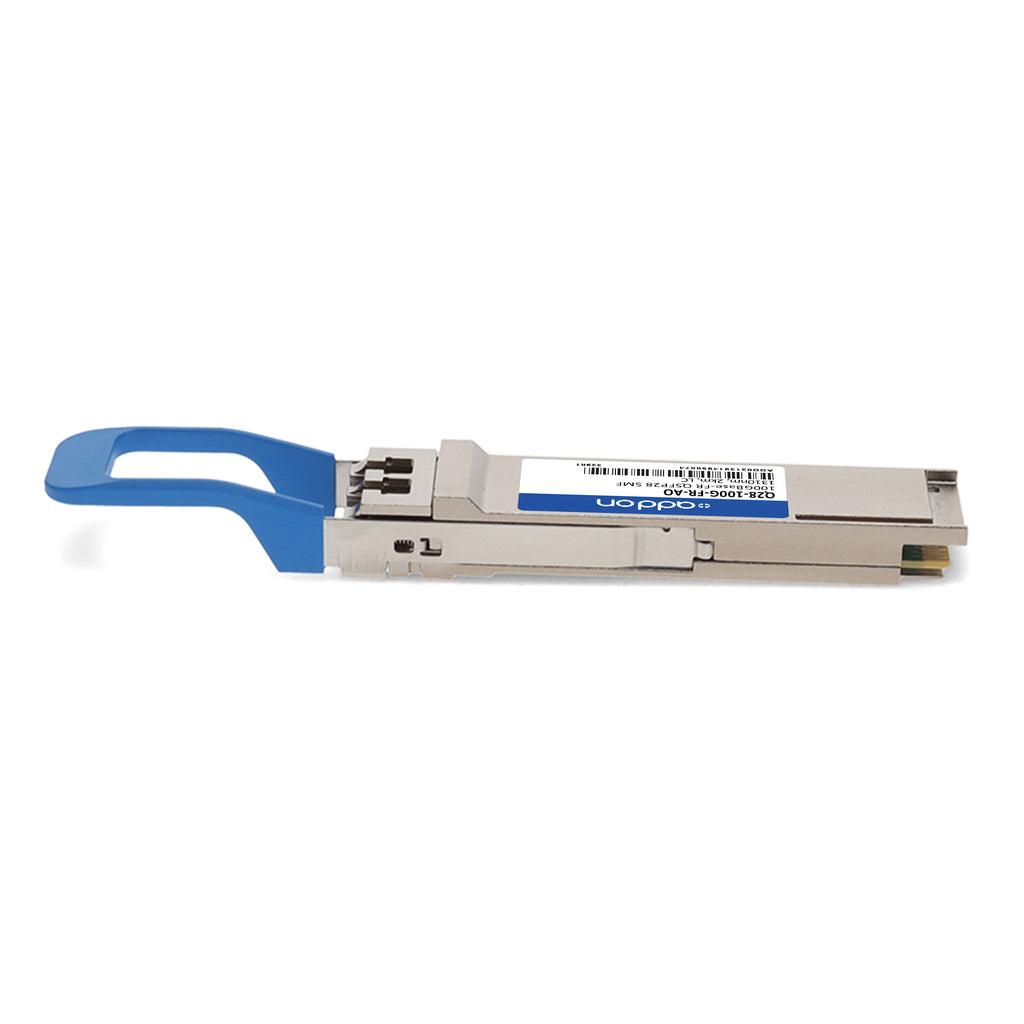

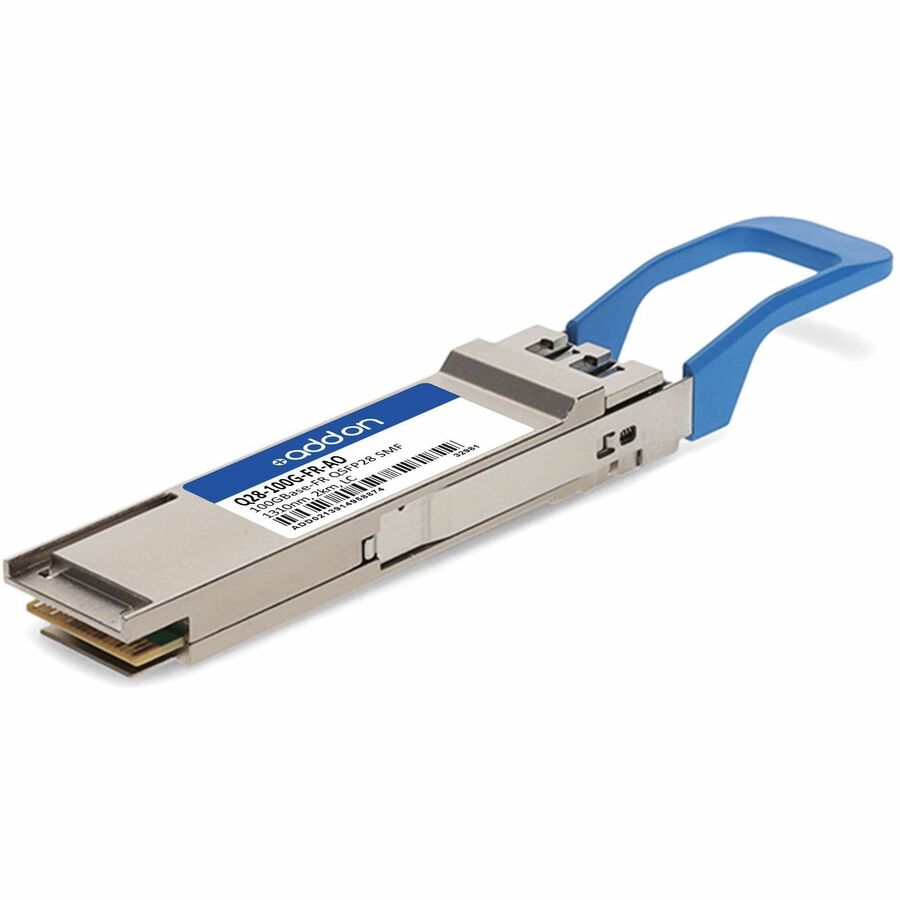

The AddOn Dell® Q28-100G-FR Compatible TAA 100GBase-FR QSFP28 Transceiver is a high-performance, hot-pluggable optical module designed for 100 Gigabit Ethernet applications over single-mode fiber (SMF). Operating at a wavelength of 1310nm and supporting distances up to 2km, this transceiver provides reliable, high-speed connectivity for data center, enterprise, and access networks.
Built to meet SFF-8665 standards, the module features a duplex LC connector, robust metal housing with reduced EMI, and excellent ESD protection. Each unit is uniquely serialized, programmed, and rigorously tested for seamless interoperability with Dell® equipment. Additionally, digital optical monitoring (DOM) enables real-time access to critical operating parameters, ensuring optimal network performance. This transceiver is fully TAA compliant and backed by AddOn’s limited lifetime warranty, making it a trusted choice for mission-critical network environments.
| Specification | Description |
|---|---|
| SKU | Q28-100G-FR-AO |
| Compatible OEM | Dell® |
| Form Factor | QSFP28 |
| Application | 100GBase-FR Ethernet |
| Wavelength | 1310nm |
| Fiber Type | Single-mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Maximum Distance | 2km |
| Data Rate (per lane) | 25.78125 Gb/s (NRZ) |
| Total Data Rate | 100Gbps |
| Optical Modulation | PAM4, 53.125 GBd |
| DOM Support | Yes |
| FEC Support | Required for maximum distance |
| Power Consumption | 4.0W |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Storage Temperature | -40°C to 85°C |
| Power Supply Voltage | 3.135V – 3.465V |
| Average Launch Power | -2.4 to 4 dBm |
| Extinction Ratio | ≥ 3.5 dB |
| Receiver Sensitivity | See IEEE Std 802.3-2018 clause 121.8.5.3 |
| RoHS Compliance | Yes |
| TAA Compliance | Yes |
| Warranty | Limited Lifetime Warranty |
