Description

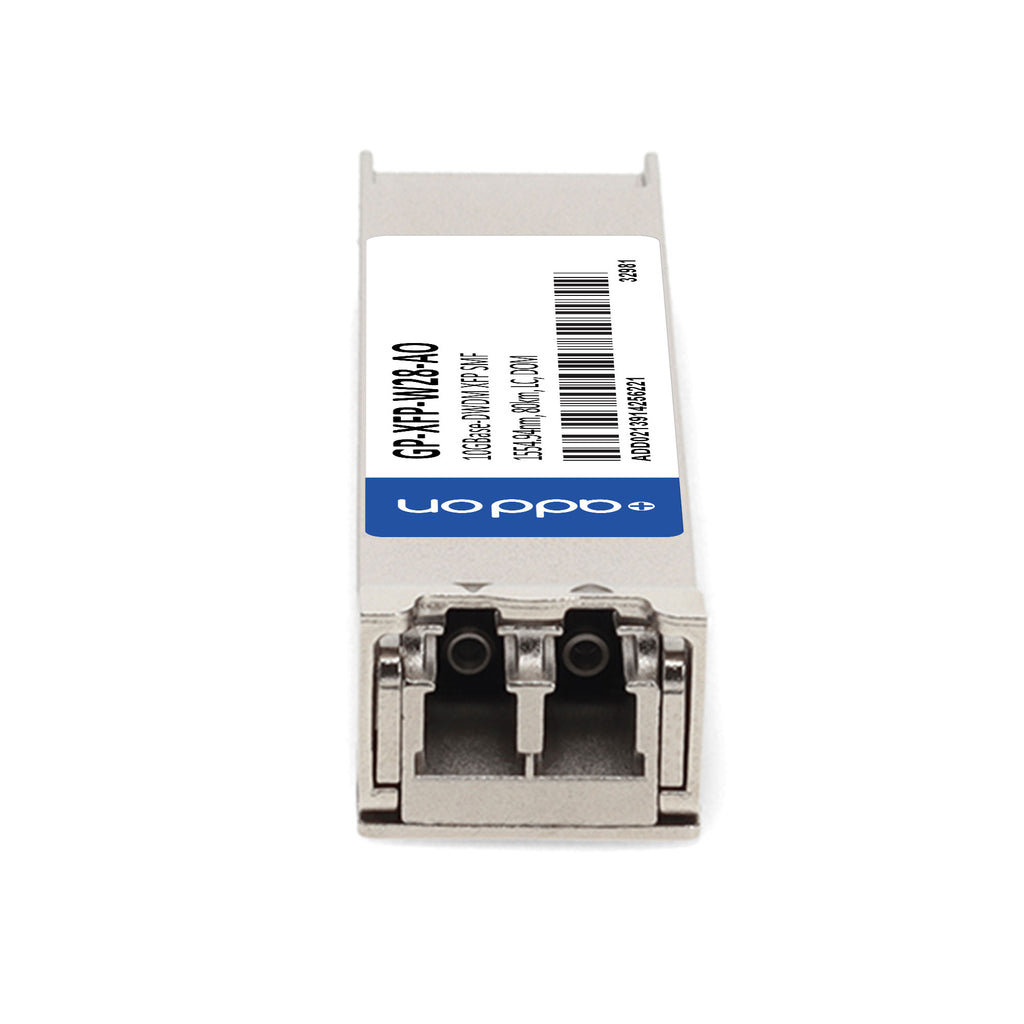

The AddOn Dell Force10® GP-XFP-W28 Compatible Transceiver delivers reliable 10GBase-DWDM throughput up to 80km over single-mode fiber (SMF) using a 1554.94nm wavelength via an LC connector. Designed for high-performance enterprise, metro, and access networks, this XFP module ensures seamless interoperability and is fully compliant with INF-8077i standards.
Equipped with a temperature-stabilized EML transmitter, APD receiver, and digital optical monitoring (DOM), it provides dependable operation with real-time performance insights. The hot-pluggable design and RoHS compliance make it a secure, efficient, and future-proof solution.
Each module is uniquely serialized, programmed, and tested for 100% compatibility with Dell Force10® hardware, backed by AddOn’s limited lifetime warranty.
| Specification | Details |
|---|---|
| SKU | GP-XFP-W28-AO |
| Form Factor | XFP Transceiver |
| Data Rate | Up to 11.3 Gbps |
| Application | 10GBase-DWDM, 8x/10x Fibre Channel, Metro/Enterprise |
| Wavelength | 1554.94 nm |
| Connector Type | Duplex LC |
| Cable Type | Single-Mode Fiber (SMF) |
| Max Distance | 80 km |
| Optical Power (Tx) | 0 to +5 dBm |
| Receiver Sensitivity | -23 dBm |
| Receiver Overload | -8 dBm |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Storage Temperature | -40°C to 85°C |
| Power Supply Voltage | +3.3V (typical), +5V (optional) |
| Power Consumption | 3.5W (typical) |
| Compliance | INF-8077i, RoHS, TAA, FCC Part 15, EN55022, FDA 21CFR, IEC 60825-1/2 |
| Features | DOM support, Hot-Pluggable, ESD protection, EMI shielded |
| Warranty | Limited Lifetime Warranty |
