Description

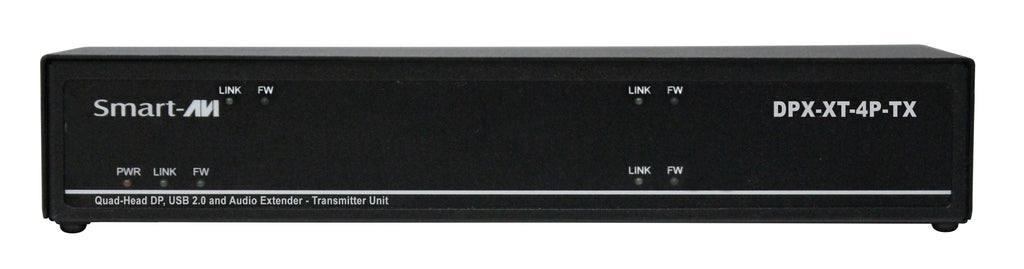

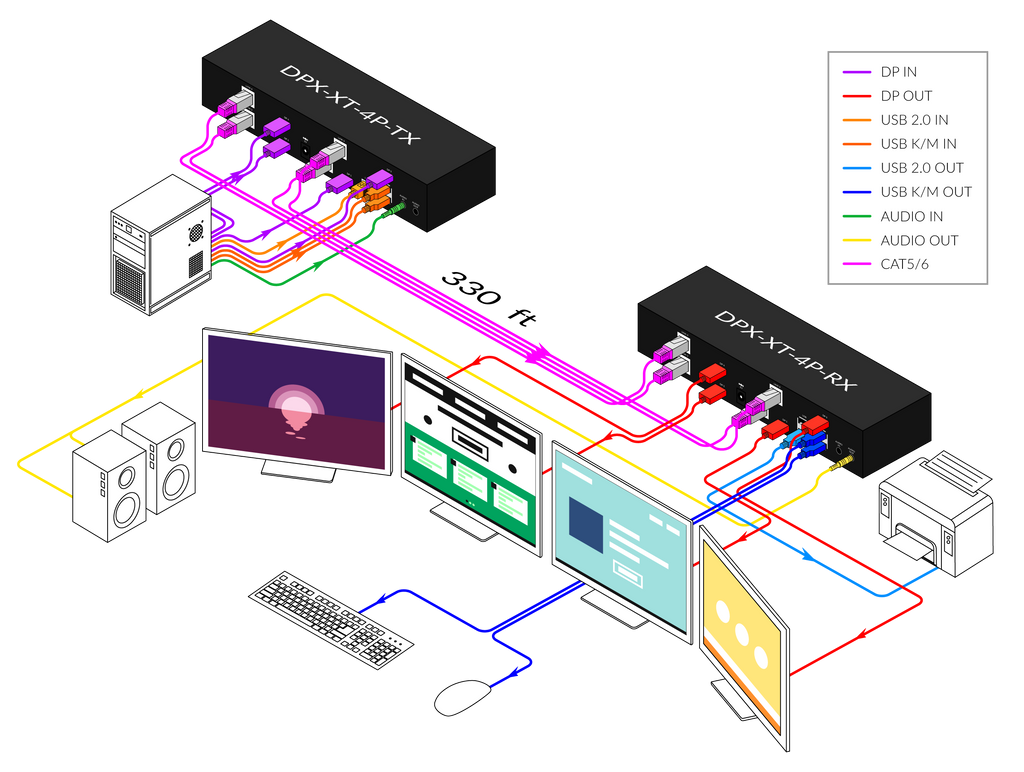

The SmartAVI DPX-XT-4P-S is a high-performance quad-head DisplayPort KVM extender designed for mission-critical environments that demand reliable, uncompressed signal transmission and centralized system control. Supporting up to four DisplayPort outputs at 4K resolution (3840x2160 @ 30Hz), this solution enables seamless extension of video, USB 2.0, keyboard and mouse, and stereo audio over a single CAT5e/6/6a cable up to 330 feet.
Built for control rooms, digital signage, security operations, and broadcast environments, the DPX-XT-4P-S ensures crystal-clear video quality and fully transparent USB 2.0 connectivity for peripherals such as keyboards, mice, storage devices, and more. Its plug-and-play architecture simplifies deployment while maintaining enterprise-grade performance and stability.

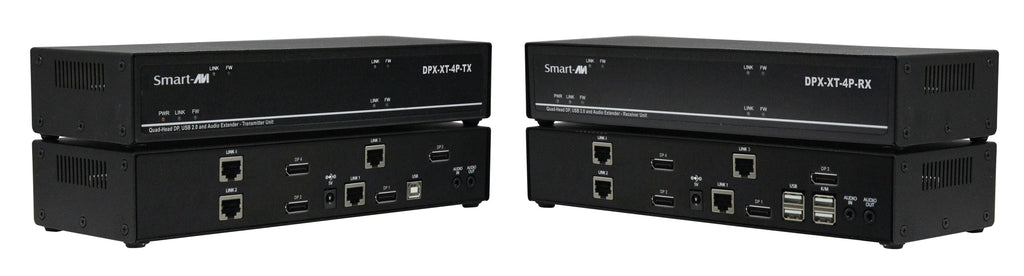

This complete extender kit includes both transmitter and receiver units, delivering a streamlined and scalable solution for extending multi-display workstations without compromising signal integrity or user control.
| Specification | Details |
|---|---|
| Product Type | Quad-Head DisplayPort KVM Extender (Transmitter & Receiver Kit) |
| Video Format | DisplayPort 1.1 and 1.2 |
| Max Resolution | Up to 3840 x 2160 @ 30Hz |
| Video Support | Uncompressed video transmission |
| Display Outputs | 4 x DisplayPort (TX & RX) |
| USB Support | USB 2.0 transparent + USB 1.1 for keyboard and mouse |

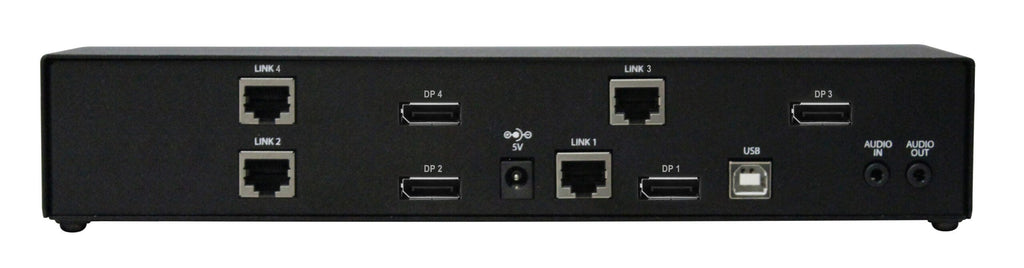

| USB Interfaces | TX: 1 x USB Type B; RX: 2 x USB 2.0 Type A, 2 x USB 1.1 Type A |
| Audio Support | Stereo audio (bi-directional) |
| Audio Interfaces | 3.5mm input/output (TX & RX) |
| Transmission Medium | Single CAT5e/6/6a cable |
| Maximum Distance | Up to 330 ft (100 meters) |
| System Interface | RJ-45 |
| Control | Keyboard and mouse emulation |
| Plug-and-Play | Yes |
| Power Supply | 100–240 VAC to 5VDC @ 3A |
| Power Consumption | 15W per unit |
| Dimensions | 11.9” W x 1.7” H x 2.9” D (per unit) |
| Weight | 1.75 lbs per unit |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 20%–80% non-condensing |
| Compliance | UL, CE, FCC Class A, RoHS |
| Included Components | Transmitter (TX), Receiver (RX), Power Supplies |
