Description

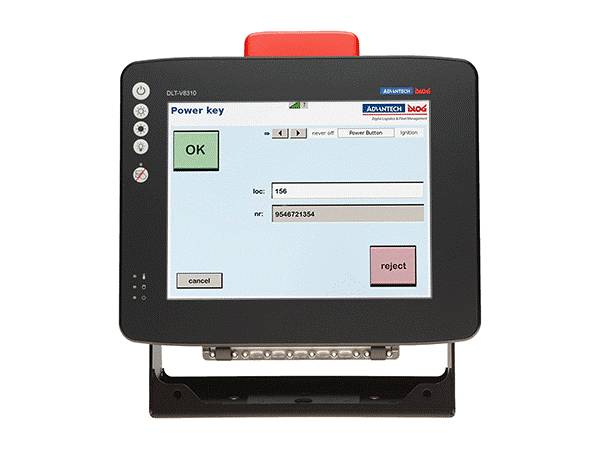

The Advantech DLV8315-BTO-D (DLT-V8315 series) is a rugged, high-performance vehicle-mounted terminal engineered for demanding logistics, warehouse, and outdoor industrial operations. Featuring a large 15.1-inch color TFT touchscreen and powered by Intel® Core™ i5 or Celeron® dual-core processors, this terminal delivers reliable computing in extreme environments.
Built with an IP66-rated sealed aluminum housing and IK08-certified impact-resistant touchscreen, the DLT-V8315 is designed to withstand shock, vibration, dust, and water exposure. With support for modern WLAN roaming, optional WWAN connectivity, and Advantech DeviceOn/iService remote device management, it ensures maximum uptime, seamless connectivity, and simplified fleet monitoring.
| Specification | Details |
|---|---|
| Model / Series | DLT-V8315 Vehicle-Mounted Terminal |
| SKU | DLV8315-BTO-D |
| Display Size | 15.1" Color TFT |
| Display Resolution | 1024 × 768 (XGA) |
| Touchscreen | Resistive, IK08 impact-rated |
| Processor Options | Intel® Core™ i5-4300U / Celeron® 2980U |
| Memory Support | 4 GB / 8 GB RAM |
| Storage Options | 16–256 GB CFast, Optional 512 GB SSD |
| Housing | Sealed Fanless Coated Aluminum |
| IP Rating | IP66 (Dustproof & Waterproof) |
| Operating Temperature | -30 to 50°C (-22 to 122°F) |
| Connectivity (Optional) | WLAN 802.11 a/b/g/n/ac, WWAN LTE, Bluetooth 5.0 |
| Ethernet | 10/100/1000 Mbps (optional secondary LAN) |
| Serial Ports | 2 × RS-232 (or RS-422/485 option) |
| USB Ports | 3 × USB 2.0 + 1 × Service USB |
| Power Input | 12/24/48 VDC (AC option available for DLT-V8315) |
| Certifications | CE, FCC Class B, MIL-STD-810F Vibration |
