Description

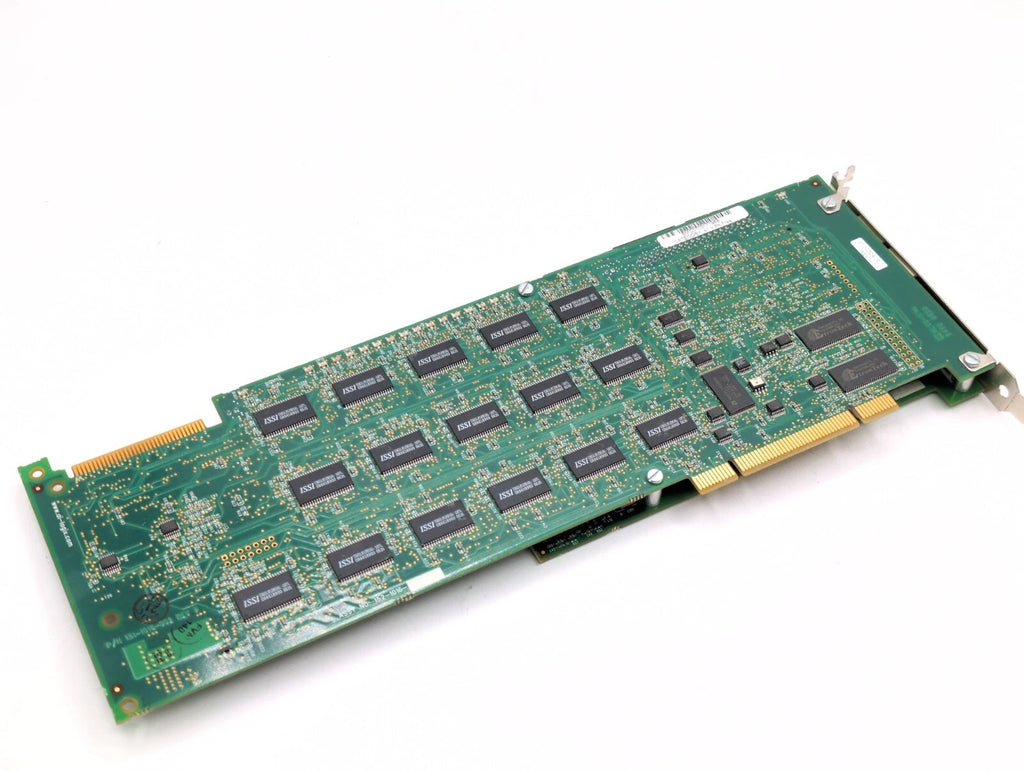

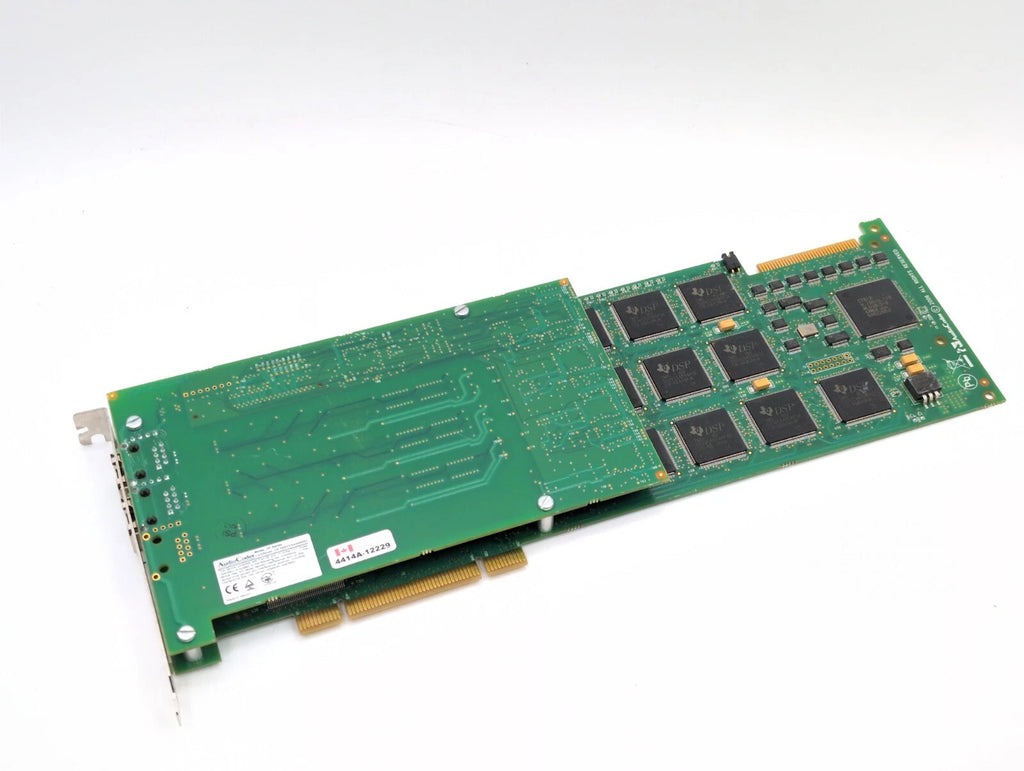

The AudioCodes SmartWORKS™ DP6409 is a high-density dual-span passive tap card designed for reliable, non-intrusive monitoring of T1/E1 digital trunks. Engineered for mission-critical call logging, compliance, and intelligence applications, the DP6409 allows organizations to capture both sides of a call without interrupting service, making it ideal for high-traffic environments such as contact centers, financial institutions, emergency services (911/PSAP), and government agencies.
Featuring high-impedance receivers, the DP6409 can process up to 60 channels per blade and scale up to 512 channels per system, all while maintaining full service even during host PC shutdown. It supports a wide range of international signaling protocols—including CAS, ISDN (Q.931), NFAS, DASS2, DPNSS, and RAW ABCD—ensuring seamless integration across diverse telecom infrastructures.
With built-in performance monitoring, event alarms, extensive DSP-based voice processing, and access to the SmartWORKS™ API, the DP6409 provides complete visibility into call and trunk activity. Its robust feature set includes tone detection, caller ID handling, volume control, gain management, live monitoring, and support for multiple CODECs and recording formats.
| Category | Details |
|---|---|
| Model / SKU | SmartWORKS™ DP6409 — 910-0324-001 |
| Function | High-density passive tap card for T1/E1 digital trunks |
| Channels | 60 channels per blade; up to 512 channels per system |
| Tap Type | Passive tap with high-impedance receivers; dual-span capability |
| Supported Trunk Types | T1 / E1 Digital High-Impedance Interface |
| Signaling Protocols | CAS, NFAS, DASS2 (E1), DPNSS (E1), ISDN (Q.931), RAW ABCD signaling, MFR2 (Brazil & China) |
| Connectors | Dual RJ-45 connectors |
| T1 Specifications | 1.544 MHz clock; AMI/B8ZS coding; SF/ESF framing |
| E1 Specifications | 2.048 MHz clock; AMI/HDB3 coding; G.704/CRC-4 framing |
| Tap Length | T1: 30m Cat3+; E1: 16m |
| Audio Range | –68 dBm to +3 dBm receive range |
| Gain / Volume Control | +24 to –50 dB; AGC and AVC programmable via API |
| Voice Processing (DSP) | DTMF, MF, FSK, Caller ID detection; echo cancellation; tone detection |
| CODEC Support | G.723.1, G.729A, GSM 6.10, G.726 (16–40 Kb/s), µ-Law/A-Law (G.711), PCM 8/16-bit |
| File Formats Supported | Microsoft GSM, Linear PCM 8/16-bit |
| API Compatibility | SmartWORKS™ API (media control, switching, recording triggers, statistics) |
| Host Interface | PCI 2.2 or PCIe (1x) option; 32-bit bus master/target; 33 MHz |
| System Requirements | Pentium 4 or higher, 2 GHz+, PCI motherboard or passive backplane |
| OS Compatibility | Windows XP/2003/2008 (32-bit), Windows 64-bit (planned), Linux variants |
| Power Requirements | +3.3 VDC @ 3.0A; +12 VDC @ 20mA; Max 10.5W (DP6409-EH reference) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –20°C to +85°C |
| Humidity | 8%–80% non-condensing |
| Certifications | EN60950, IEC60950, UL60950, CSA-C22.2, FCC Part 15, EN55022/EN55024 |
