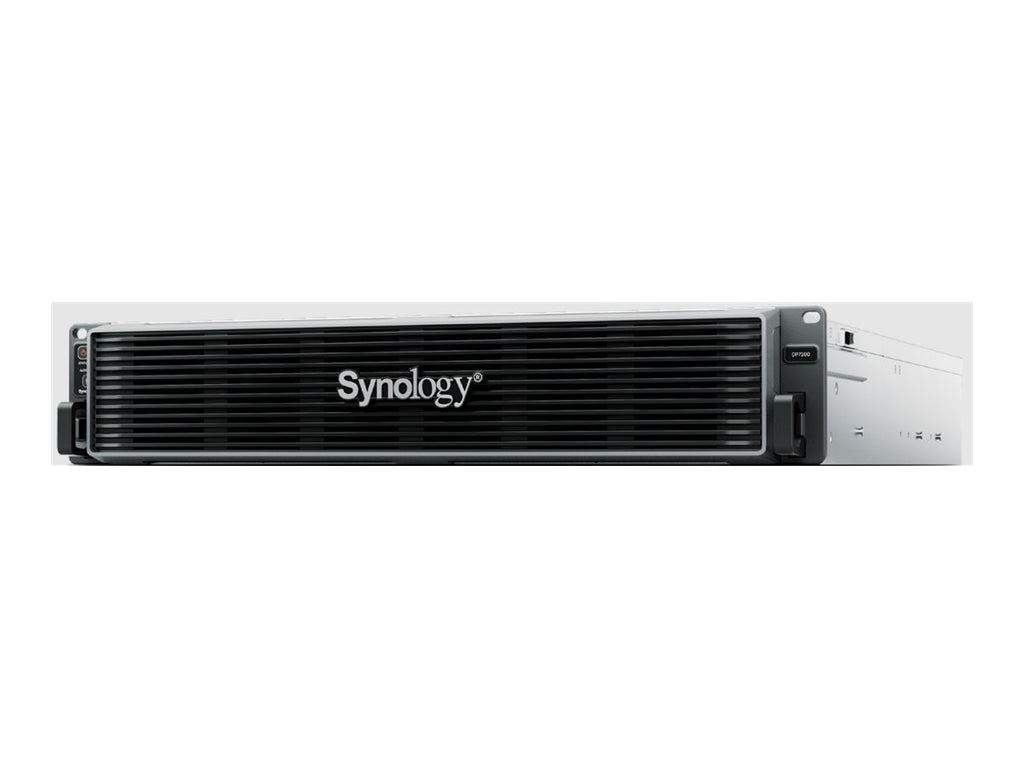

The Synology ActiveProtect DP7200 is a high-performance, cyber-resilient data protection appliance built for enterprise-grade backup, recovery, and ransomware defense. Pre-configured with ActiveProtect Manager, it centralizes and simplifies data protection across multiple sites—managing up to 2,500 servers and 150,000 workloads through a unified interface.
Designed for quick deployment, the DP7200 automatically configures RAID arrays and disk partitions to protect your data immediately. It supports comprehensive workload protection for VMware vSphere, Microsoft Hyper-V, Microsoft 365, Linux, macOS, Windows, Oracle Database, SQL Server, NetApp ONTAP, and more.
With global source-side deduplication, immutable WORM storage, and air-gapped backup options, the DP7200 defends against ransomware while optimizing performance and bandwidth. The system also provides sandboxed disaster recovery testing and Btrfs-based self-healing, ensuring your backups are always verifiable and recoverable.
Whether deployed as a cluster controller or a managed node, the DP7200 delivers unmatched scalability, security, and flexibility for modern data centers that demand continuous uptime and fast, policy-based recovery.
| Category | Specification |
|---|---|
| Form Factor | 2U Rackmount |
| CPU | AMD EPYC 7272, 12 cores |
| Memory | 32 GB DDR4 (Max. 512 GB) |
| Storage Configuration | 10 × 12 TB HDD (RAID 6 + 1 Spare) • 2 × 1920 GB SSD (RAID 1) |
| Suggested Backup Source Capacity | 56 TB (estimated) |
| Cluster Role | Cluster controller or managed server supporting up to 2,500 servers / 150,000 workloads |
| Network Interfaces | 1 × 1 GbE RJ-45 (Management) • 2 × 10 GbE RJ-45 (Data Transfer) • Optional: 2 × 25 GbE SFP28 |
| Power Supply | Dual redundant PSUs • 100–240 V AC • 50/60 Hz (single phase) |
| Power Consumption | 163.17 W (Access) • 556.91 BTU/hr |
| Dimensions (HxWxD) | 88 × 430.5 × 692 mm • (With handles: 88 × 482 × 724 mm) |
| Weight | 23.4 kg |
| Operating Environment | 0 °C to 35 °C • 8% – 80% RH |
| Storage Environment | −20 °C to 60 °C • 5% – 95% RH |
| Certifications | FCC, CE, UKCA, BSMI, RCM, NCC, VCCI, KC, BIS, EAC • RoHS compliant |
| Package Contents | DP7200 main unit • 10 × 3.5” HDD • 2 × 2.5” SSD • 2 × Power cords • Front cover • Accessory pack • Quick Installation Guide |
| Warranty | 5 Years Limited Warranty |
