Description

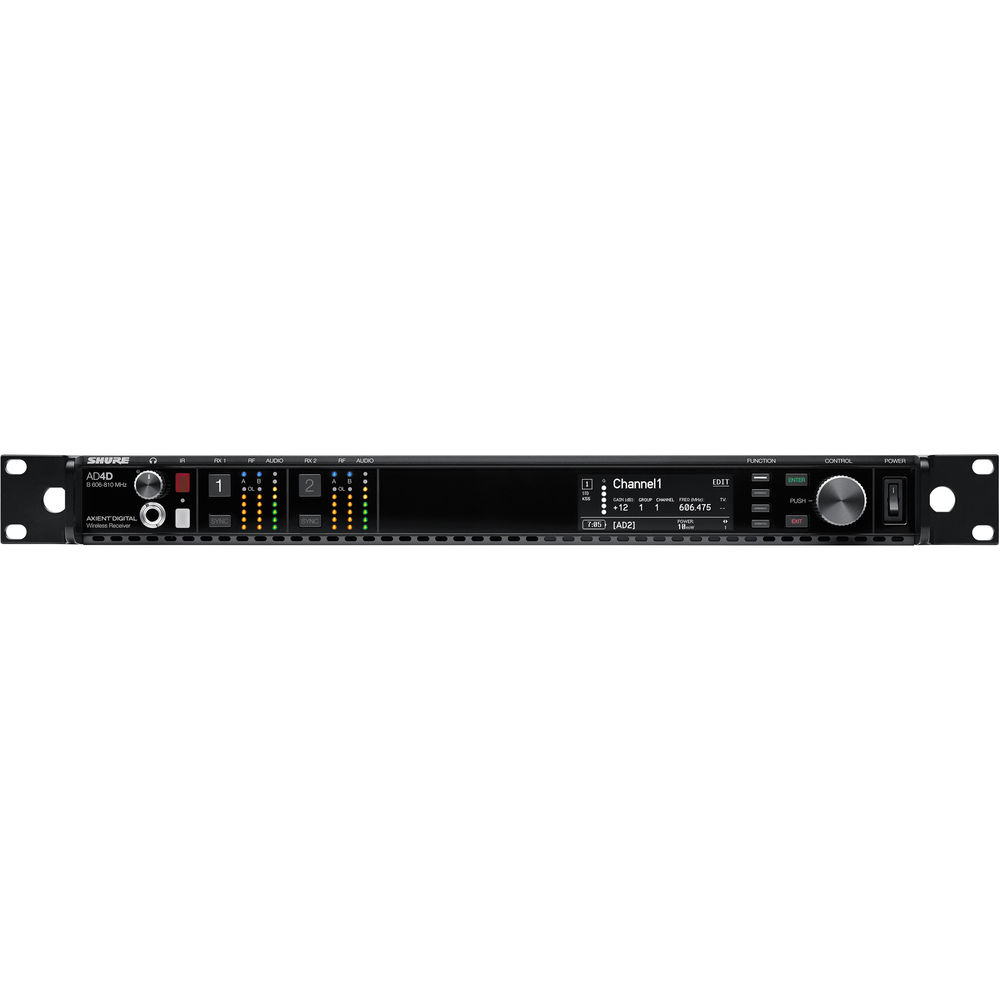

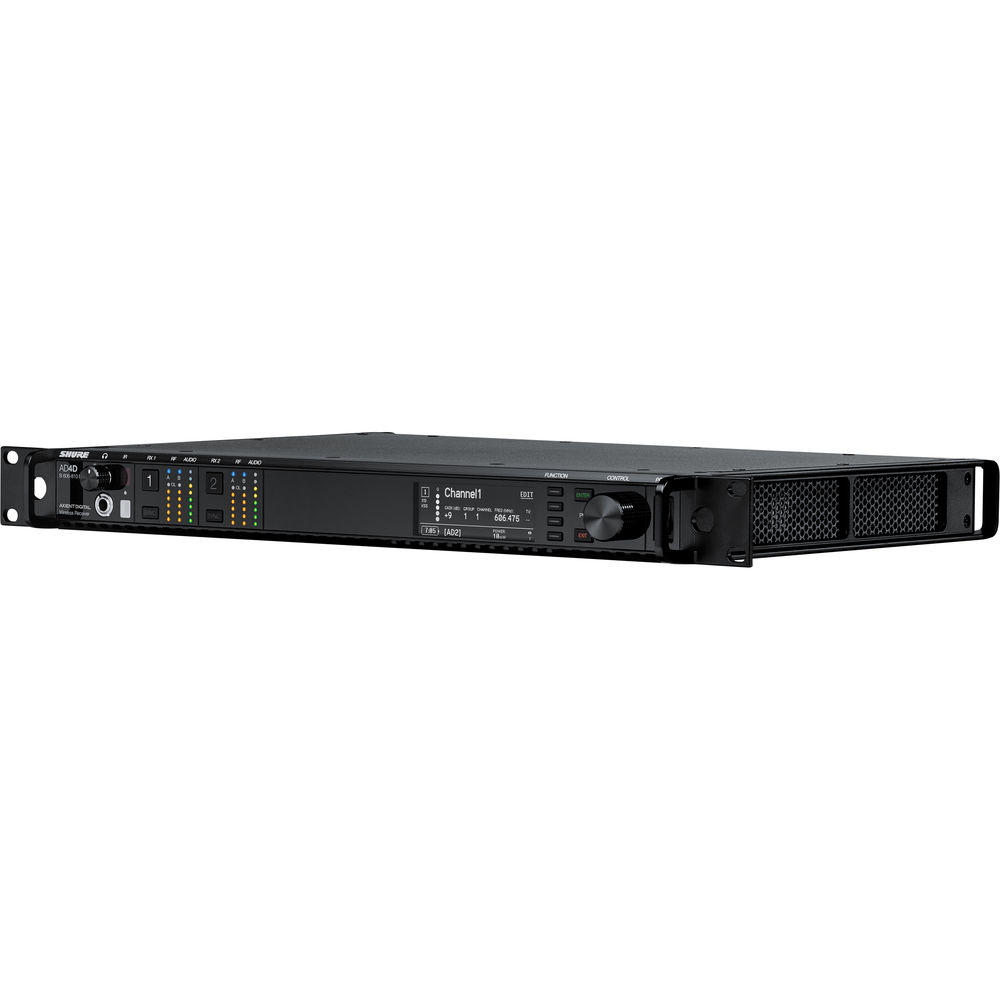

The Shure Axient Digital AD4D Dual-Channel Wireless Receiver is engineered for mission-critical wireless audio environments where reliability, clarity, and control are essential. Designed for professional productions, live events, broadcast, and large-scale installations, this receiver delivers exceptional RF stability and pristine digital audio performance.
With true digital diversity per channel, the AD4D ensures consistent signal integrity even in congested RF environments. Its wide tuning range and High Density mode enable efficient spectrum usage, allowing more channels to operate simultaneously without compromise. Integrated networking capabilities, including Dante digital audio and AES3 outputs, provide seamless system integration and flexible routing options.
The included locking power cables, jumper cables, and BNC bulkhead adapters enhance deployment efficiency and reliability, making this receiver a complete, ready-to-rack solution for demanding workflows.
| Specification | Details |
|---|---|
| Form Factor | Rackmount Dual-Channel Wireless Receiver |
| Wireless Technology | Shure Axient Digital |
| Channel Count | Dual-channel operation |
| RF Performance | True digital diversity per channel for enhanced signal stability |
| Tuning Range | Wideband tuning (model-dependent frequency range) |
| Audio Quality | Transparent digital audio with low latency and wide dynamic range |
| Latency | Ultra-low latency for real-time performance applications |
| Frequency Response | 20 Hz to 20 kHz |
| Dynamic Range | Up to 130 dB (digital output) |
| RF Sensitivity | High sensitivity for reliable signal reception |

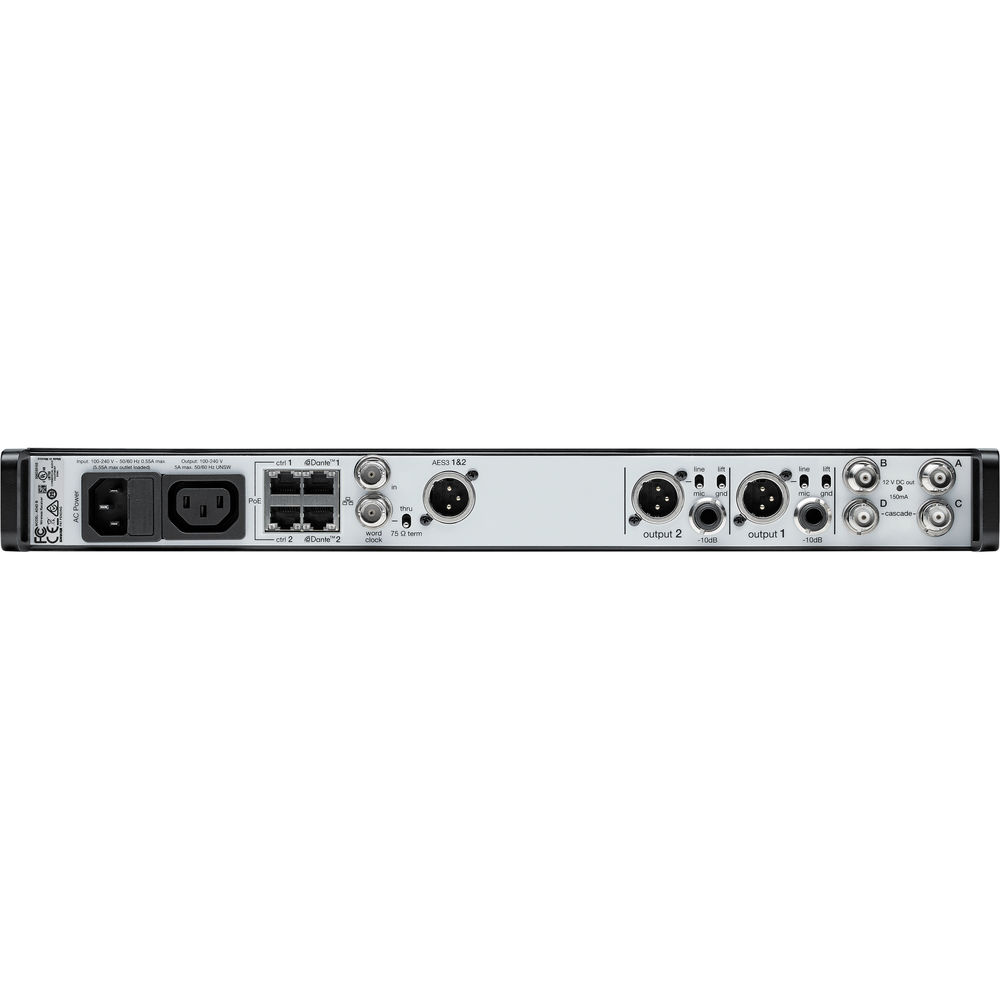

| Output Options | XLR analog, 1/4" balanced, AES3 digital |
| Network Audio | Dante and AES67 compatible |
| Networking | Ethernet with DHCP or manual IP configuration |
| Control Software | Compatible with Wireless Workbench and ShurePlus Channels |
| Headphone Monitoring | Front panel headphone output with Dante Cue/Browse |
| Antenna Inputs | BNC connectors with selectable bias voltage |
| Cascade Output | BNC cascade for linking additional receivers |
| Power Requirements | 100 to 240 VAC, 50–60 Hz |
| Included Accessories | Locking power cable, power jumper cable, BNC bulkhead adapters, RF cables, Ethernet cables |
| Construction | Steel chassis with extruded aluminum components |
| Dimensions | 1.7 x 19.0 x 13.1 in |
| Weight | Approx. 10.1 lb |
