Description
The Shure ULXD4D Dual-Channel Digital Wireless Receiver delivers enterprise-grade wireless audio performance for professional environments that demand reliability, scalability, and pristine sound quality. Designed for large venues, houses of worship, corporate A/V installations, and live production, this dual-channel receiver combines advanced RF stability with networked audio capabilities for seamless system integration.
Operating within the H50 frequency band (534 to 598 MHz), the ULXD4D supports a wide 64 MHz tuning range, enabling deployment of up to 60 channels in a single location. Its Digital Predictive Switching Diversity ensures consistent signal integrity by proactively avoiding RF dropouts, making it ideal for mission-critical applications.
With built-in Dante networking, dual Ethernet ports allow for low-latency, multichannel digital audio distribution over standard IP networks. Audio summing functionality enables the unit to function as a two-channel mixer, adding flexibility to system configurations. AES-256 encryption ensures secure transmission, protecting sensitive audio content in corporate and government environments.

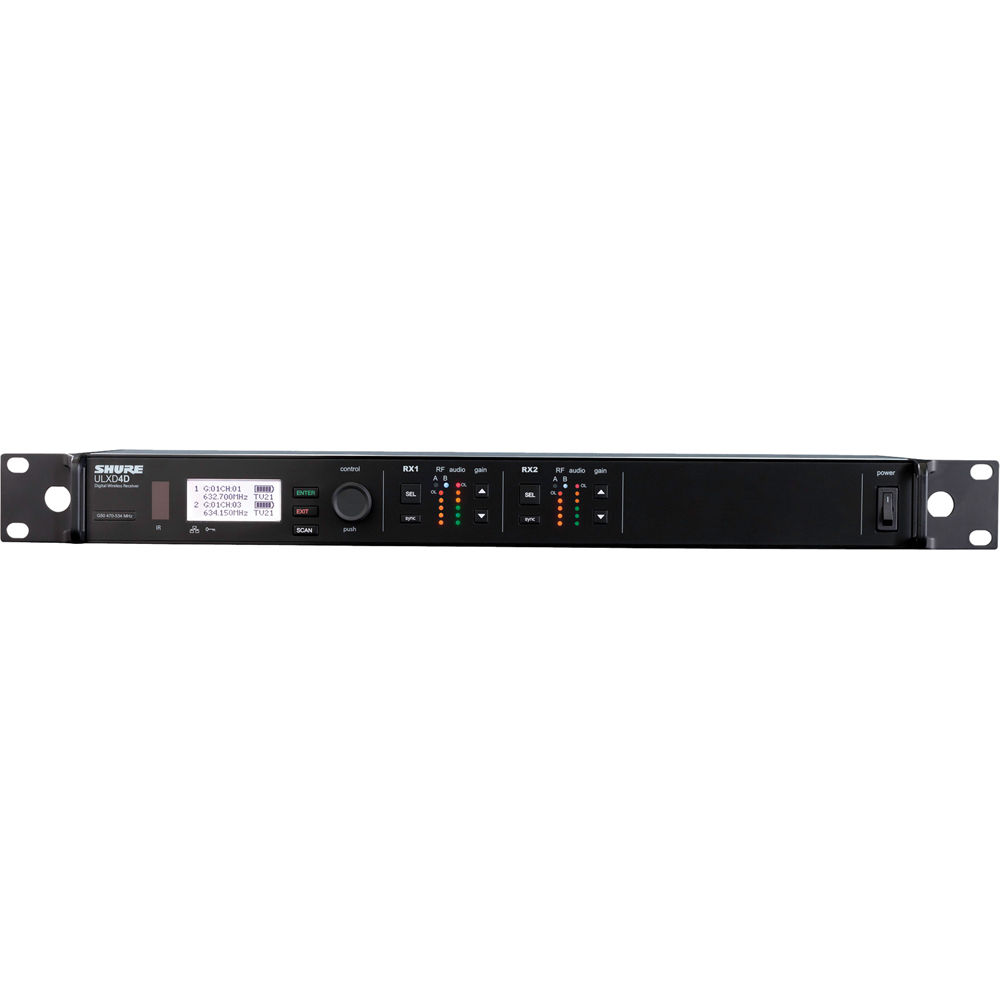

Housed in a rugged 1U rackmount chassis, the ULXD4D features intuitive front-panel controls, a clear backlit LCD, and precise gain adjustment per channel. Whether deployed as part of a scalable wireless system or integrated into a networked audio infrastructure, the ULXD4D delivers exceptional clarity, control, and operational efficiency.
| Specification | Details |
|---|---|
| Wireless Technology | Digital UHF |
| Frequency Band | H50: 534 to 598 MHz |
| Tuning Range | 64 MHz |
| Number of Channels | 2 Independent Channels |
| Max Transmitters per Band | Up to 60 |
| Diversity | Digital Predictive Switching Diversity |
| Max Operating Range | Up to 100 m (328 ft) |
| Latency | < 2.9 ms |
| Encryption | AES-256 Secure Encryption |
| Receiver Type | 19" Rackmount (1 RU) |
| Audio Outputs | 2 x XLR Balanced Outputs |
| Audio Features | Audio Summing, Internal Limiter, Gain Optimization |
| Gain Range | -18 to +42 dB (1 dB Steps) |
| Frequency Response | 30 Hz to 20 kHz ±1 dB |

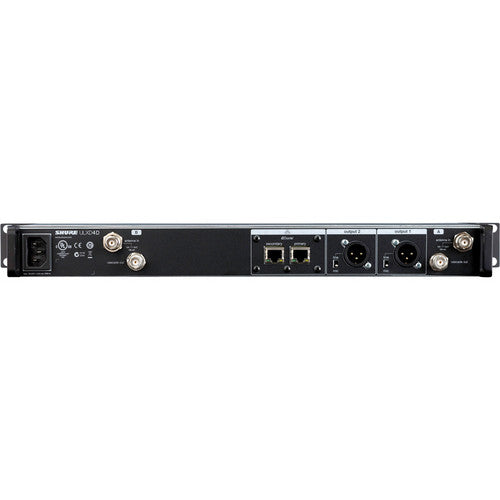

| Network Interfaces | 2 x RJ45 (Dante, DHCP, Manual IP) |
| RF Cascade Ports | 2 Ports for Antenna Distribution |
| Antenna Inputs | 2 x BNC External Antennas (Removable) |
| Display | Backlit LCD with RF and Audio Metering |
| Control & Monitoring | Wireless Workbench, SystemOn, Mobile App (iOS) |
| Power Requirements | 100 to 240 VAC, 50/60 Hz |
| Construction | Steel Chassis |
| Mounting | Rackmount Kit Included |
| Weight | 3.4 kg (7.4 lb) |
| Included Accessories | Antennas, BNC Cables, Ethernet Cable, Power Cord, Rack Hardware |
