Description
The SmartAVI SFXPRO-2P-M-S is a high-performance multimode fiber extender designed to transmit dual DVI-D video, USB, stereo audio, and RS-232 signals over long distances with exceptional reliability. Built for enterprise, industrial, and mission-critical environments, this solution enables seamless remote access to systems up to 1,500 feet away while maintaining signal integrity and security.
Leveraging fiber optic transmission, this extender is immune to electromagnetic interference and offers a secure data path that cannot be easily intercepted. It supports high-resolution video up to 1920x1200 at 60 Hz and full USB 2.0 functionality, allowing connection of a wide range of peripherals including keyboards, mice, cameras, storage devices, and touchscreens.

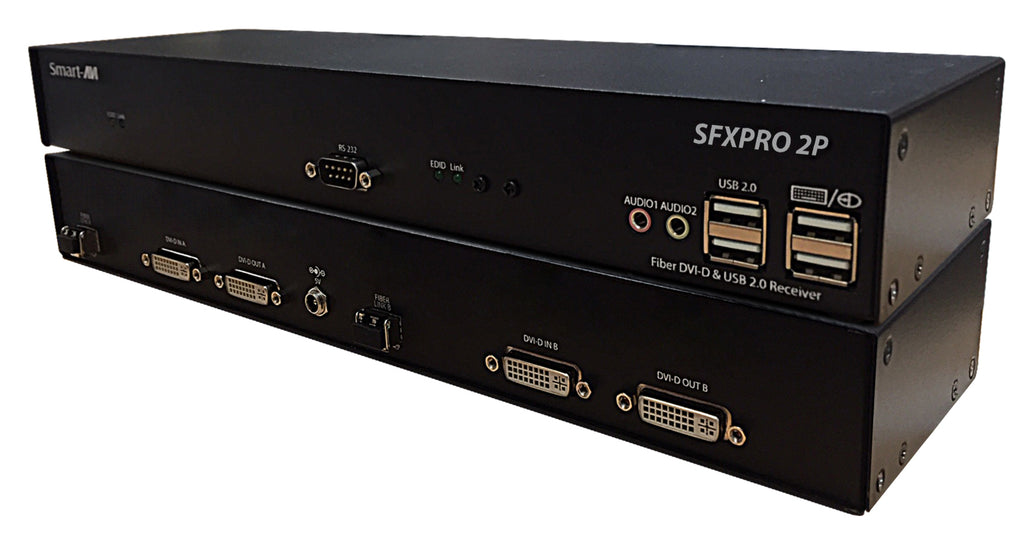

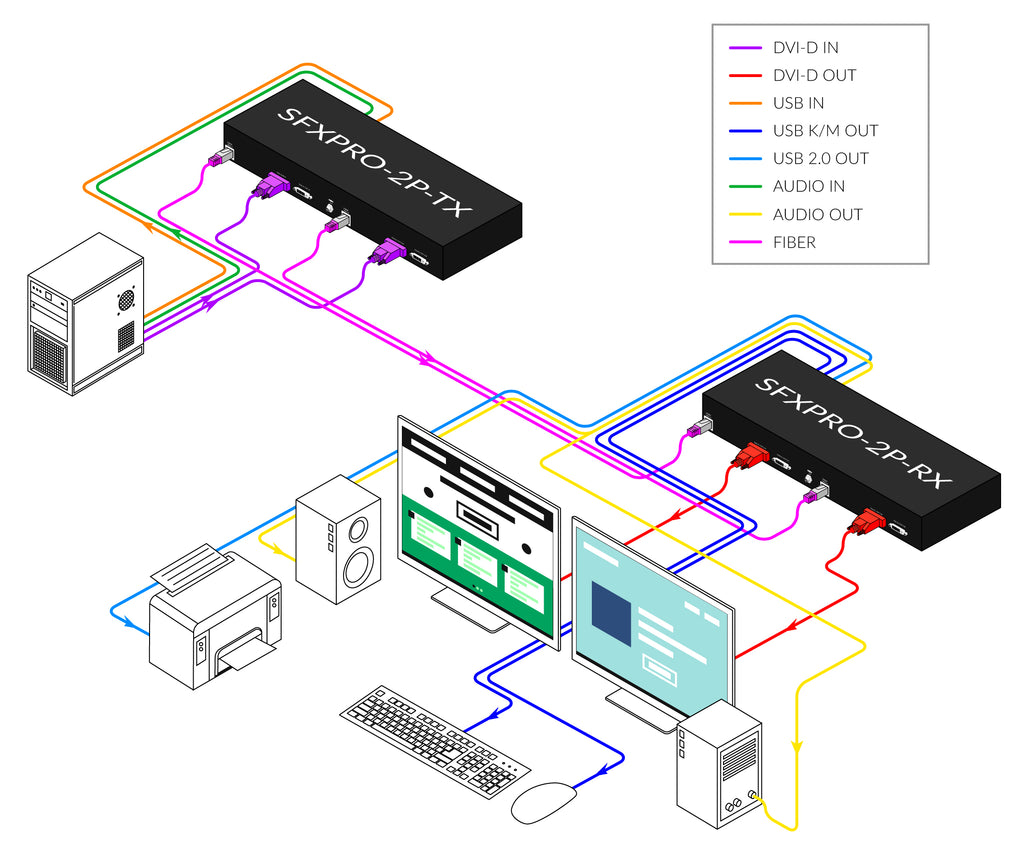

Designed for flexibility and ease of deployment, the system includes a transmitter and receiver unit with plug-and-play installation and broad OS compatibility. Ideal for control rooms, digital signage, medical environments, and professional AV setups, the SFXPRO-2P-M-S delivers consistent performance where reliability and distance are critical.
| Specification | Details |
|---|---|
| Video Format | DVI-D Single Link |
| Maximum Resolution | Up to 1920 x 1200 @ 60 Hz |
| Pixel Clock | 165 MHz |
| Video Input (TX) | 2 x DVI-D (29-pin female) |
| Video Output (RX) | 2 x DVI-D (29-pin female) |
| USB Support | USB 2.0 (480 Mbps) and USB 1.1 (12 Mbps) |
| USB Input (TX) | 1 x USB Type B |
| USB Output (RX) | 4 x USB Type A (integrated hub) |
| Audio Support | Stereo audio |
| Audio Connector | 3.5 mm stereo mini jack |
| RS-232 Interface | DB9 (Female) |
| RS-232 Speed | Up to 115 Kbps |
| Fiber Type | Multimode (duplex) |
| Fiber Connector | Duplex LC |
| Optical Wavelength | 1310 nm / 1550 nm |
| Transmission Distance | Up to 1,500 ft (500 m) |
| Data Rate | 2 x 2.5 Gbps |
| EMI Immunity | Fiber-based, resistant to interference |
| Power Supply | Internal 100–240 VAC |
| Operating Temperature | 32°F to 131°F (0°C to 55°C) |
| Storage Temperature | -4°F to 185°F (-20°C to 85°C) |
| Humidity | Up to 95% non-condensing |
| Dimensions | 17” W x 1.7” H x 7” D |
| Weight | 8 lbs |
| Included Components | Transmitter unit, receiver unit, power supplies |
