Description

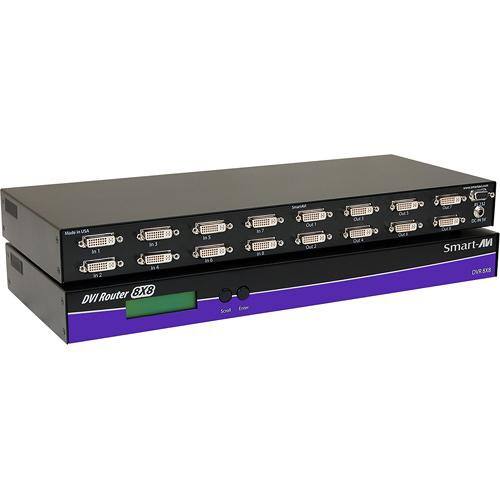

The SmartAVI DVR8X8 is a high-performance 8x8 DVI-D matrix switch designed for professional AV environments requiring flexible and reliable video routing. It enables seamless distribution of up to eight independent DVI video sources to eight displays, allowing any input to be routed to any output with ease.
Built for control rooms, digital signage, security operations, and enterprise AV deployments, this matrix switch supports resolutions up to 1920 x 1200 at 60Hz, ensuring clear and consistent image quality across all connected displays. With support for advanced EDID management and automatic learning, the DVR8X8 optimizes compatibility between sources and displays for stable performance.

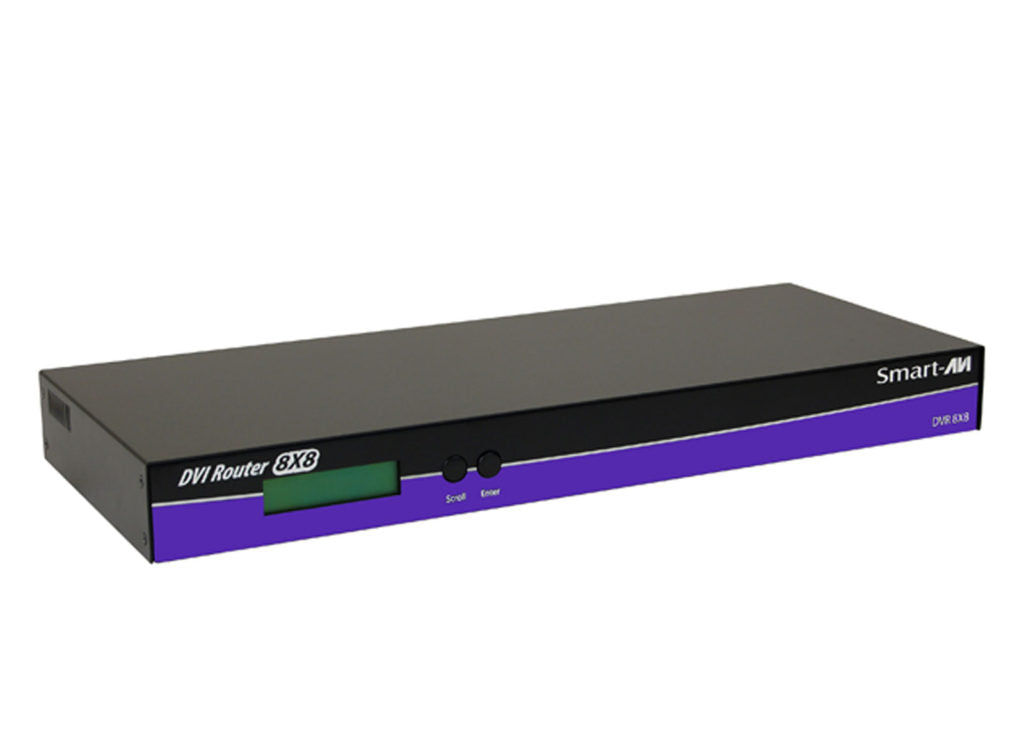

Control options include front panel operation for direct switching as well as RS-232 connectivity for remote management via Windows-based software. Optional IR and Ethernet control capabilities provide additional flexibility for integration into larger AV control systems.

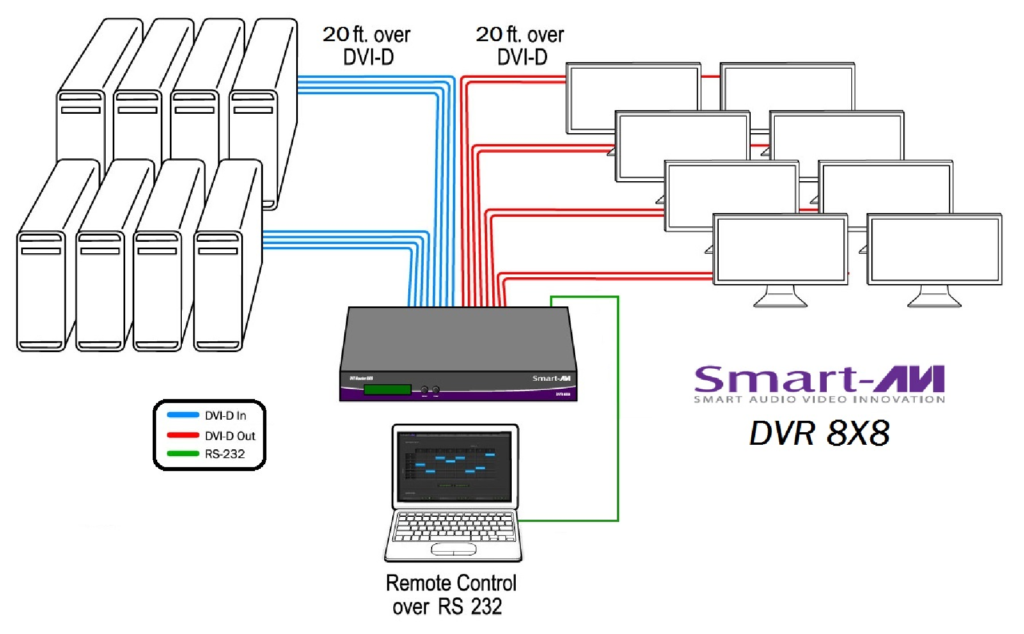

Designed for reliability and ease of deployment, the DVR8X8 supports DVI signal transmission up to 20 feet on both input and output sides, making it ideal for structured installations where consistent signal integrity is critical.
| Specification | Details |
|---|---|
| Video Format | DVI-D Single Link |

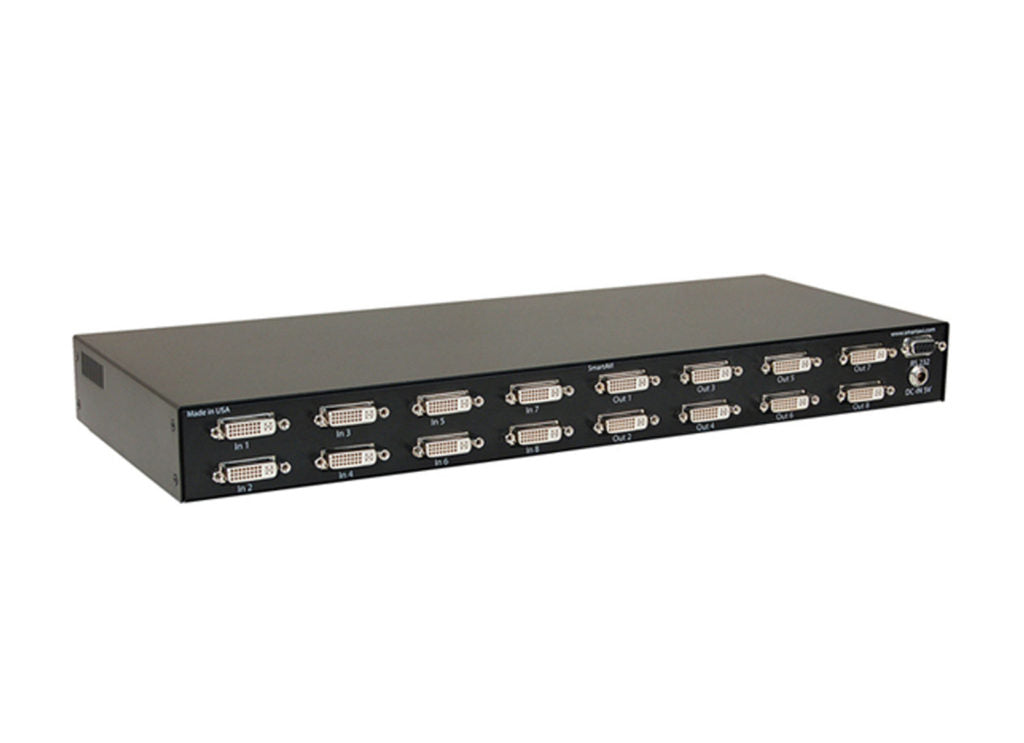

| Input Ports | 8 x DVI-I 29-pin (Female) |
| Output Ports | 8 x DVI-I 29-pin (Female) |
| Maximum Resolution | Up to 1920 x 1200 @ 60Hz |
| TMDS Rate | Up to 2 x 1.65 Gbps |
| Input Cable Length | Up to 20 ft |
| Output Cable Length | Up to 20 ft |
| EDID Support | Multiple EDID support with programmable and automatic learning |
| Control Methods | Front panel buttons, RS-232 (DB9 Female) |
| RS-232 Settings | 115200, N, 8, 1 (No flow control) |
| Remote Control | Optional IR remote and Ethernet control |
| Software | Windows-based control software |
| Power Supply | External 100–240 VAC / 5VDC 4A |
| Dimensions | 17" W x 7" D x 2" H |
| Weight | 2.55 lbs |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | -20 to 85°C |
| Humidity | Up to 95% non-condensing |
| Installation Use Cases | Control rooms, digital signage, security, retail, hospitality, and AV presentations |
