Description

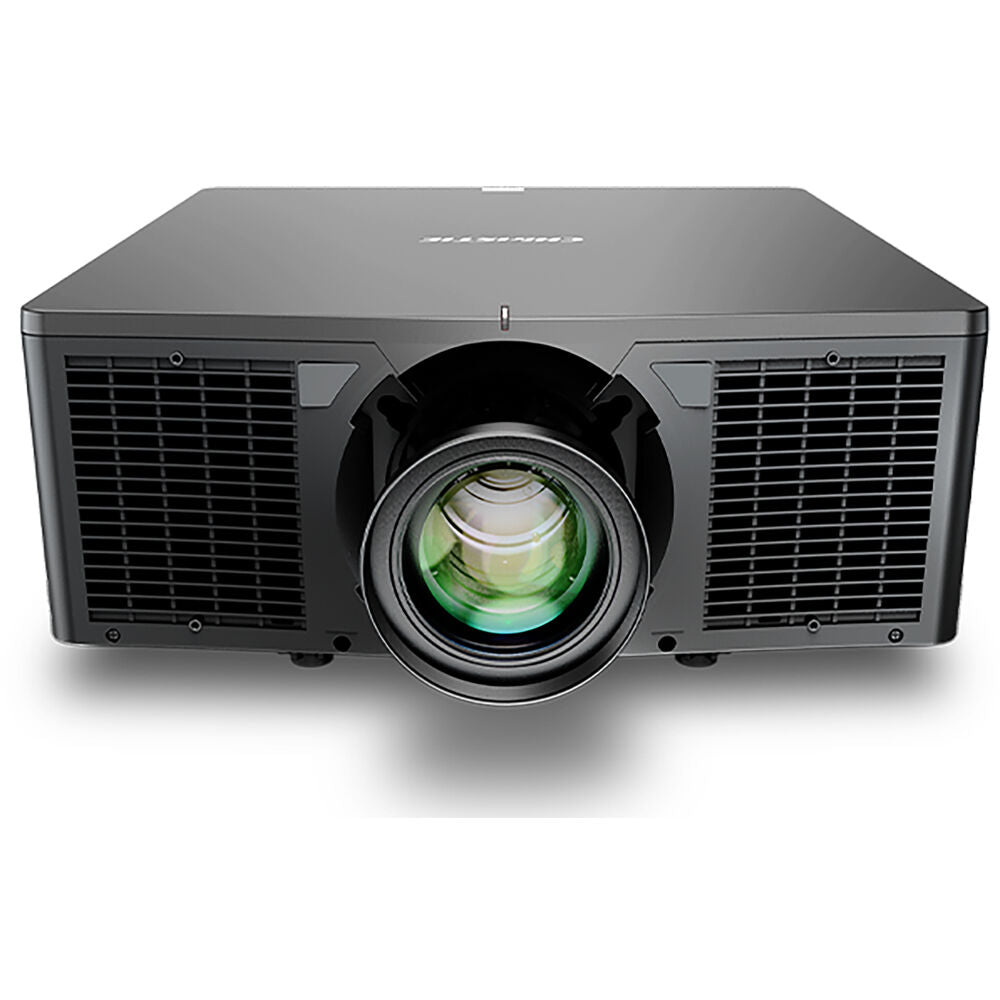

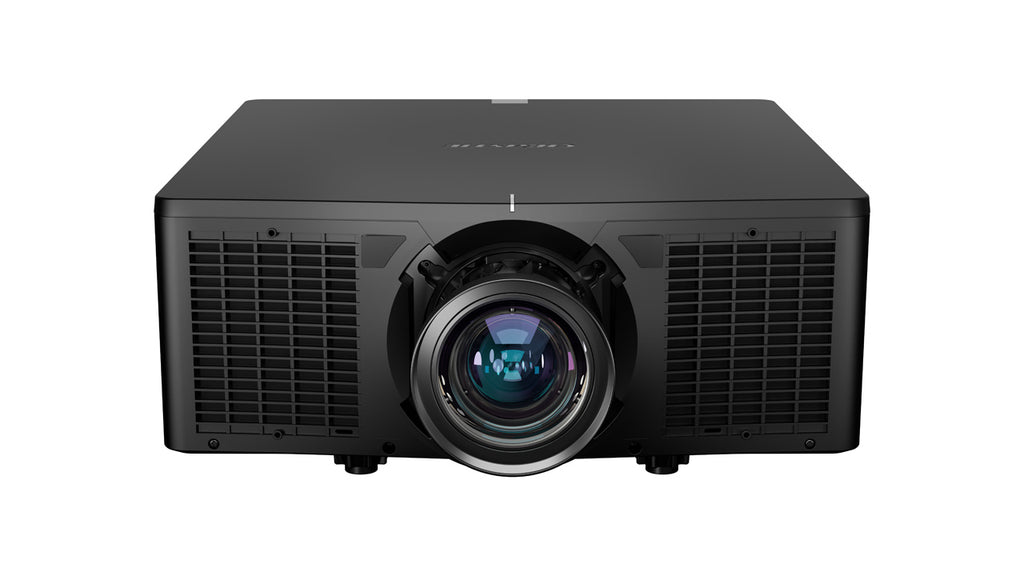

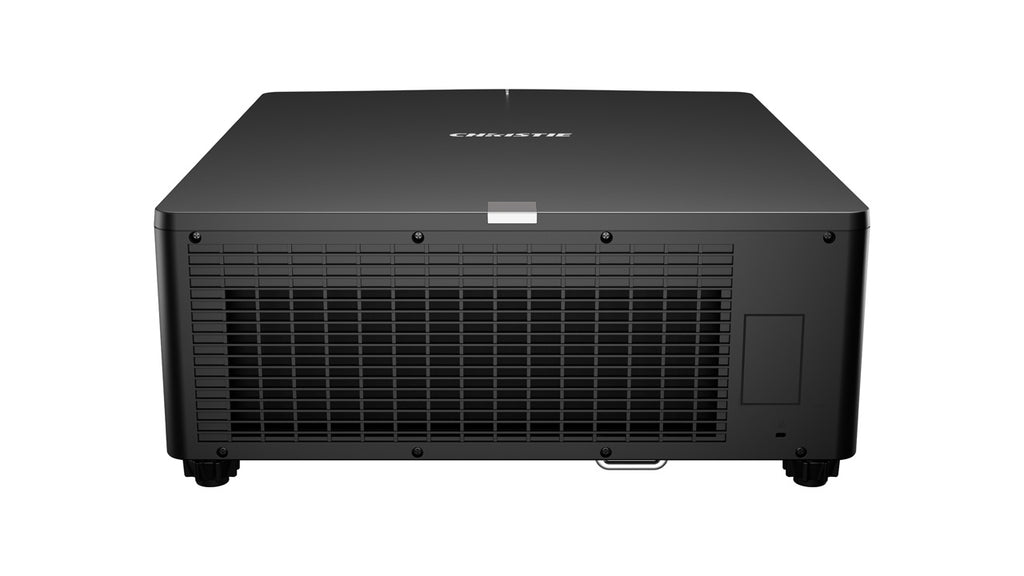

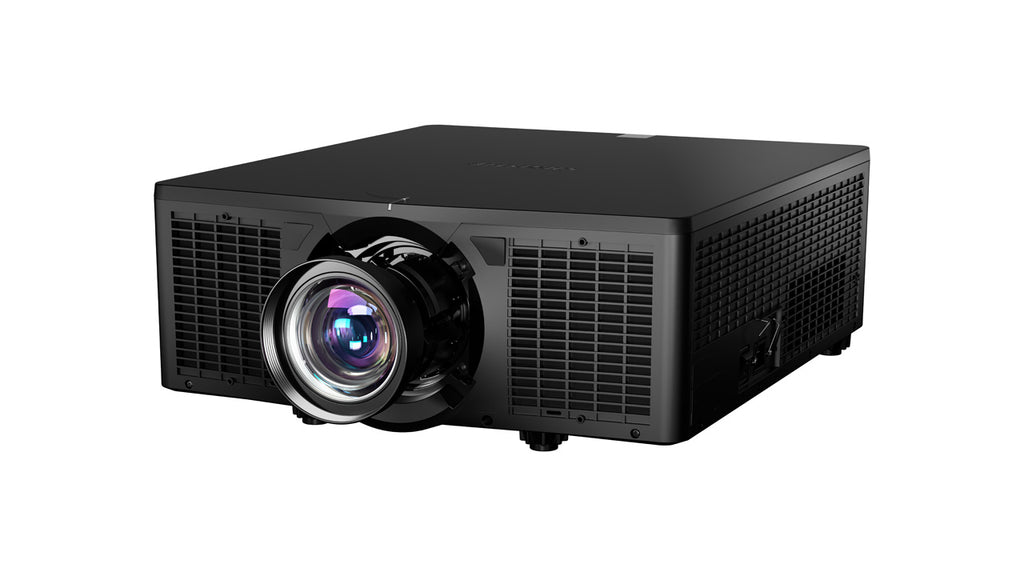

Deliver bright, detailed images for demanding large-venue installations with the Christie DWU1800A-JS. This TAA-compliant 1DLP® laser projector produces 17,800 ISO lumens and native WUXGA (1920 × 1200) resolution, making it well suited to auditoriums, houses of worship, museums, corporate venues, and immersive environments.
Its solid-state blue-laser phosphor illumination offers long-life performance, while Christie Twist™ onboard warping and blending support creative multi-projector displays. Motorized lens control, lens-position memory support, extensive connectivity, and optional Christie lenses give integrators the flexibility to tailor each installation.
Projector is supplied without a lens; compatible lens is required and sold separately.
Technical specifications
| Specification | Details |
|---|---|
| Manufacturer | Christie |
| Model | DWU1800A-JS |
| SKU | 171-080109-01 |
| Compliance | TAA compliant |
| Projection technology | 1DLP® |
| Native resolution | WUXGA, 1920 × 1200 (16:10) |
| Brightness | 17,800 ISO lumens; 15,000 ANSI lumens |
| Illumination | High-efficiency blue laser phosphor |
| Illumination life | Up to 20,000 hours to 50% brightness at full power; up to 50,000 hours in ECO1 mode |
| Contrast | 1,500:1 full on/off; 25,000:1 dynamic; up to 4,000,000:1 with Christie RealBlack™ |

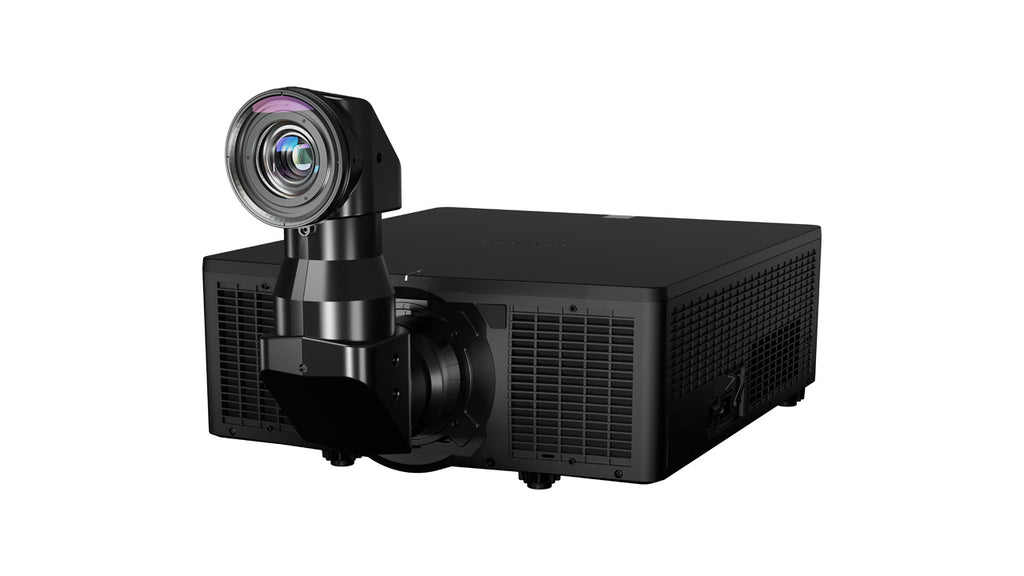

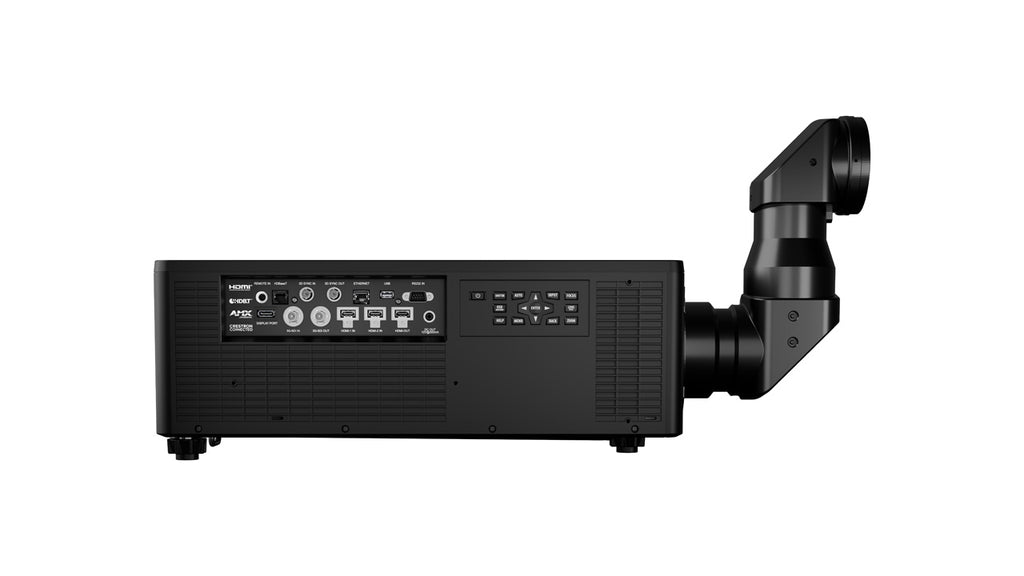

| Lens | No lens included; interchangeable lens system |
| Lens control | Motorized zoom, focus, horizontal/vertical offset, and memory support |
| Image processing | Christie Twist™ warping and blending |

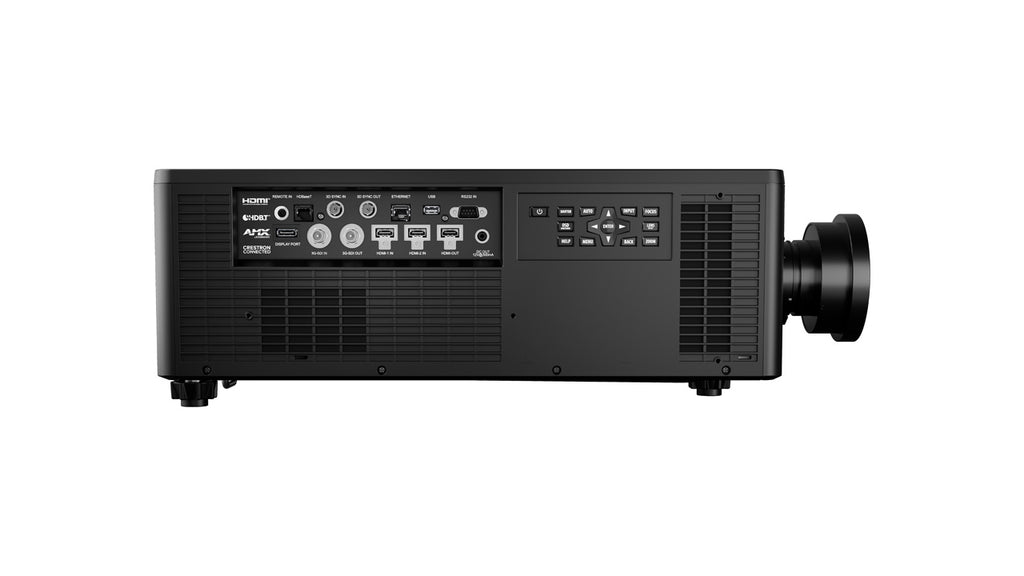

| Inputs | 2 × HDMI 2.0b, DisplayPort 1.2a, 3G-SDI, HDBaseT, USB-A |
| Outputs | HDMI and 3G-SDI loop-through |
| Control | Ethernet, RS-232, HDBaseT, remote input |
| 3D | Active-shutter 3D support |
| Power | 100–240 VAC, 50/60 Hz |
| Power consumption | 930W normal; 760W ECO1; 530W ECO2 |
| Noise level | 44 dBA maximum standard; 40 dBA maximum ECO2 |
| Dimensions (L × W × H) | 23.6 × 20.5 × 7.6 in. (without feet) |
| Product weight | 64.8 lb (29.4 kg) |
| Color | Black |
