Description

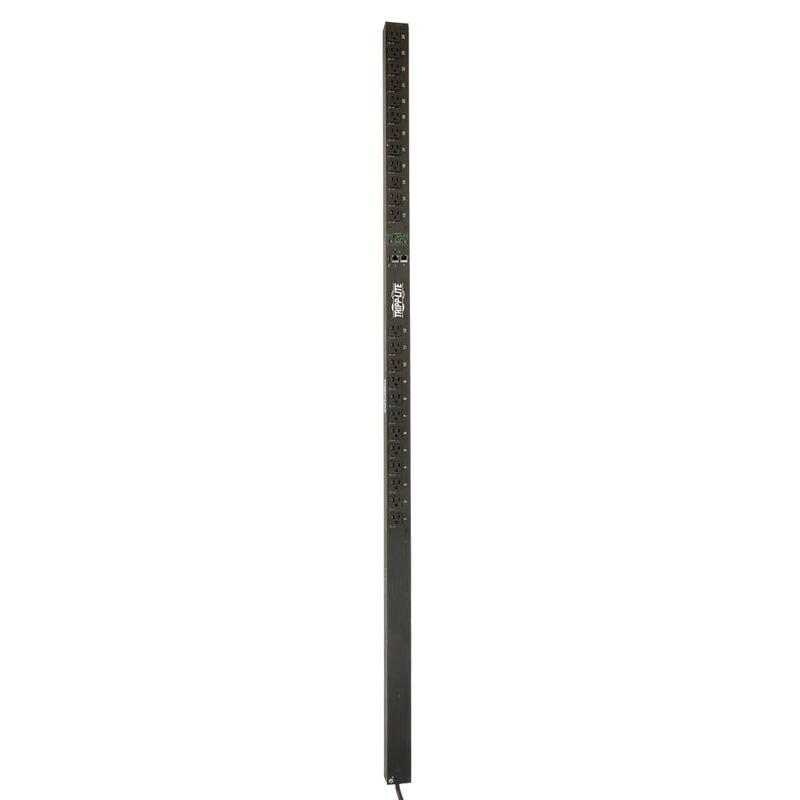

The Eaton PDUMVR20NETLX is a 1.9kW single-phase switched PDU designed for advanced, network-grade power management in enterprise IT environments. Featuring 24 individually controllable NEMA 5-15/20R outlets, it allows precise remote power control—power up, reboot, or lock out devices—to reduce downtime and costly on-site maintenance.
Built on the Java-free LX Platform, it offers a secure HTML5-based web interface for remote monitoring via HTTP, HTTPS, SNMP, Telnet, or SSH, supporting IPv4 and IPv6 networks. Integrated PowerAlert Device Manager (PADM20) enables automated monitoring, configuration backups, and firmware management across large-scale installations.

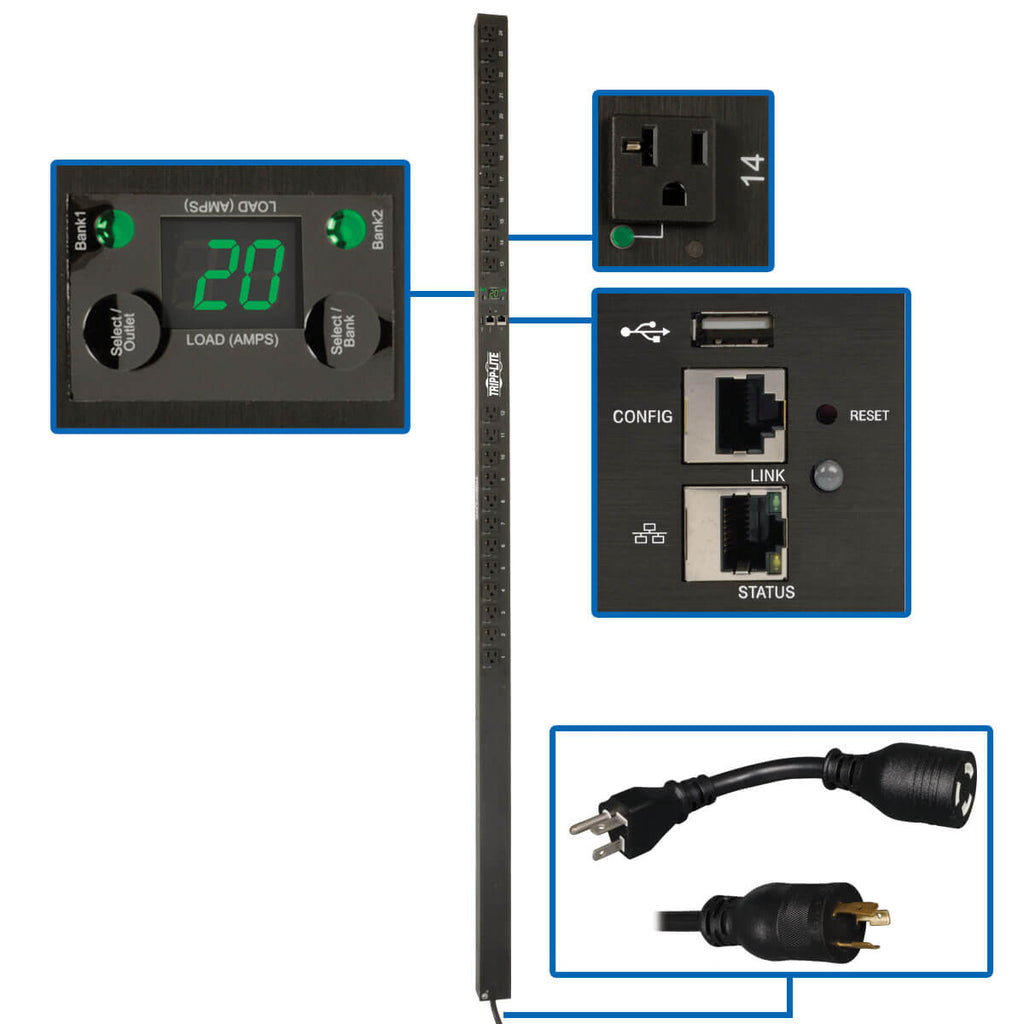

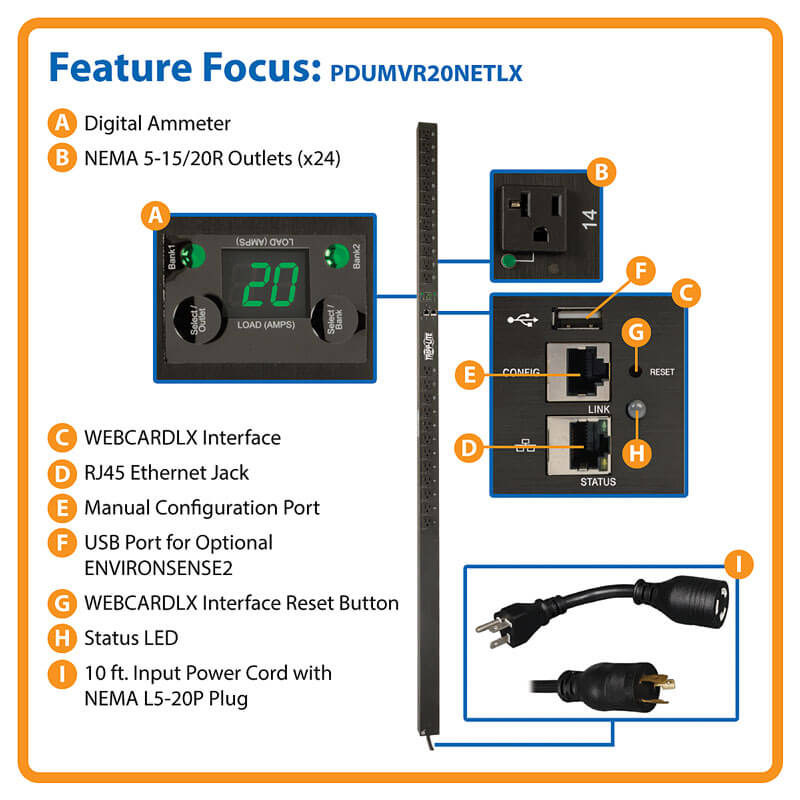

A digital ammeter displays real-time load data per outlet, per load bank, and total PDU usage, ensuring safe and balanced power distribution. The PDUMVR20NETLX mounts vertically (0U) in standard 19-inch racks with included toolless mounting hardware and supports optional EnviroSense2 modules for environmental monitoring.
Ideal for data centers, edge deployments, and enterprise IT racks, this PDU provides robust power control, enhanced visibility, and TAA compliance for government or regulated applications.
| Category | Details |
|---|---|
| Model Number | PDUMVR20NETLX |
| Brand | Eaton |
| Type | Single-Phase Switched PDU |
| Power Capacity | 1.9kW (120V / 16A total capacity) |
| Input Voltage / Phase | 120V AC / Single-phase |
| Input Plug Type | NEMA L5-20P (includes NEMA 5-20P adapter) |
| Input Cord Length | 10 ft. (3.05 m) |
| Output Receptacles | 24 × NEMA 5-15/20R |
| Output Control | Individually controllable outlets via remote interface |
| Network Interface | Built-in LX Platform (Java-free HTML5 web, SNMP v1/v2/v3, Telnet, SSH, IPv4/IPv6) |
| Monitoring Features | Individual outlet metering, load bank metering, total PDU load metering |
| Display | Digital ammeter with selectable outlet and bank display |

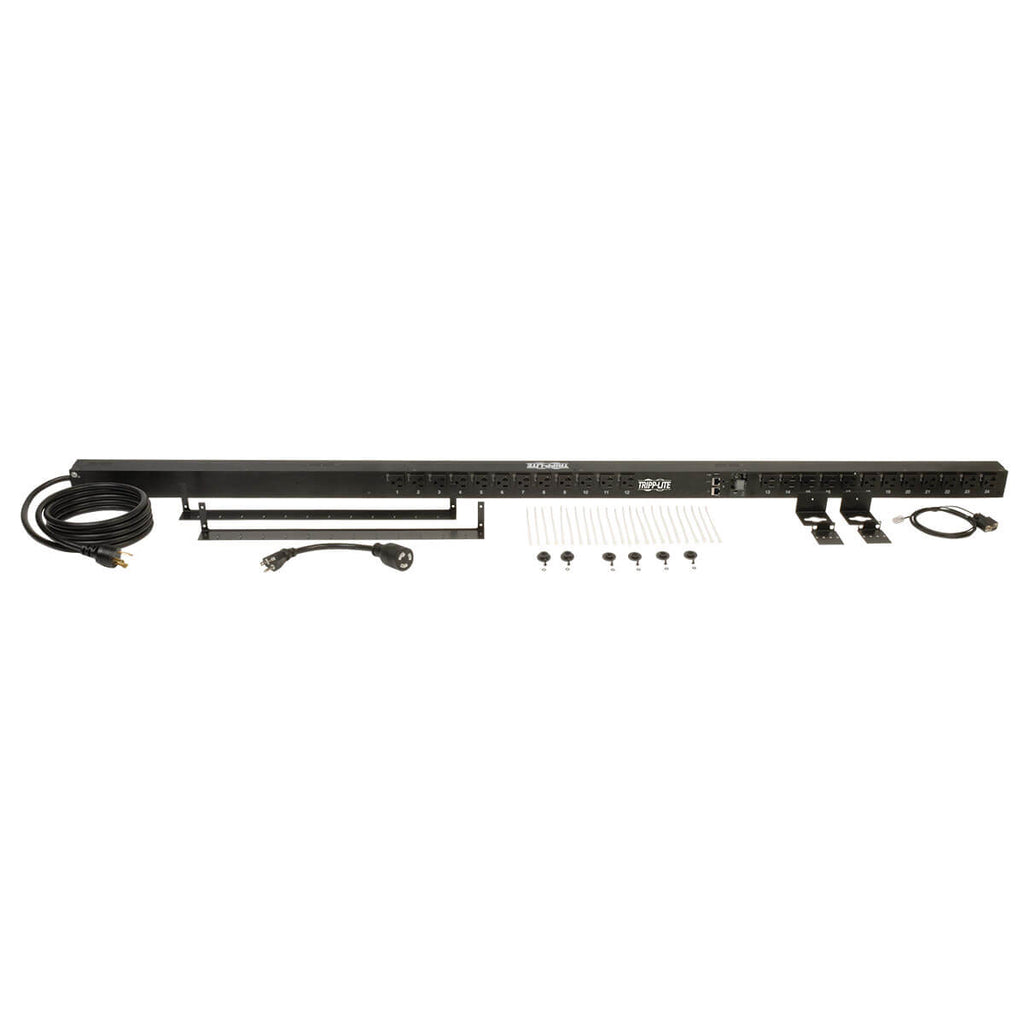

| Mounting | 0U vertical rackmount with toolless mounting brackets |
| Material | Metal |
| Dimensions (H × W × D) | 70 × 2.2 × 2.05 in (178 × 5.6 × 5.2 cm) |
| Weight | 9.6 lb (4.35 kg) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Humidity | 5% to 95% (non-condensing) |
| Compliance & Standards | UL 60950-1, CSA, NOM, FCC Part 15 Class A, RoHS, TAA |
| Network Speed | 10/100 Mbps |
| Environmental Monitoring | Optional EnviroSense2 modules (via USB port) |
| Additional Features | Auto Probe monitoring and reboot, Auto Load Shedding, email/SNMP alerts |
| Warranty | 2-year limited warranty |
