Description

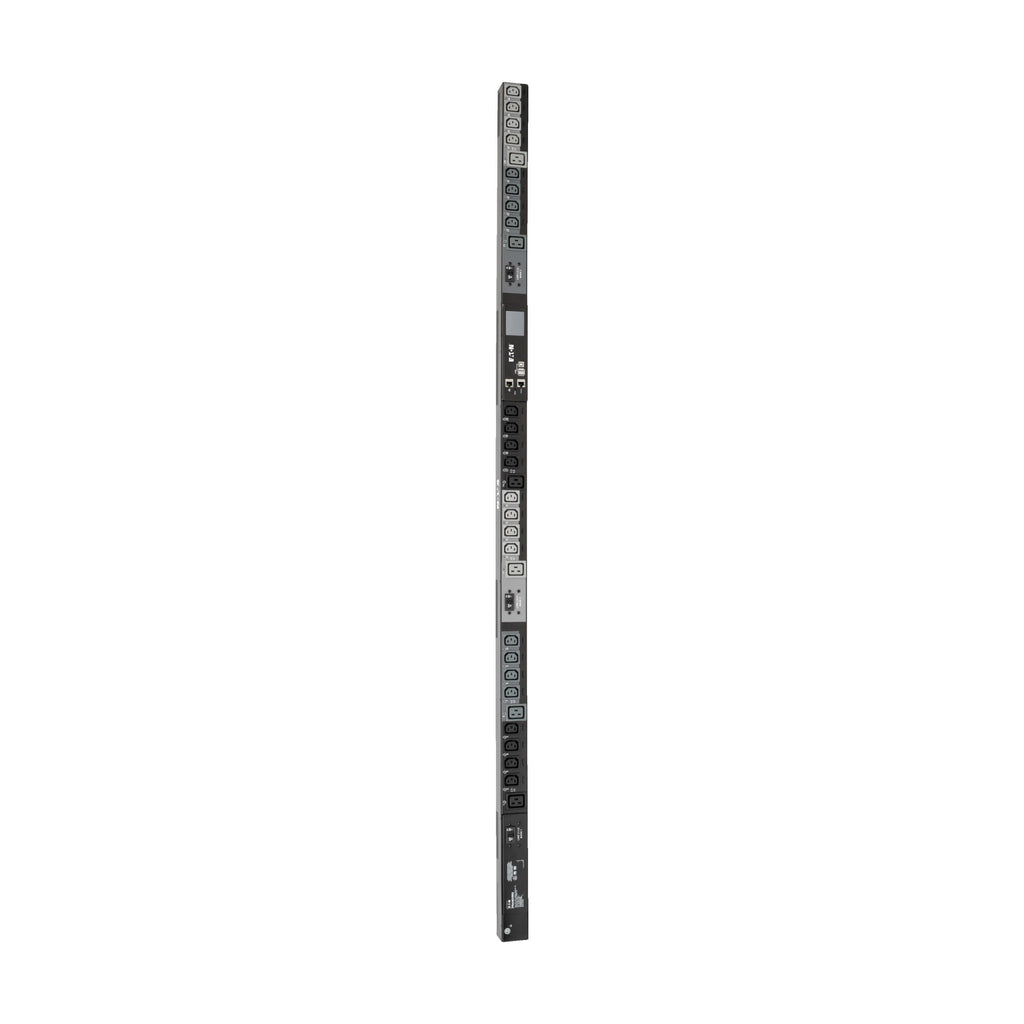

The Eaton PDU3EVSR6L2130 is a high-performance 10kW three-phase switched rack PDU engineered for advanced power distribution, monitoring, and control in mission-critical IT and industrial environments. Designed to maximize uptime and operational efficiency, this 0U vertical PDU delivers reliable 200–240V power while enabling granular control over individual outlets.

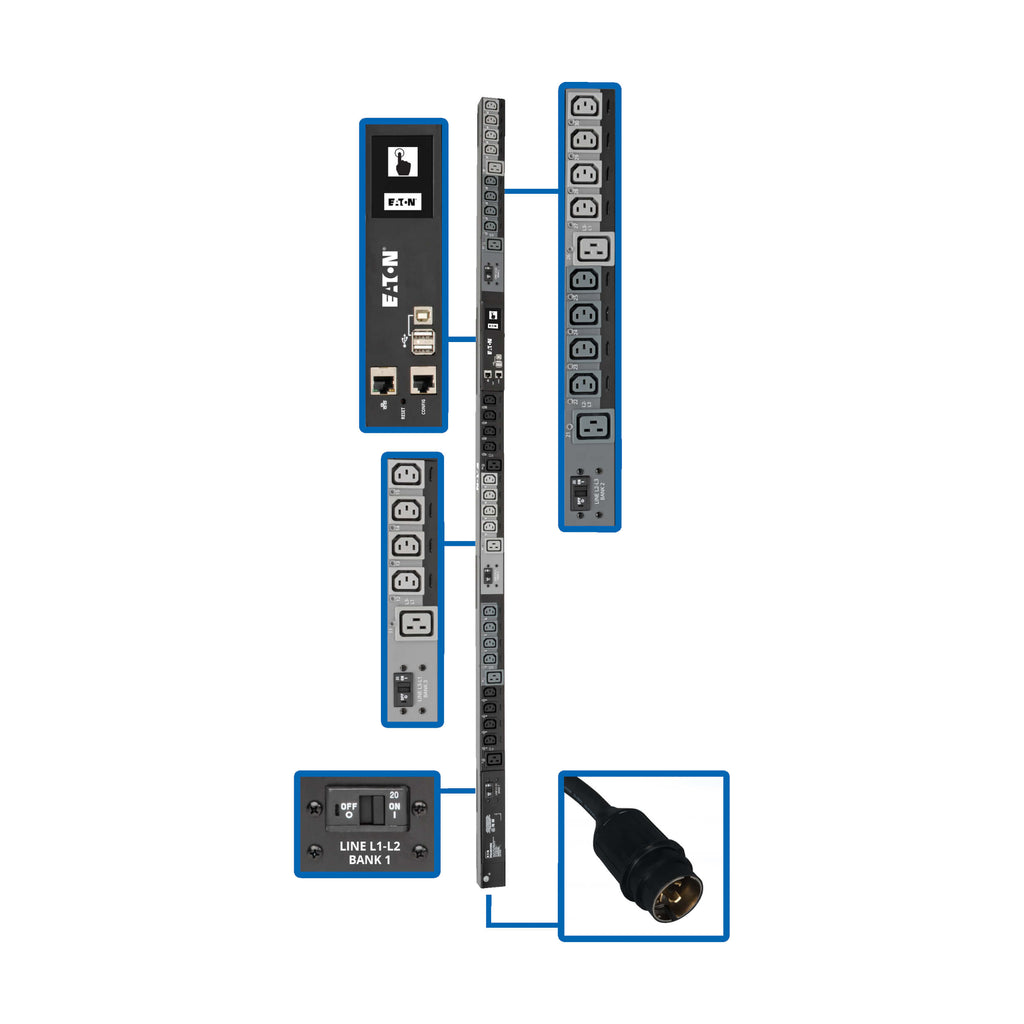

Equipped with 30 switched outlets (24 C13 and 6 C19), this unit allows remote power cycling, load shedding, and outlet-level management to maintain system availability and prevent overload conditions. The built-in LX Platform network interface provides secure, Java-free remote access via web browser, SNMP, SSH, or telnet, enabling real-time monitoring, alerts, and automation.
A full-color touchscreen LCD enhances local visibility by displaying detailed electrical and network data, while QR code access enables convenient mobile monitoring. With Gigabit Ethernet support, IP-based Auto Probe recovery, and compatibility with environmental sensors, this PDU ensures scalable and intelligent power management across modern infrastructures.
Ideal for data centers, enterprise IT racks, and industrial deployments, the PDU3EVSR6L2130 combines advanced control, robust reliability, and flexible installation in a compact vertical form factor.
| Category | Specification |
|---|---|
| Product Type | Switched Rack Power Distribution Unit (PDU) |
| Form Factor | 0U Vertical Rackmount |
| Input Voltage | 200–240V AC |
| Input Phase | 3-Phase |
| Power Capacity | Up to 10kW |
| Input Plug Type | NEMA L21-30P |
| Input Cord Length | 1.8 meters |
| Output Receptacles | 24 x C13, 6 x C19 |
| Outlet Control | Individually switchable and remotely manageable |
| Load Segmentation | 3 separately breakered load banks |
| Circuit Protection | Three 20A circuit breakers |
| Network Interface | LX Platform (HTML5-based, Java-free) |
| Network Connectivity | 10/100/1000 Mbps Ethernet |
| Supported Protocols | HTTP, HTTPS, SNMP (v1/v2c/v3), SSH, Telnet, FTP, DHCP, NTP |
| Remote Management | Web browser, SNMP, SSH, telnet |

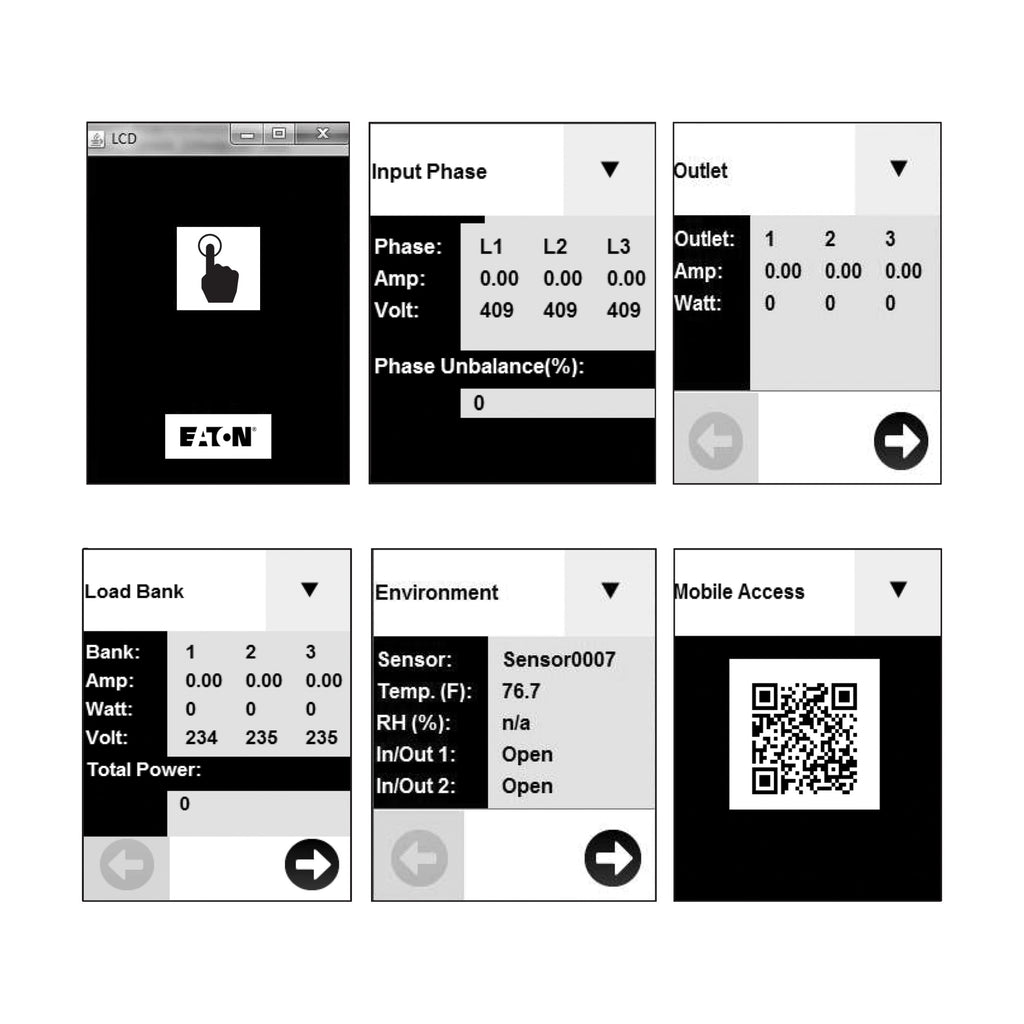

| LCD Display | Touchscreen color display with real-time metrics |
| Mobile Access | QR code-enabled monitoring |
| Monitoring Capabilities | Per-phase, per-bank, and per-outlet monitoring |
| Measurement Accuracy | ±1% (current, voltage, power) |
| Environmental Monitoring | Compatible with optional EnviroSense2 modules |

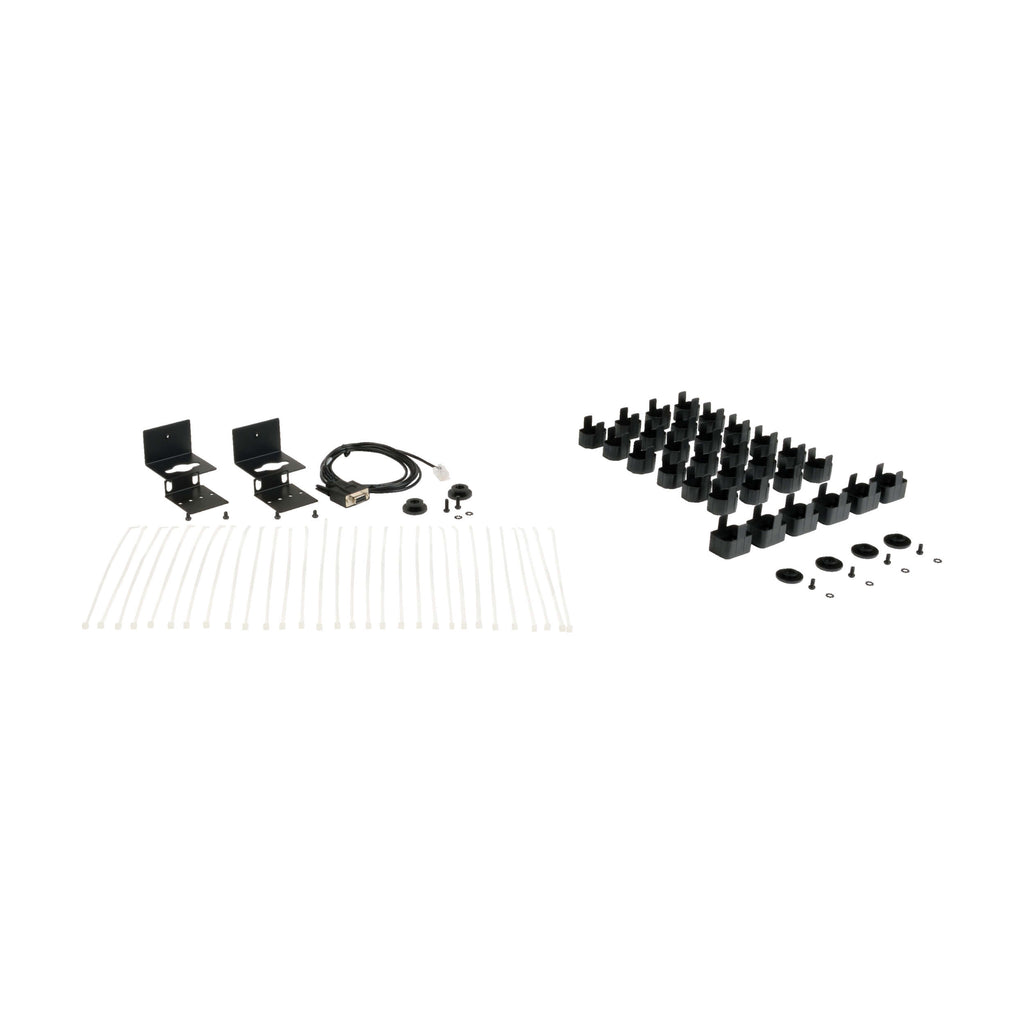

| Mounting Options | Toolless vertical mounting or bracket installation |
| Construction | Durable metal housing |
| Operating Temperature | 0°C to 50°C |
| Compliance | TAA compliant, RoHS compliant |
| Warranty | 2-year limited warranty |
