Description

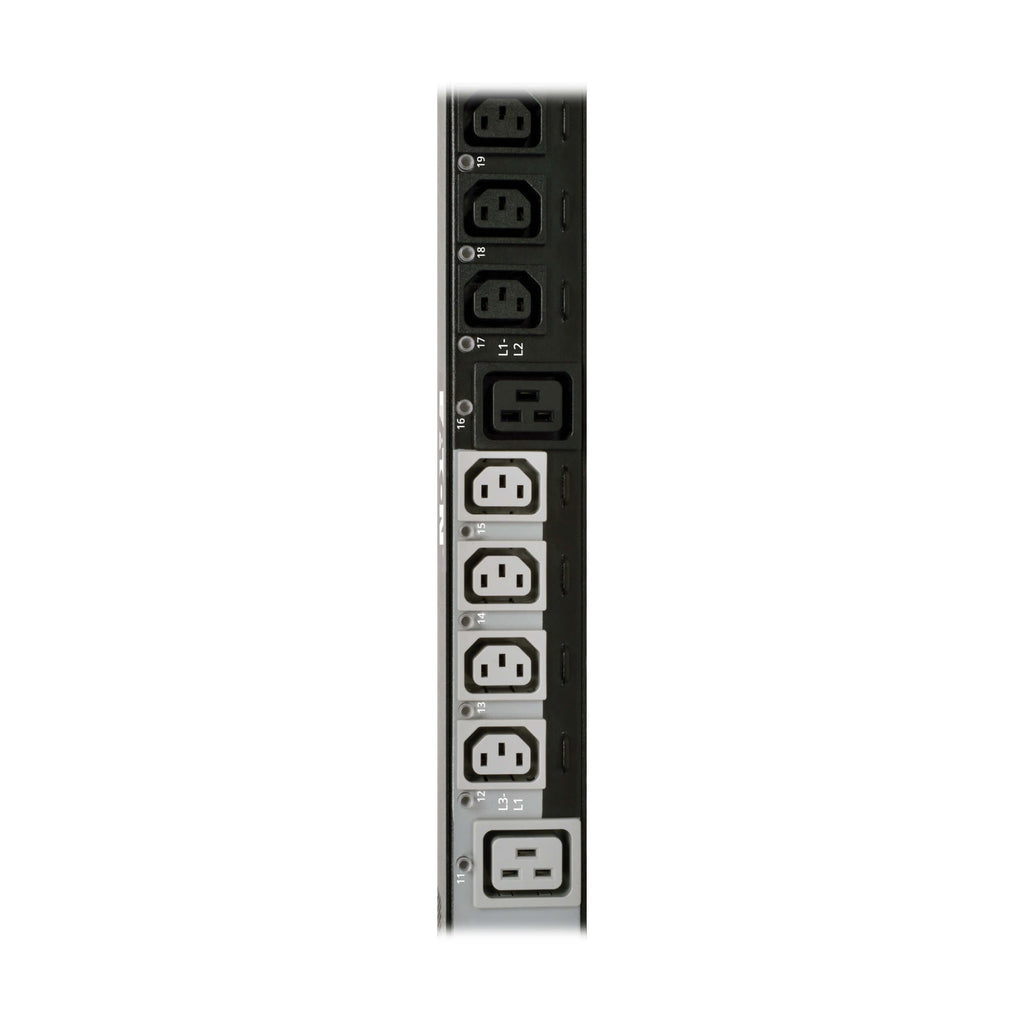

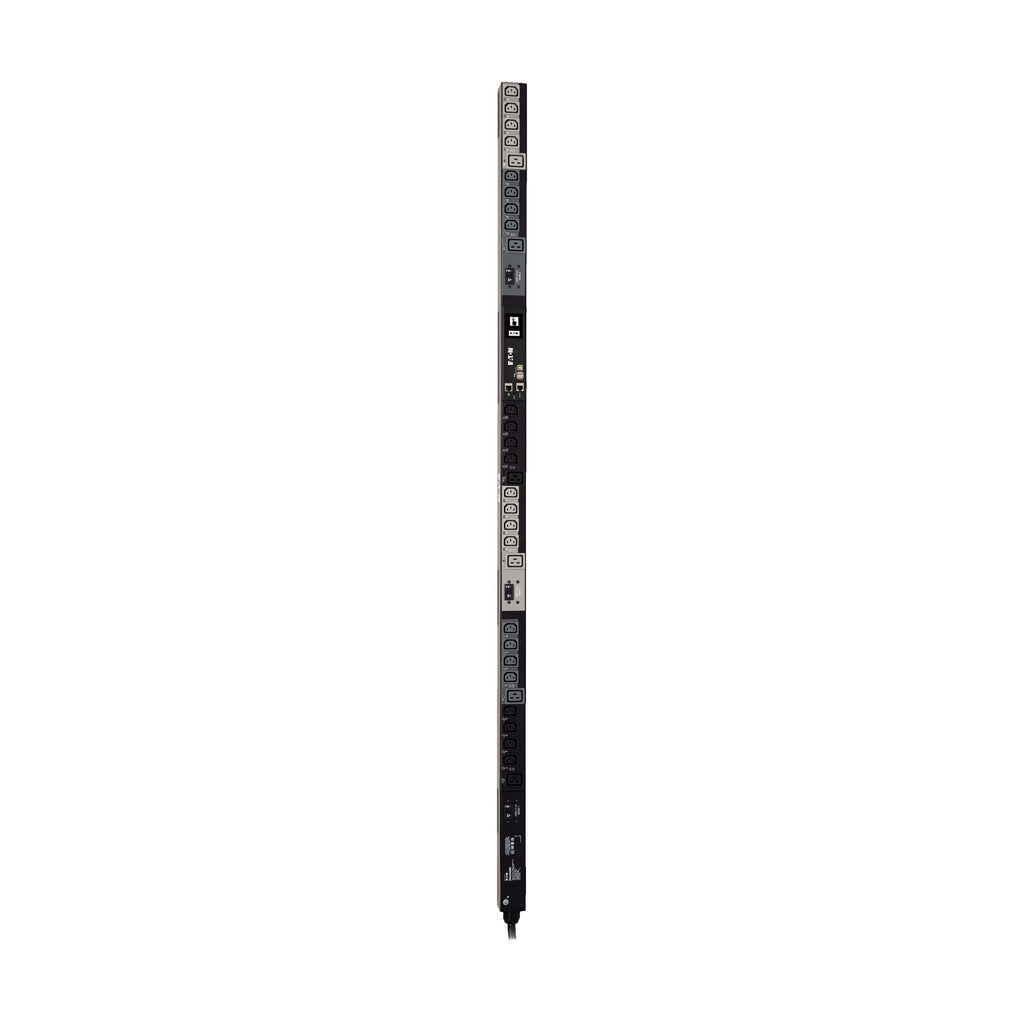

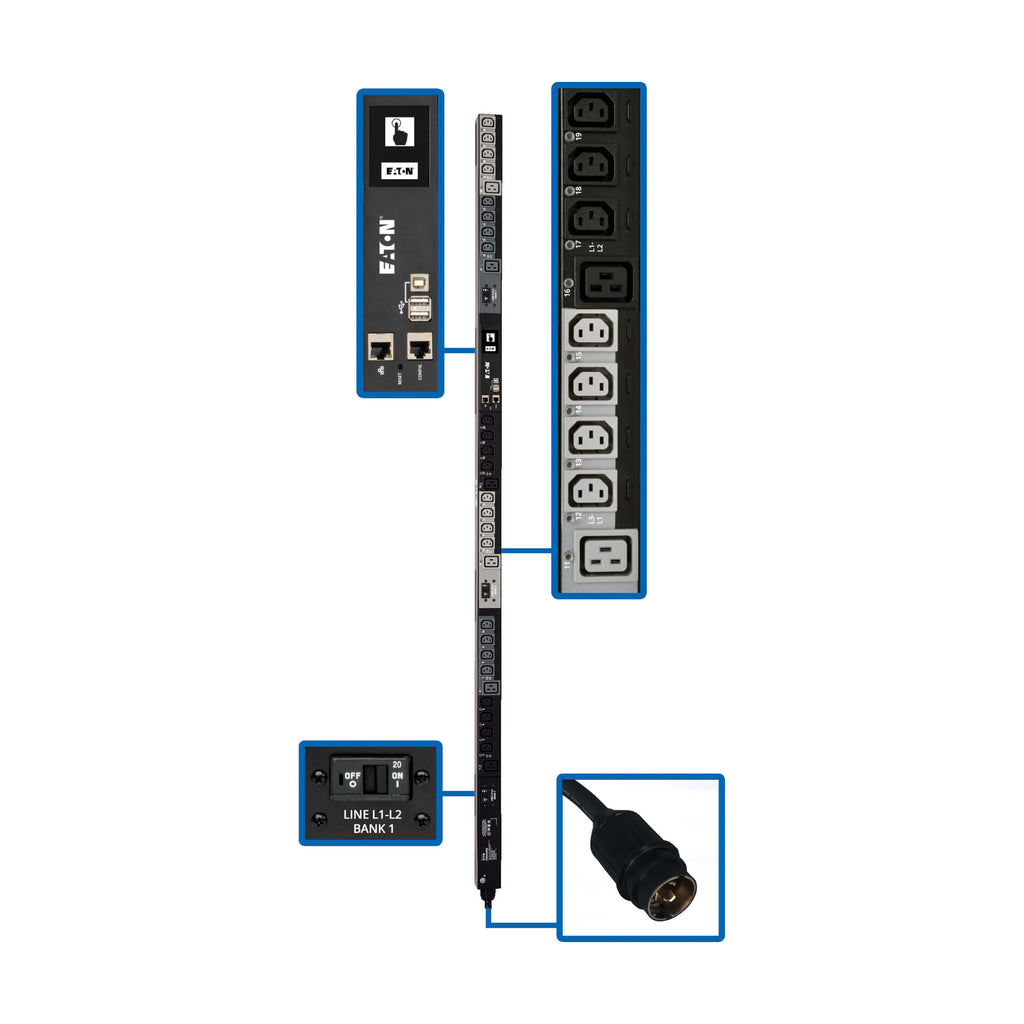

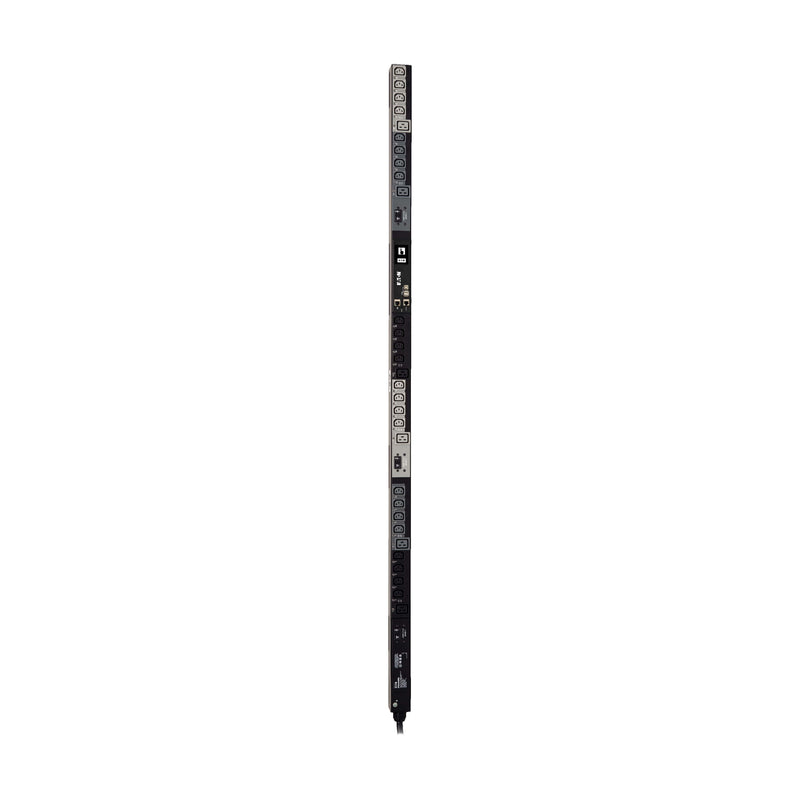

The Eaton Tripp Lite PDU3EVS6L2130 is a high-efficiency 10 kW 3-Phase Switched Power Distribution Unit (PDU) engineered for data centers and large network installations that demand precise control, monitoring, and reliability. Designed for 0U vertical rack mounting, it distributes clean 200-240 V power across 30 individually switchable outlets (24 × C13 and 6 × C19).
With its integrated GbE-capable WEBCARDLX and PowerAlert Device Manager (PADM20), the PDU provides advanced remote management, real-time monitoring, and automated reboot capabilities to minimize downtime and reduce maintenance costs. The color touchscreen LCD offers clear visibility into phase load, outlet status, and environmental data with ±1% billing-grade accuracy.
This TAA-compliant model features a 6-ft (1.83 m) NEMA L21-30P 3-phase input cord, three 20 A circuit breakers, and plug-lock sleeves for secure connections. Backed by a 2-year warranty, it ensures dependable power distribution and management for mission-critical IT environments.
| Category | Specification |
|---|---|
| Model Number | PDU3EVS6L2130 |
| Brand | Eaton Tripp Lite |
| Type | Switched 3-Phase Rack PDU |
| Input Voltage | 200–240 V AC (3-Phase) |
| Input Plug Type | NEMA L21-30P |
| Input Cord Length | 6 ft (1.83 m) |
| Output Voltage | 200–240 V |
| Maximum Load Capacity | 10 kW (240 V) |
| Outlets | 24 × C13 + 6 × C19 |
| Load Banks | 3 × 20 A, independently breakered |
| Form Factor | 0U Vertical |
| Dimensions (H × W × D) | 70 × 2.17 × 2.49 in (177.8 × 5.5 × 6.3 cm) |
| Weight | 16.8 lb (7.62 kg) |
| Mounting | Toolless vertical rack mounting (hardware included) |
| Network Interface | LX Platform (WEBCARDLX) with PADM20 |
| Connectivity | RJ-45 Ethernet (10/100/1000 Mbps), USB, RS-232 |
| Display | Color Touchscreen LCD (IP Address, Load, Env. Data) |
| Measurement Accuracy | ±1% (Amps, Volts, Watts) |
| Frequency | 50 / 60 Hz |
| Overload Protection | 3 × 20 A Circuit Breakers |
| Operating Temperature | 32 °F – 122 °F (0 °C – 50 °C) |
| Relative Humidity | 5% – 95% non-condensing |
| Certifications | UL 60950-1, CSA, NOM, FCC Class A, RoHS, TAA Compliant |

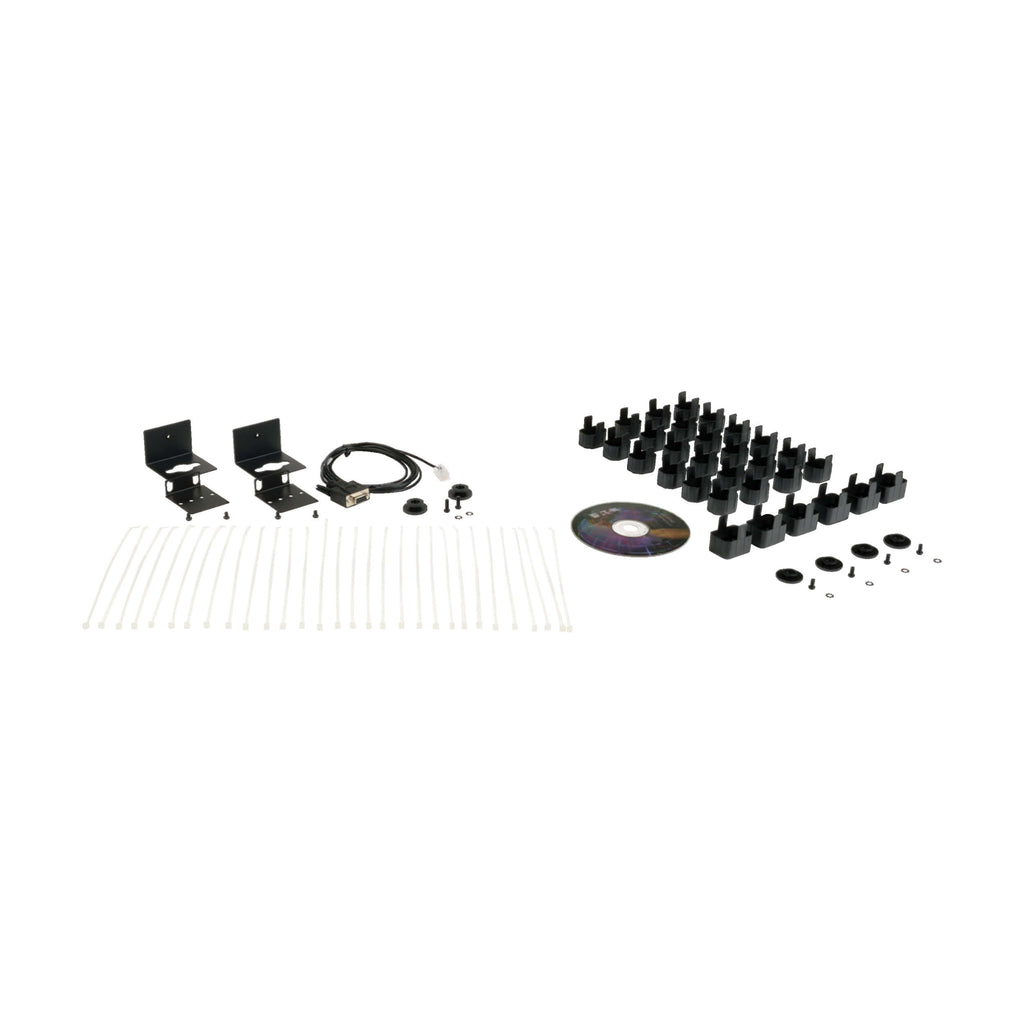

| Included Accessories | Plug-lock sleeves (30), mounting brackets, rotating bracket kit, config cable, spare mounting buttons |
| Warranty | 2-Year Limited Warranty |
