Description

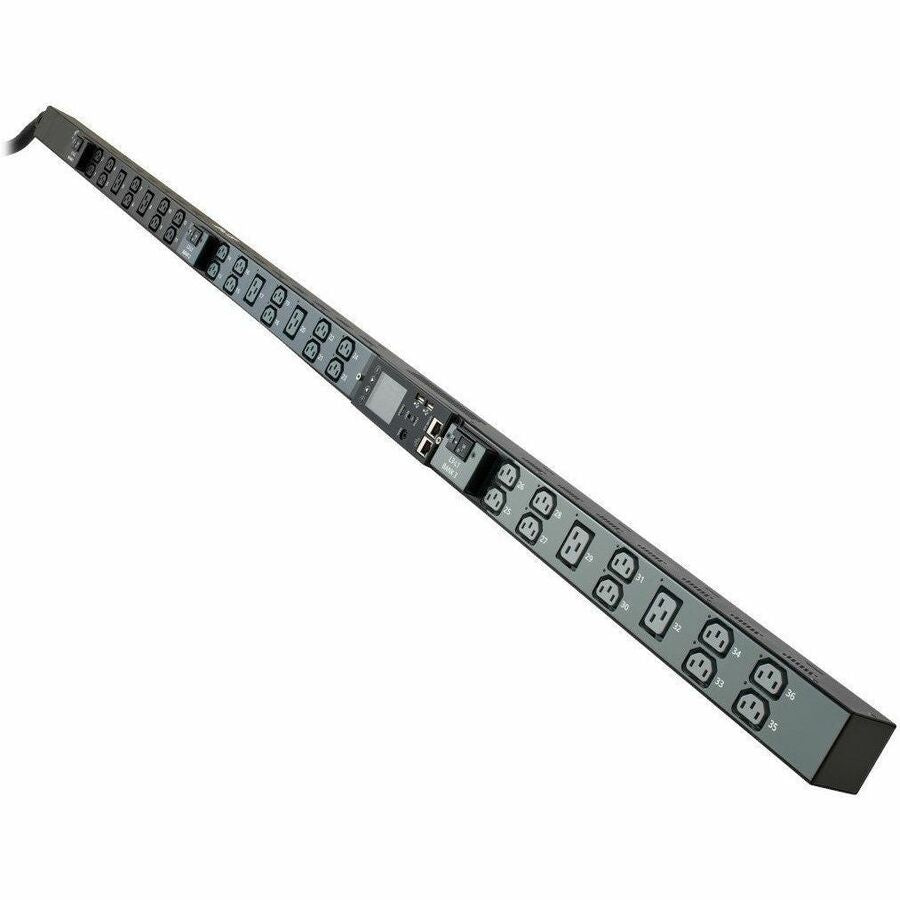

The Eaton Tripp Lite PDU3EVSR1G60 is a 12.6kW 3-phase managed power distribution unit engineered for high-performance data centers, colocation facilities, and enterprise server environments. Featuring 36 individually controllable outlets (30 C13, 6 C19), IsoBreaker™ surge protection technology, and a color touchscreen LCD for detailed diagnostics, this 0U vertical PDU ensures secure and efficient power management.
Equipped with a built-in gigabit network interface (PADM20) and THDv waveform capture, the unit offers advanced remote access, real-time monitoring, and customizable management of power distribution per phase, bank, or outlet. A 10 ft. cord with IEC-309 60A (3P+E) blue plug ensures compatibility with high-capacity 200-240V power systems. TAA compliance and robust metal housing make it ideal for government and critical infrastructure applications.
| Specification | Details |
|---|---|
| Model Number | PDU3EVSR1G60 |
| PDU Type | Managed (Switched) |
| Input Voltage | 200–240V 3-Phase |

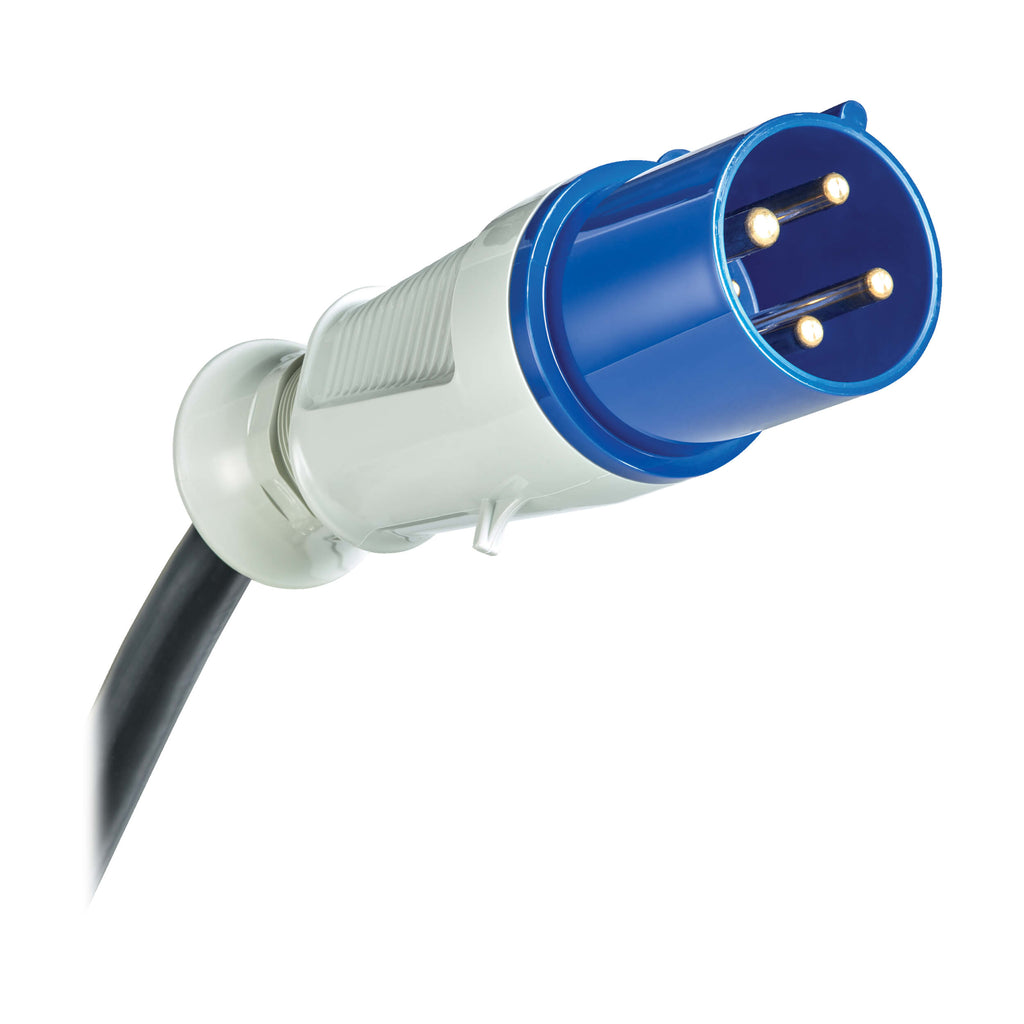

| Input Plug Type | IEC-309 60A Blue (3P+E) |
| Input Cord Length | 10 ft. (3.05 m) |
| Maximum Input Amps | 35A |
| Output Capacity | 12.6 kW |
| Output Voltage | 200–240V |
| Outlet Quantity & Type | 36 (30 x C13, 6 x C19) |
| Outlet Control | Individually switched via network |
| Network Interface | Built-in GbE with PowerAlert Device Manager (PADM20) |
| Monitoring Features | Input/output per phase, per bank, per outlet; THDv waveform capture |
| Display | Color touchscreen LCD |
| Form Factor | 0U Vertical Rackmount |
| Unit Dimensions (H x W x D) | 70 x 2.17 x 3.11 in (177.8 x 5.51 x 7.90 cm) |
| Unit Weight | 21.38 lbs. (9.7 kg) |
| Material | Metal, black housing |
| Operating Temperature | 0° to 60°C (32° to 140°F) |
| Compliance | TAA, UL 62368-1, RoHS, FCC Class A |
| Warranty | 2-Year Limited Warranty |
