Description

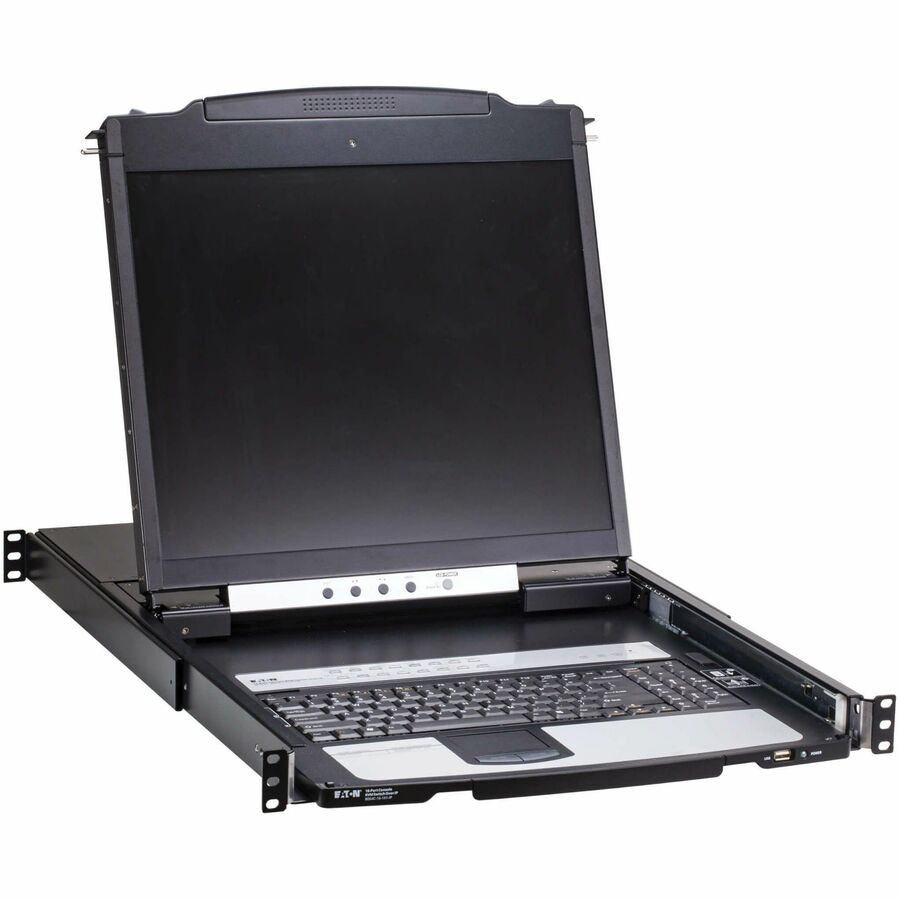

The Eaton B064C-16-1X1-IP NetDirector® KVM over IP Switch delivers secure, centralized server control in high-density IT environments. Designed for 1U rackmount deployment, it integrates a 19-inch LCD console, keyboard, and touchpad for local access, while also enabling a second user to manage up to 16 servers remotely via a secure IP connection.
Ideal for data centers and enterprise server rooms, this Cat5 KVM switch provides virtual media support, multi-language GUI, IPv4/IPv6 compatibility, and advanced encryption including 256-bit AES. Its daisy-chain feature expands connectivity up to 128 servers, and TAA compliance ensures eligibility for federal contracts.
| Category | Details |
|---|---|
| Model Number | B064C-16-1X1-IP |
| Form Factor | 1U Rack-Mount |
| Display | 19 in. LCD, 1920 x 1200 @ 60 Hz resolution |
| Number of Ports | 16 RJ45 Computer/Server Ports |
| Users Supported | 1 Local, 1 Remote |
| Daisy-Chaining | Up to 128 systems with B022-U08 via DB-25 |
| Video Interface | VGA (Local & Remote) |
| Input Interfaces | USB / PS/2 Keyboard & Mouse |
| Input Power | 100–240V AC, 50/60Hz, 1A (IEC-320-C14 inlet) |
| Power Cord | C13-to-C14, 6.6 ft. |
| Security | LDAP, LDAPS, RADIUS, Active Directory, 128-bit RC4, 256-bit AES encryption |
| Remote Access | Yes, via browser or non-browser Windows client |
| Virtual Media | Yes, via USB front port and B055-Series interface units |
| Operating Systems | Windows, Linux, UNIX, macOS, Novell, DOS, Sun |
| Dimensions (inches) | 26.77 x 17.67 x 1.73 (W x D x H) |
| Weight | 31.3 lbs (14.2 kg) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Certifications | CE, FCC, RoHS, TAA, UKCA, NOM, RCM |
| Warranty | 1-Year Limited Warranty |
