Description

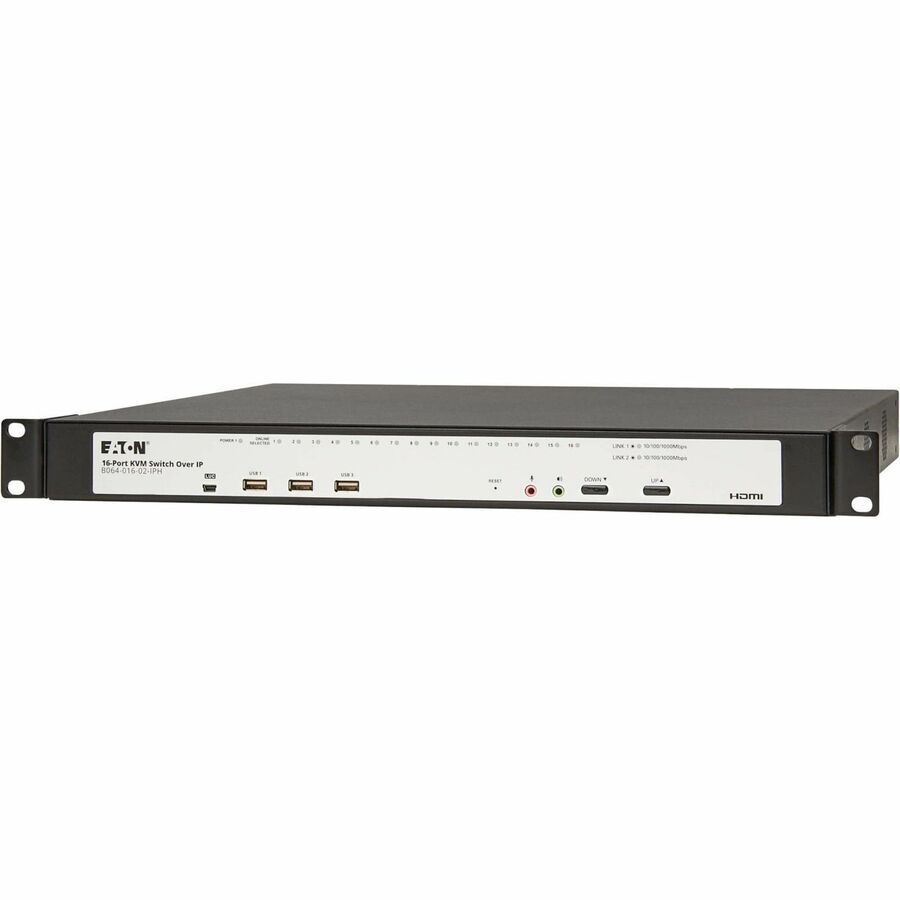

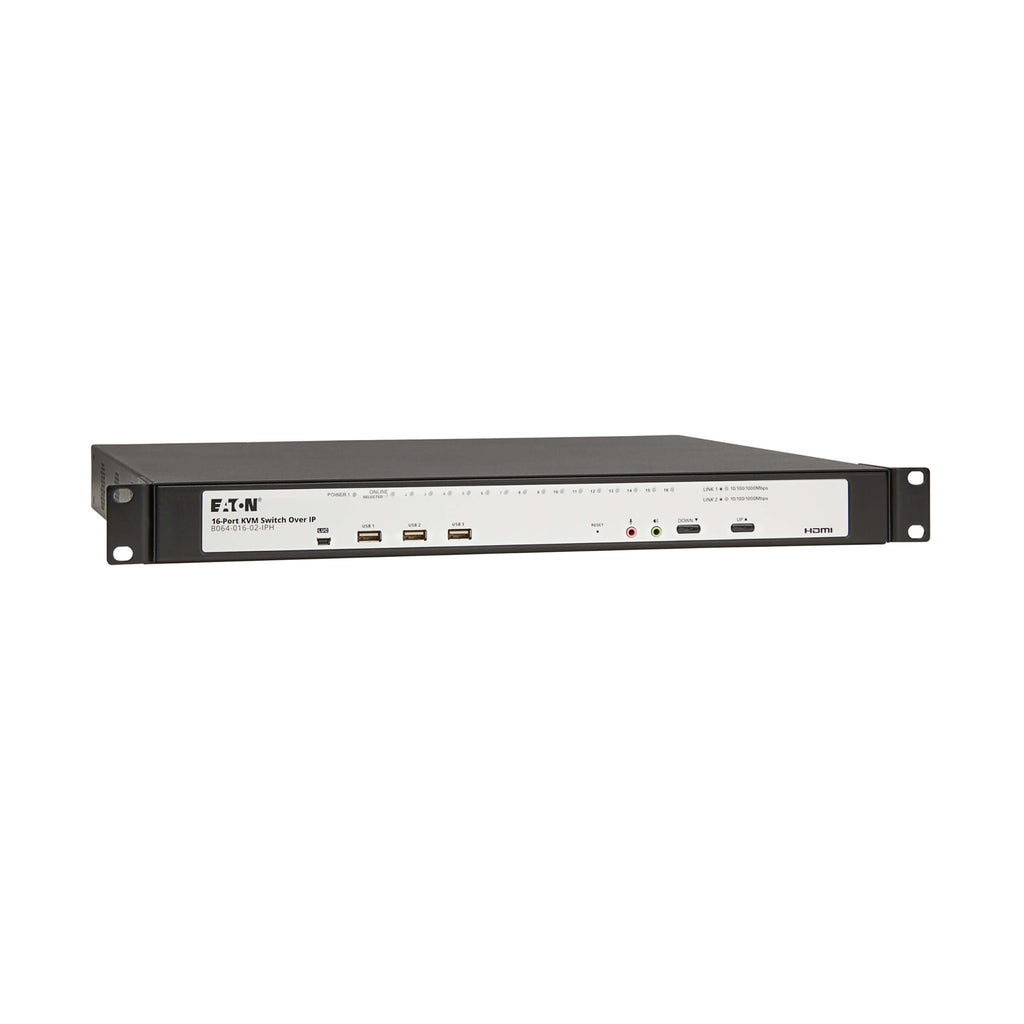

The Eaton B064-016-02-IPH NetDirector® Cat5e KVM over IP Switch provides enterprise-grade, BIOS-level remote access and control for up to 16 servers or computers simultaneously. Ideal for data centers and server rooms, this 1U rack-mount switch allows 2 remote and 1 local user to manage systems via secure, Java-free web-based management. Featuring Virtual Media, it supports remote file transfers and diagnostics through USB, enabling efficient software installations and recovery operations.

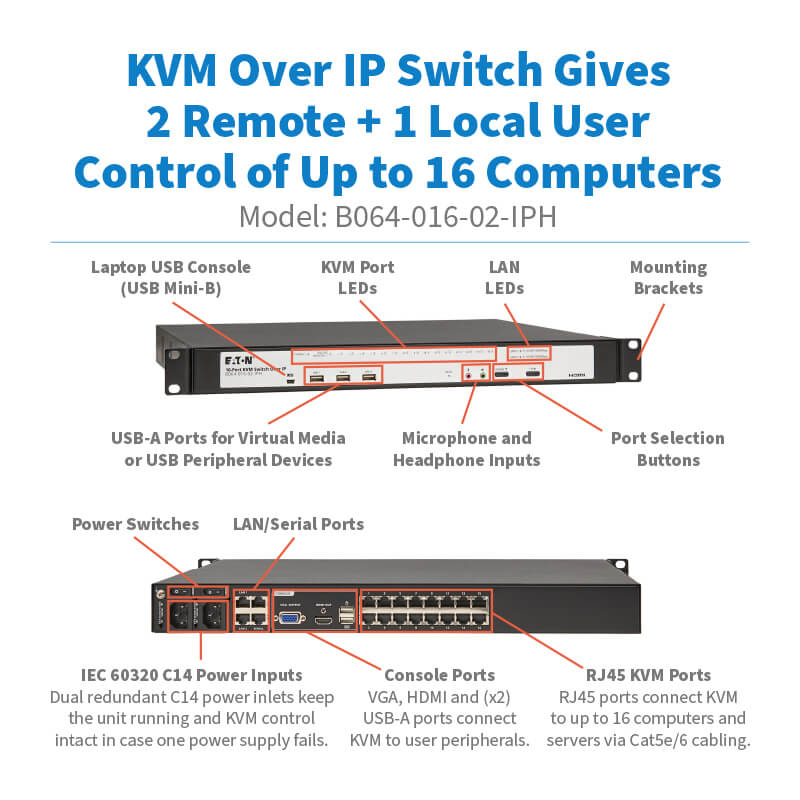

Equipped with both HDMI and VGA outputs and high-resolution support up to 1920 x 1200 at 60 Hz, the switch offers intuitive multi-language on-screen display (OSD) and various port access methods (GUI, hotkey, pushbutton). Dual redundant C14 power inputs ensure continued operation during power failures. TAA compliant and supporting advanced encryption (FIPS 140-2 Level 1), LDAP/RADIUS authentication, and IPv6, the B064-016-02-IPH is a robust solution for secure, flexible, and scalable KVM management.
| Specification | Details |
|---|---|
| Model Number | B064-016-02-IPH |
| Max Computers Supported | 16 directly, up to 128 via cascading |
| Users Supported | 2 Remote, 1 Local |
| Video Output | 1 x HDMI, 1 x VGA |
| Max Video Resolution | 1920 x 1200 @ 60 Hz |
| Power Input | Dual IEC-320-C14; 100–240V, 50/60Hz, 1A |
| USB Ports | 3 x USB-A for Virtual Media |
| Console Ports | USB keyboard/mouse; HDMI/VGA monitor |

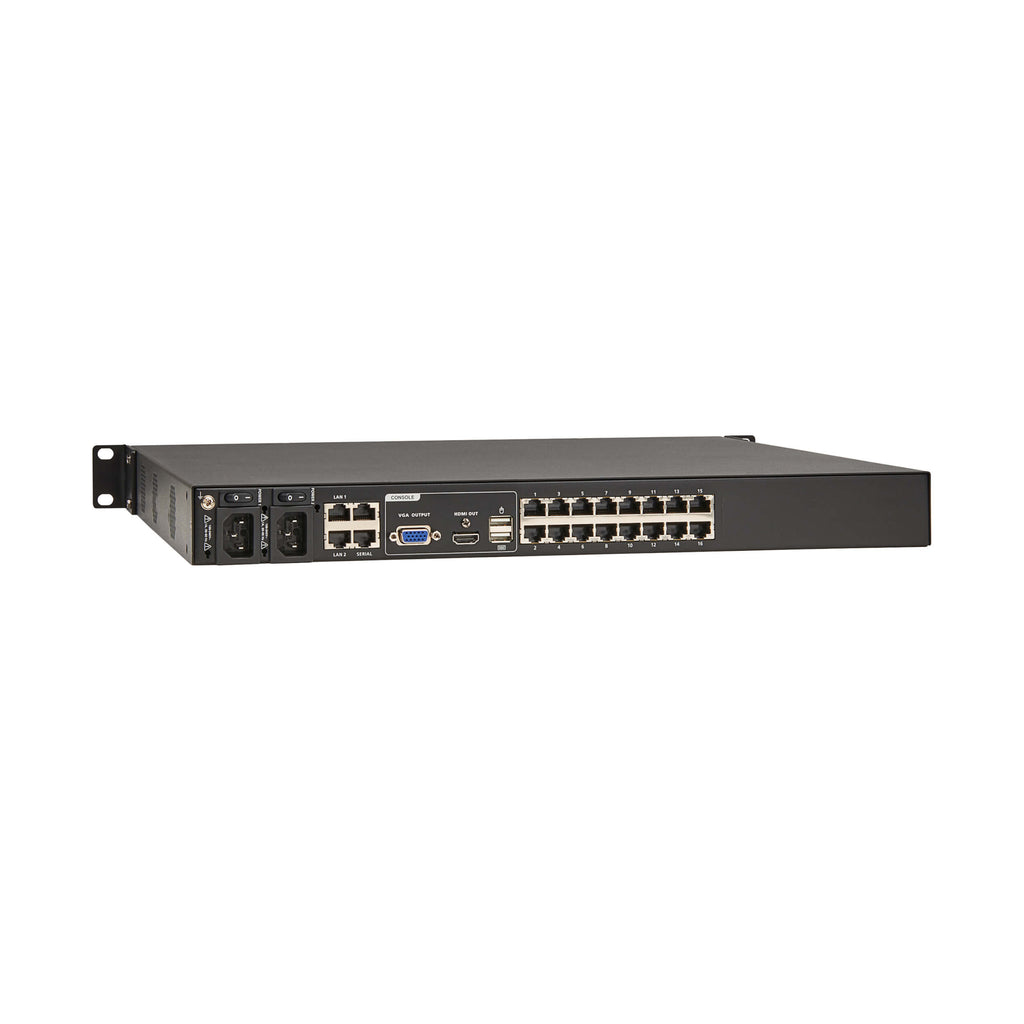

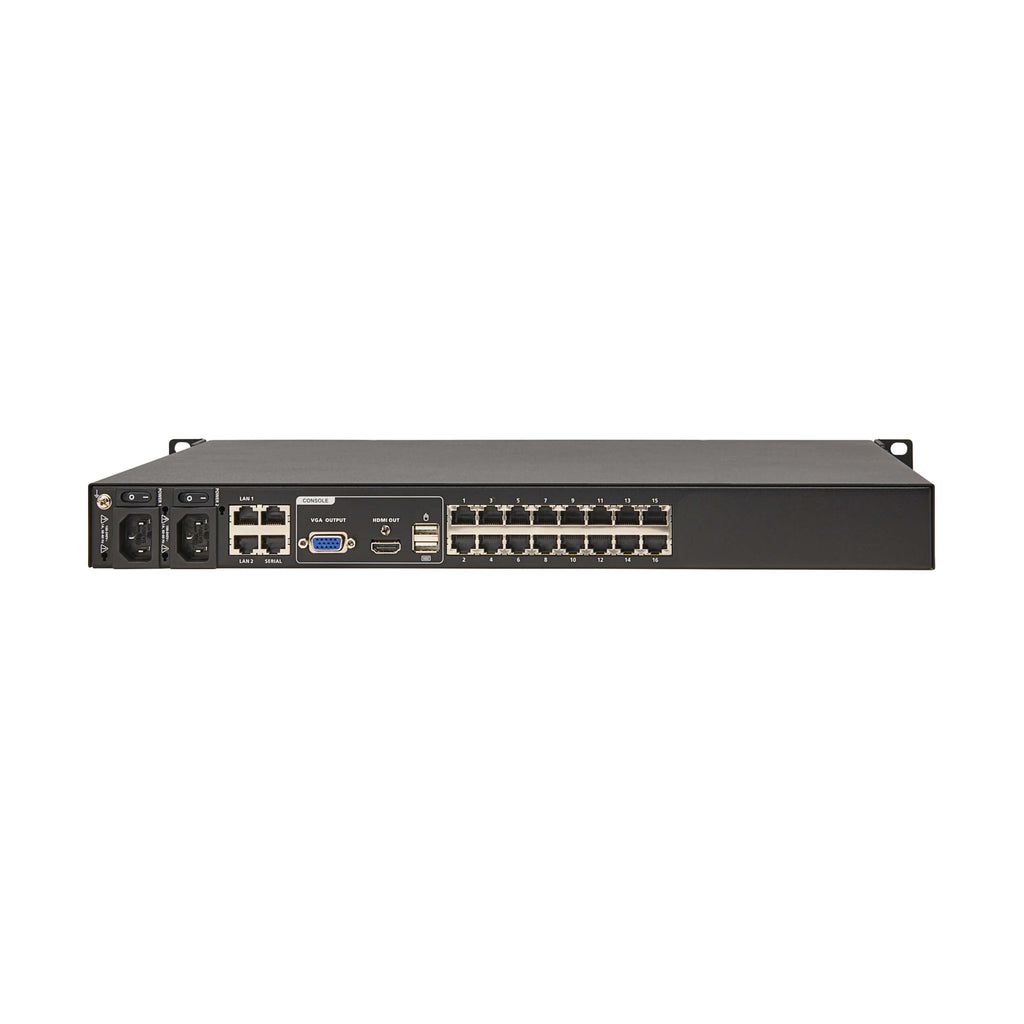

| Computer Interface | RJ45 to Server Interface Unit (VGA/HDMI + USB/PS2 via adapters) |
| Supported Protocols | IPv4, IPv6, DHCP |
| Authentication | LDAP, LDAPS, RADIUS, Active Directory |
| Encryption | 1024-bit RSA, 256-bit AES, 128-bit SSL, FIPS 140-2 Level 1 |
| Dimensions (HxWxD) | 1.72 x 17.06 x 16.27 in (43.7 x 433.2 x 413.3 mm) |
| Rack-Mountable | Yes, 1U rack height |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |

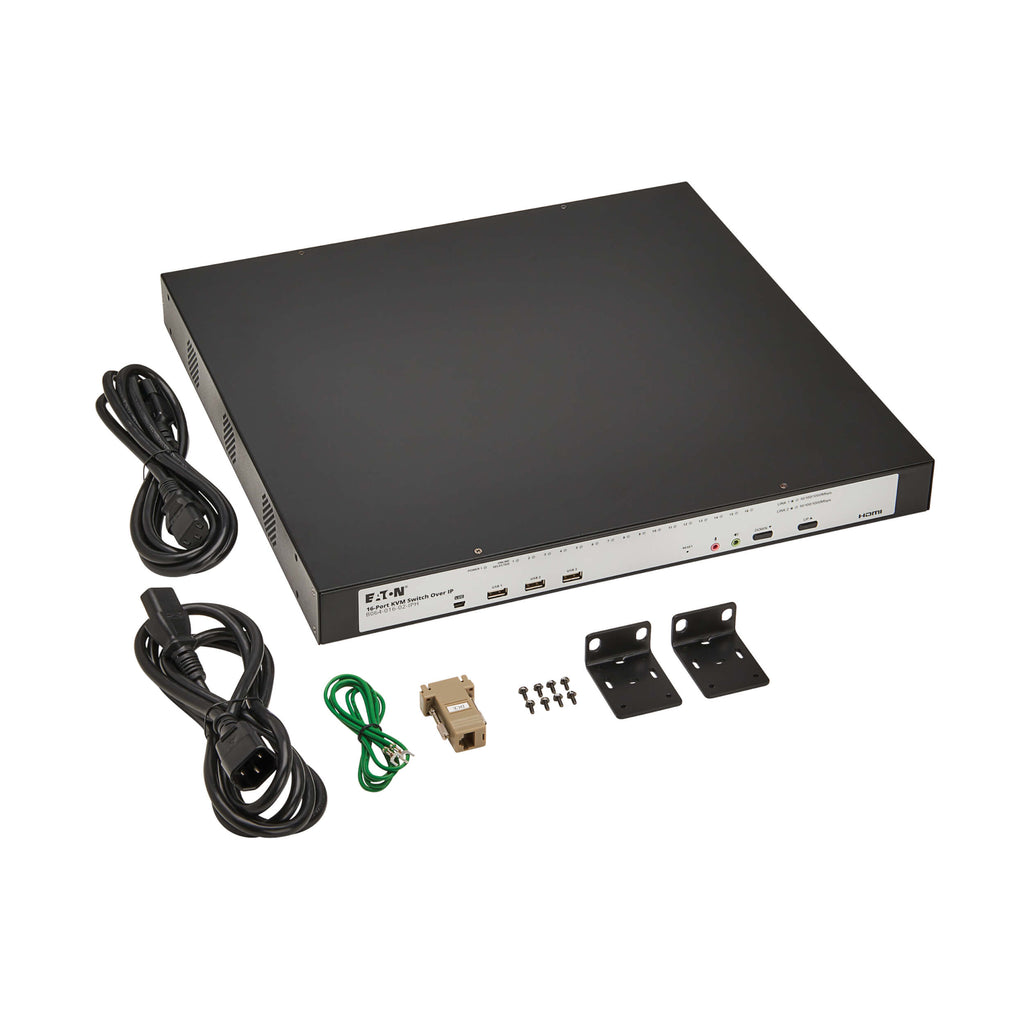

| Included Accessories | Power cords (2), rack hardware, grounding wire, LUC support, instructions |
| Certifications | CE, FCC, UL, TAA, RoHS, REACH, FIPS 140-2 |
| Warranty | 3-Year Limited Warranty |
