Description

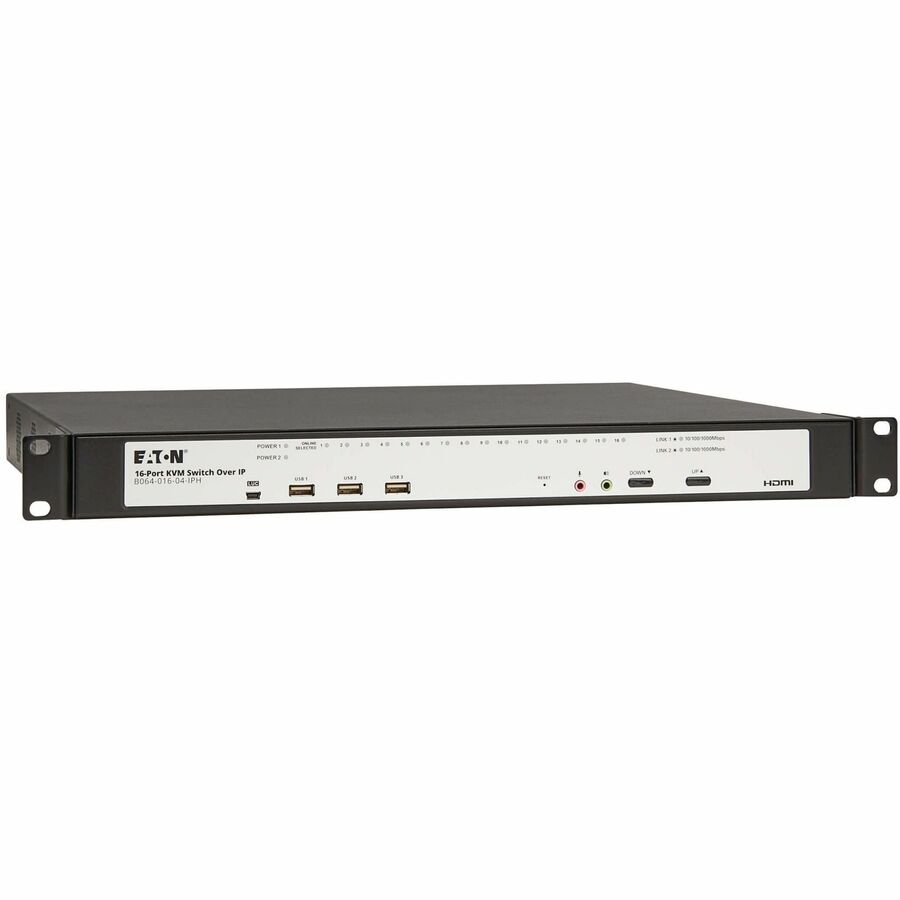

The Eaton B064-016-04-IPH is a robust 16-port Cat5e KVM over IP switch that enables secure, BIOS-level control of servers and computers from anywhere in the world. Designed for demanding enterprise and data center environments, this 1U rack-mountable unit supports up to four users (three remote and one local) simultaneously, providing seamless server management without compromising performance or security.
Equipped with HDMI and VGA video outputs, virtual media support, and advanced user access controls, the B064-016-04-IPH streamlines IT administration. It also features redundant power inlets, a dedicated Laptop USB Console (LUC) port, and compatibility with all major OS and browsers. Fully TAA-compliant, it meets the strict standards for federal procurement.
| Specification | Details |
|---|---|
| Model Number | B064-016-04-IPH |
| Number of Ports | 16 (RJ45) |
| Number of Users | 4 (3 Remote + 1 Local) |
| Video Output | HDMI and VGA (Up to 1920 x 1200 @ 60 Hz) |
| Virtual Media Support | Yes (via USB ports and B055-series SIUs) |
| Redundant Power | Dual C14 Power Inlets |
| Console Ports | USB Keyboard/Mouse, HDMI/VGA Monitor |
| Remote Access Methods | Web Browser, Java Client, Windows Client, Modem (Optional) |
| Authentication Support | RADIUS, LDAP, LDAPS, Active Directory |
| Security Standards | FIPS 140-2 (Level 1), 1024-bit RSA, AES-256, DES-56, SSL-128 |
| Cascadable | Yes (Up to 128 devices) |
| OS Compatibility | Windows, macOS, Linux, Unix |
| Browser Compatibility | Chrome, Edge, Firefox |
| USB Ports (Front Panel) | 3 x USB-A (for Virtual Media or peripherals) |
| Laptop Console Port (LUC) | USB Mini-B |
| Form Factor | 1U Rack-Mount |
| Dimensions (H x W x D) | 1.72 x 17.06 x 16.27 in. (43.7 x 433.3 x 413.3 mm) |
| Weight | 7.75 lbs (3.52 kg) |
| Operating Temp. Range | 0°C to 40°C (32°F to 104°F) |
| Compliance | TAA, CE, FCC, RoHS, FIPS 140-2, REACH, UKCA, NOM, UL, TUVus, CAN/CSA |
| Warranty | 3-Year Limited Warranty |
