Description
The Eaton 9PXEBM180RTG2 is a 180V valve-regulated lead-acid (VRLA) extended battery module designed to provide extended runtime for compatible Eaton 9PX G2 UPS systems. Ideal for small business, education, retail, financial, and healthcare environments, it ensures reliable backup power continuity during extended outages. This EBM supports both 3U rackmount and tower configurations and can be daisy-chained up to 12 units for even longer runtime. Heavy-gauge DC cabling with high-current connectors ensures safe, simple installation. The unit includes rack-mounting hardware, tower stands, and a quick-start guide for versatile setup.
| Category | Details |
|---|---|
| Model Number | 9PXEBM180RTG2 |
| Device Type | 180V Extended Battery Module (EBM) |
| Compatibility | Eaton 9PX G2 3–6kVA VRLA UPS systems (e.g., 9PX3K3UG2, 9PX5KG2, 9PX6KG2) |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| DC System Voltage | 180V |
| Battery Management | ABM+ Technology |
| Replaceable Batteries | Hot-swappable, user-replaceable (requires 2 × EBP-1805 cartridges) |

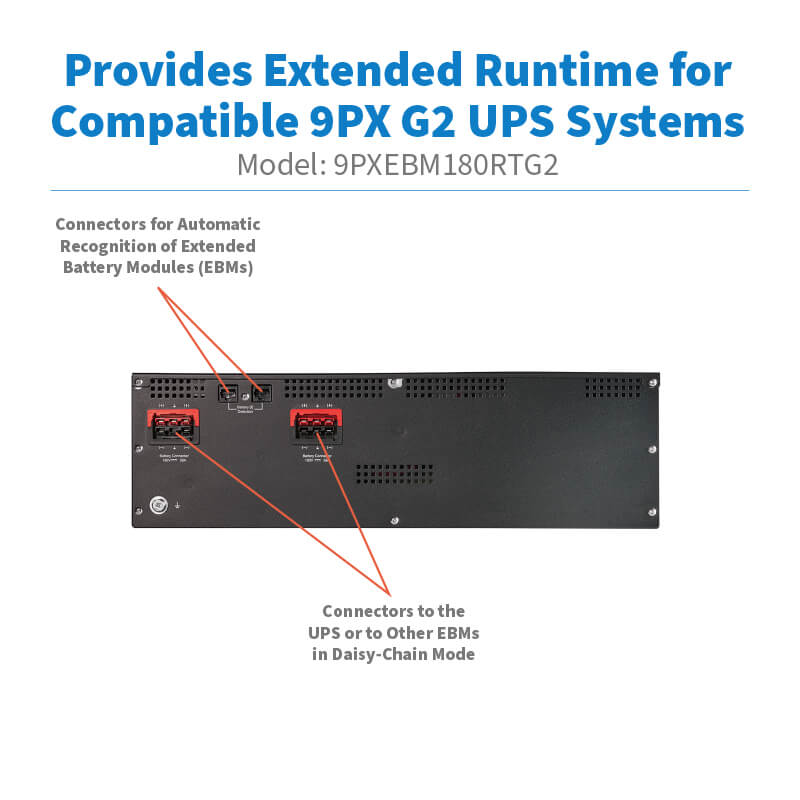

| Expandable Runtime | Supports daisy-chaining of up to 12 battery packs |

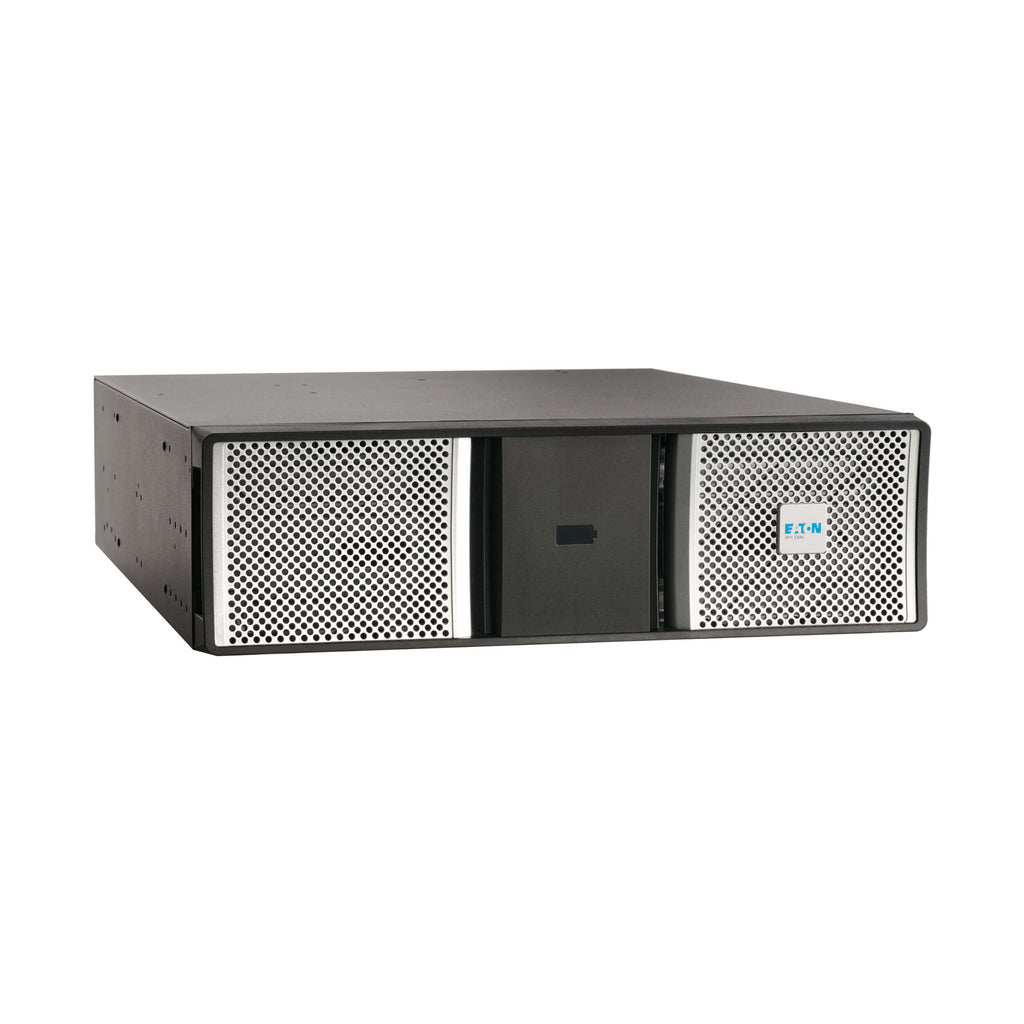

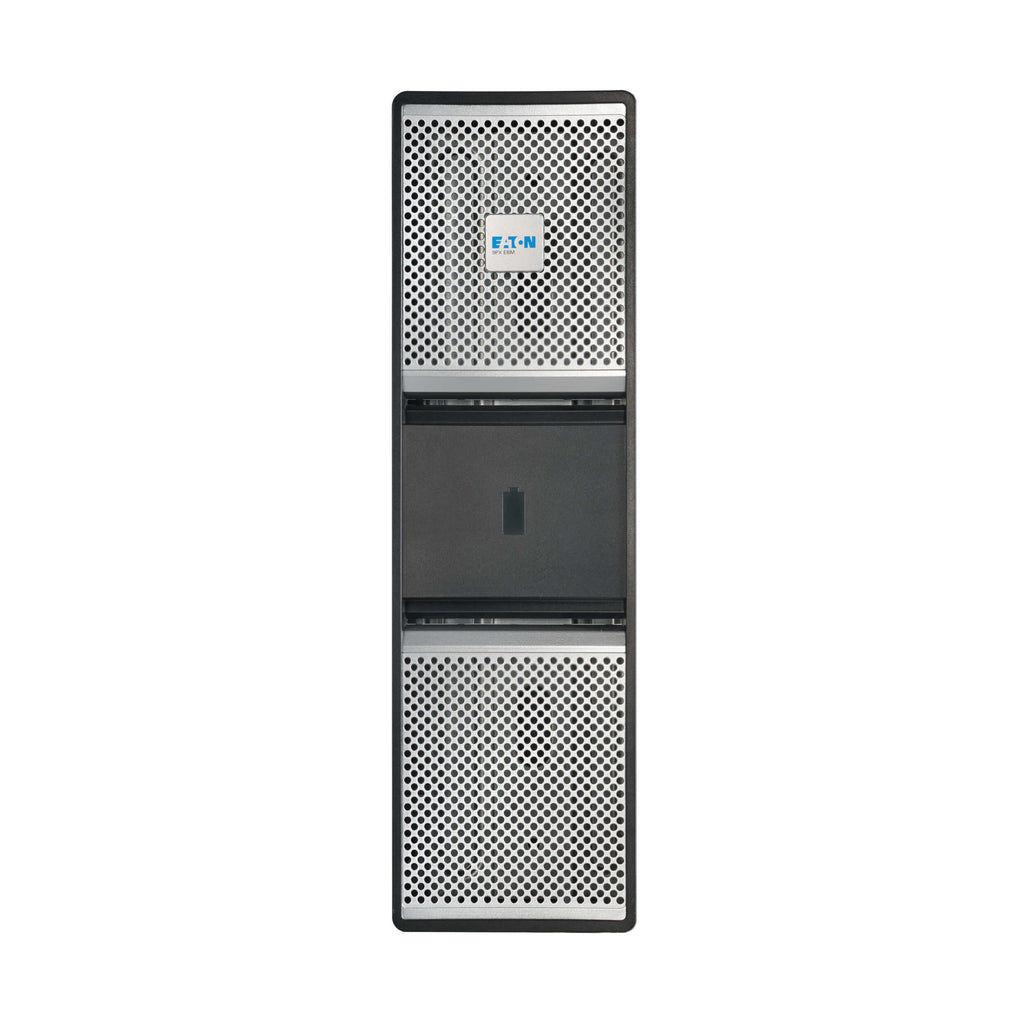

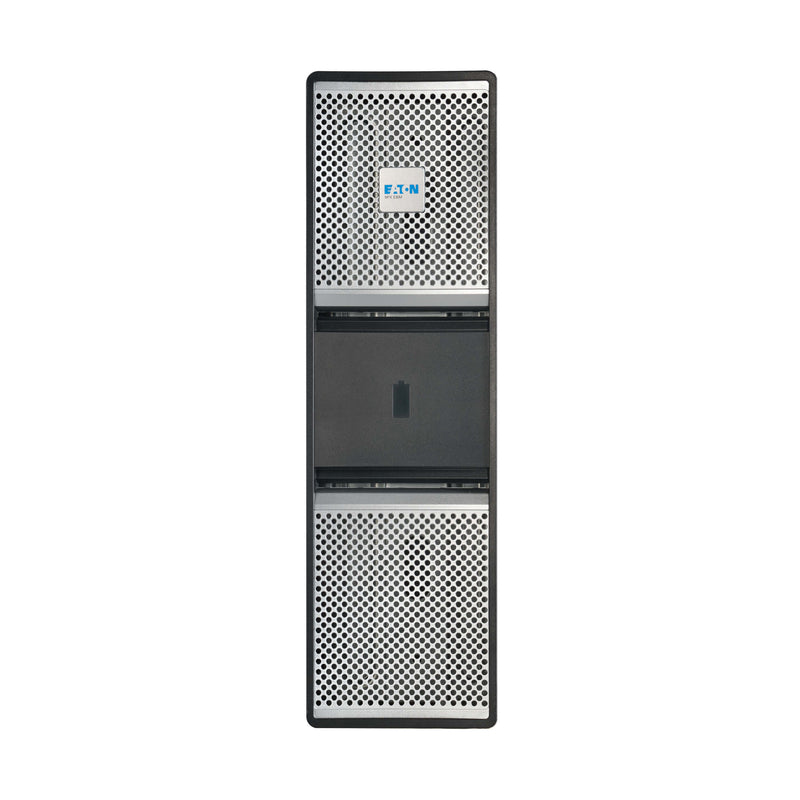

| Form Factor | Rackmount or Tower |
| Rack Height | 3U |

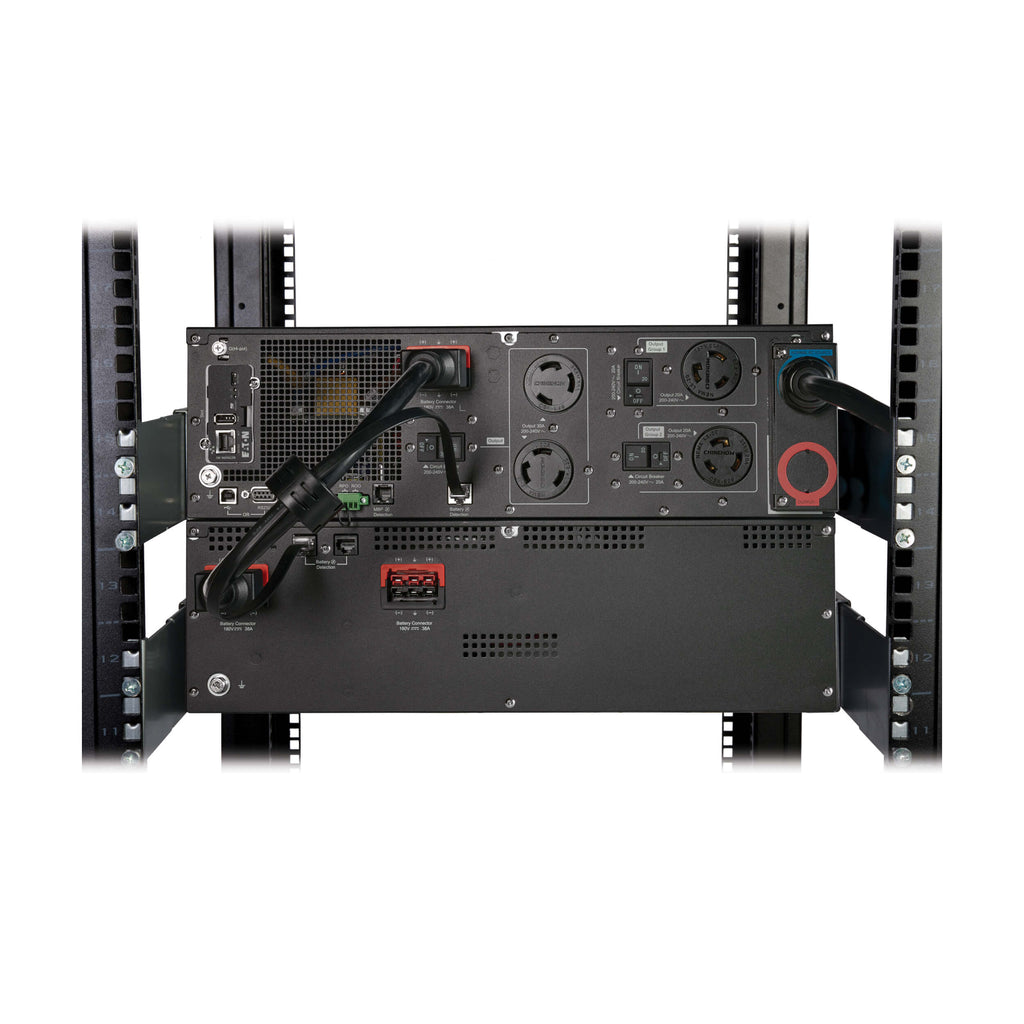

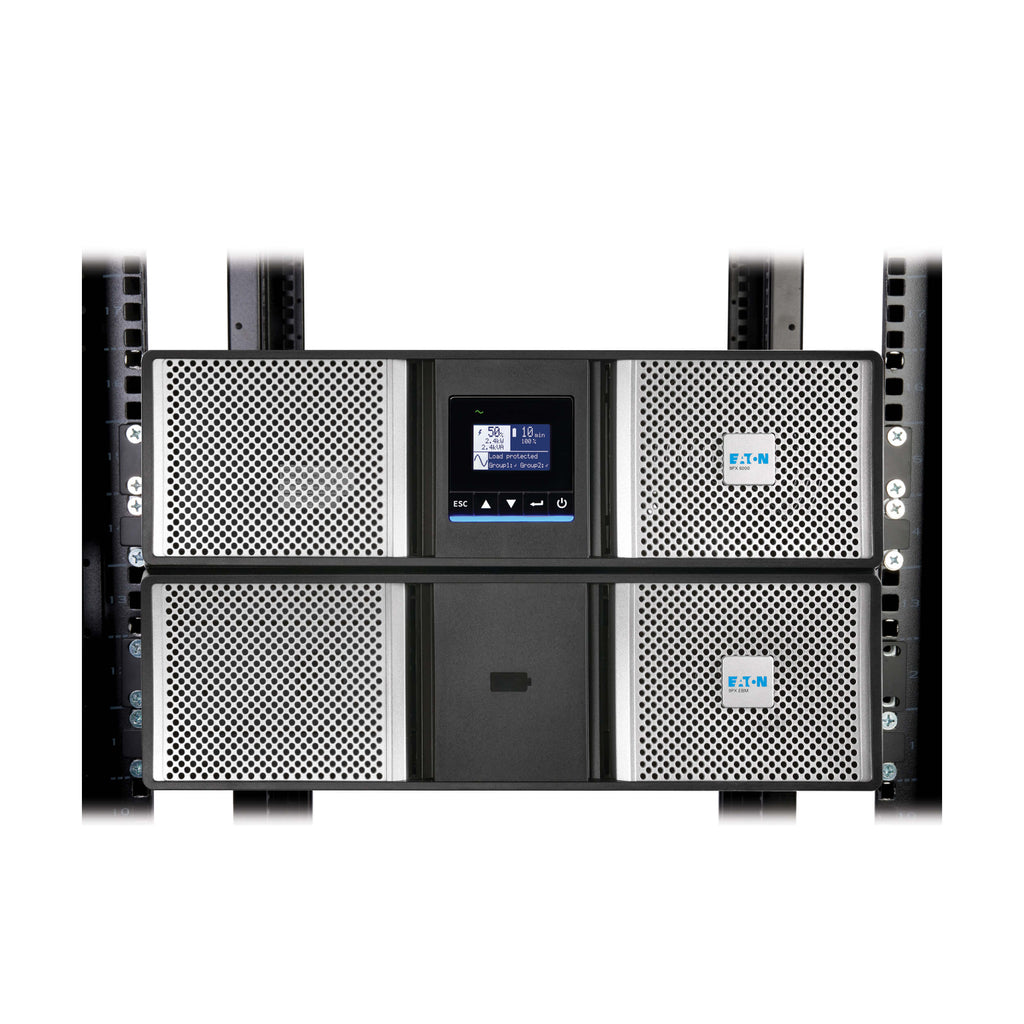

| Rackmount Compatibility | 4-post 19" rack (included rails) |
| Optional Mounting | 2-post rackmount with RK2PC kit (sold separately) |
| Minimum Rack Depth | 29 in (73.66 cm) |
| Dimensions (H × W × D) | 5.1 × 17.3 × 25.0 in |
| Weight | 150 lb (68.04 kg) |
| Operating Temperature | 32°–104°F (0°–40°C) |
| Relative Humidity | 0–95% non-condensing |
| Certifications | cUL Listed, EN 62040-2, NOM (Mexico) |
| Compliance | FCC Part 15 Class A (USA), CE (Europe), ENERGY STAR Qualified, RoHS |
| Warranty | 3-year limited warranty |

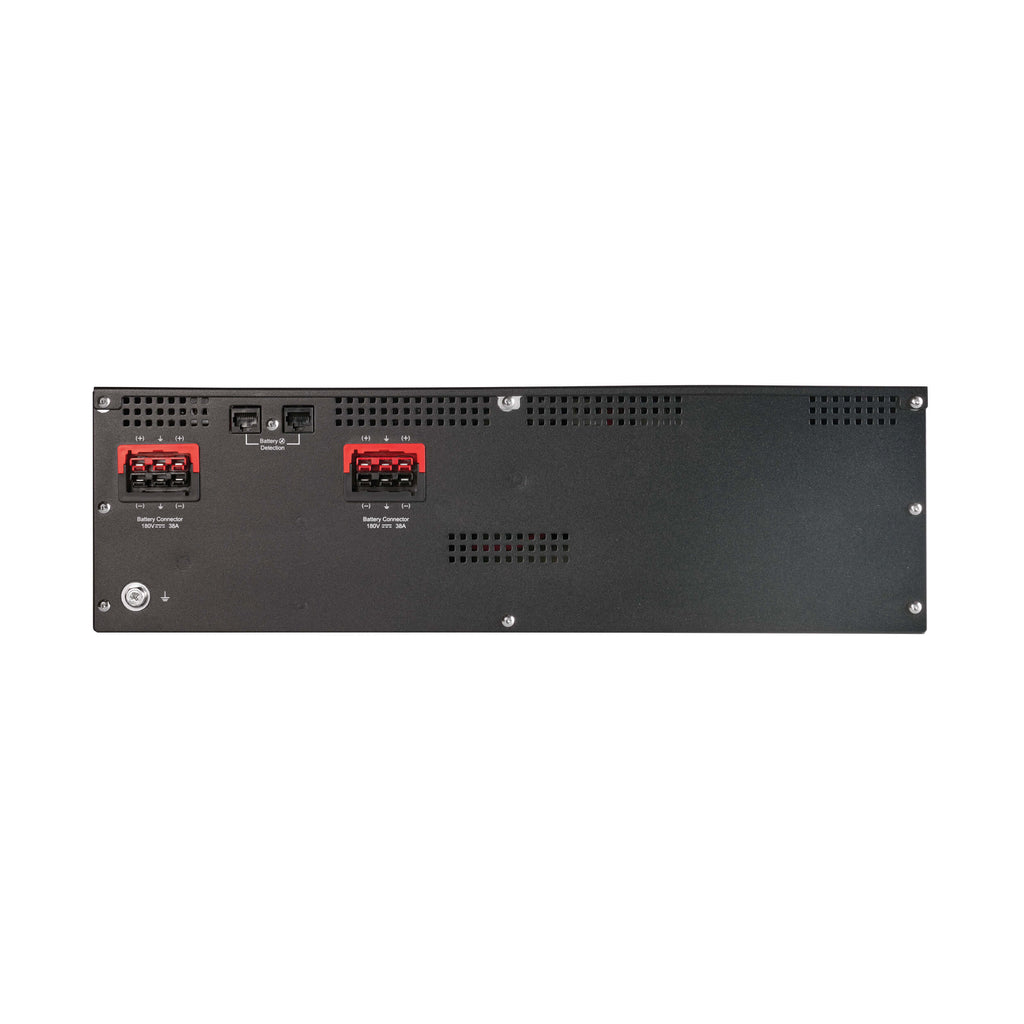

| Included Accessories | External battery cable (1 ft), tower stands, rack-mounting hardware, quick start guide |
