Description
The Eaton Tripp Lite PDUMV30NETLX is a high-capacity, single-phase switched PDU designed for enterprise data centers, network closets, and industrial IT environments that require precise power control and remote monitoring.

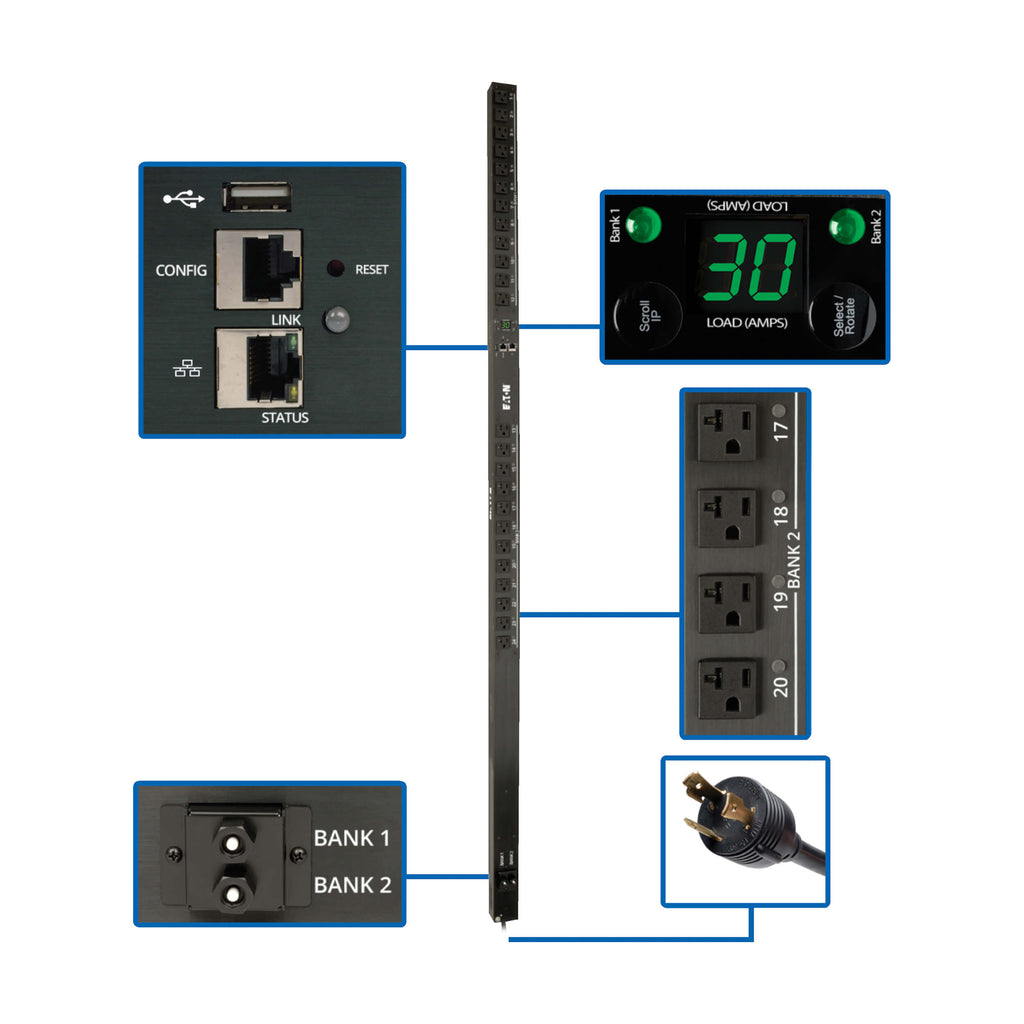

Delivering up to 2.9kW at 120V, this 0U vertical rack PDU features 24 individually controllable NEMA 5-15/20R outlets, allowing administrators to remotely power on, power off, reboot, or lock out connected equipment. A built-in LX Platform network interface enables secure, Java-free remote management via web browser, SNMP, SSH, or Telnet.

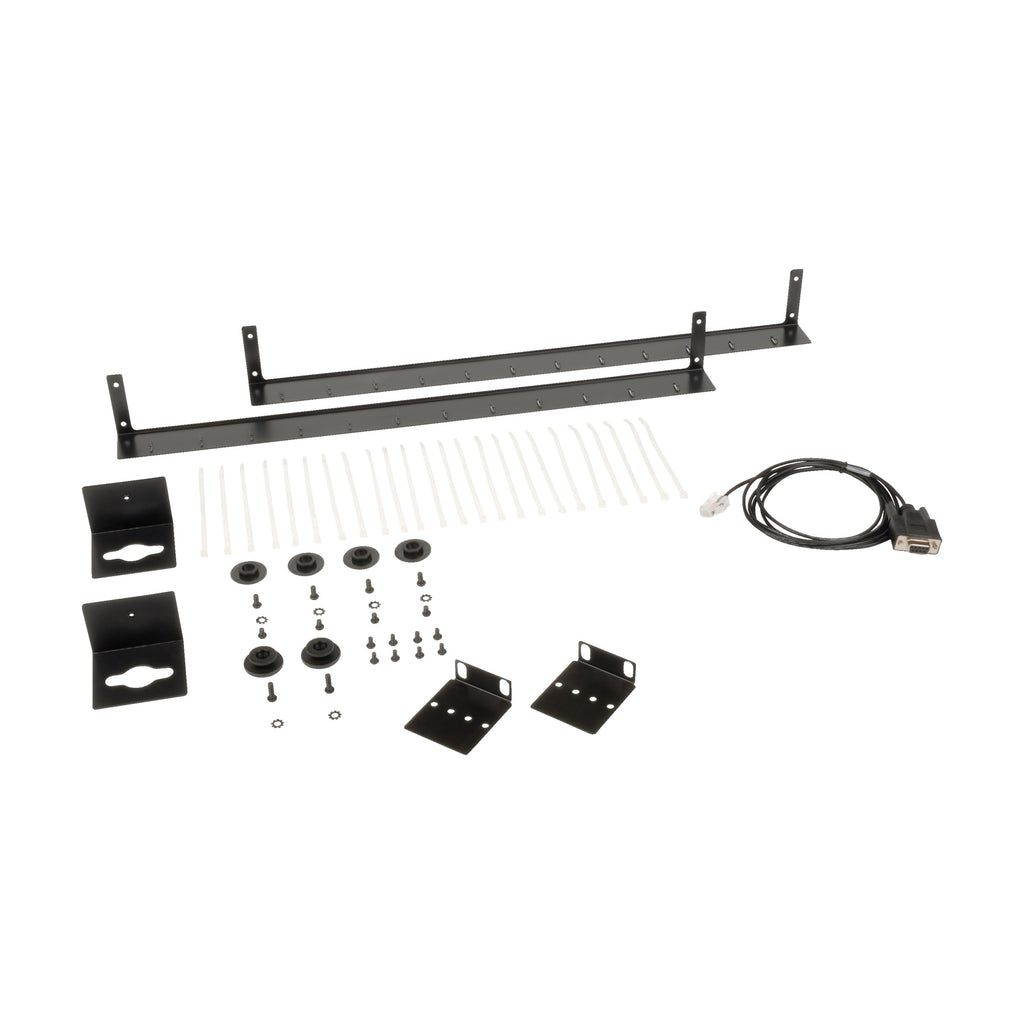

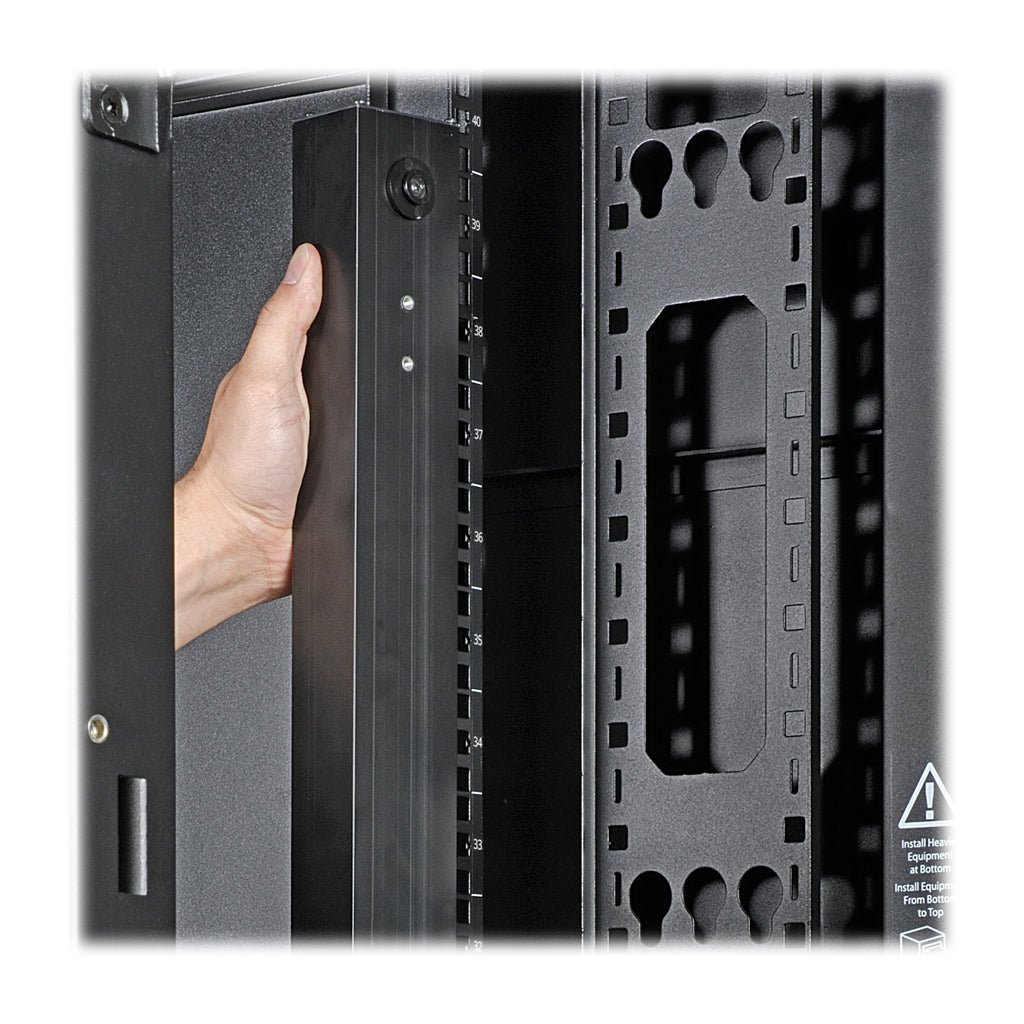

A digital ammeter provides real-time load monitoring by bank and total output, helping prevent overloads and unplanned downtime. The unit installs vertically in standard 19-inch racks and includes toolless mounting buttons and brackets, preserving valuable rack space.
Ideal for mission-critical IT infrastructure, the PDUMV30NETLX supports advanced power management, load shedding, and environmental monitoring expansion, all while meeting TAA compliance requirements.
| Specification | Details |
|---|---|
| Manufacturer | Eaton Tripp Lite |
| Model | PDUMV30NETLX |
| PDU Type | Switched (Network-Managed) |
| Mounting | Vertical 0U Rackmount |
| Phase | Single-Phase |
| Input Voltage | 120V |
| Output Capacity | 2.9kW (24A continuous) |
| Input Plug | NEMA L5-30P |
| Input Cord Length | 10 ft (3.05 m) |
| Outlet Quantity | 24 |
| Outlet Type | NEMA 5-15/20R |
| Outlet Control | Individual outlet on/off/reboot/lockout |
| Load Banks | 2 banks (12 outlets each) |
| Overload Protection | Dual 20A circuit breakers |
| Metering | Digital ammeter (per bank and total load) |
| Network Interface | LX Platform (HTML5, Java-free) |
| Network Connectivity | 10/100 Mbps Ethernet |
| Management Protocols | HTTP, HTTPS, SNMP v1/v2/v3, SSH, Telnet, SMTP |
| Environmental Monitoring | Supports optional EnviroSense2 modules |
| Rack Compatibility | EIA-standard 19-inch racks |
| Compliance | TAA, RoHS |
| Warranty | 2-Year Limited Warranty |
