Description

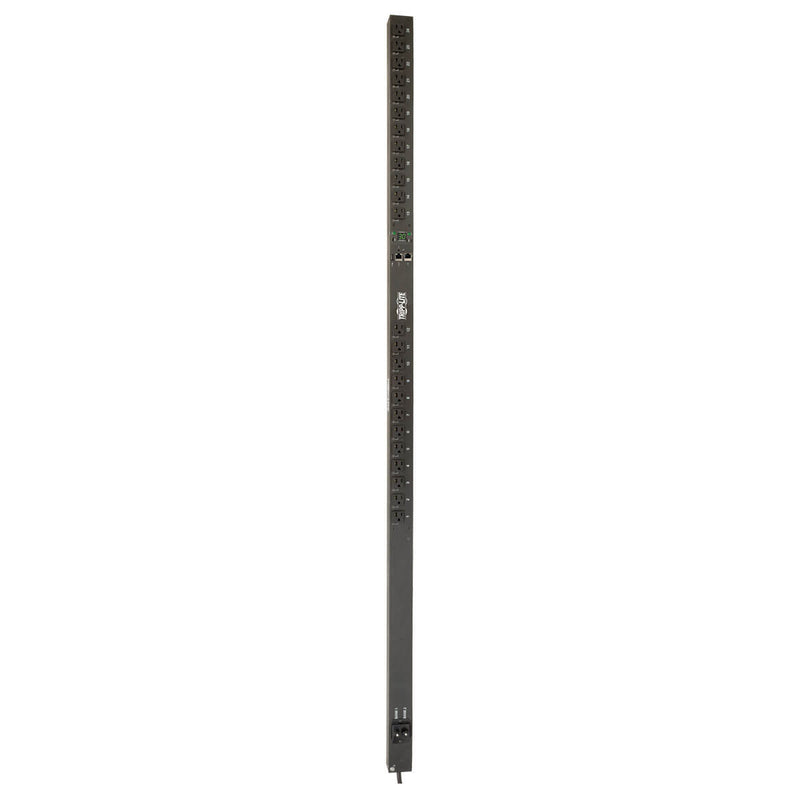

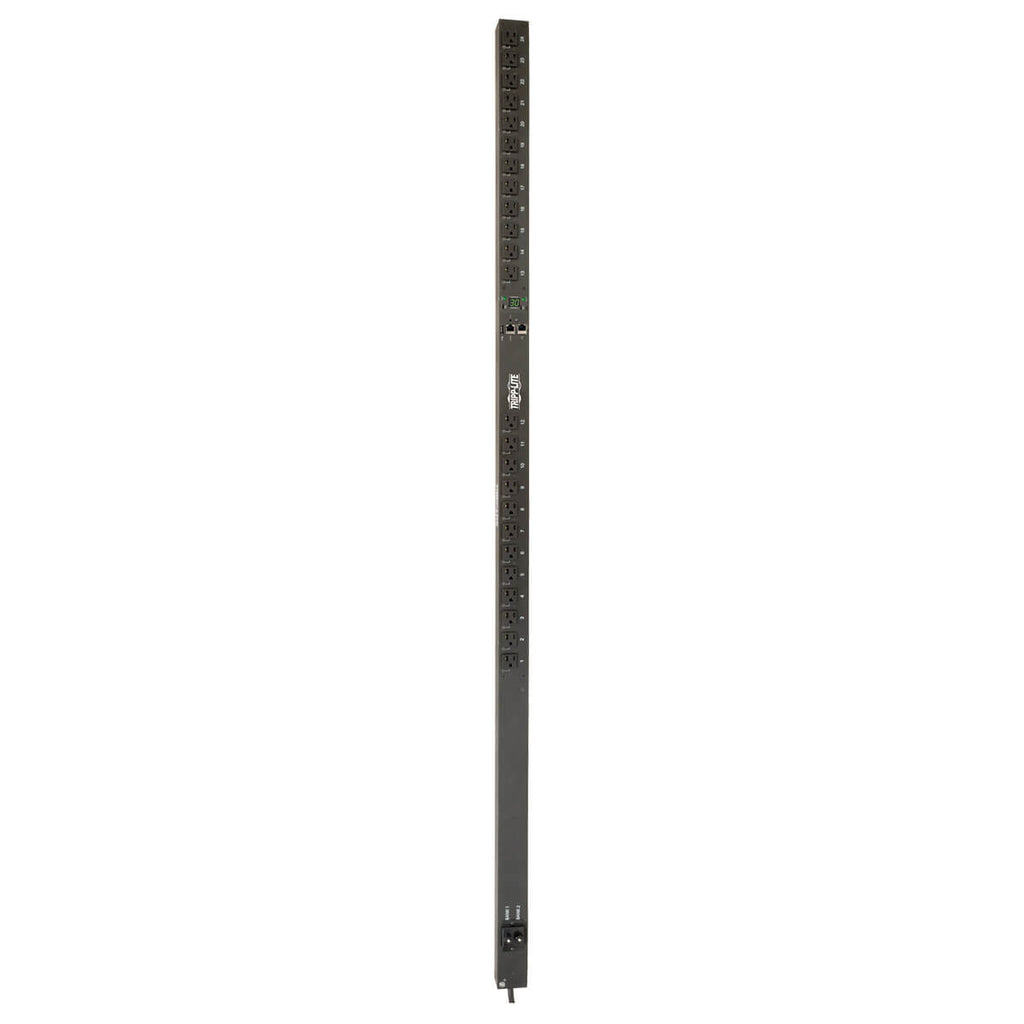

The Eaton PDUMVR30NETLX is a 2.9kW single-phase switched Power Distribution Unit (PDU) engineered for high-efficiency power management in network racks. Designed with advanced network control, this vertical 0U rack PDU allows individual outlet metering and remote switching to reduce downtime and maintenance costs. Featuring 24 controllable NEMA 5-15/20R outlets, a NEMA L5-30P plug, and an integrated Java-free HTML5 LX Platform, it enables seamless real-time load monitoring and IP-based management through secure web, SNMP, Telnet, or SSH interfaces.

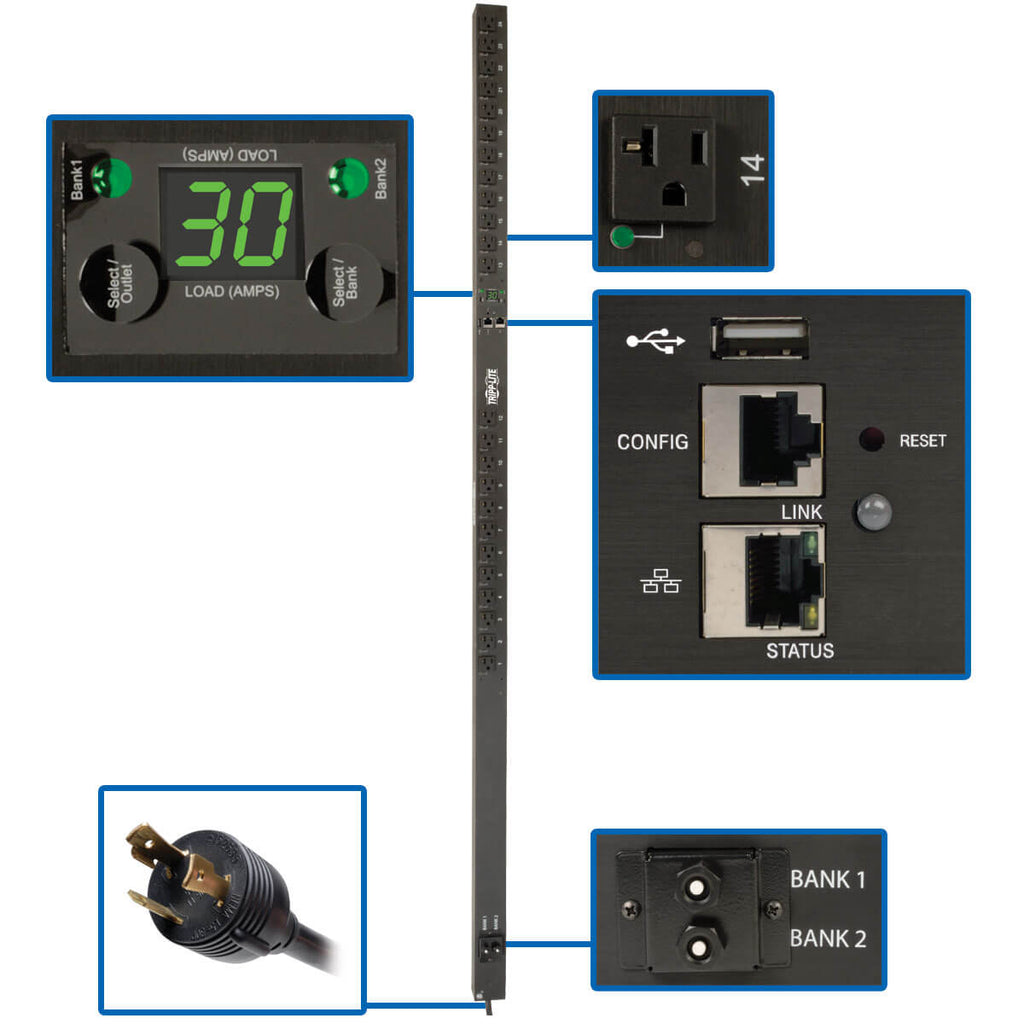

Built for reliability and visibility, it includes a digital ammeter, load-bank LED indicators, and optional environmental monitoring via EnviroSense2 modules. With TAA compliance and simple 0U vertical installation, the PDUMVR30NETLX is ideal for enterprise data centers, edge environments, and mission-critical IT systems.
| Specification | Details |
|---|---|
| Brand | Eaton |
| Model | PDUMVR30NETLX |
| Form Factor | Vertical (0U) Rackmount |
| PDU Type | Switched, Network-Managed |
| Power Capacity | 2.9kW (120V, 24A total) |
| Input Voltage | 120V AC |
| Input Plug Type | NEMA L5-30P |
| Input Cord Length | 10 ft (3.05 m) |

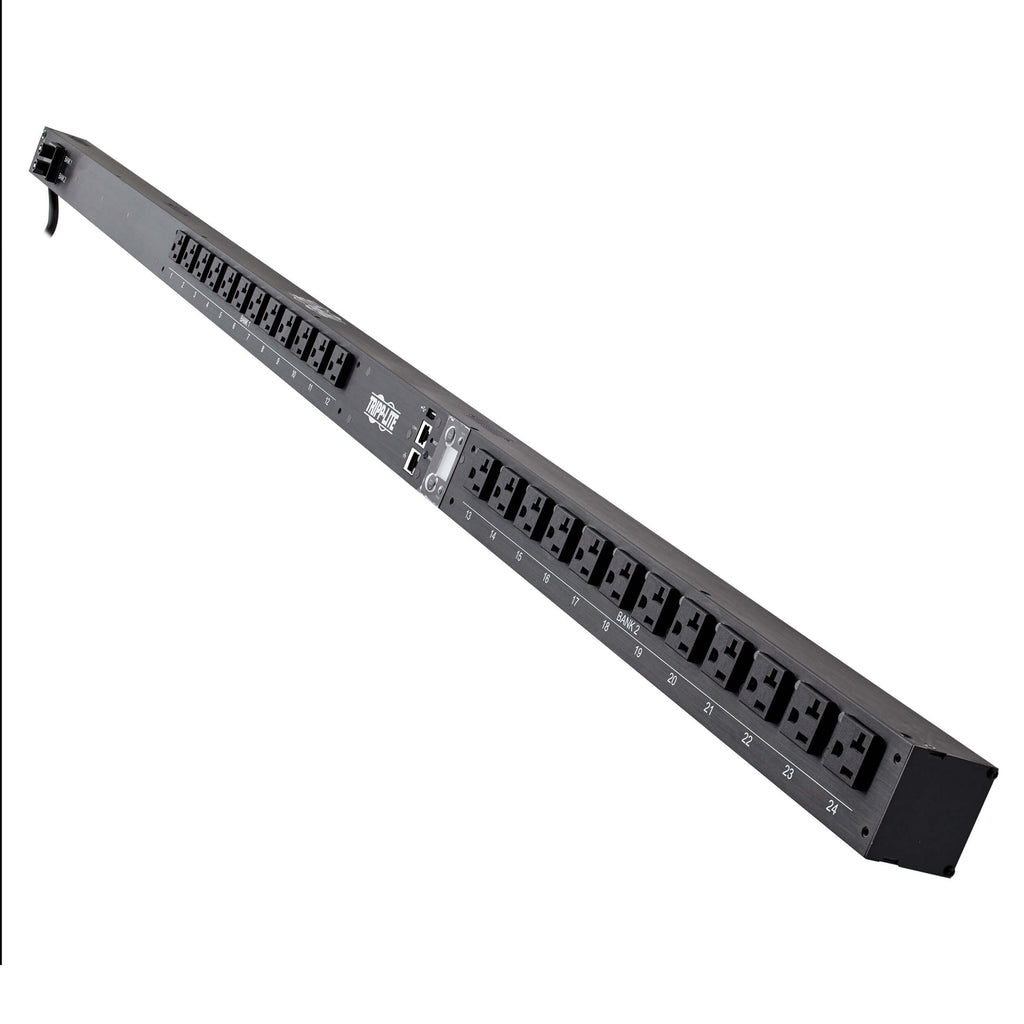

| Output Receptacles | 24 × NEMA 5-15/20R (individually controllable) |
| Output Voltage | 120V AC |
| Frequency Compatibility | 50 / 60 Hz |
| Overload Protection | Two 20A circuit breakers (12 outlets each) |

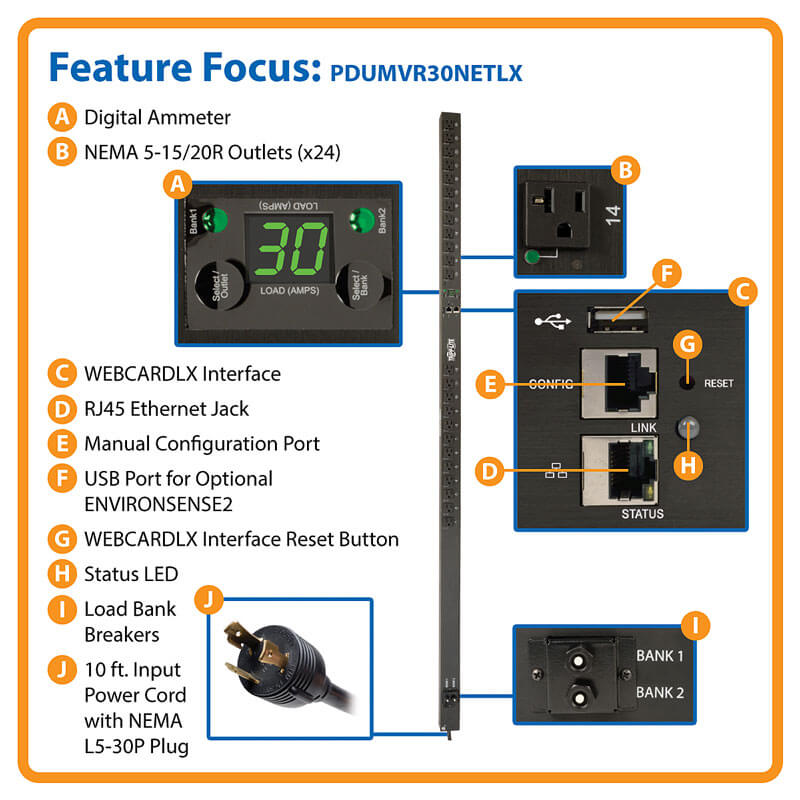

| Load Monitoring | Digital ammeter (per outlet, per bank, total) |
| Network Interface | LX Platform (WEBCARDLX with PADM20) |
| Communication Protocols | IPv4/IPv6, HTTP/HTTPS, SNMPv1/v2/v3, SSH, Telnet, FTP, DHCP, NTP |
| Compatibility | PowerAlert Device Manager, EnviroSense2 modules |

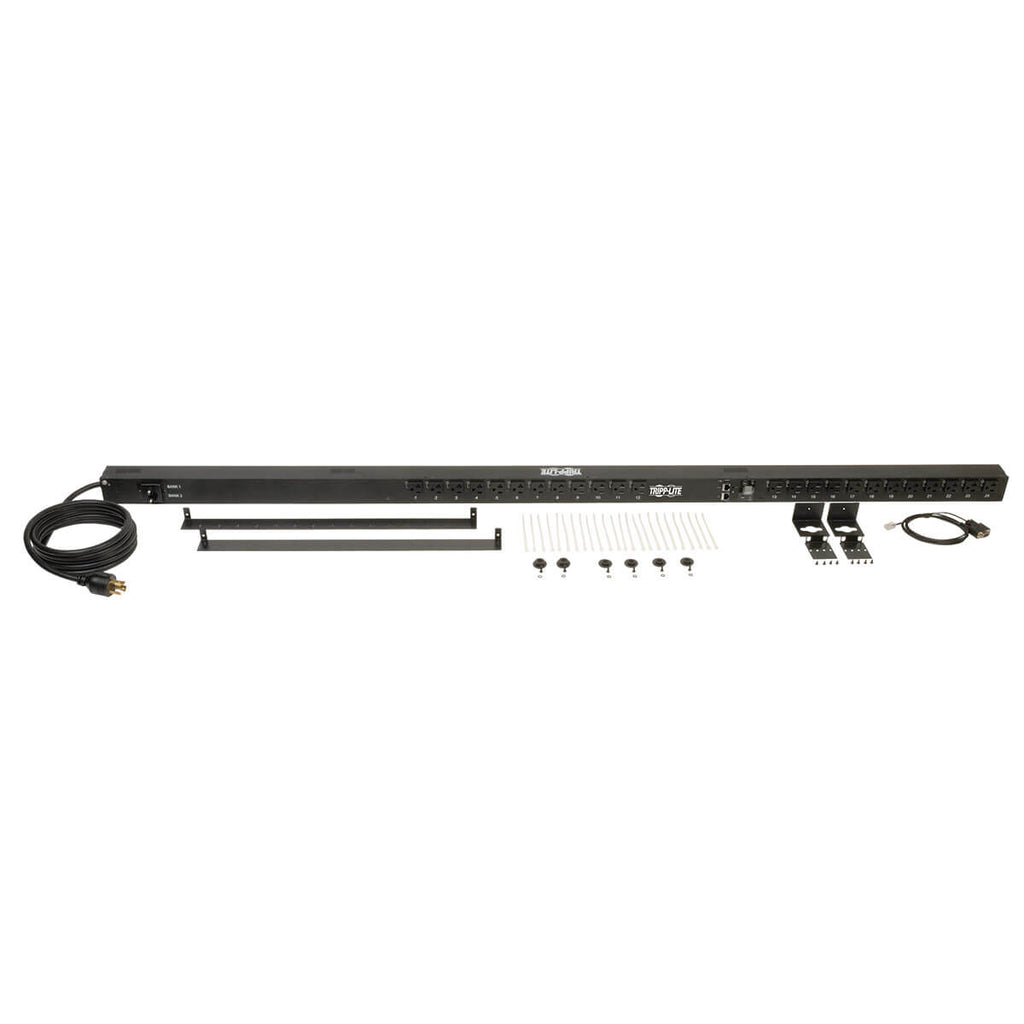

| Mounting | Toolless vertical mounting for EIA-19" racks |
| Material | Metal |
| Dimensions (H × W × D) | 70 × 2.2 × 2.05 in (178 × 5.6 × 5.2 cm) |
| Weight | 9.94 lb (4.51 kg) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity Range | 5–95% non-condensing |
| Certifications | UL 60950-1, CAN/CSA-C22.2, NOM |
| Compliance | RoHS, FCC Class A, TAA-Compliant |
| Warranty | 2-Year Limited Warranty |
