Description
The Eaton Tripp Lite PDUMV20HVNETLX is a high-capacity, single-phase switched rack PDU designed for enterprise IT, data center, and industrial environments requiring precise power control and remote visibility. Delivering up to 3.7kW at 208/230V, this vertical 0U PDU features 24 individually controllable outlets, allowing administrators to remotely power on, power off, reboot, or lock out connected equipment.
Equipped with the LX Platform network interface, the PDUMV20HVNETLX enables secure remote monitoring and management through a Java-free HTML5 web interface, SNMP, SSH, or Telnet. Real-time load monitoring is provided via a built-in digital ammeter, helping prevent overloads and improve uptime. The PDU mounts vertically in standard 19-inch racks and includes plug-lock inserts to ensure secure cable connections. TAA compliance makes it suitable for government and regulated deployments.
| Specification | Details |
|---|---|
| Brand | Eaton Tripp Lite |
| Model | PDUMV20HVNETLX |
| PDU Type | Switched Rack PDU |
| Phase | Single-Phase |
| Input Voltage | 208V / 230V |
| Power Capacity | 3.33kW @ 208V / 3.68kW @ 230V |
| Maximum Input Current | 16A (continuous) |
| Input Connection | IEC C20 inlet |
| Input Plug | NEMA L6-20P |
| Cord Length | 10 ft (3.05 m) |

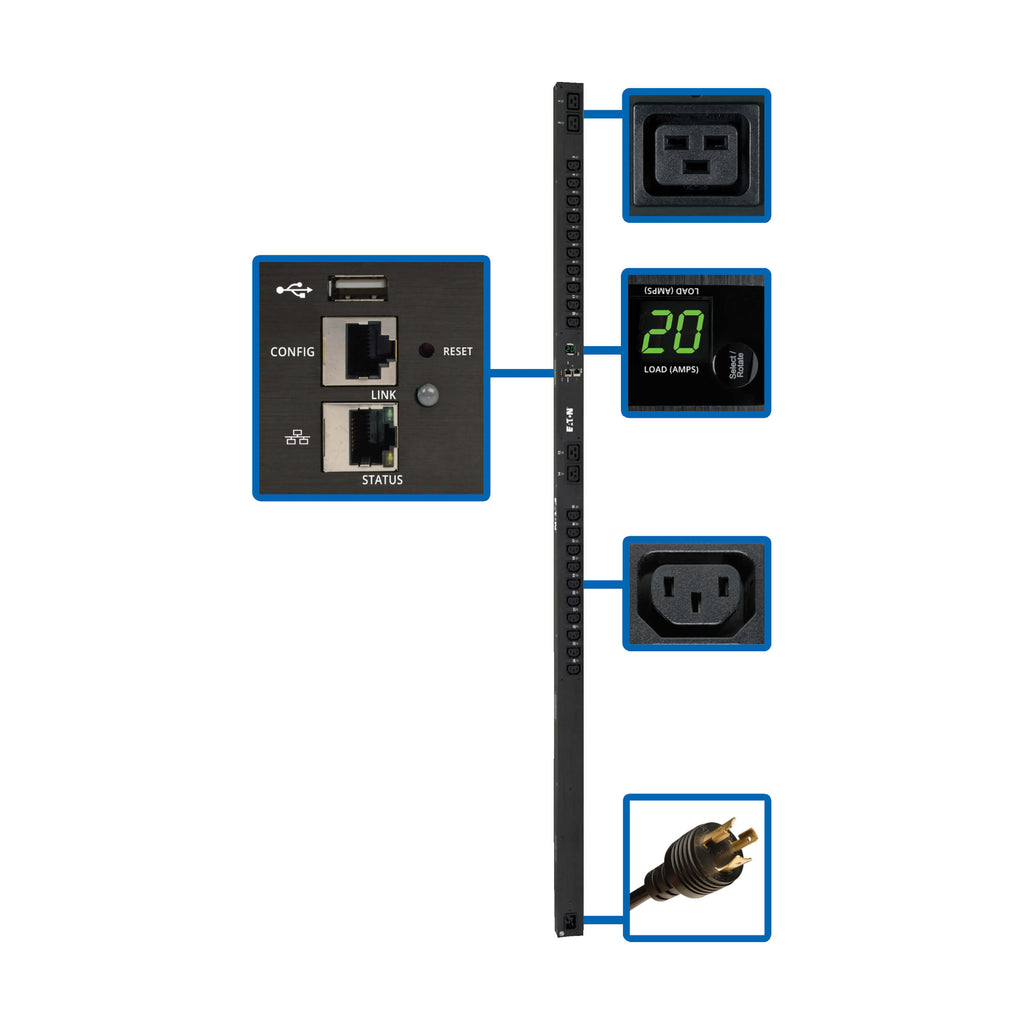

| Outlet Count | 24 total |
| Outlet Types | 20 × IEC C13, 4 × IEC C19 |
| Outlet Control | Individual remote on/off/reboot/lockout |
| Network Interface | LX Platform (HTML5, SNMP, SSH, Telnet) |
| Network Speed | 10/100 Mbps Ethernet |
| Load Monitoring | Digital ammeter (per bank & total) |

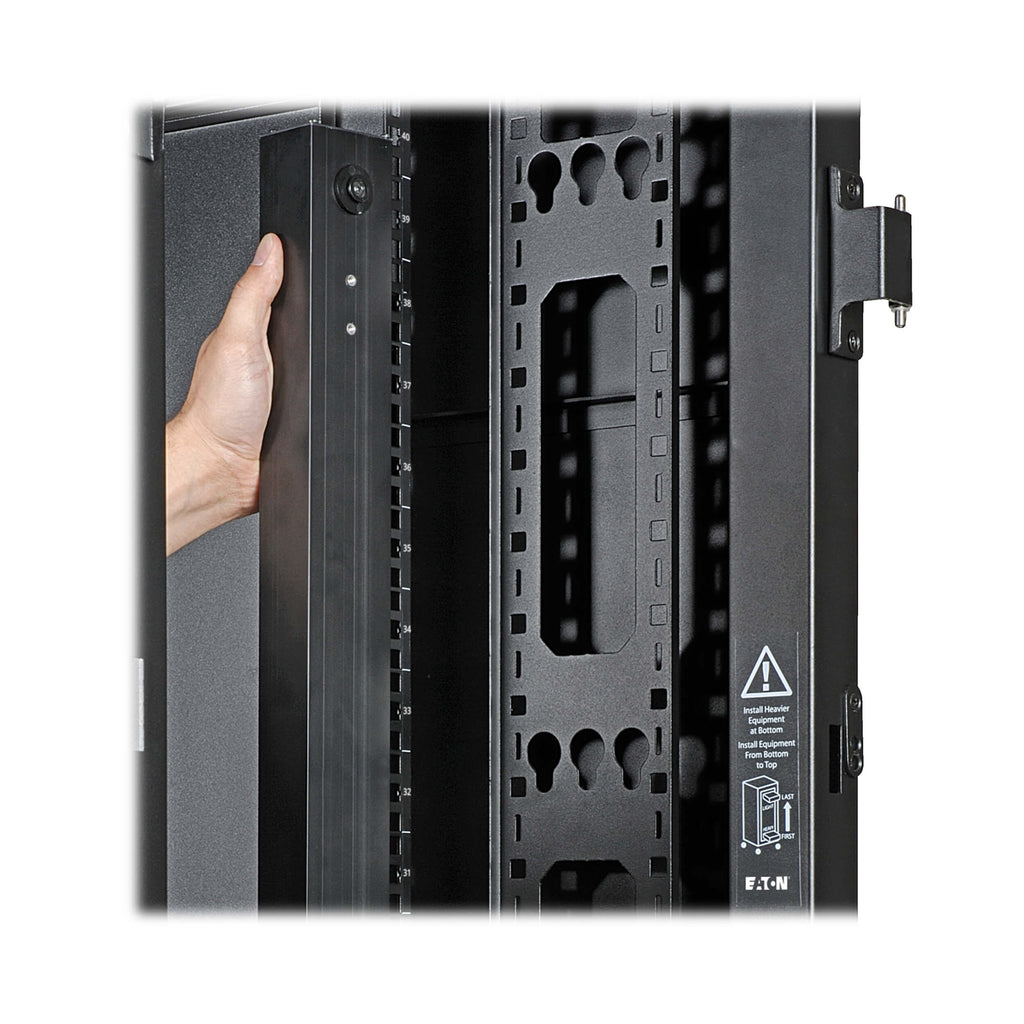

| Mounting | Vertical 0U, tool-less or bracket mount |
| Rack Compatibility | Standard 19-inch EIA racks |
| Compliance | TAA, RoHS, FCC Class A |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Warranty | 2-Year Limited Warranty |
