Description

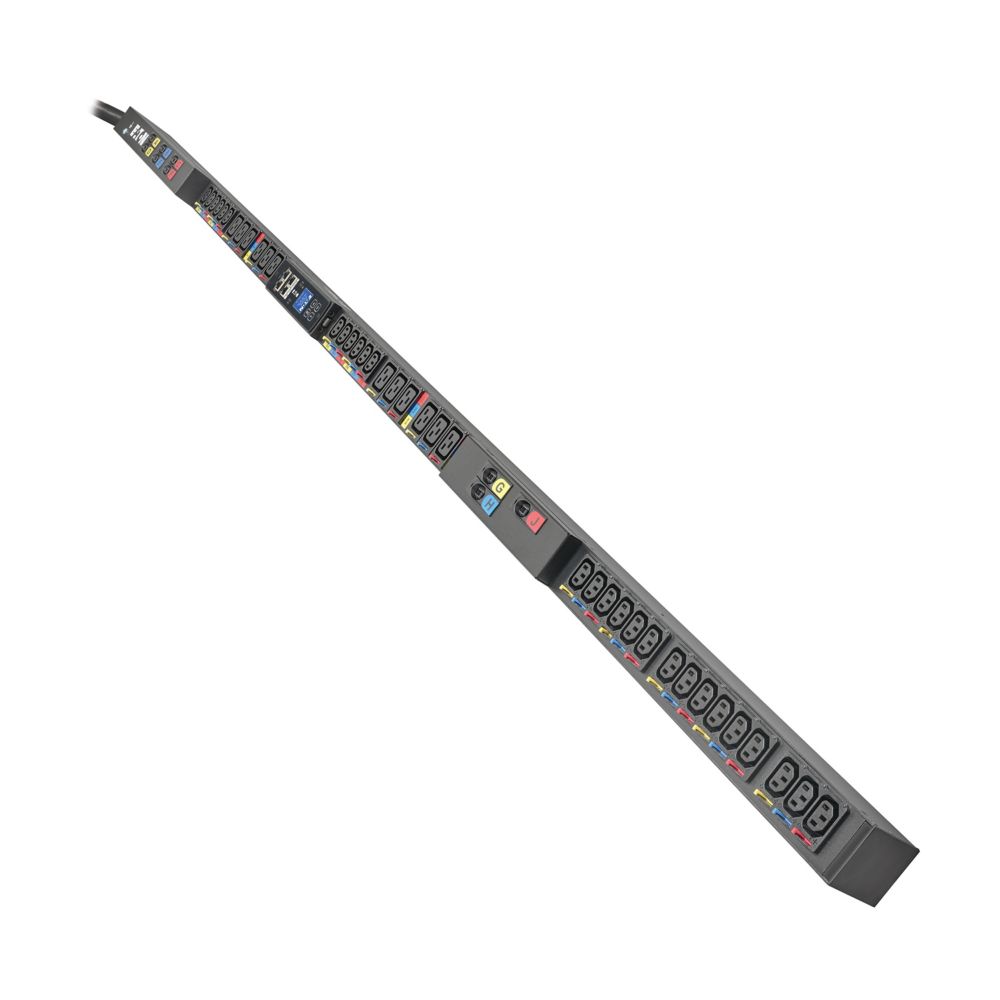

Eaton HDX PDU G4 Managed 39-Outlet 35kW 3-Phase Rack PDU
Deliver reliable, high-density power distribution for demanding data center environments. This managed 0U rack PDU provides 35 kW of three-phase power, outlet-level monitoring, remote outlet control and robust network security for streamlined operations.
Key Benefits

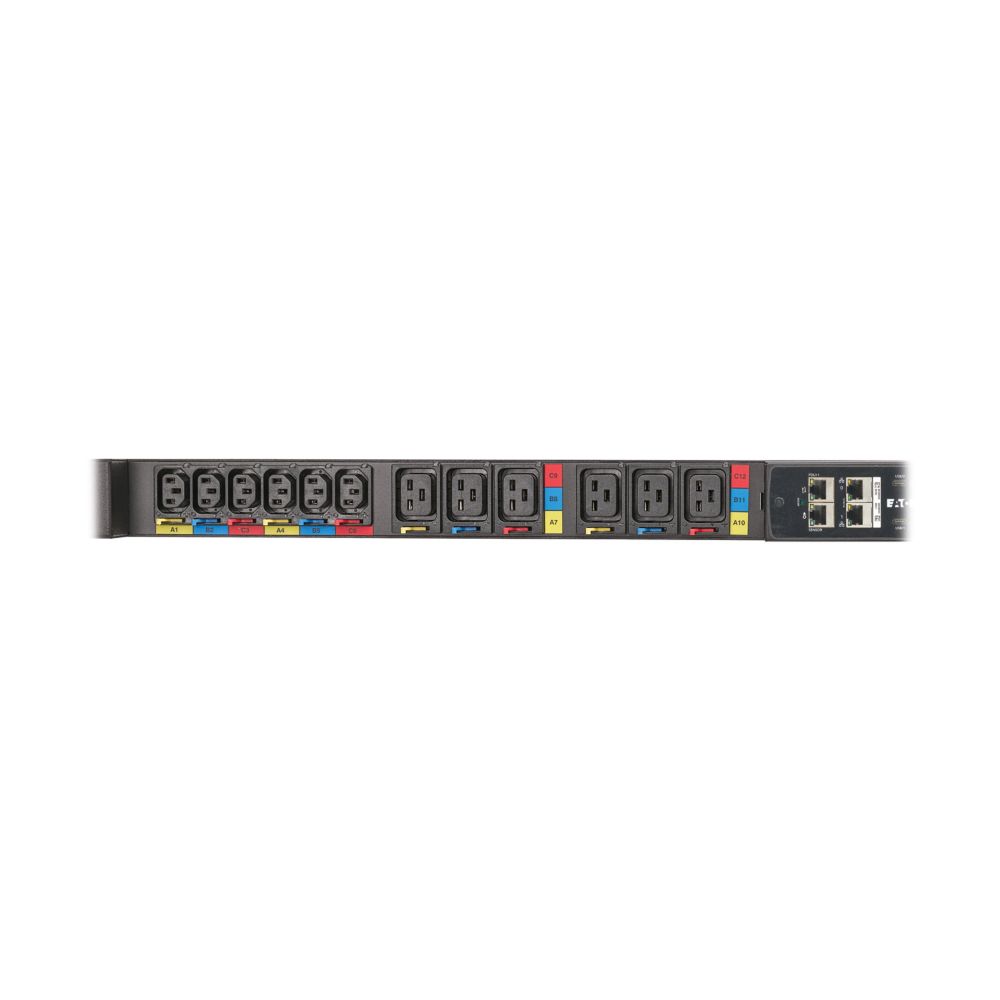

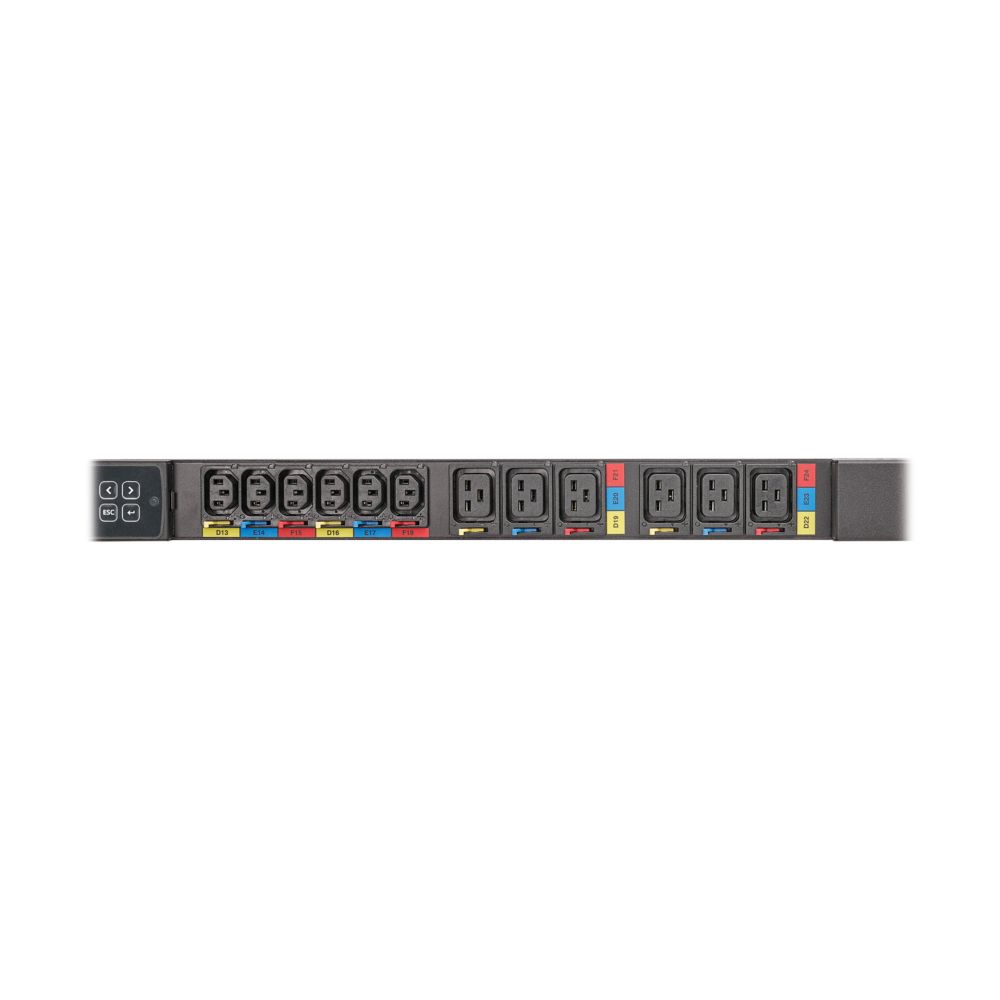

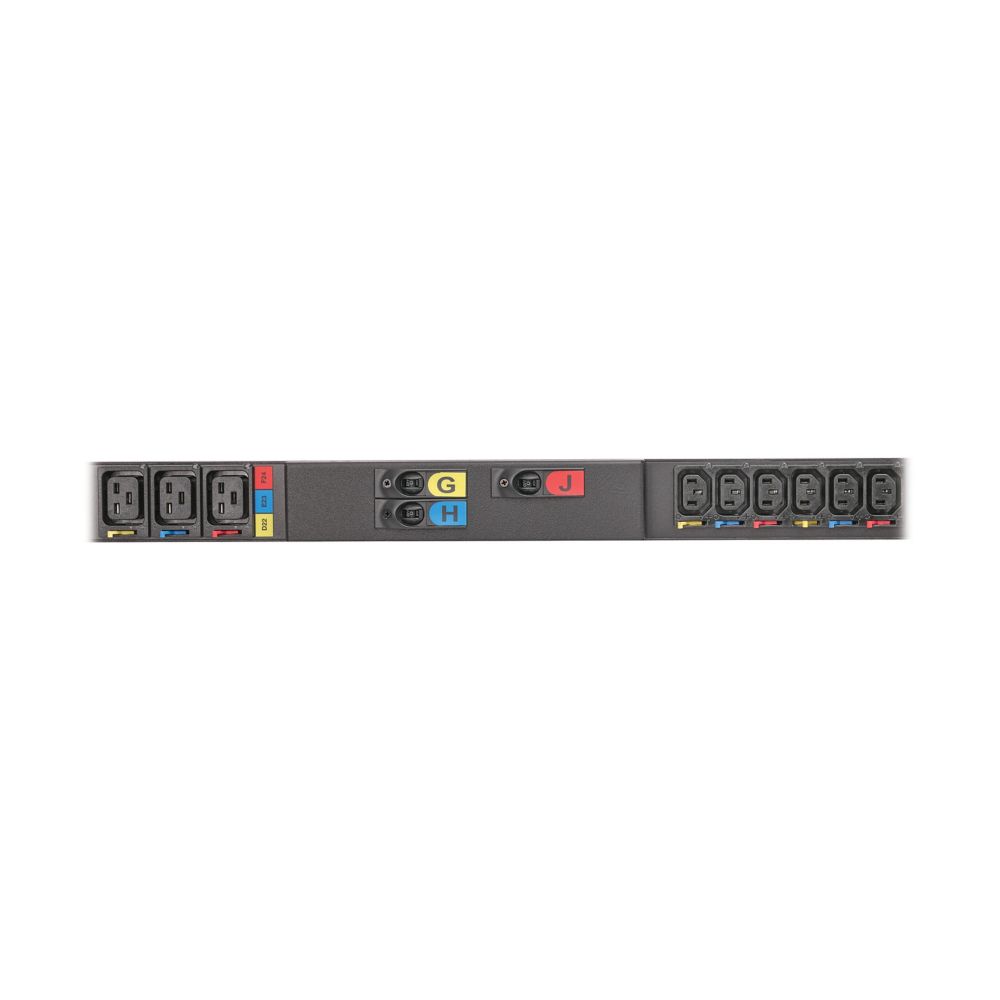

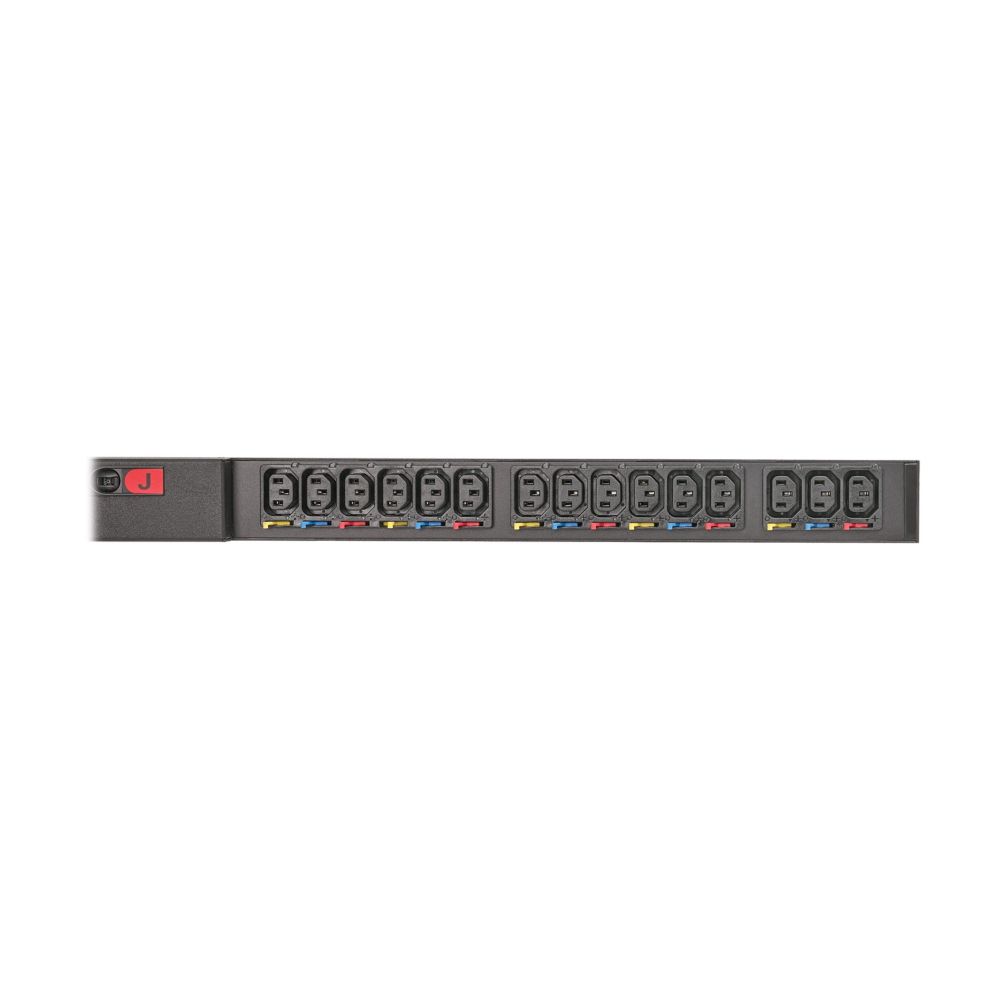

- 39 total outlets: 27 IEC C13 and 12 IEC C19
- Remote monitoring and individual outlet switching for fast power cycling
- Outlet-level metering for detailed load visibility and efficiency management

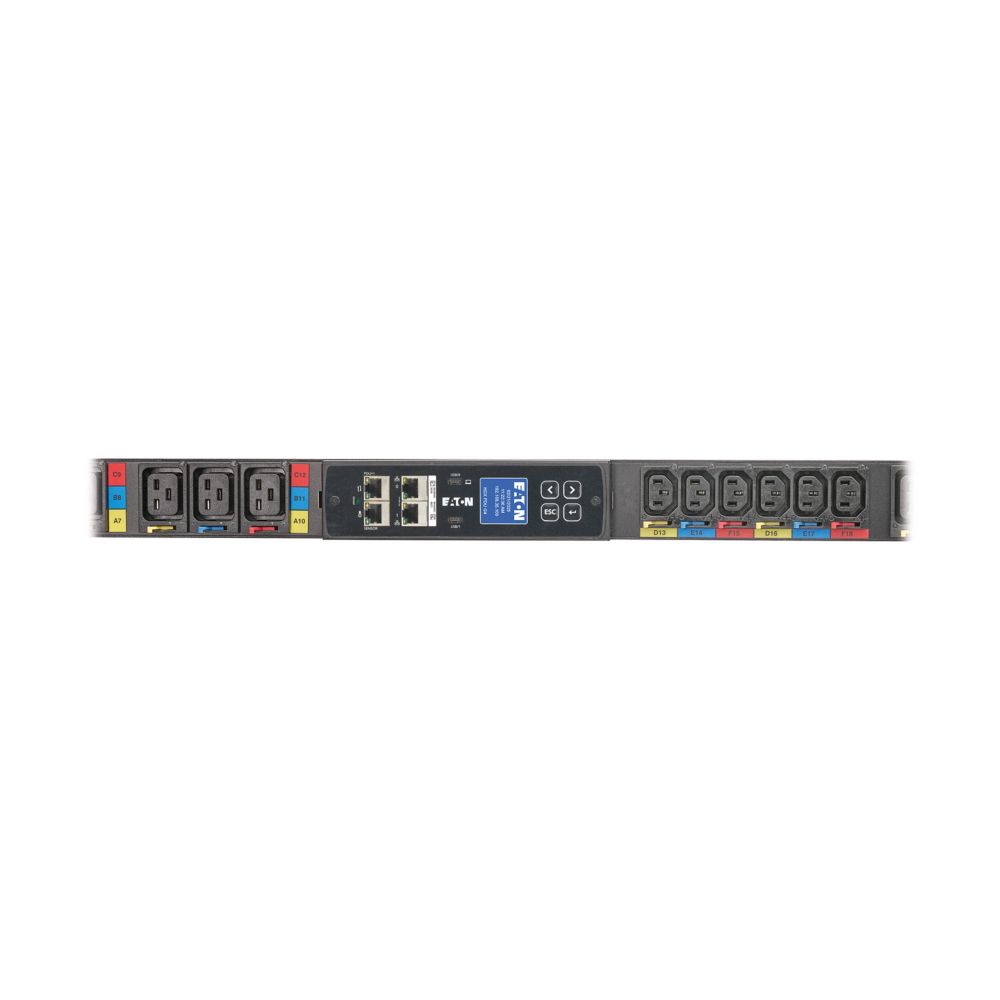

- Gigabit network module with zero-trust architecture and configurable firewall
- Supports cascading of up to 32 PDUs through one network connection
- Lightweight aluminum chassis with toolless vertical 0U mounting

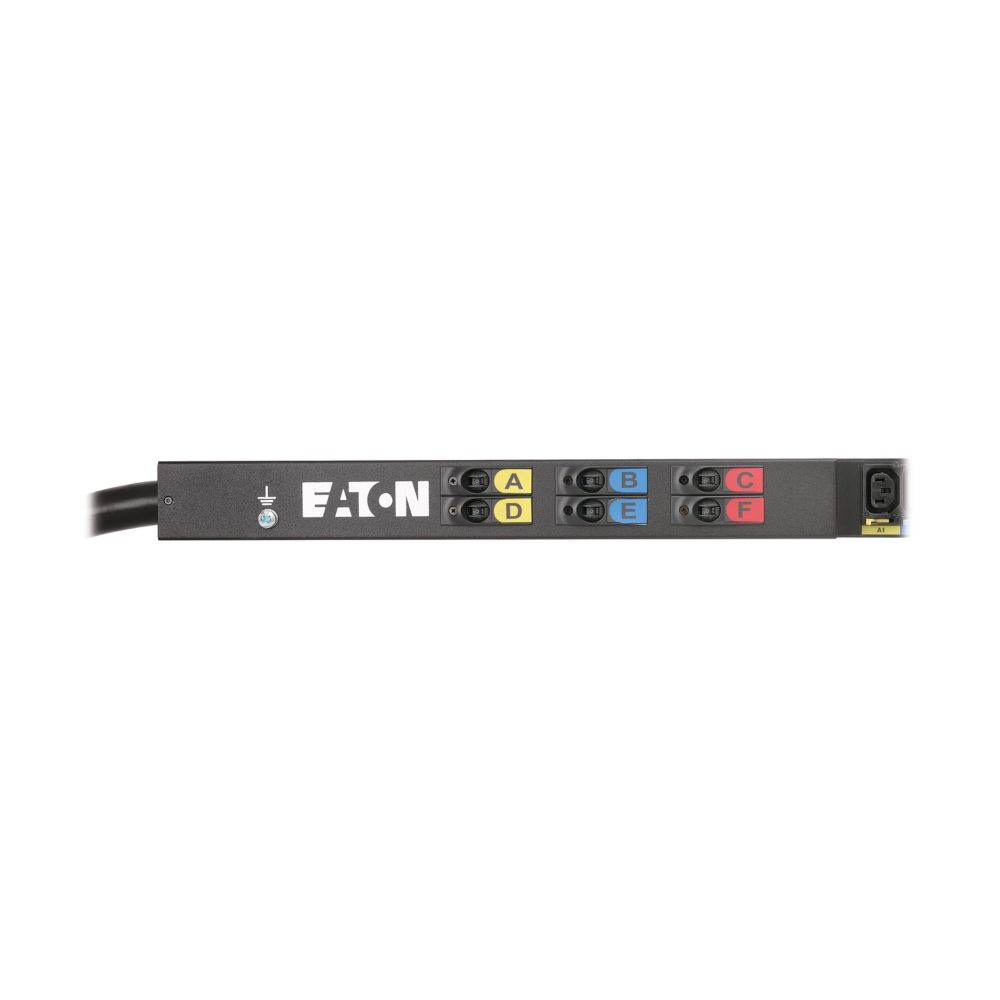

- Integrated plug retention and color-coded outlet sections for organized cable routing
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Eaton |
| Series | HDX PDU G4 |
| Model / SKU | EMAPFXXTA4A4A2L |
| PDU Type | Managed rack PDU |
| Mounting | Vertical 0U |
| Input Voltage | 240/415V AC |
| Phase | 3-phase Wye |
| Input Current | 60A |
| Maximum Power | 35 kW |

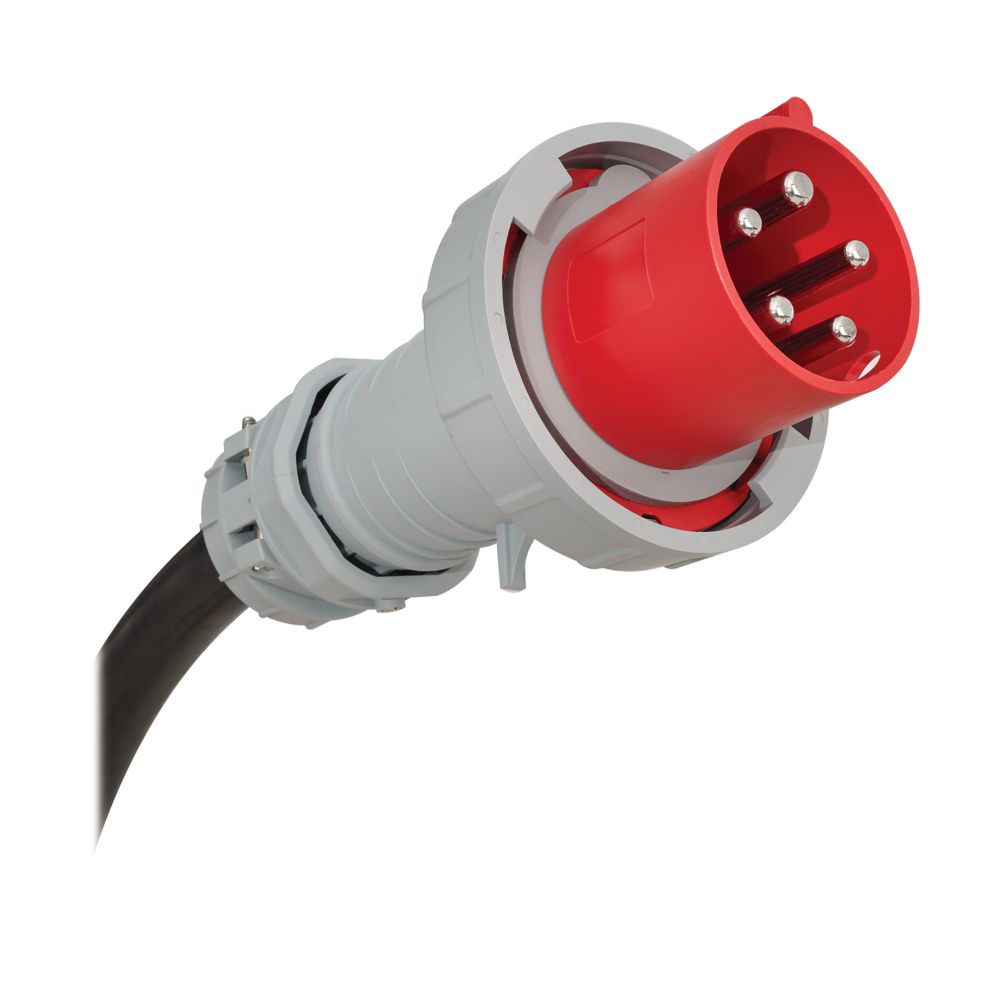

| Input Plug | MA 560P6W |
| Input Cord Length | 10 ft |
| Total Outlets | 39 |
| Outlet Configuration | 27 x IEC C13; 12 x IEC C19 |
| Dimensions (H x W x D) | 84 x 2.05 x 2.2 in |
| Weight | 36.21 lb |
| Management | Outlet-level monitoring and remote outlet control |
| Network Features | Gigabit networking, cascading, REST API, SNMP and MQTT |
| Operating Temperature | Up to 140°F (60°C) without power derating |
