Description

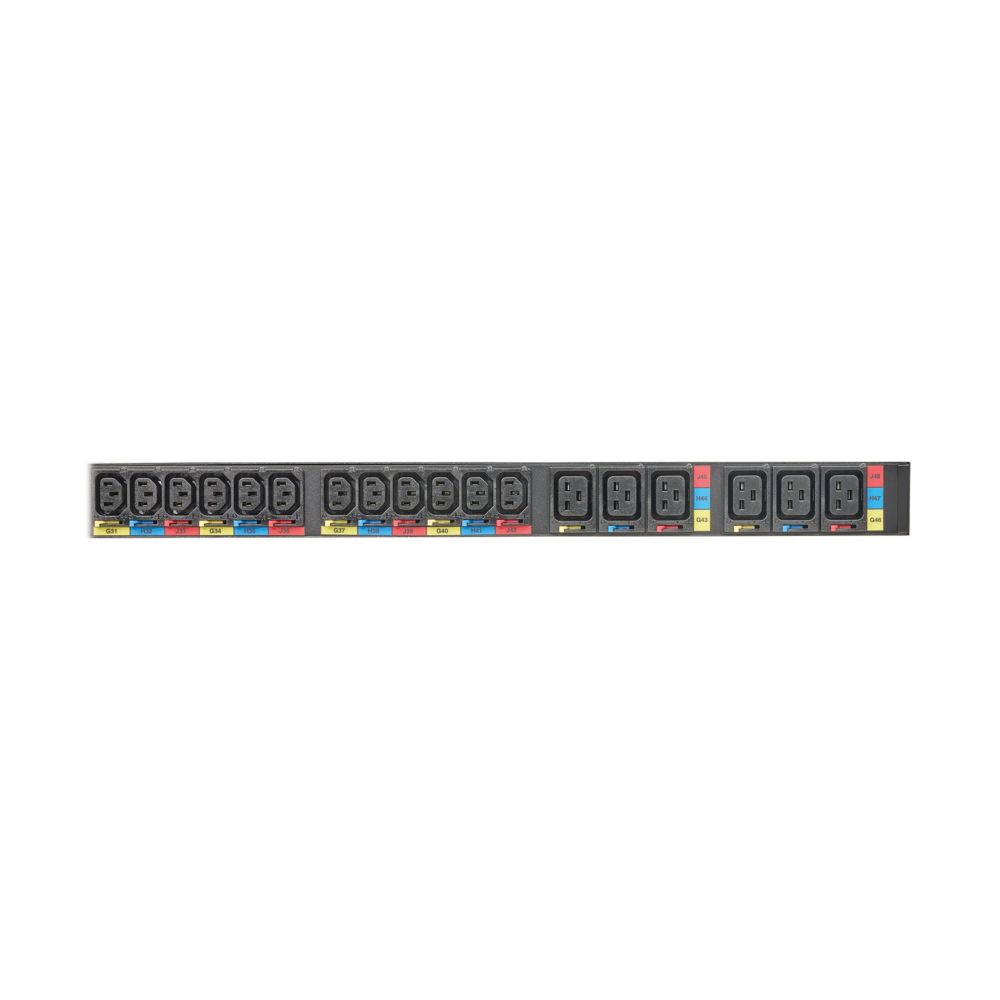

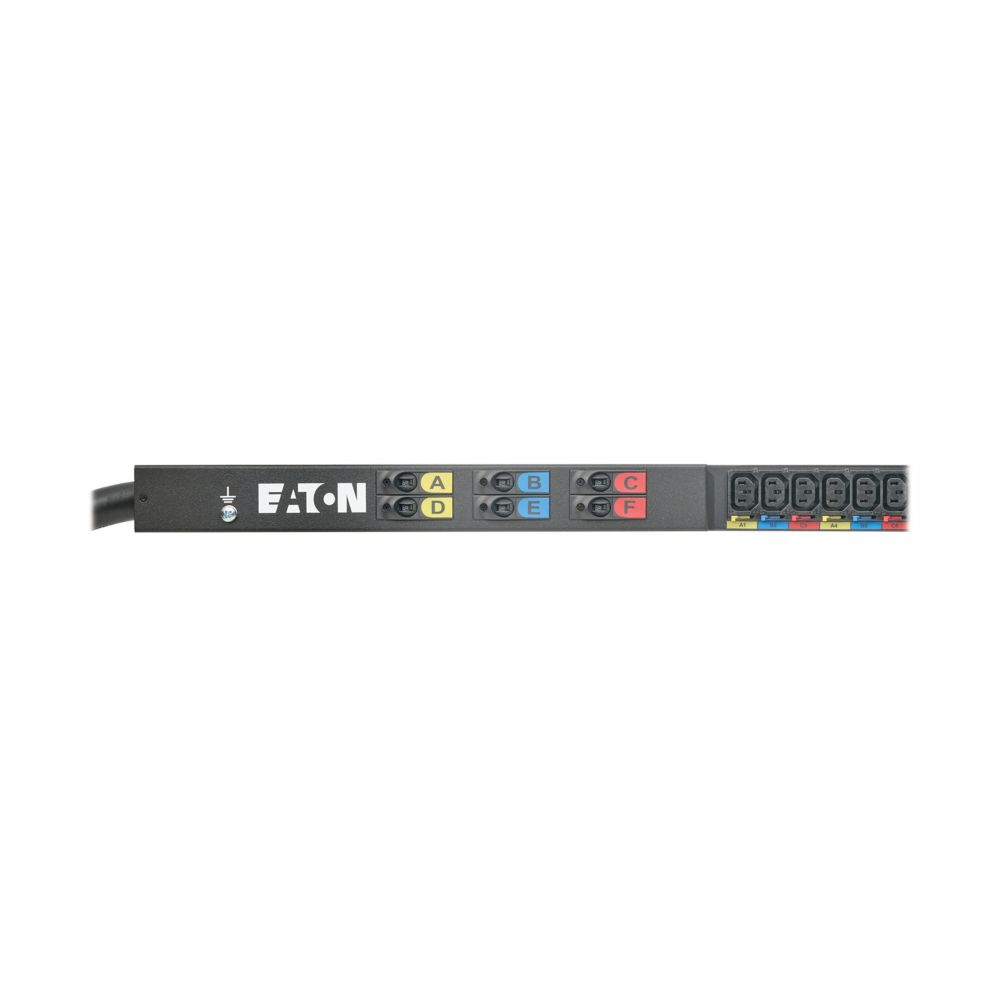

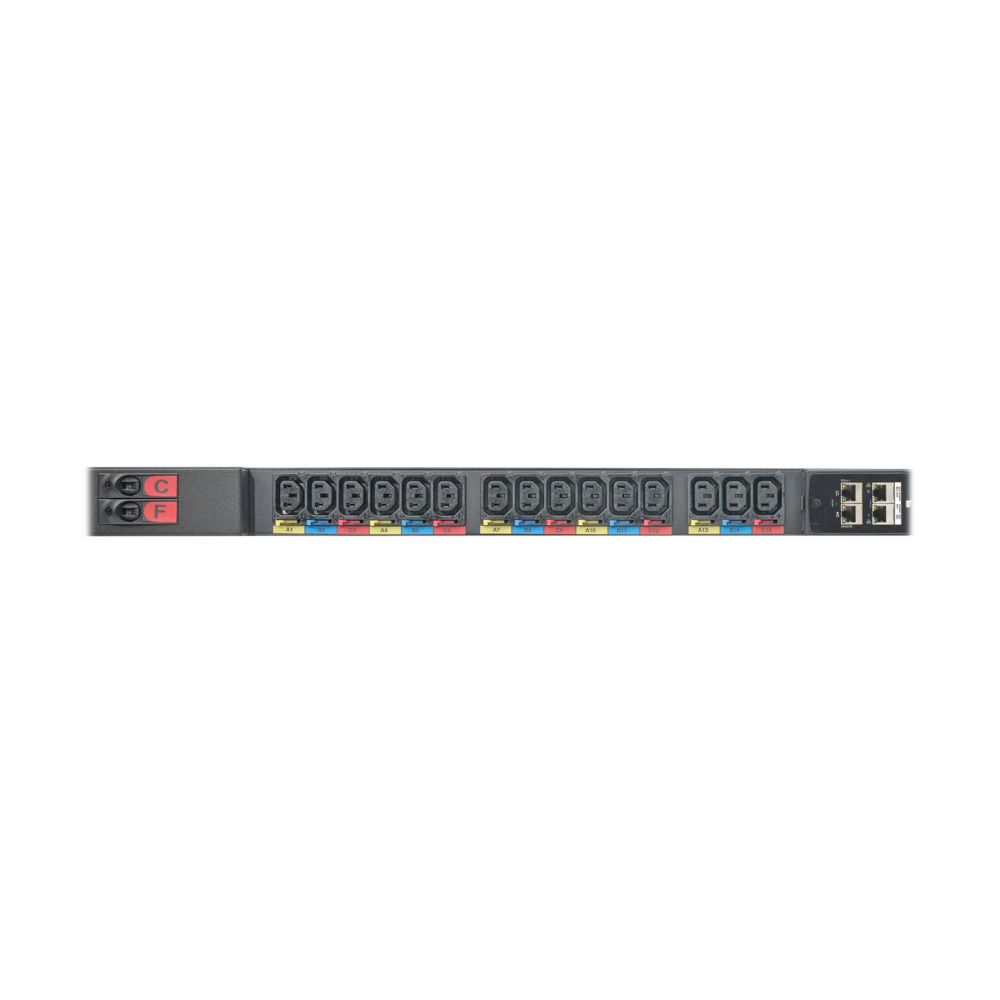

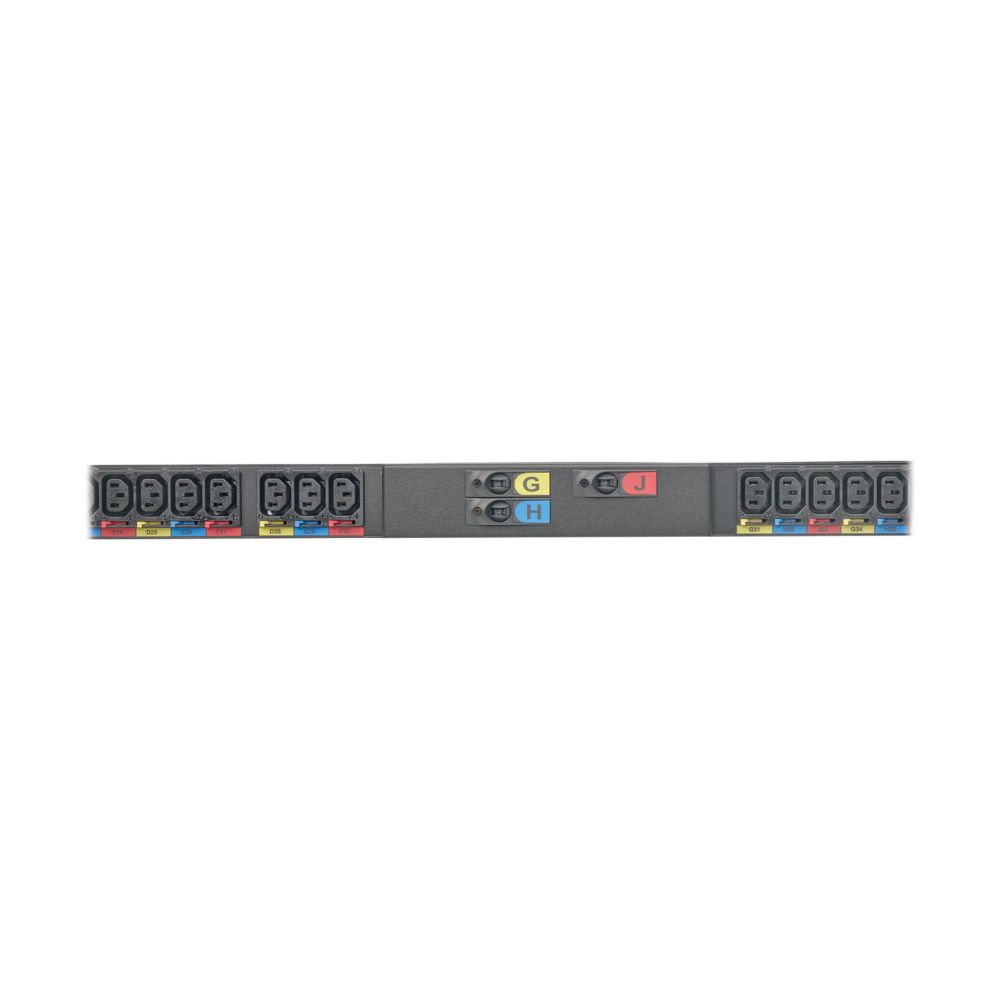

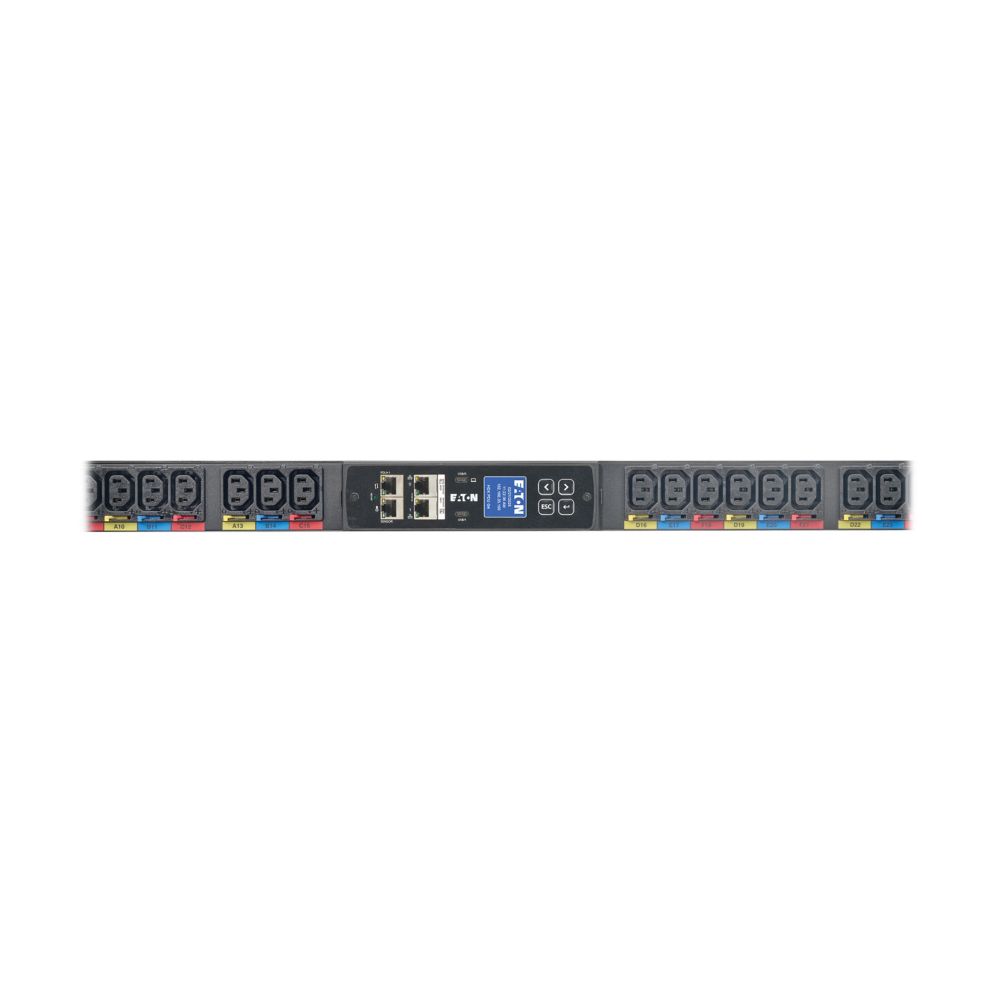

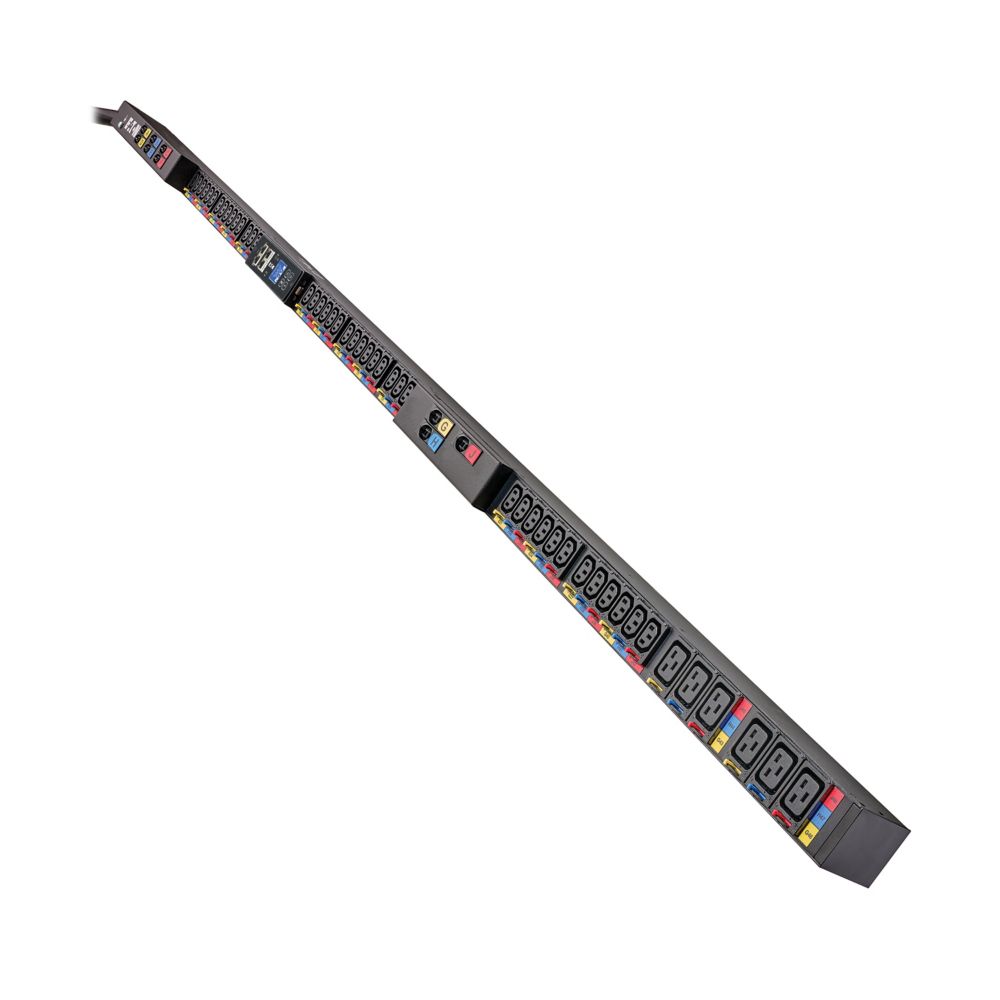

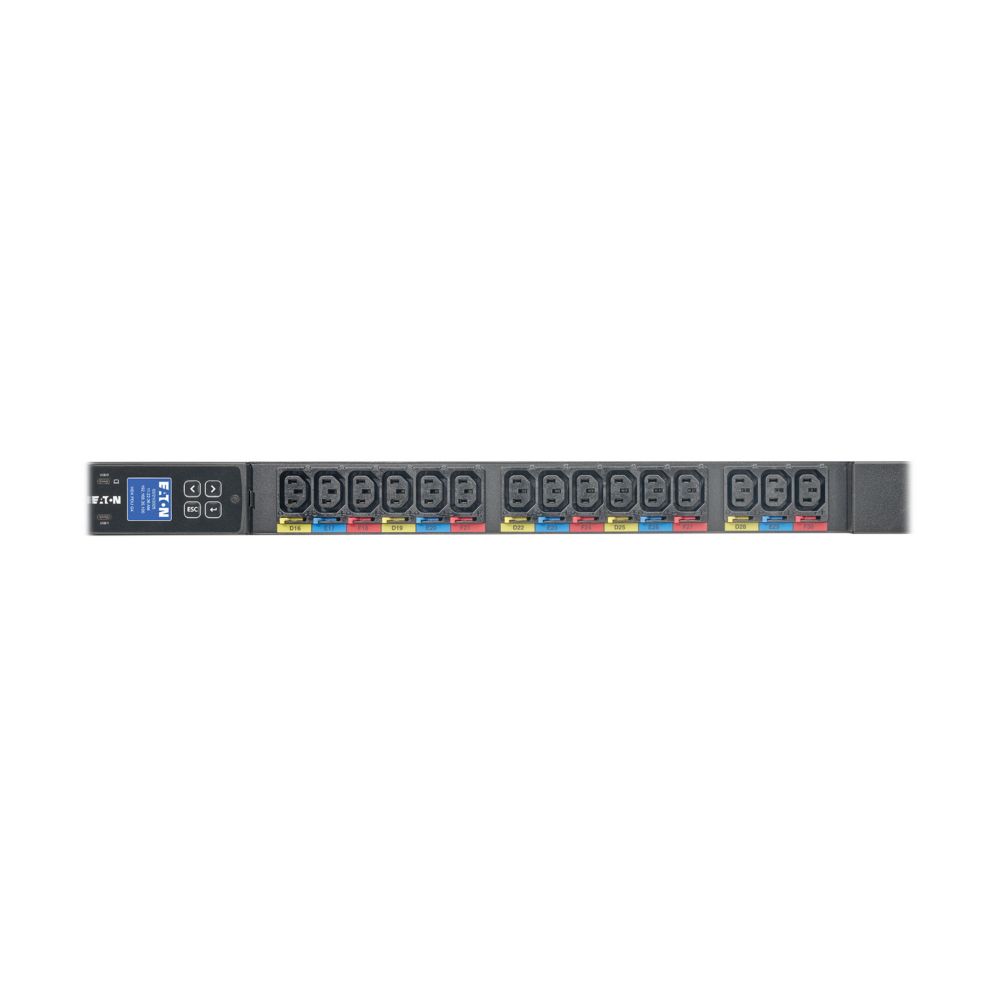

Eaton HDX PDU G4 Managed Rack PDU
Designed for high-density data center and IT environments, the Eaton HDX PDU G4 delivers enterprise-grade 3-phase power distribution with remote outlet-level monitoring and control. Its 0U vertical form factor preserves valuable rack space while providing reliable power for demanding equipment.
Key Features
- Managed rack PDU with outlet-level monitoring and remote outlet control
- 35 kW power capacity with 60A, 3-phase 240/415V Wye input
- 48 outlets: 42 IEC C13 and 6 IEC C19

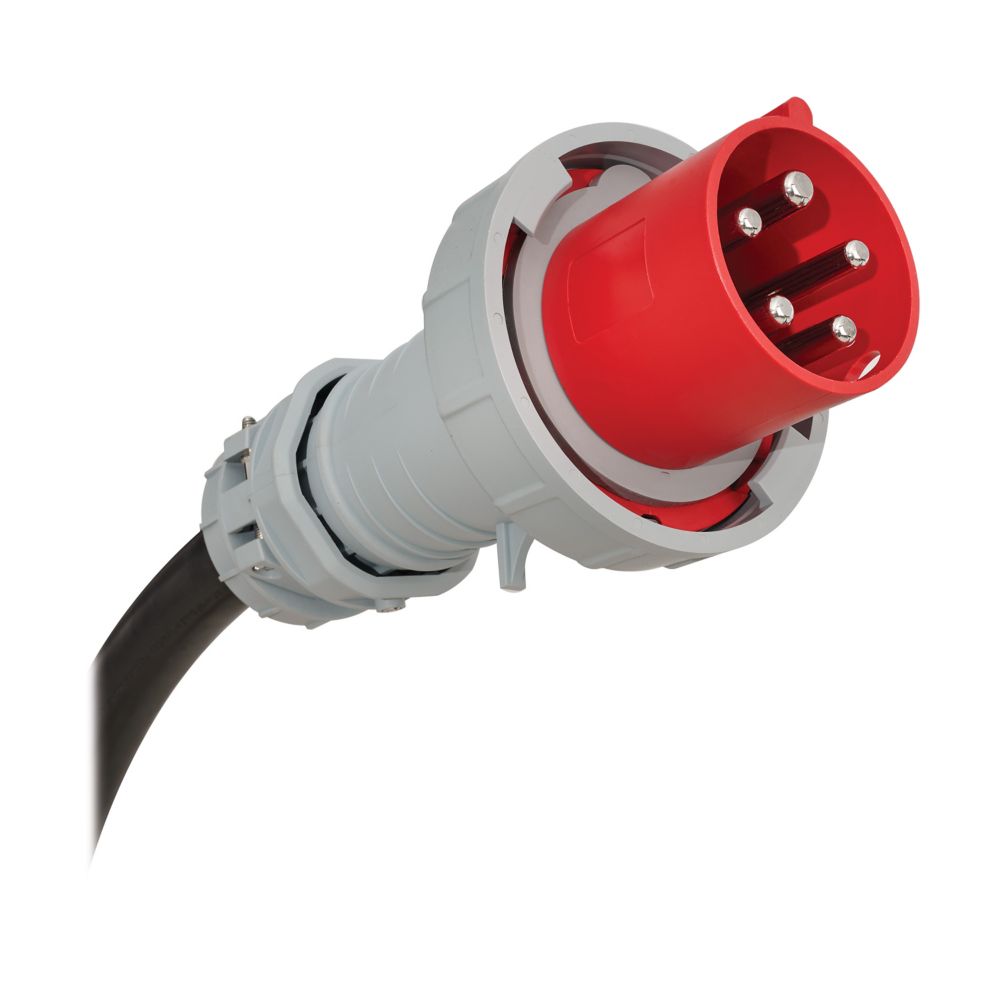

- 560P6W input plug with 10 ft. power cord
- Supports 220/380V, 230/400V, and 240/415V Wye systems
- Remote power cycling, sequential startup, and load shedding
- Hot-swappable Gigabit Network Module with browser-based management, SNMP, MQTT, REST API, and network cascading
- Security features include zero-trust architecture, secure boot, and a configurable firewall
- Toolless 0U mounting and integrated plug retention
Technical Specifications
| Specification | Details |
|---|---|
| Model | EMAPFXXTA2A2E4L |
| PDU Type | Managed HDX PDU G4 |
| Input Connection | 560P6W |
| Input Cord Length | 10 ft. |
| Phase | 3-phase |
| Voltage | 240/415V Wye |
| Maximum Current | 60A |
| Power Rating | 35 kW |
| Outlet Configuration | 42 x IEC C13; 6 x IEC C19 |
| Total Outlets | 48 |
| Dimensions (H x W x D) | 90.2 x 2.05 x 2.2 in. |
| Mounting | Vertical 0U, toolless mounting |
EATON 3-PHASE MANAGED HDX RACK PDU G4 240/415V 48 OUTLETS 42 C13+6 C19 60A 35KW
