Description

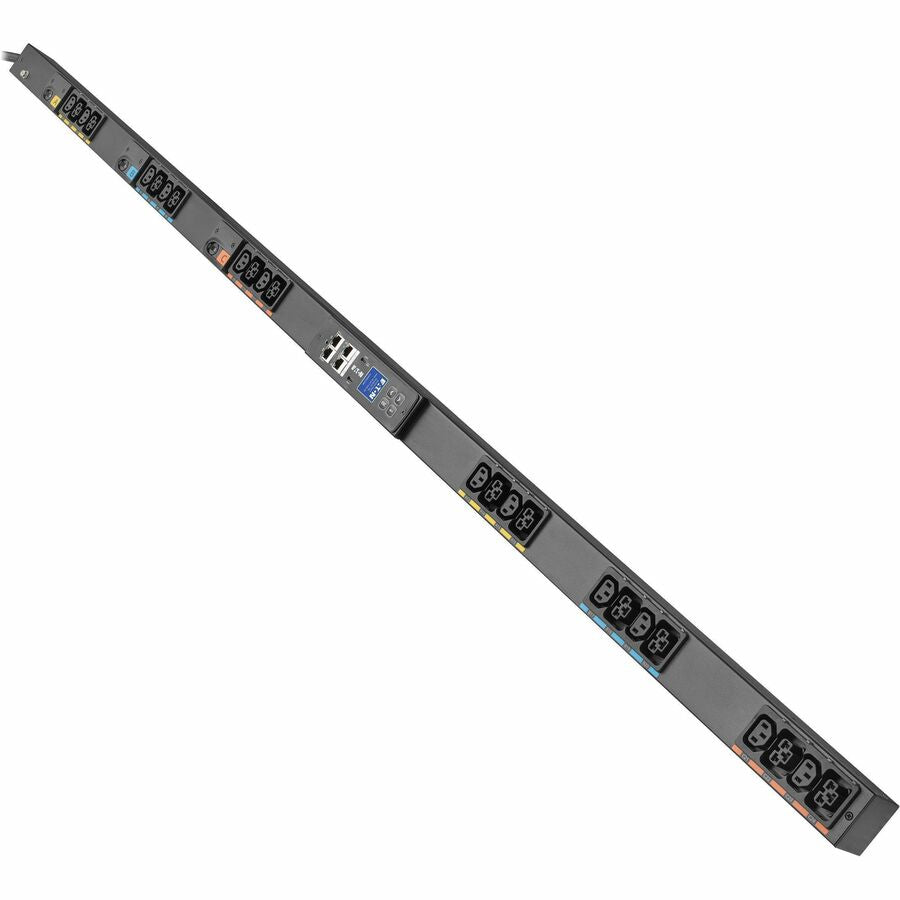

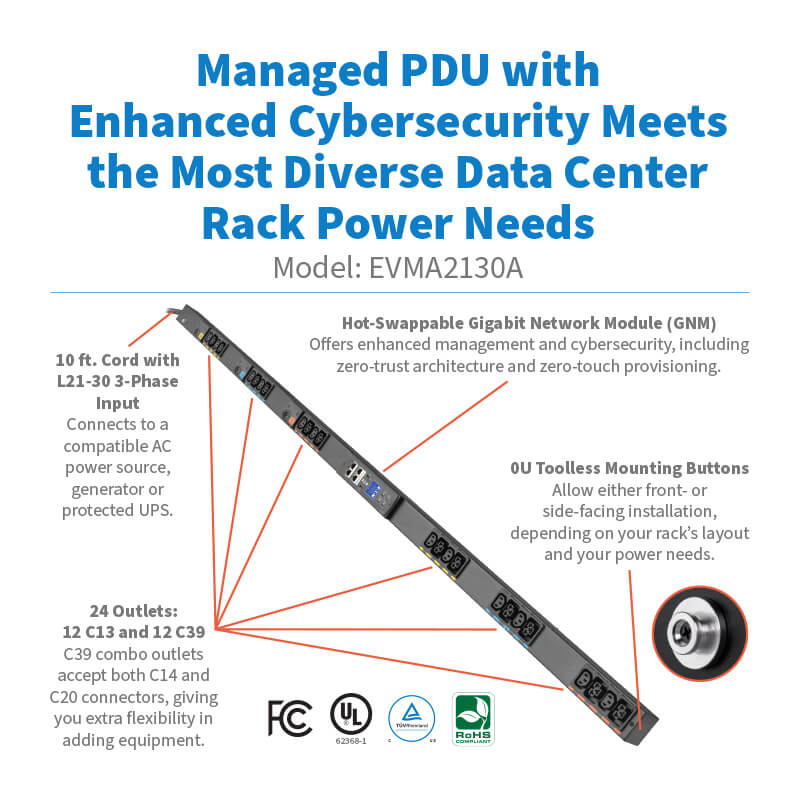

The Eaton EVMA2130A is a 3-Phase Managed Rack PDU G4 designed for enterprise data centers, colocation facilities, and distributed IT environments. With 24 outlets—12 C13 and 12 high-retention C39 combo outlets—the PDU delivers 8.6kW of power at 120/208V and supports 30A input via a NEMA L21-30P plug.
Equipped with a hot-swappable Gigabit Network Module (GNM), the EVMA2130A offers advanced cybersecurity including zero-trust architecture and secure firmware. Remote management is made easy with outlet-level switching, monitoring, and metering. Each outlet is assigned to one of six color-coded load banks with individual circuit breakers for safer and more organized power distribution.
Installation is quick with toolless mounting buttons for 0U vertical positioning, and the lightweight aluminum chassis fits seamlessly in standard racks. Built for scalability, you can cascade up to 40 units with individual IP addresses via a single network connection.
Ideal for IT teams looking to reduce downtime, enhance security, and maintain visibility and control across power distribution infrastructure.
| Specification | Details |
|---|---|
| Model Number | EVMA2130A |
| Input Voltage | 120/208V 3-Phase |
| Input Plug Type | NEMA L21-30P |
| Input Cord Length | 10 ft. (3.05 m) |
| Max Input Current | 30A |
| Power Capacity | 8.6kW / 8600W |
| Outlet Quantity | 24 (12 x C13, 12 x C39 combo) |
| Output Voltage | 120/208V 3-PH Wye |
| Mounting | 0U Vertical with toolless buttons |
| Form Factor | Vertical (0U) |
| Dimensions (H x W x D) | 68.1 x 2.0 x 2.08 in (172.97 x 5.08 x 5.28 cm) |
| Weight | 12.8 lbs (5.81 kg) |
| Circuit Breakers | 3x 2-pole 20A (1 per 2 load banks) |
| Network Module | Embedded Gigabit Network Module (GNM) |
| Remote Management | Outlet-level monitoring, switching, and alerts |
| Daisy-Chain Capability | Up to 40 units with independent IP addresses |
| Construction Material | Black aluminum chassis |
| Compliance | UL 62368-1, FCC Class A, RoHS, ICES, cTUVus |
| Warranty | 3-Year Limited Warranty |
