Description

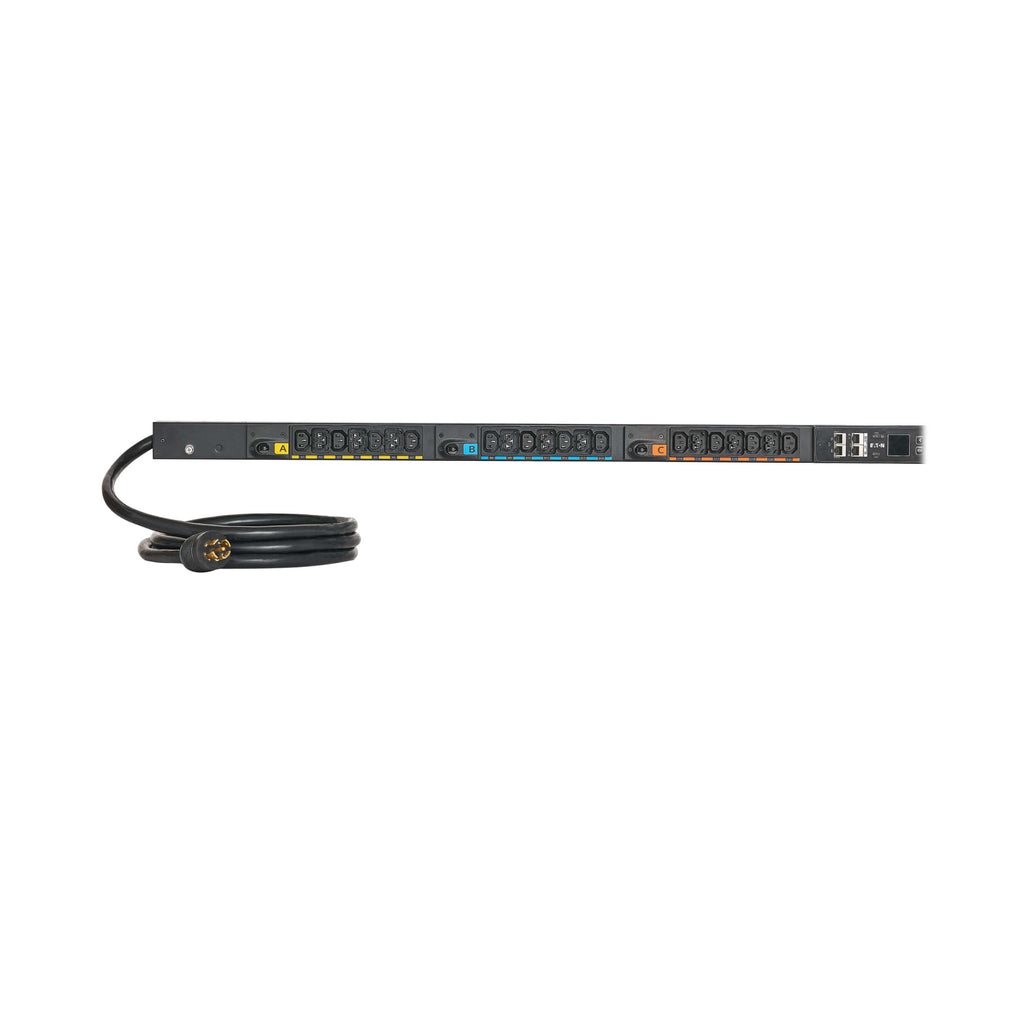

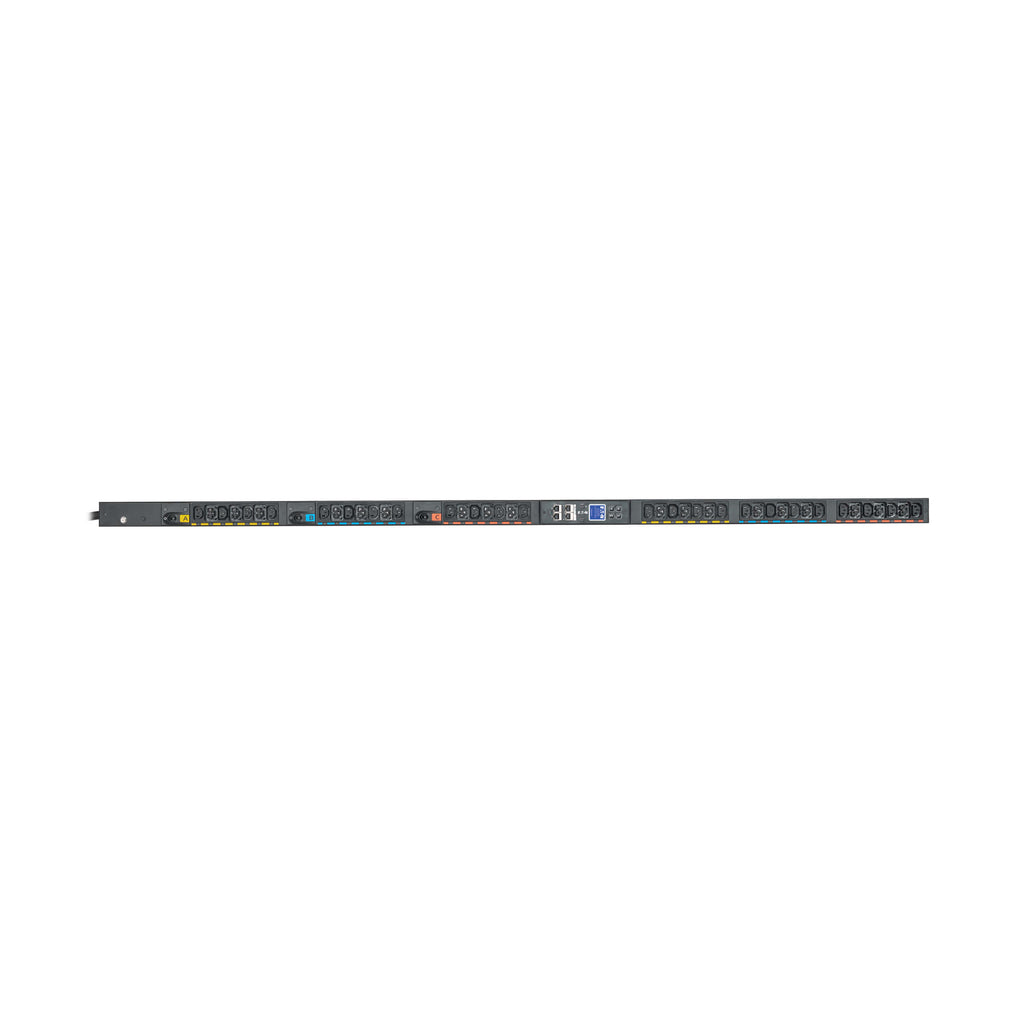

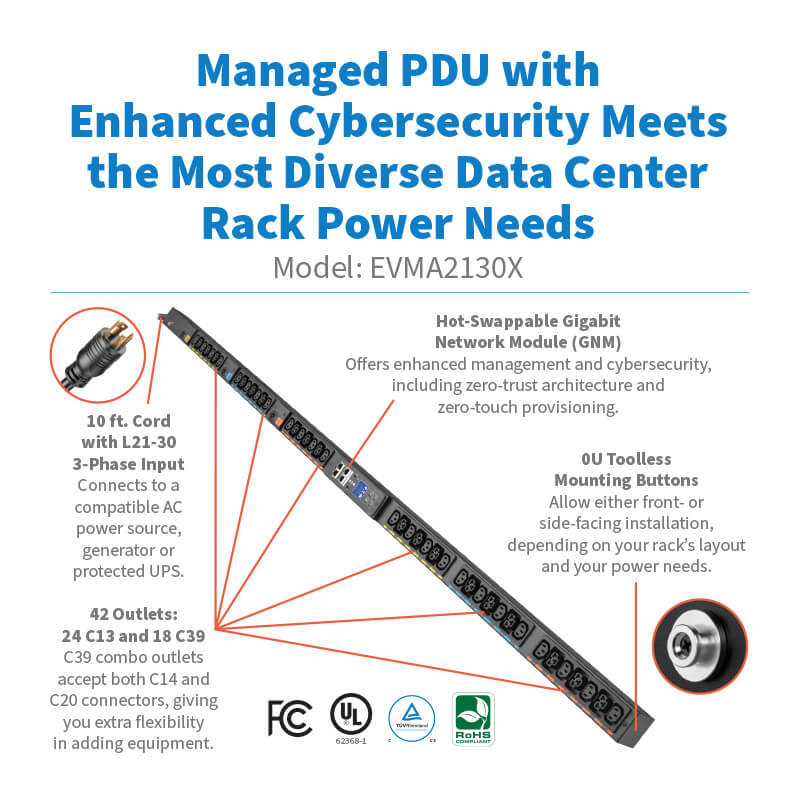

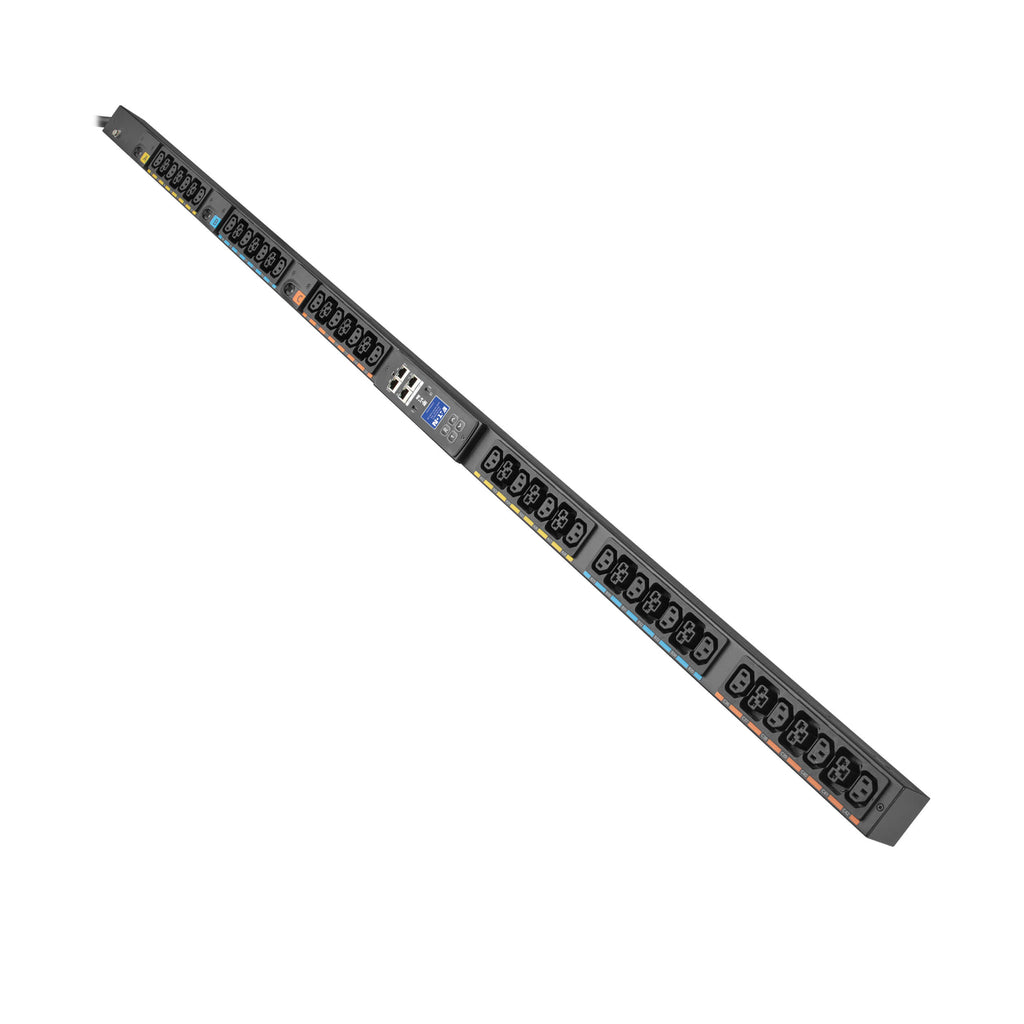

The Eaton EVMA2130X is a 3-phase Managed Rack PDU G4 designed for high-density data center and distributed IT environments. Delivering 8.6kW of reliable power across 42 outlets (24 C13 and 18 C39 combo), this 0U vertical PDU features advanced outlet-level switching, metering, and monitoring.
Engineered for enhanced cybersecurity, it includes a hot-swappable Gigabit Network Module with zero-trust architecture and seamless integration with Eaton’s Brightlayer Data Centers suite. The EVMA2130X also offers environmental sensor support, daisy-chaining for up to 40 units, color-coded load banks for load balancing, and toolless mounting for hassle-free installation.
| Specification | Details |
|---|---|
| Model Number | EVMA2130X |
| PDU Type | Managed |
| Input Voltage | 120/208V 3-Phase |
| Input Plug Type | NEMA L21-30P |
| Input Cord Length | 10 ft (3.05 m) |
| Output Capacity | 8.6kW / 24A Max per Output Phase |
| Output Voltage | 120V / 208V |
| Output Receptacles | 24 x C13, 18 x C39 (C14/C20 compatible) |
| Form Factor | 0U Vertical |
| Material | Aluminum |
| Dimensions (H x W x D) | 68.1 x 2.0 x 2.08 in (172.97 x 5.08 x 5.28 cm) |
| Weight | 19.4 lbs (8.8 kg) |
| Network Interfaces | Serial, Ethernet, Gigabit Network Module |
| Cascade Support | Daisy-chain up to 40 PDUs |
| Display | LCD with outlet-level readings and alarms |
| Circuit Breakers | 3 x 2-pole 20A (1 per 2 outlet banks) |
| Mounting | Toolless buttons, 0U rack-mount |
| Compliance | UL 62368-1, FCC Class A, ICES, RoHS |
| Warranty | 3-Year Limited Warranty |
