Description

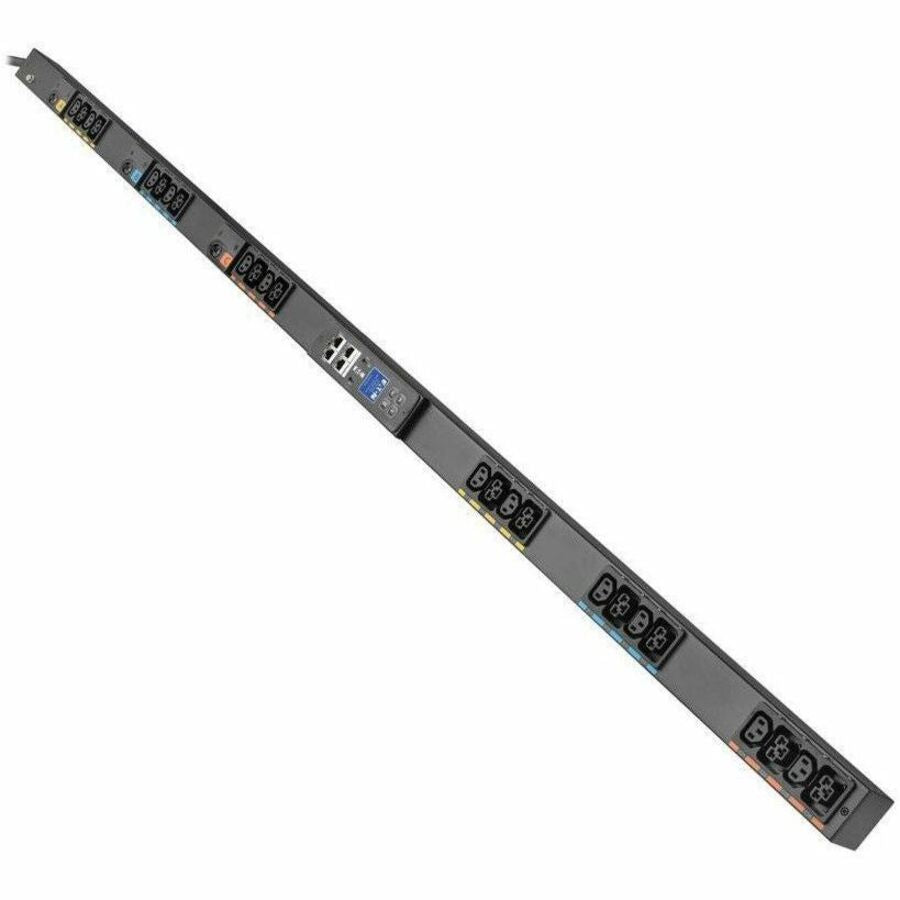

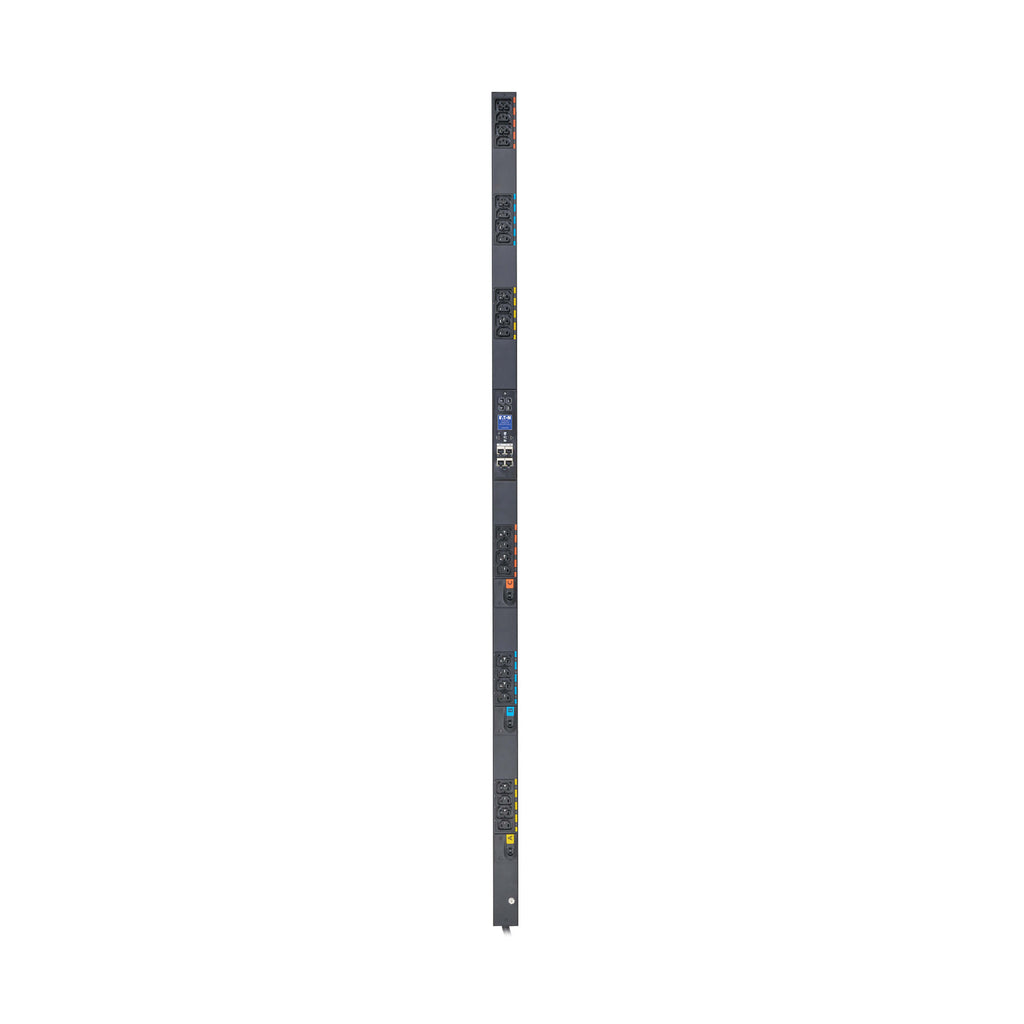

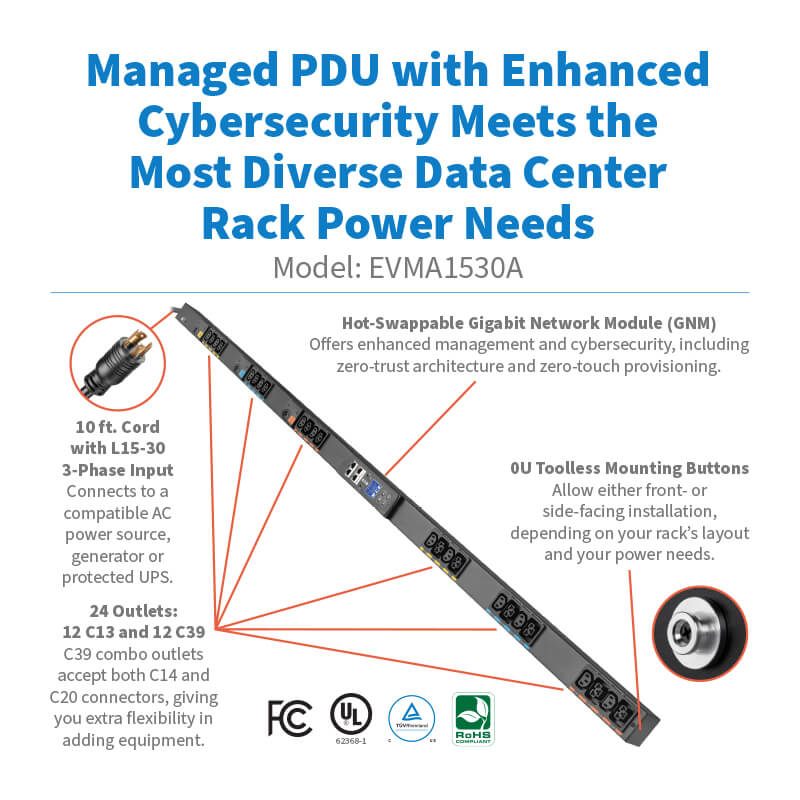

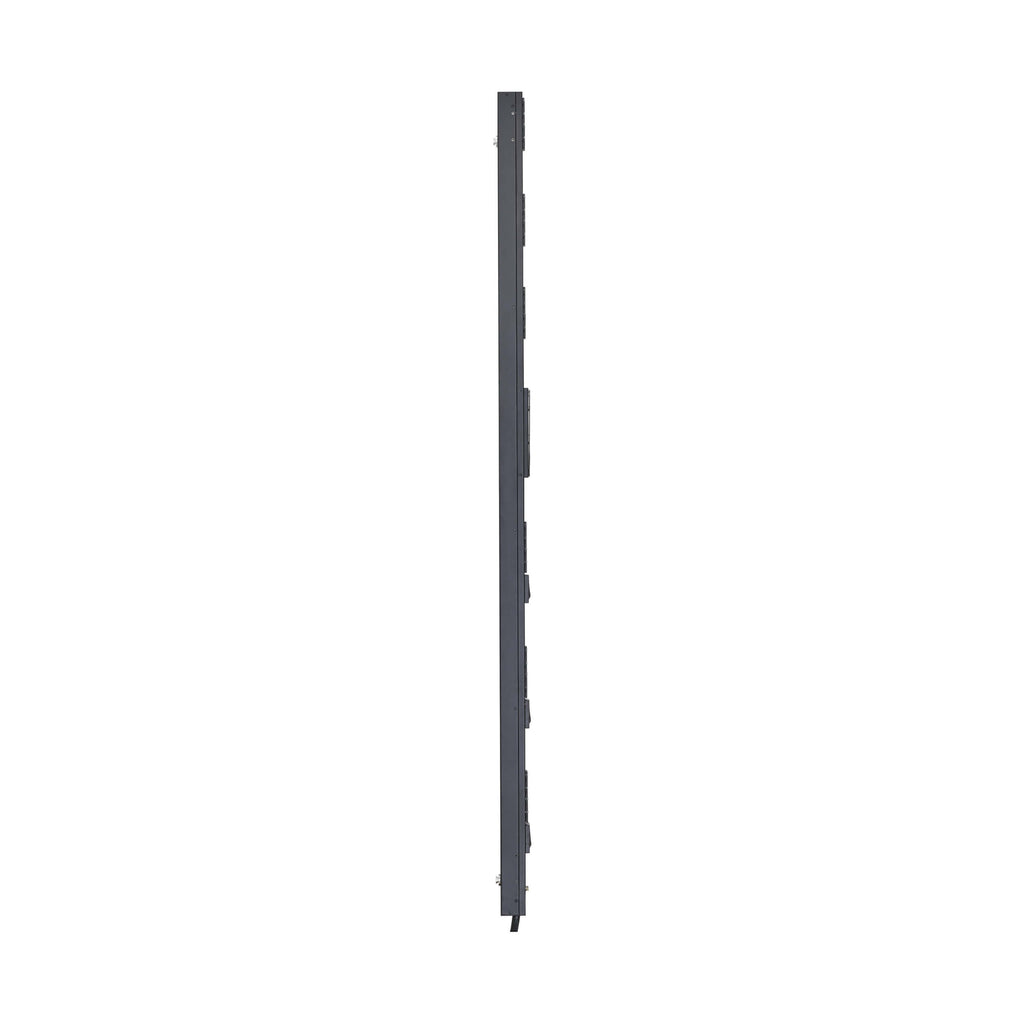

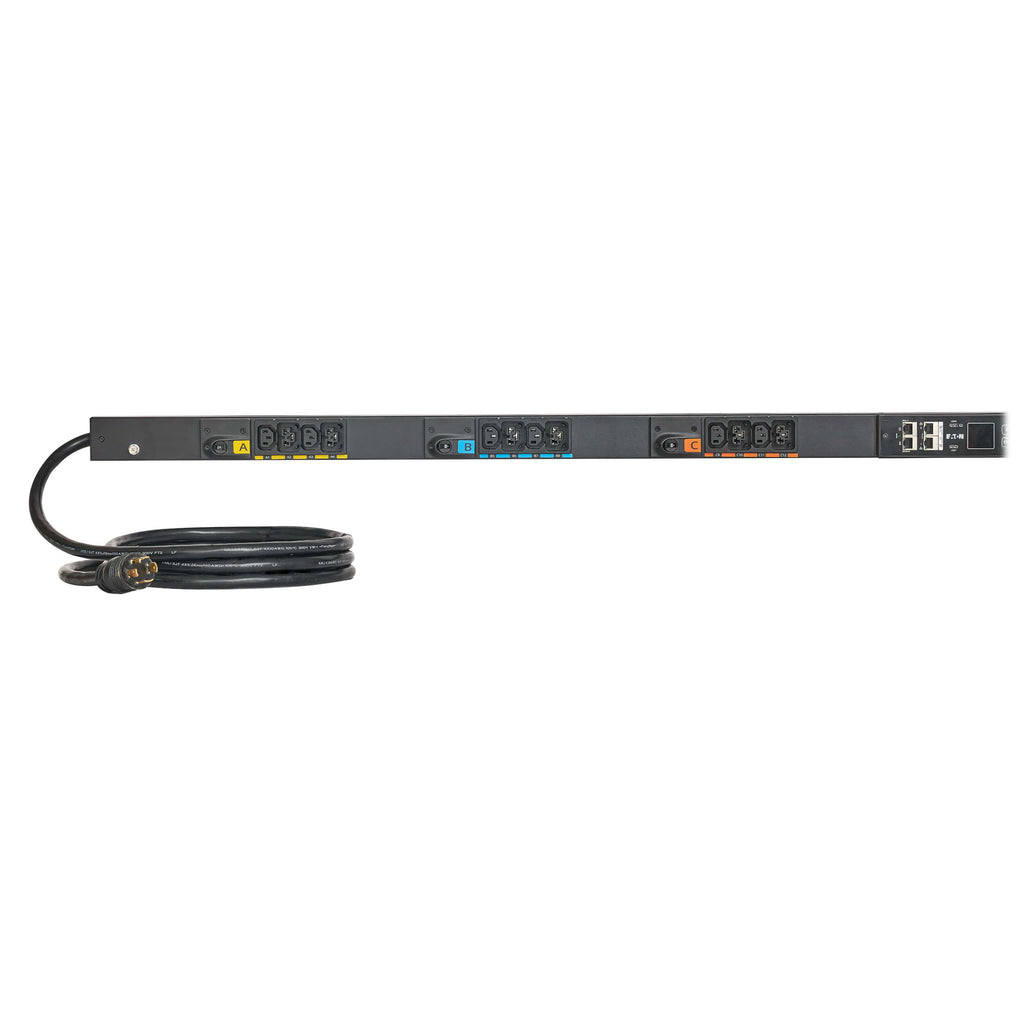

The Eaton EVMA1530A 3-Phase Managed Rack PDU G4 delivers enterprise-grade power distribution with advanced cybersecurity and remote management capabilities—ideal for data centers and distributed IT environments. Equipped with 24 outlets (12 C13 and 12 high-retention C39), this vertical 0U PDU supports real-time outlet-level monitoring, switching, and metering.
The embedded Gigabit Network Module enables remote control, alerts, and zero-trust architecture for robust security. Designed for seamless integration, it supports toolless rack installation and cascades up to 40 PDUs from a single network connection. The 10 ft. cord with a NEMA L15-30P plug ensures flexible deployment, while its aluminum chassis saves space and enhances durability.
| Feature | Details |
|---|---|
| Model Number | EVMA1530A |
| Input Voltage | 208V AC, 3-Phase |
| Input Plug Type | NEMA L15-30P |
| Cord Length | 10 ft. (3.05 m) |
| Max Input Current | 24A (30A plug), 8.6kW total capacity |
| Outlet Types | 12 × C13, 12 × C39 (accepts C14/C20 plugs) |
| PDU Type | Managed |
| Monitoring | Outlet-level metering, monitoring, and switching |
| Mounting | 0U Vertical, toolless buttons (front/side mount) |
| Network Interface | Gigabit Ethernet, Serial, SNMP |
| Cascade Capability | Up to 40 PDUs with individual IPs |
| Dimensions (H×W×D) | 68.1 × 2.0 × 2.08 in (172.97 × 5.08 × 5.28 cm) |
| Weight | 12.4 lbs (5.62 kg) |
| Certifications | UL 62368-1, FCC Part 15 Class A, RoHS, cTUVus |
| Operating Temperature | 0° to 60°C (32° to 140°F) |
| Warranty | 3-Year Limited Warranty |
