Description

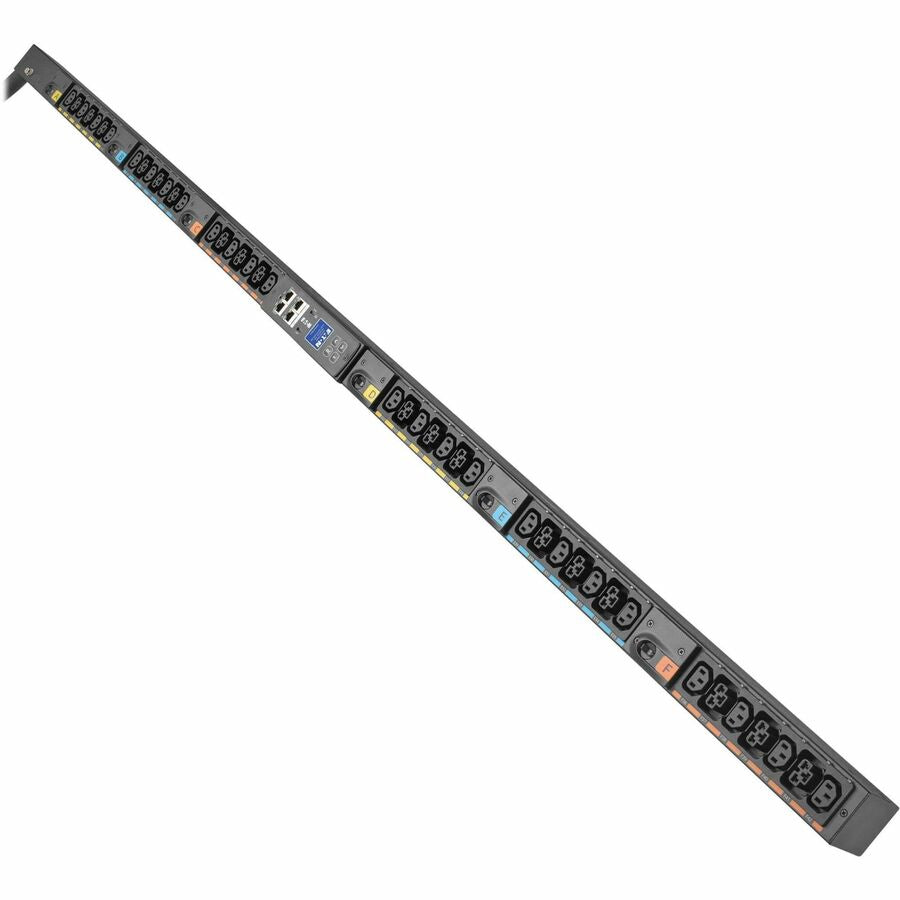

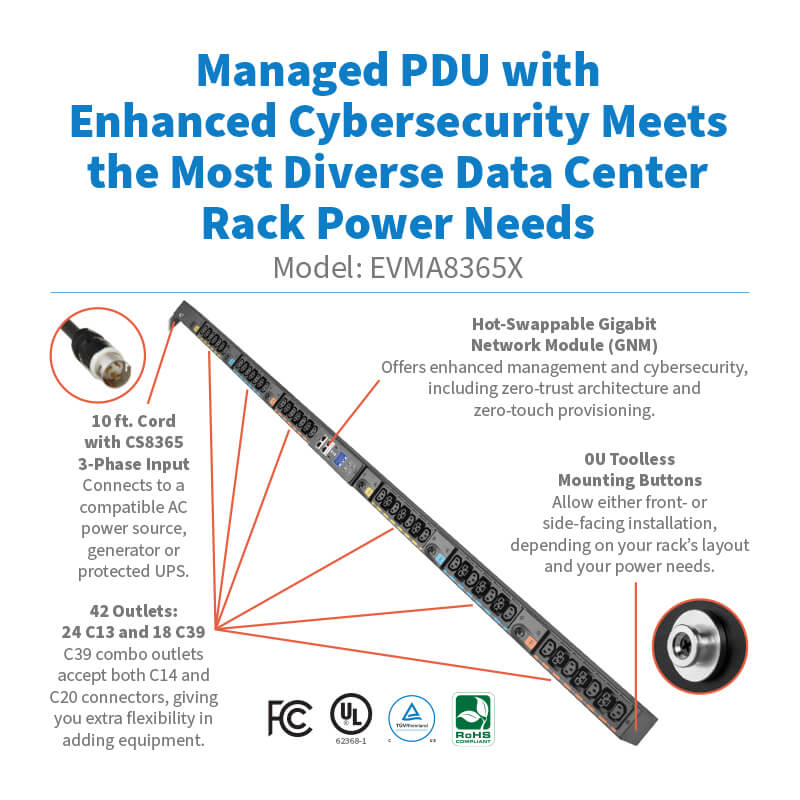

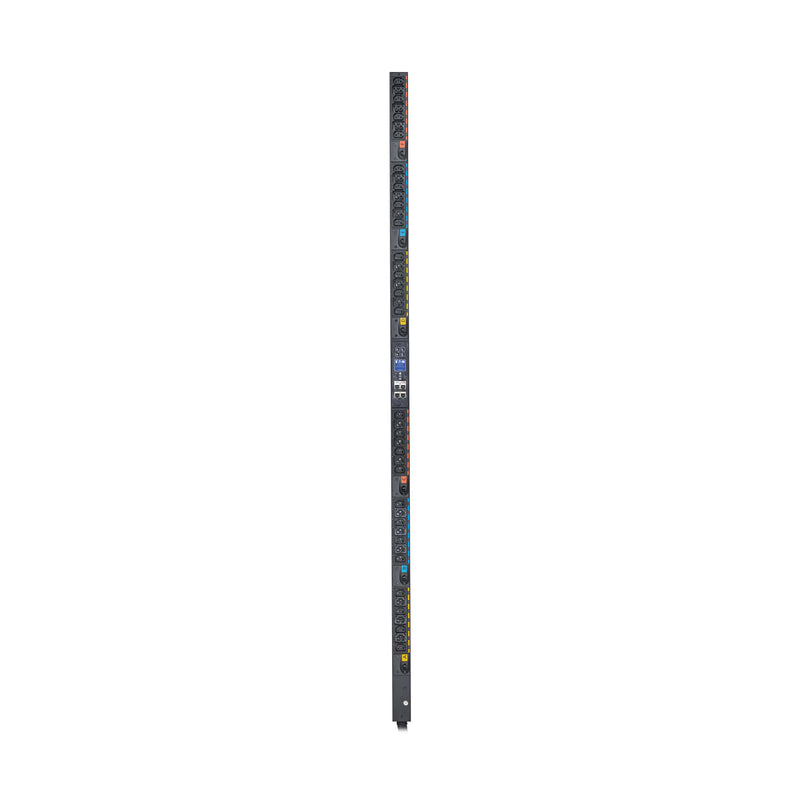

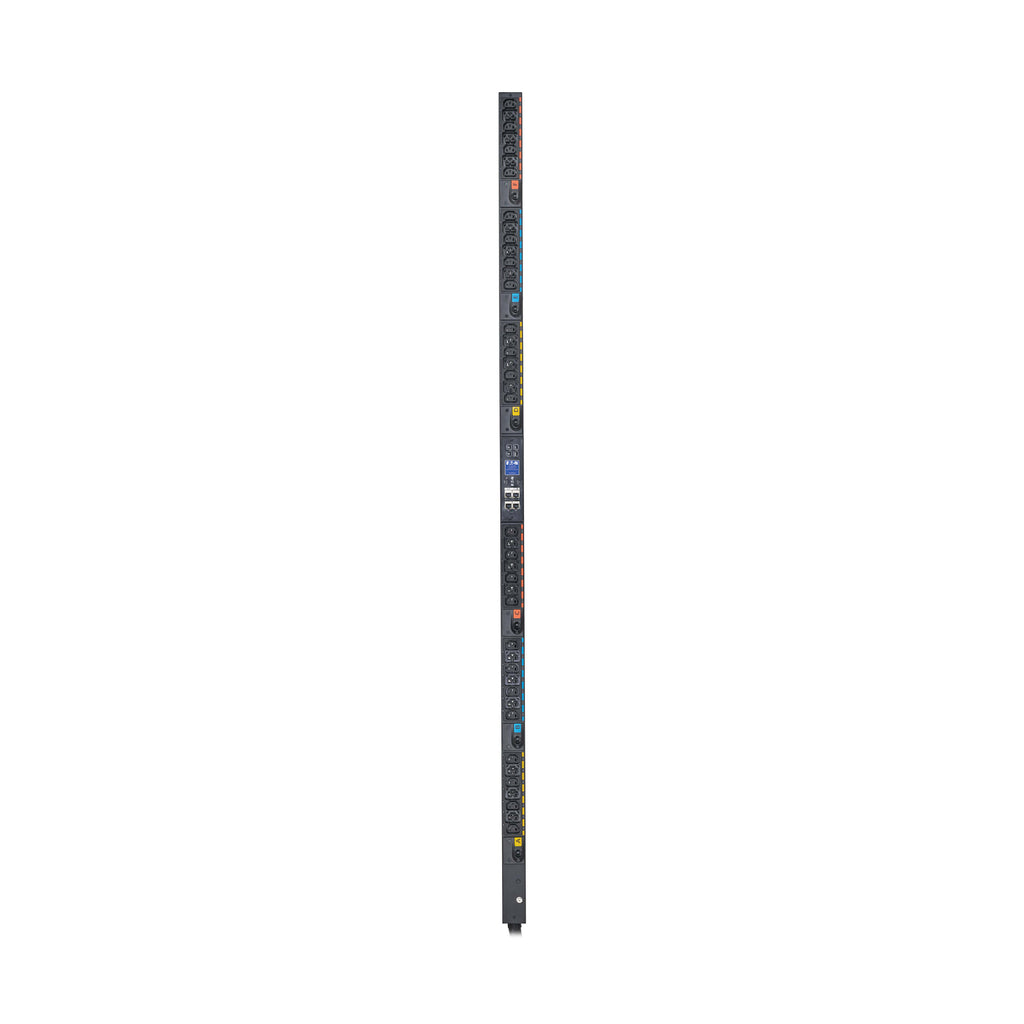

The Eaton EVMA8365X is a 3-Phase Managed Rack PDU G4 designed to deliver secure, high-density power distribution in enterprise and colocation data centers. With a total capacity of 14.4kW and support for 42 outlets—24 C13 and 18 universal C39—this 0U vertical PDU ensures robust and flexible deployment within a standard 42U rack.
Equipped with Eaton’s hot-swappable Gigabit Network Module (GNM), the EVMA8365X features market-leading cybersecurity, zero-touch provisioning, and real-time monitoring. Outlet-level metering, switching, and six color-coded load banks with individual circuit breakers enable precise control, load balancing, and enhanced uptime.
The 10 ft cord with CS8365 input allows convenient installation, while support for cascading up to 40 units reduces network complexity. The EVMA8365X is compatible with Eaton Brightlayer™ Data Centers suite and optional environmental sensors for full remote management and monitoring capabilities.
| Category | Details |
|---|---|
| Model Number | EVMA8365X |
| PDU Type | Managed, 3-Phase |
| Input Voltage | 208V |

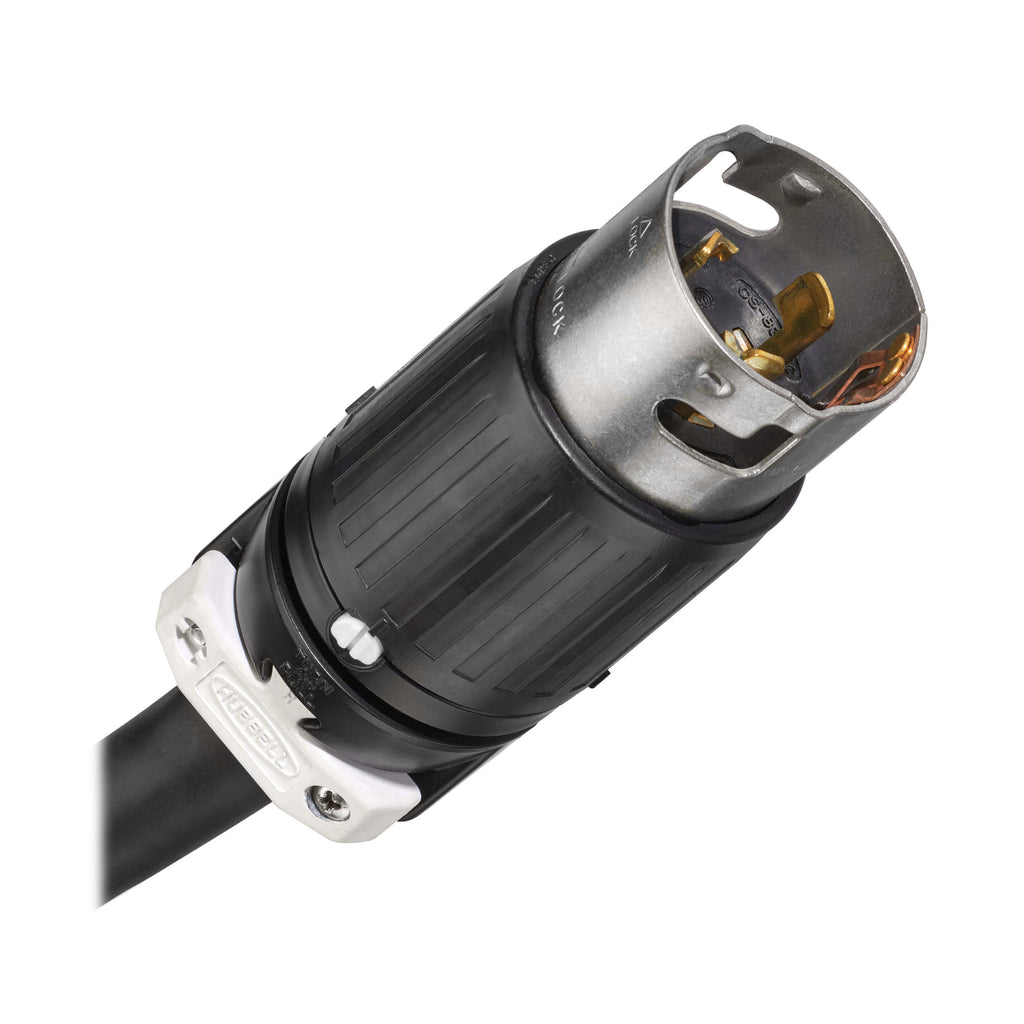

| Input Connection | CS8365 Plug, 10 ft Cord |
| Max Input Current | 50A |
| Output Capacity | 14.4kW / 40A per phase |
| Output Receptacles | 24 × C13, 18 × C39 (C14/C20 compatible) |
| Circuit Protection | 6 × 2-pole 20A low-profile breakers |

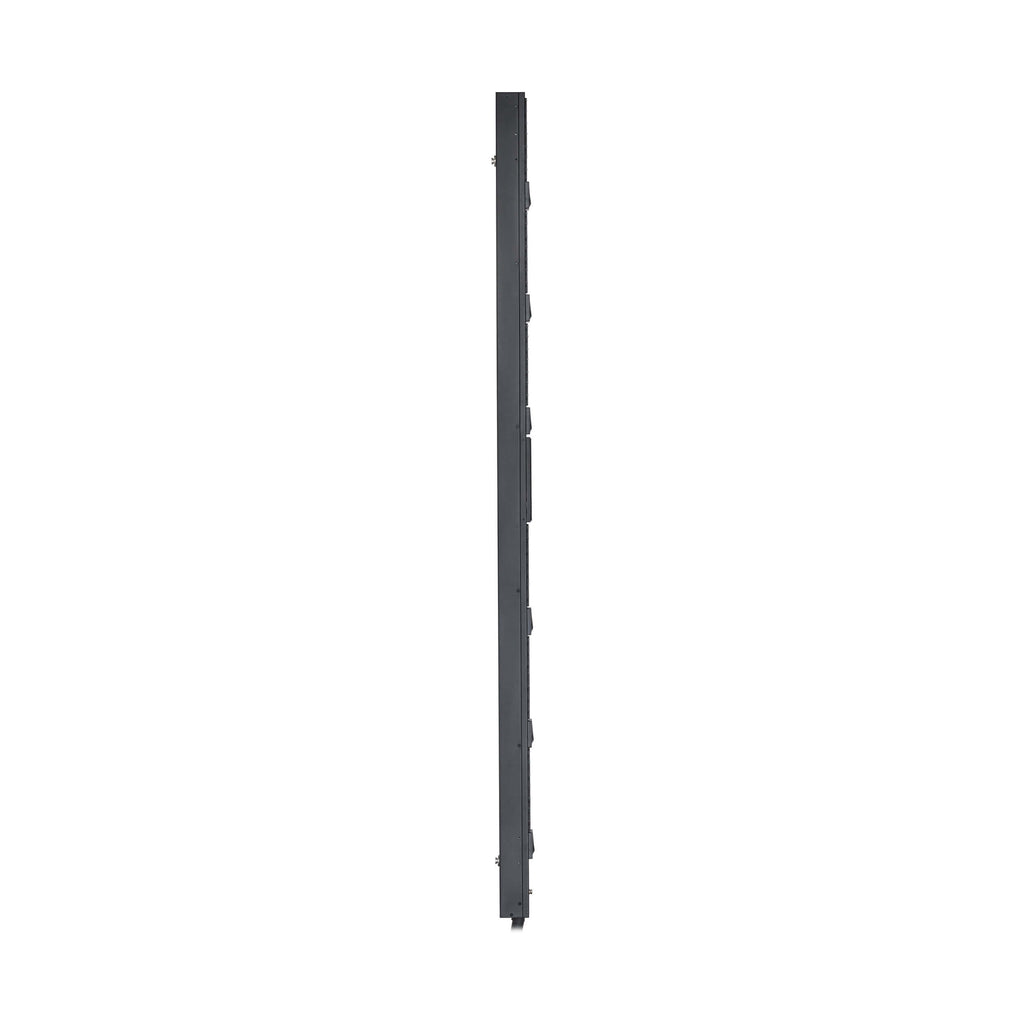

| Rack Form Factor | 0U Vertical |
| Material | Aluminum, Black |
| Mounting | Toolless buttons; shoulder and flush styles |
| Network Module | Hot-swappable Gigabit (GNM), SNMP, Serial, Ethernet |
| Cascading | Up to 40 units, each with own IP |
| Display | LCD with outlet-level metering & controls |
| Monitoring Accuracy | ±1% (Current, Voltage, Power) |
| Environmental Range | 0–60°C (Operating); 5–95% RH non-condensing |
| Certifications | UL 62368-1, FCC Part 15 Class A, RoHS |
| Warranty | 3-Year Limited Warranty |
| Dimensions (HWD) | 72.0 × 2.0 × 2.56 in (182.88 × 5.08 × 6.5 cm) |
| Weight | 28.2 lbs (12.79 kg) |
