Description

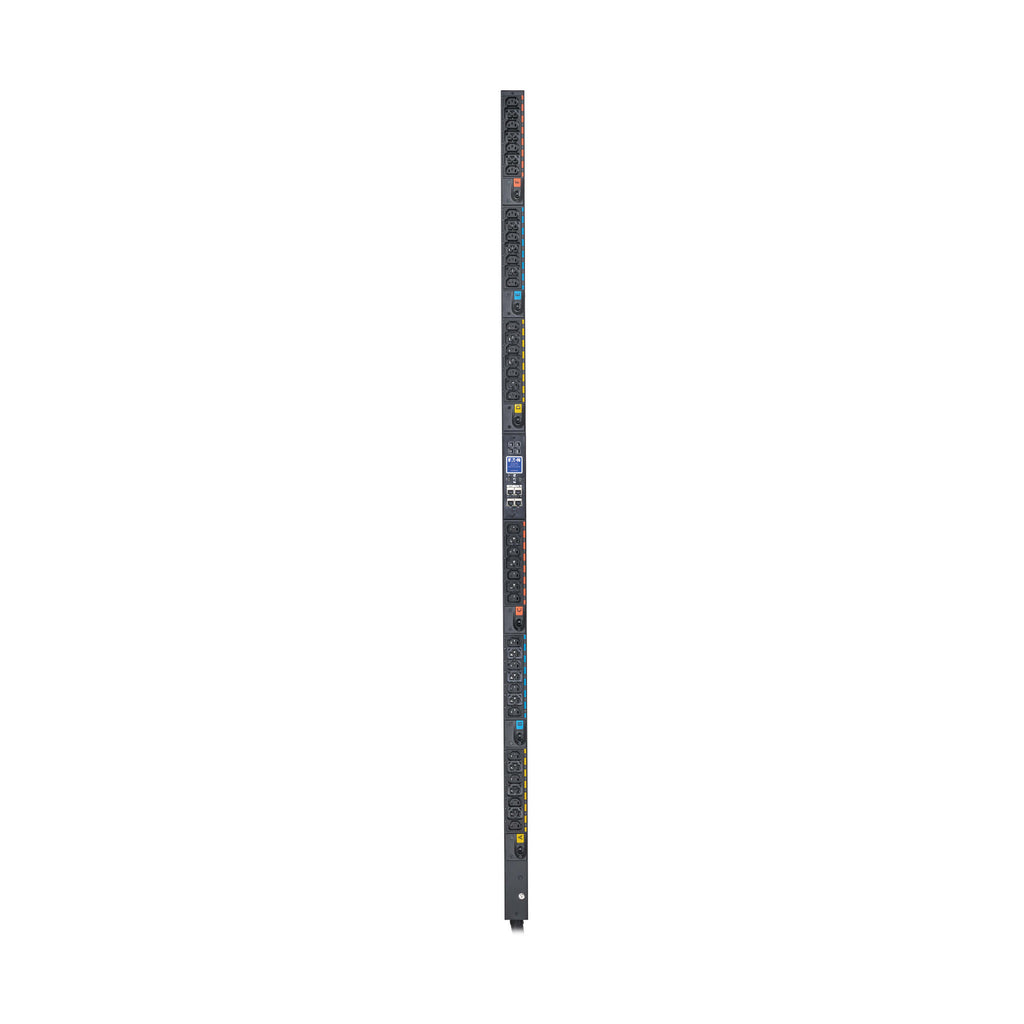

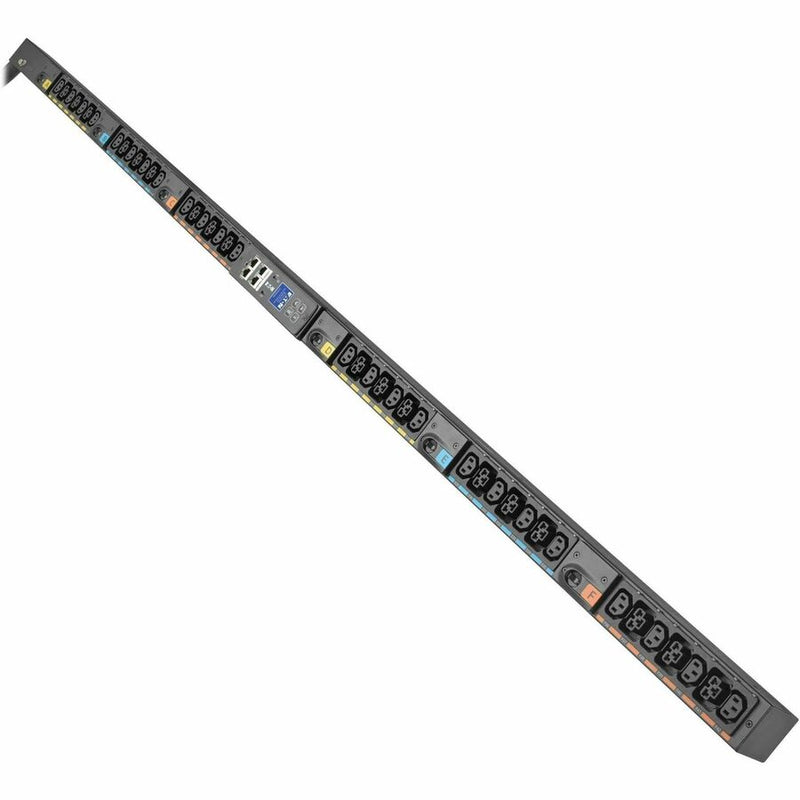

The Eaton EVMA4609X is a next-generation 3-phase managed rack PDU G4 engineered for high-performance data centers and distributed IT environments. Designed for 0U vertical mounting in 42U racks, it features 42 outlets—including 24 C13 and 18 universal C39 outlets—supporting both C14 and C20 plugs.

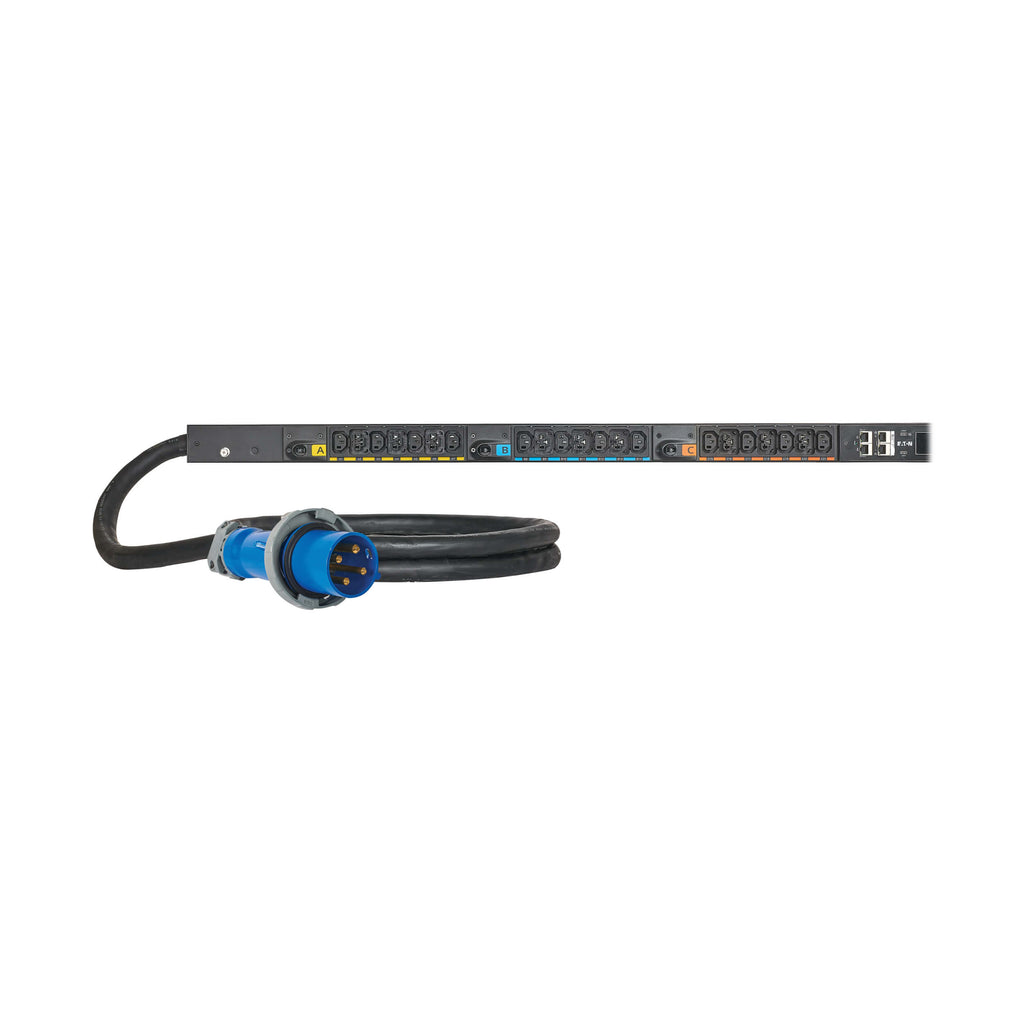

This PDU delivers 17.3kW of power at 208V with a 10 ft. cord and 460P9W input. Integrated with Eaton’s hot-swappable Gigabit Network Module (GNM), it offers advanced outlet-level monitoring, switching, and metering—along with zero-trust cybersecurity and remote management via Brightlayer Data Centers suite.
Perfect for streamlining deployment and maximizing uptime, the EVMA4609X includes toolless mounting, load bank organization, low-profile circuit breakers, and cascading support for up to 40 PDUs from a single network connection.
| Specification | Details |
|---|---|
| Model | EVMA4609X |
| Mounting | 0U Vertical (Toolless Mounting Buttons) |
| Input Voltage | 208V, 3-Phase |
| Input Plug Type | 460P9W |
| Cord Length | 10 ft. (3.05 m) |
| Output Capacity | 17.3 kW / 48A |
| Outlet Types | (24) C13, (18) C39 |
| Total Outlets | 42 |
| Circuit Breakers | (6) 2-pole 20A low-profile breakers |
| Network Module | Embedded Gigabit Network Module (GNM G4) |
| Monitoring & Control | Outlet-level metering, switching, alerts |
| Cybersecurity | Chain-of-trust encryption, secure boot |
| Cascading | Up to 40 units |
| Operating Temperature | 0° to 60°C (32° to 140°F) |
| Construction | Black Aluminum |
| Dimensions (HxWxD) | 72.00 x 2.00 x 2.56 in. (182.88 x 5.08 x 6.50 cm) |
| Weight | 28.2 lbs (12.79 kg) |
| Certifications | UL 62368-1, FCC Part 15 Class A, RoHS |
| Warranty | 3-Year Limited Warranty |
