Description

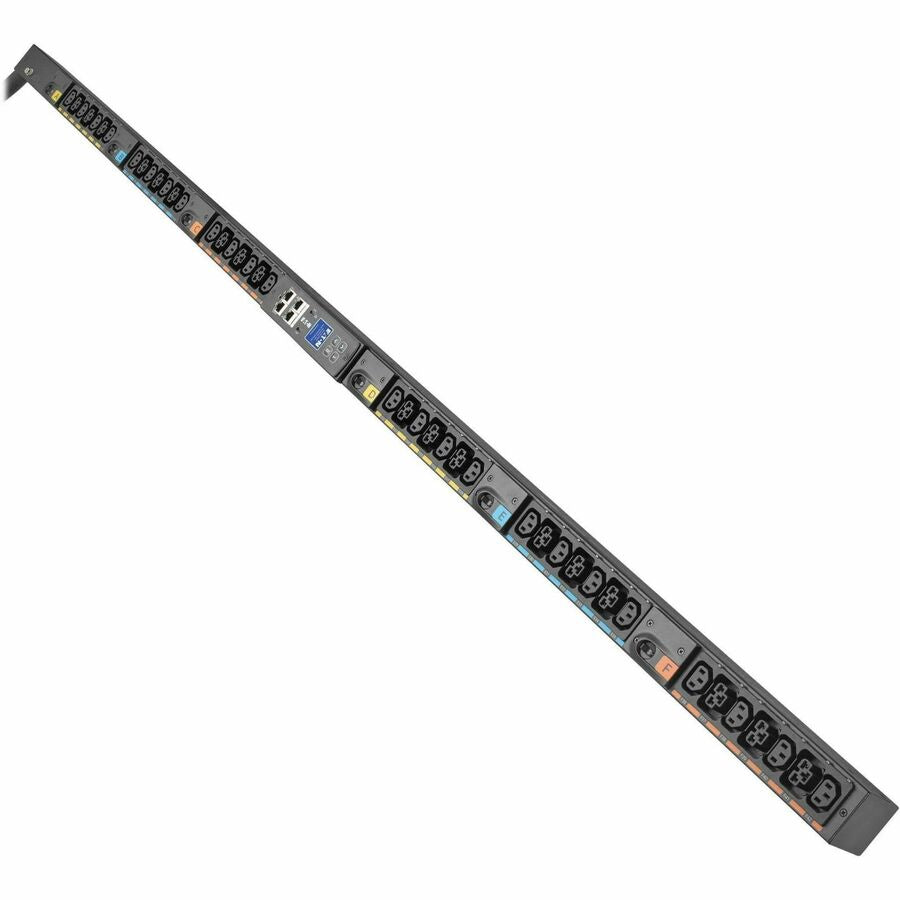

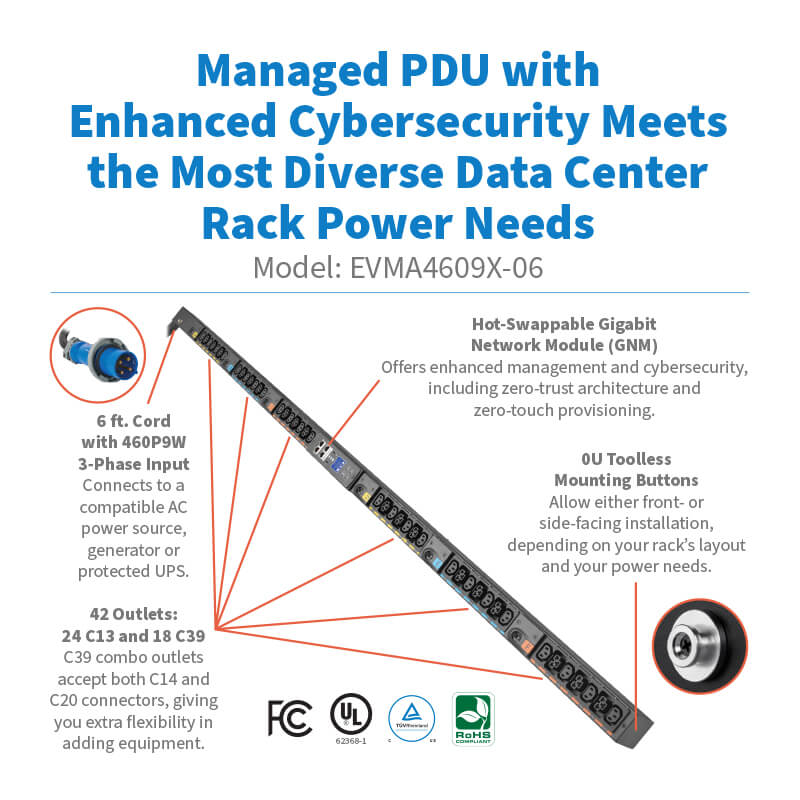

The Eaton EVMA4609X-06 is a next-generation 3-phase Managed Rack PDU (rPDU) designed for modern data centers and distributed IT environments. Offering 42 outlets (24 C13 and 18 universal C39), a 6 ft. 460P9W input cord, and 17.3 kW of power capacity, this 0U vertical PDU delivers high-density power distribution with market-leading cybersecurity.
Equipped with Eaton’s advanced Gigabit Network Module, this PDU enables real-time outlet-level metering, switching, and remote control to optimize load management and uptime. Designed with enterprise-grade cybersecurity, zero-touch provisioning, and the ability to cascade up to 40 units, the EVMA4609X-06 streamlines both deployment and operations. Ideal for enterprise, colocation, and edge IT environments requiring secure, intelligent, and efficient power management.
| Specification | Details |
|---|---|
| Model Number | EVMA4609X-06 |
| Form Factor | 0U Vertical |
| Input Voltage | 208V, 3-Phase |

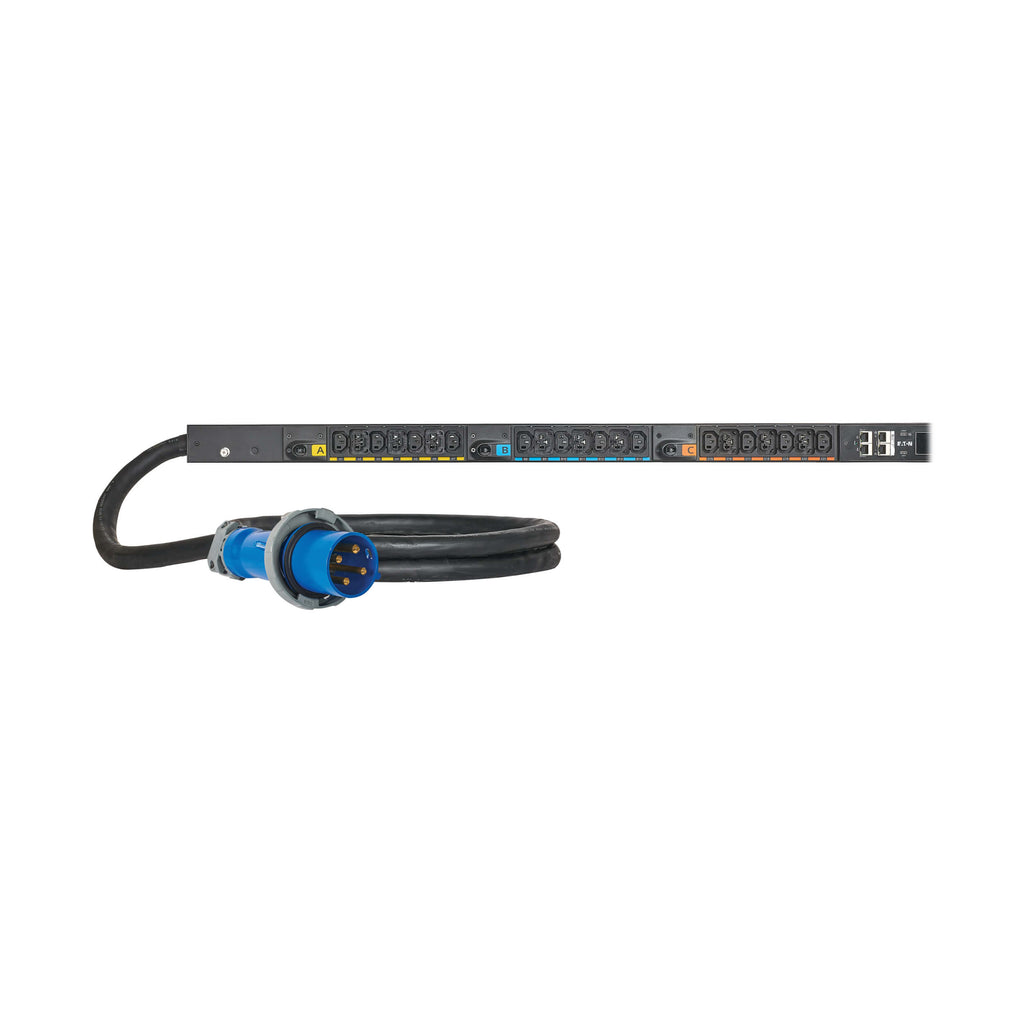

| Input Plug Type | 460P9W |
| Input Cord Length | 6 ft. (1.83 m) |
| Maximum Input Amps | 60A |
| Power Capacity | 17.3 kW / 48A Max per phase |
| Output Receptacles | 24 × C13, 18 × C39 (C14/C20 compatible) |
| Outlet Features | Metered, monitored, and switched at outlet level |
| Circuit Breakers | (6) 20A, one per load bank |
| Display & Interface | LCD pixel screen with outlet-level control |
| Networking | Gigabit Ethernet, SNMP, serial, daisy-chainable |
| Environmental Monitoring | Optional sensors supported |
| Material | Lightweight aluminum, black finish |
| Unit Dimensions (H×W×D) | 72 × 2 × 2.56 in. (182.88 × 5.08 × 6.50 cm) |
| Unit Weight | 28.2 lbs. (12.79 kg) |
| Certifications | UL 62368-1, FCC Part 15 Class A, RoHS |
| Warranty | 3-Year Limited Warranty |
