Description

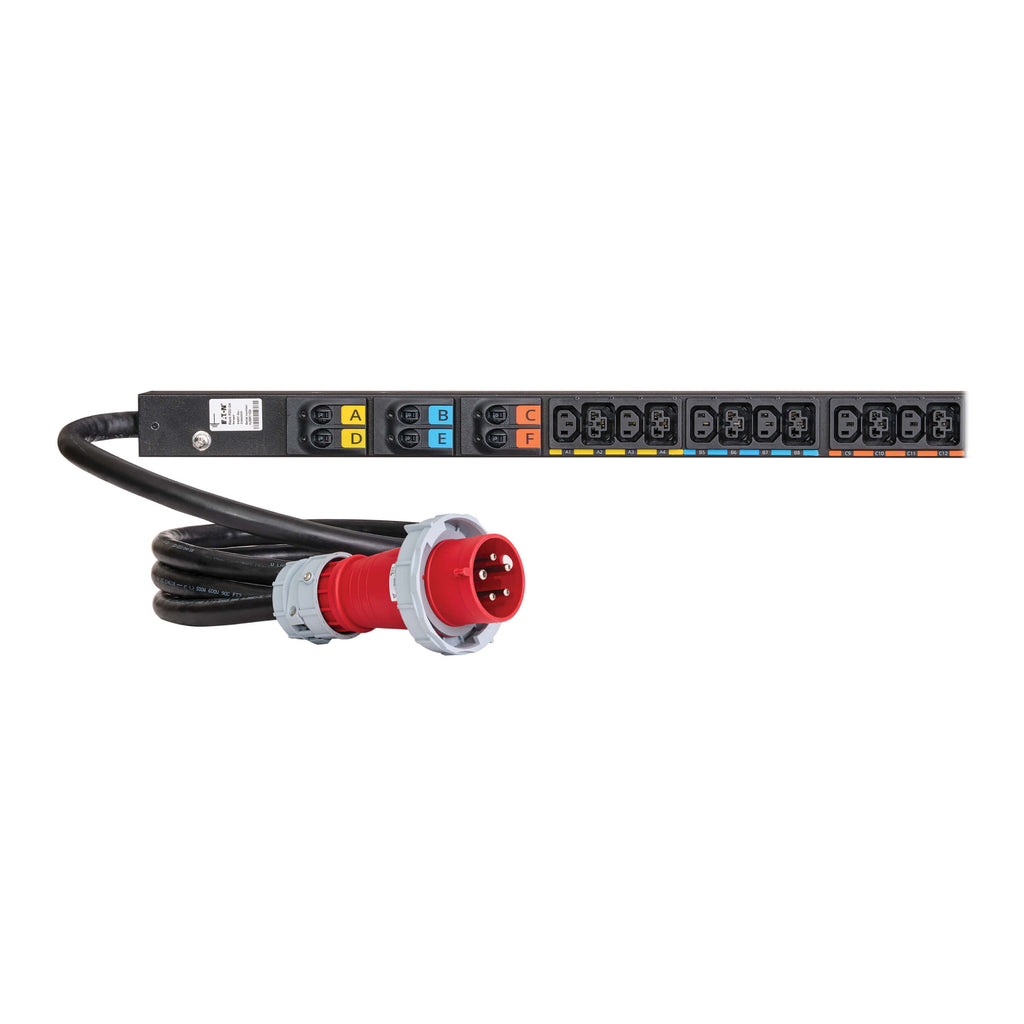

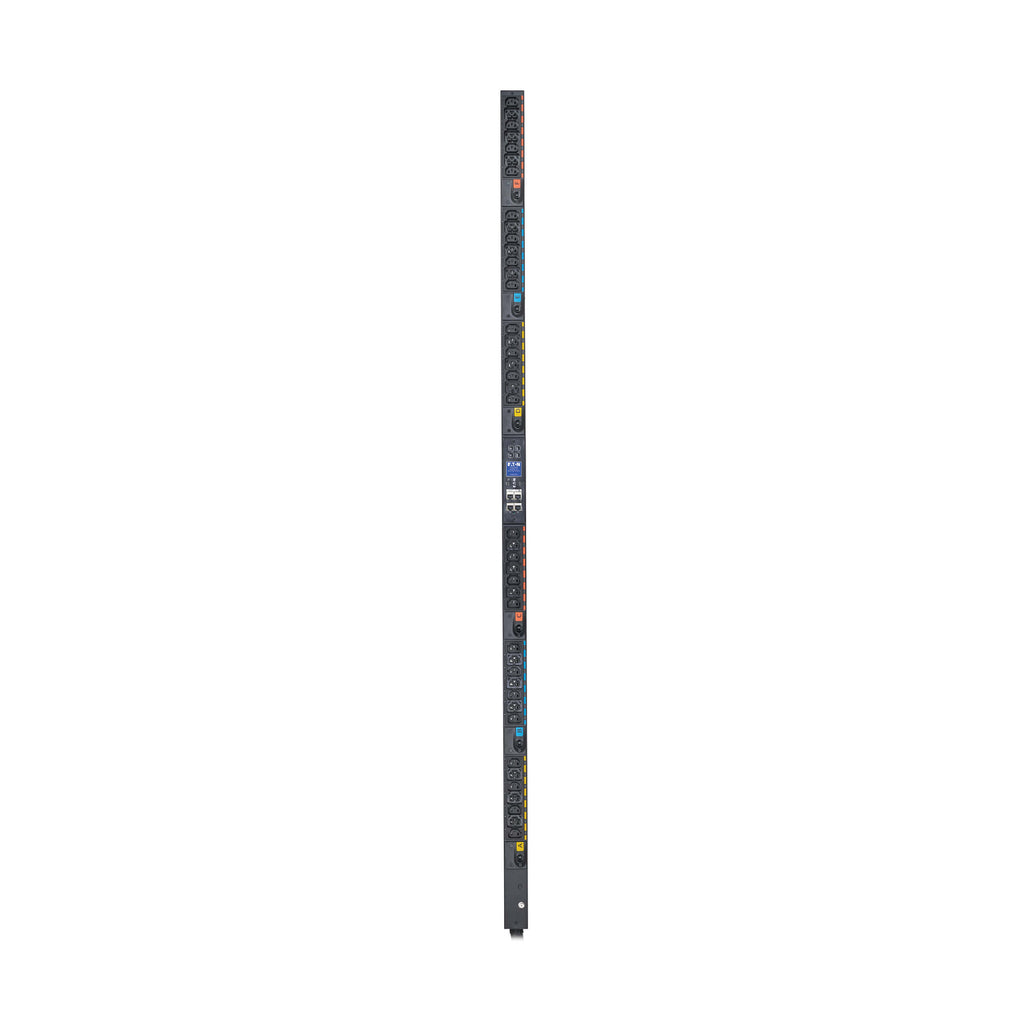

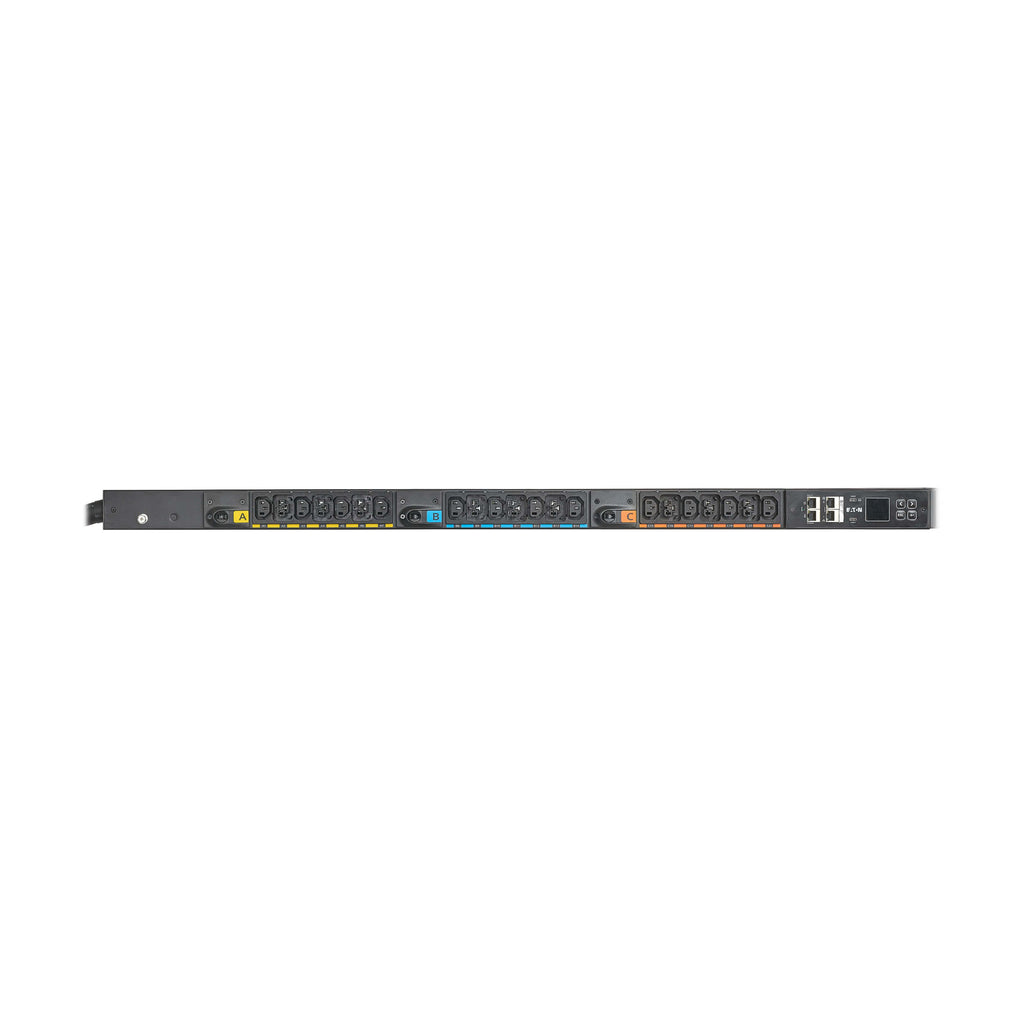

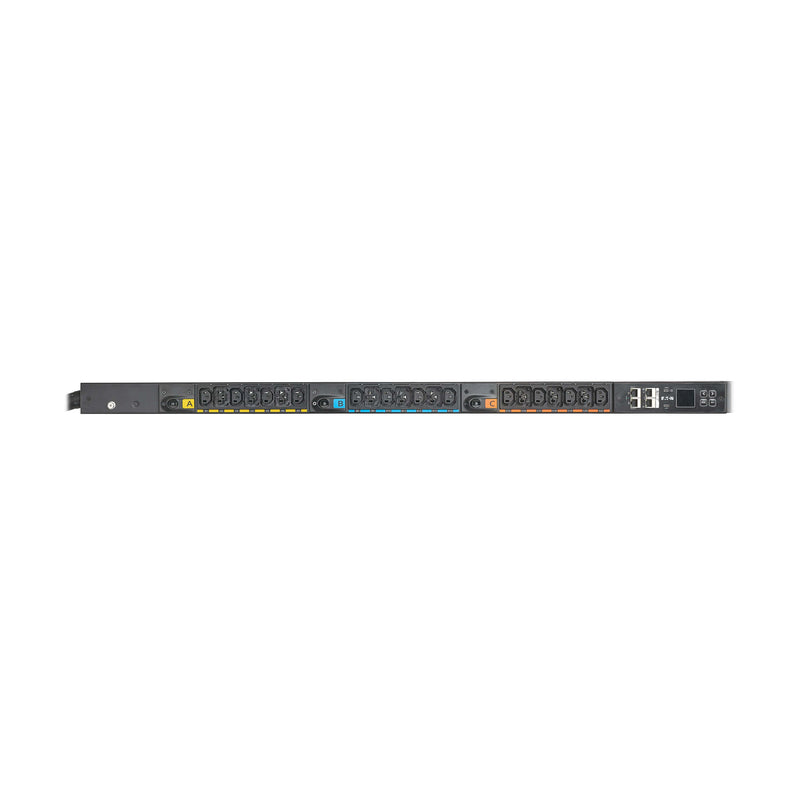

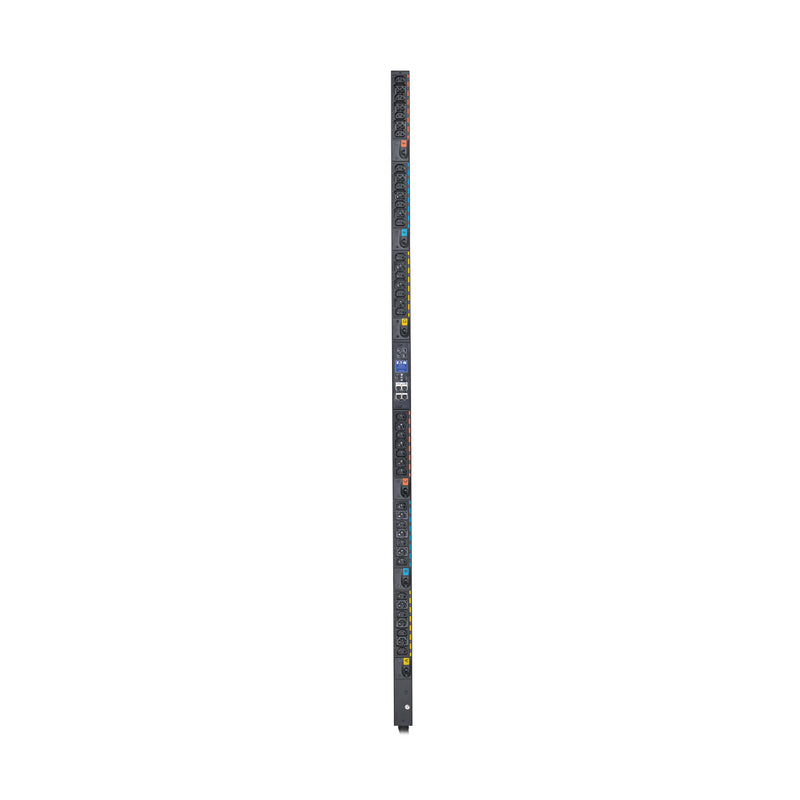

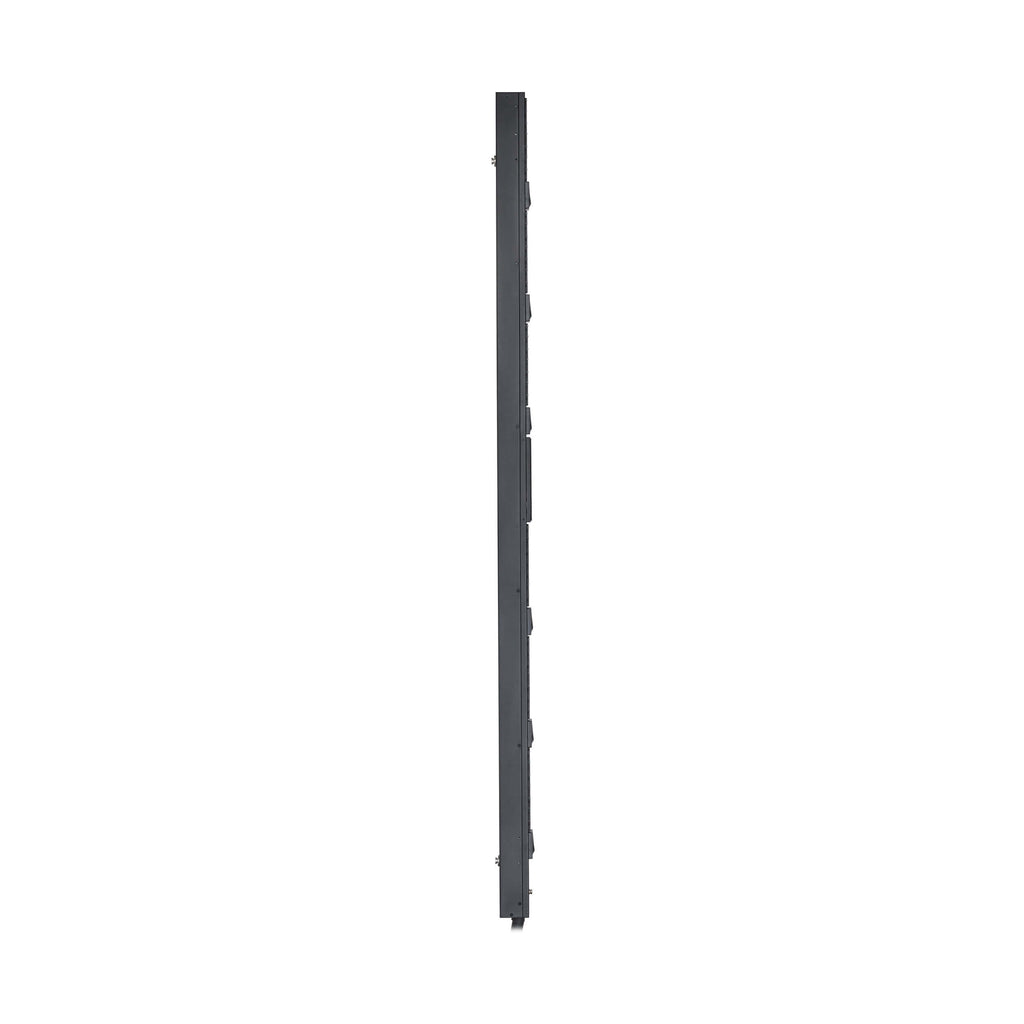

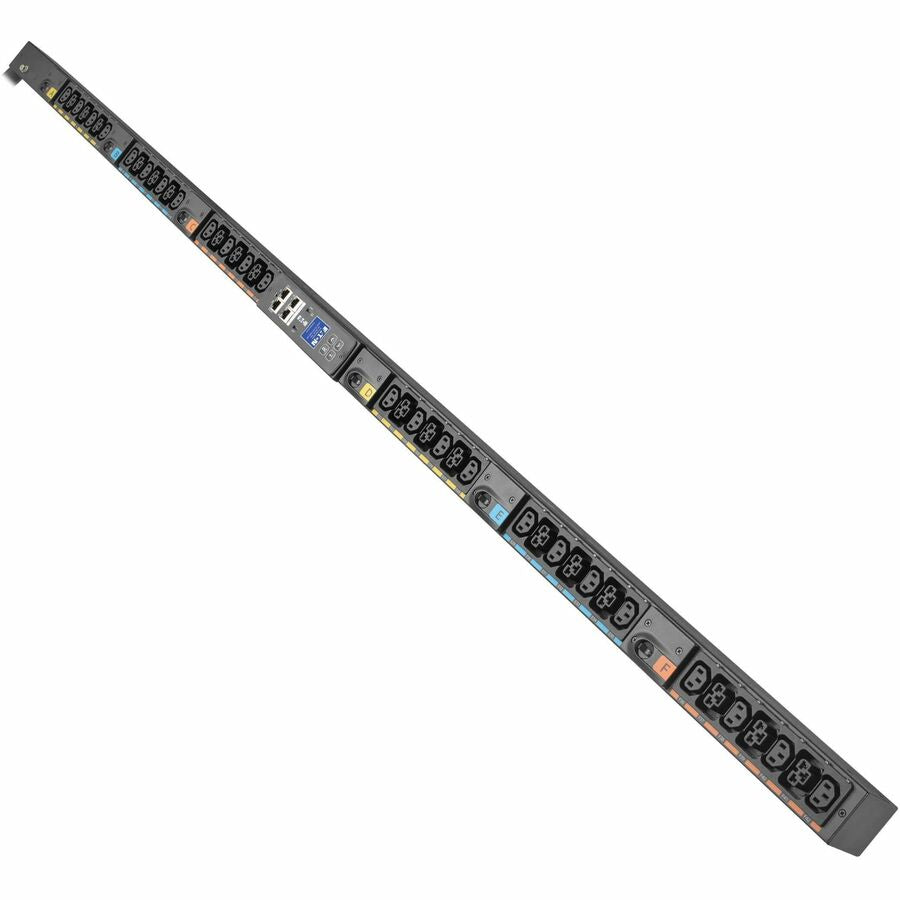

The Eaton EVMAG332X is a 3-phase managed rack PDU G4 engineered for enterprise data centers and distributed IT infrastructure. With 42 outlets (24 C13 and 18 C39 combo), this 0U vertical unit delivers up to 17.3kW of reliable power at 240/415V, with enhanced outlet-level switching, metering, and monitoring. Equipped with Eaton's secure gigabit network module (GNM), the EVMAG332X supports zero-trust architecture, remote management, cascading up to 40 units, and integration with Eaton Brightlayer™ software. Built with a robust aluminum chassis, toolless mounting, and flush circuit breakers, it optimizes rack space and uptime with precision load balancing and proactive power control.
| Feature | Details |
|---|---|
| Model Number | EVMAG332X |
| PDU Type | Managed |
| Input Phase | 3-Phase |
| Input Voltage | 240/415V (Wye) |
| Max Input Amps | 32A |
| Input Plug Type | 532P6W |
| Input Cord Length | 10 ft. (3.05 m) |
| Output Power Capacity | 17.3 kW / 17,300 W |
| Output Receptacles | 24 x C13, 18 x C39 (C14/C20 compatible) |
| Outlet-Level Control | Metering, Monitoring, Switching |
| Load Banks | 6 color-coded, each with 20A circuit breaker |
| Mounting Style | 0U Vertical, toolless mounting buttons |
| Material | Black Aluminum Chassis |
| Unit Dimensions | 68.1 x 2.09 x 2.05 in. (172.97 x 5.08 x 5.28 cm) |
| Unit Weight | 19.4 lbs. (8.80 kg) |
| Network Interface | Gigabit Ethernet, Daisy-chain up to 40 units |
| Environmental Sensors | Optional, sold separately |
| Certifications | UL 62368-1, CE, FCC Class A, RoHS, ICES |
| Operating Temp | 0°C to 60°C (32°F to 140°F) |
| Warranty | 3-Year Limited Warranty |
