Description

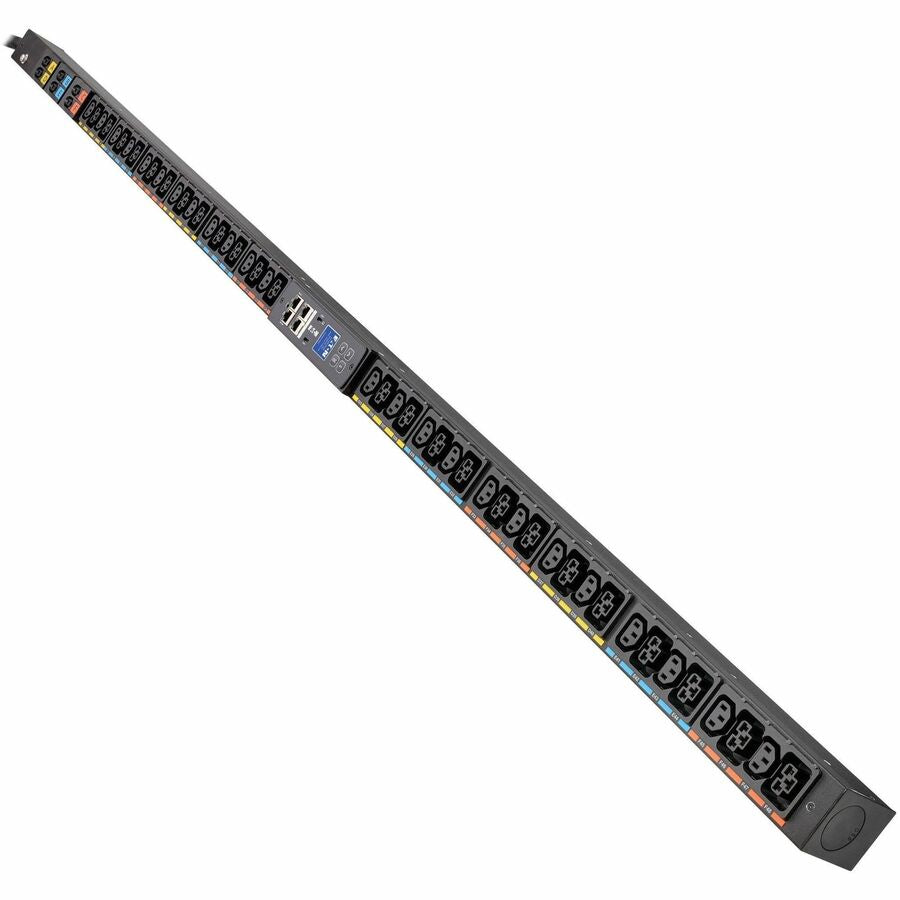

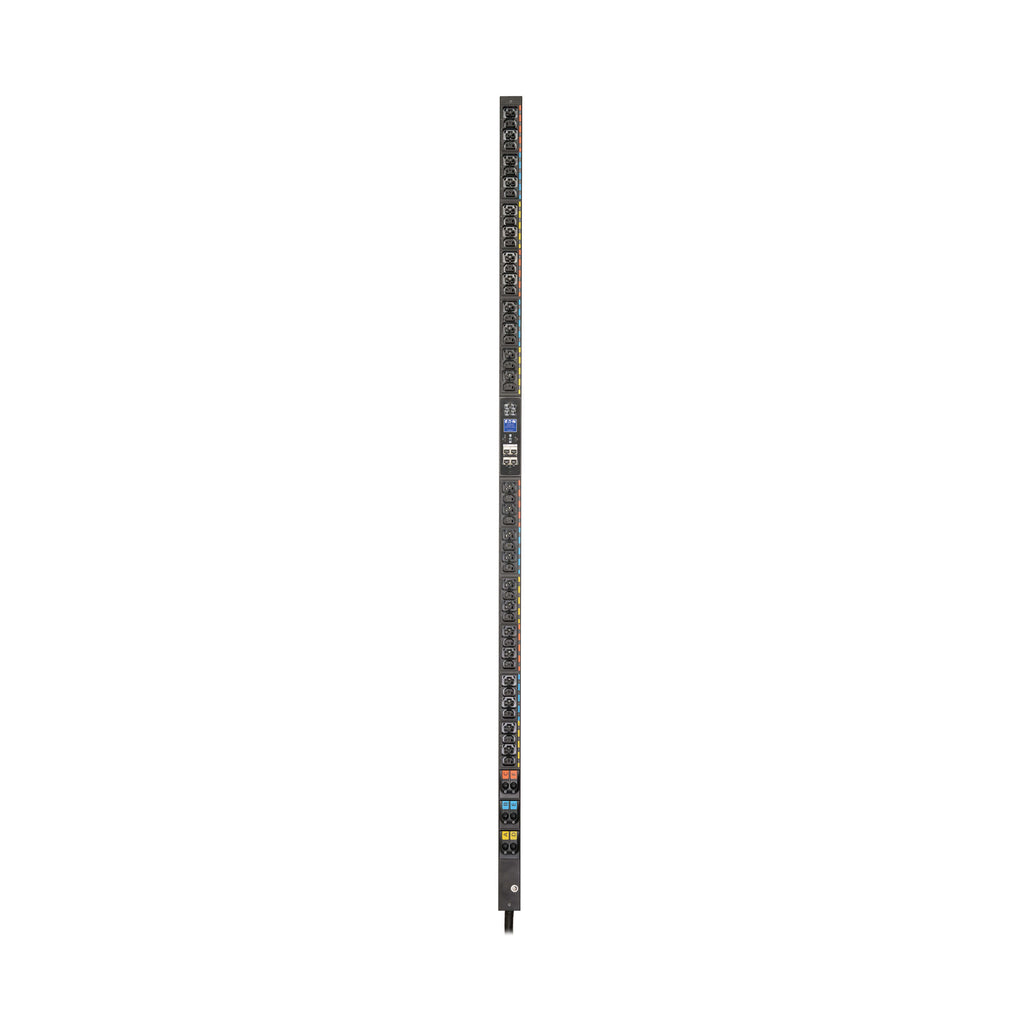

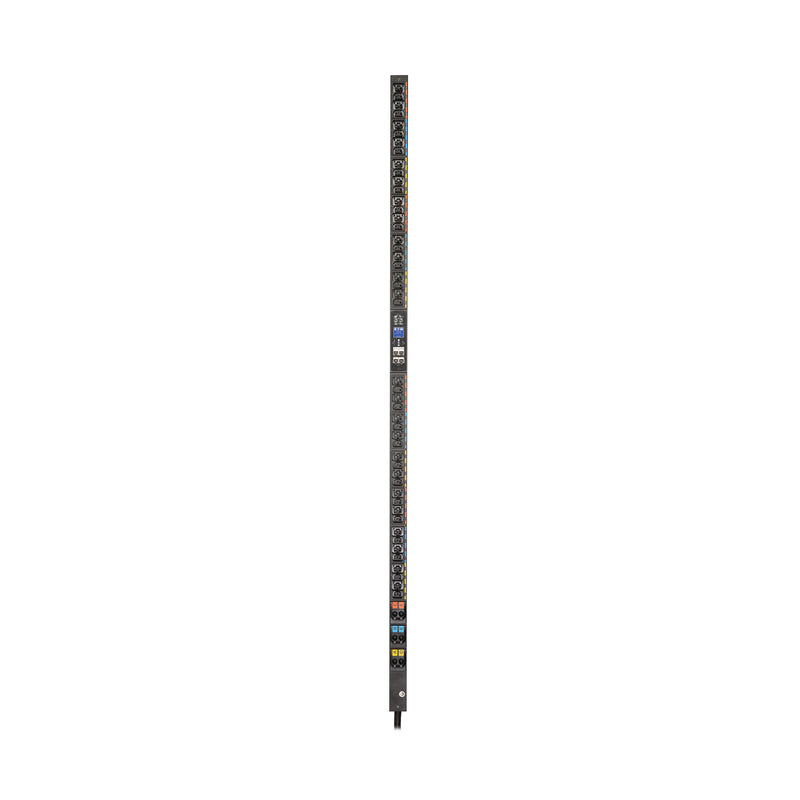

The Eaton EVMAG332C is a high-capacity 3-phase managed rack PDU (Power Distribution Unit) designed for modern data centers and distributed IT environments. Delivering up to 17.3kW across 48 outlets (24 C13 and 24 C39), this G4 model ensures precision power control, advanced outlet-level switching, and real-time monitoring.
With built-in advanced cybersecurity, the hot-swappable Gigabit Network Module (GNM) supports zero-trust architecture, zero-touch provisioning, and integration with Eaton’s Brightlayer software suite for superior automation and remote management. Six color-coded load banks, each with its own circuit breaker, enable safe, balanced power delivery and reduced risk of outages.
Built with a durable aluminum chassis and toolless mounting buttons, the 0U vertical design saves valuable rack space and supports daisy-chaining up to 40 units—making it ideal for high-density environments. Whether you're managing colocation infrastructure or a hyperscale data center, the EVMAG332C delivers performance, flexibility, and control at scale.
| Specification | Details |
|---|---|
| Model Number | EVMAG332C |
| PDU Type | 3-Phase Managed |
| Input Voltage | 240/415V 3-Phase Wye |

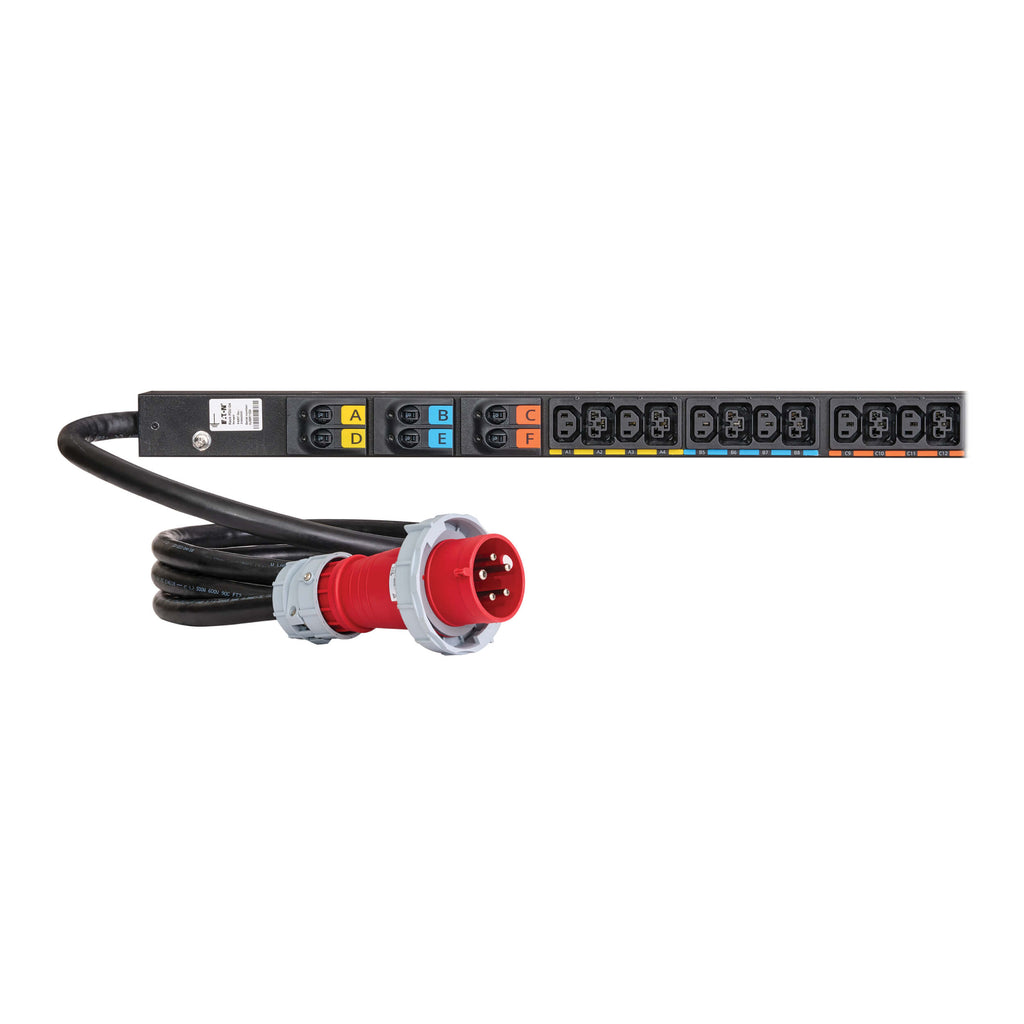

| Input Connection | 532P6W |
| Max Input Current | 32A |
| Power Capacity | 17.3kW / 24A per phase UL / 32A per phase CE |
| Output Receptacles | 24 x C13, 24 x C39 |
| Output Voltage | 240/415V, 208V |
| Frequency | 50/60Hz |
| Cord Length | 10 ft. (3.05 m) |
| Circuit Breakers | 6 x 20A low-profile (one per load bank) |

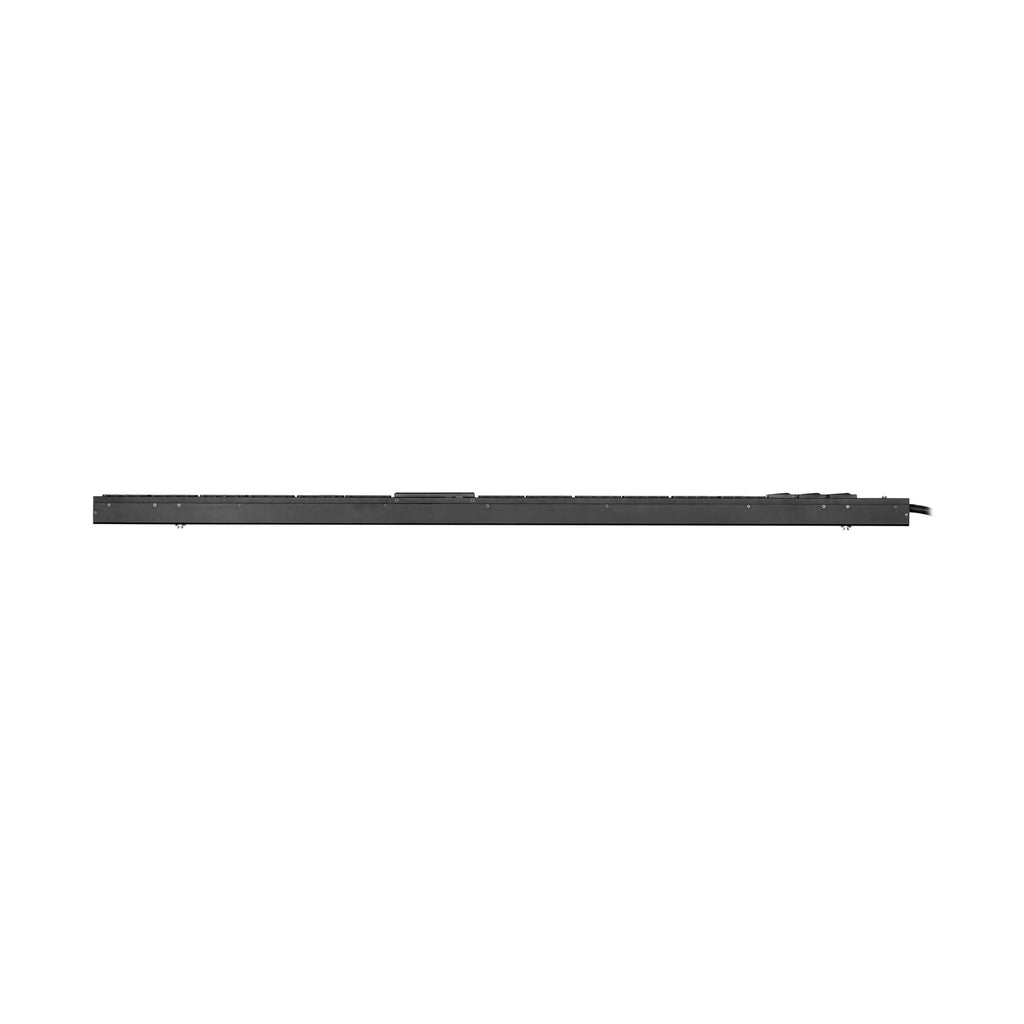

| Mounting | 0U Vertical; toolless mounting buttons |
| Material | Black Aluminum |
| Dimensions (HxWxD) | 74.8 x 2.0 x 2.08 in (189.99 x 5.08 x 5.28 cm) |
| Weight | 19.4 lbs (8.8 kg) |
| Monitoring | Outlet-level metering, switching, alerts, LCD display |
| Network Interface | Embedded Gigabit Network Module (GNM), Serial, Ethernet |
| Daisy-Chain Capability | Up to 40 PDUs |
| Environmental Sensors | Compatible (sold separately) |
| Certifications | UL 62368-1, CE, FCC Part 15 Class A, RoHS |
| Operating Temperature | 32°F to 140°F (0°C to 60°C) |
| Warranty | 3-Year Limited Warranty |
